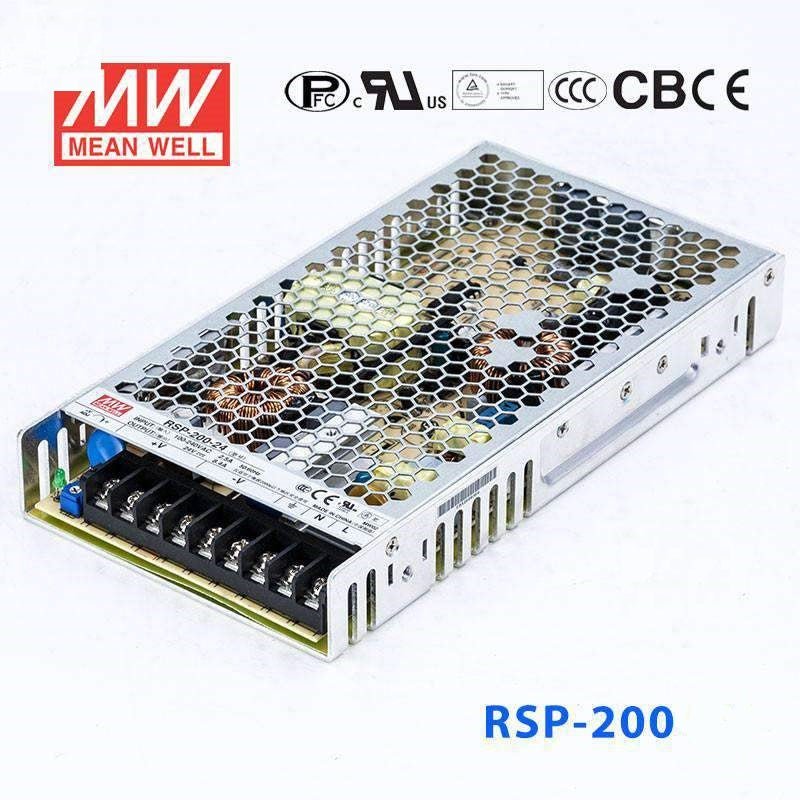

Mean Well RSP-200-48 Power Supply 200W 24V

1U low profile with active PFC, high efficiency
SKU:
RSP-200-48

$46.95 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Ultra low profile: 30mm
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in active PFC function
Cooling by free air convection
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~150%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC

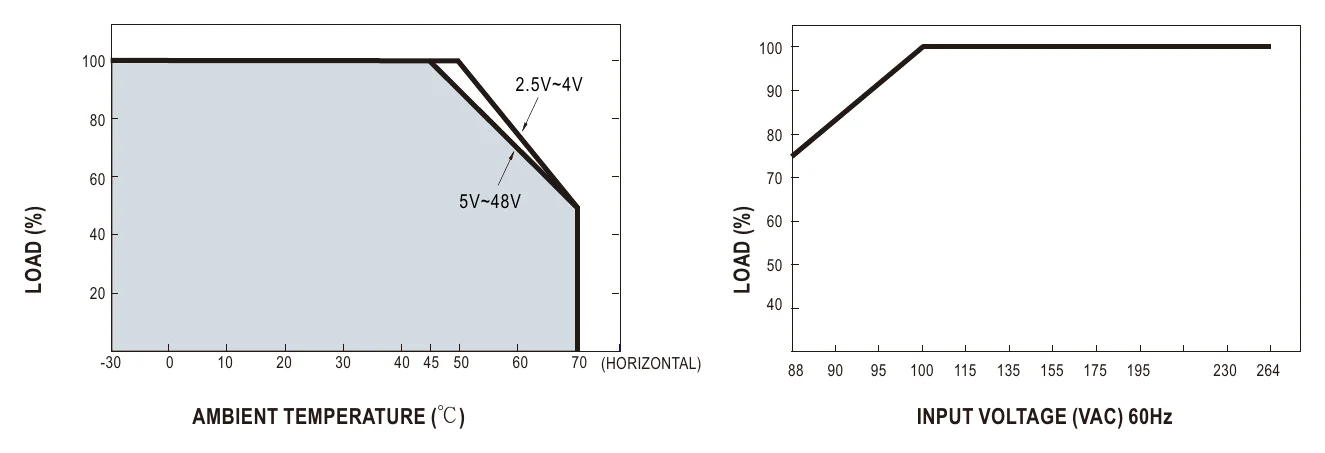

Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Connection 9P / 9.5mm pitch terminal block

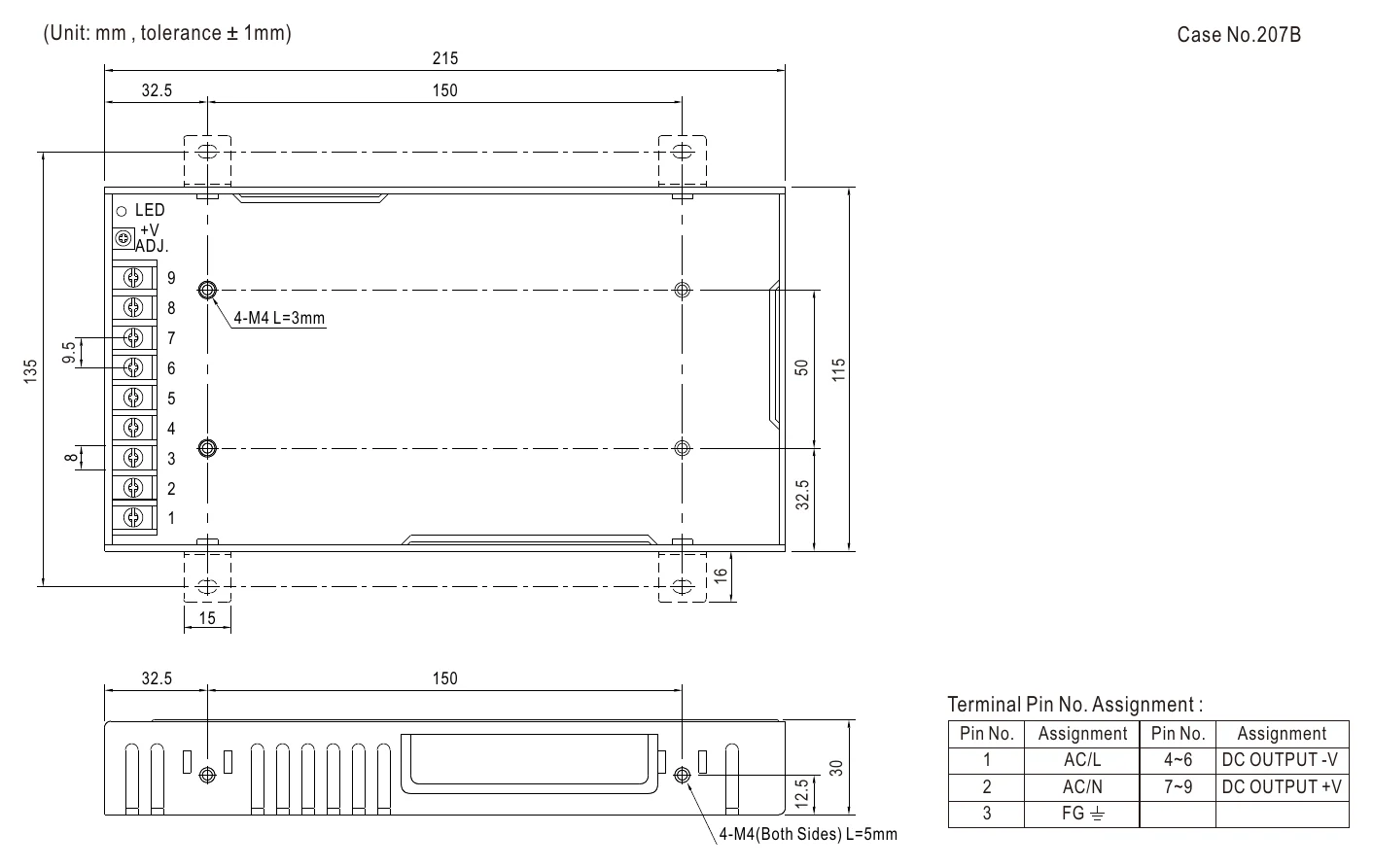

Dimension (LxWxH) 215x115x30

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    200 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    4.2 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    8.46 in
  • Width
    4.53 in
  • Height
    1.18 in
  • Weight
    1.59 lb

File Downloads

::specification::
