Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

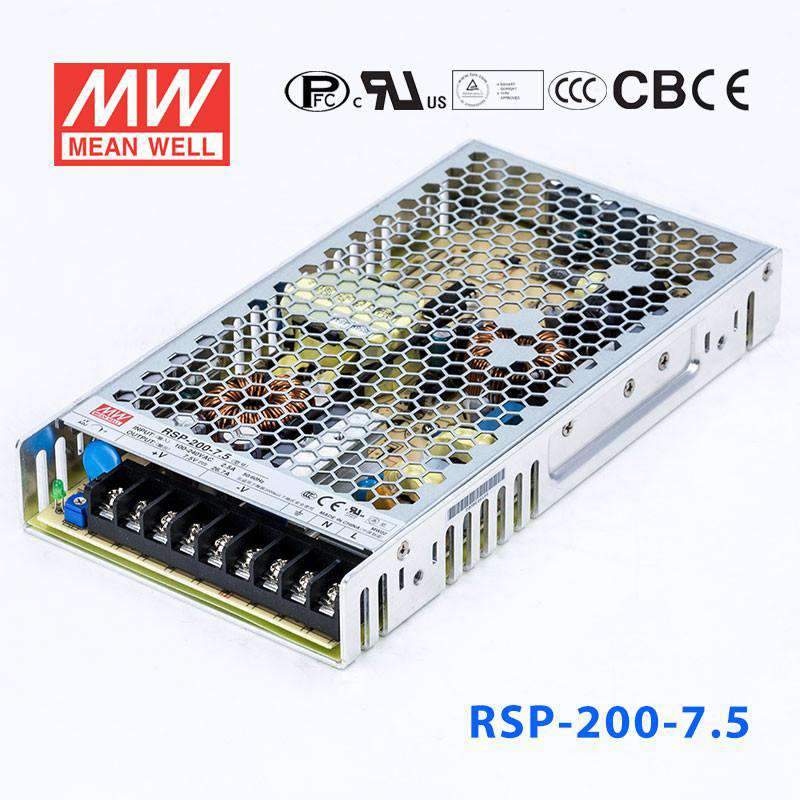

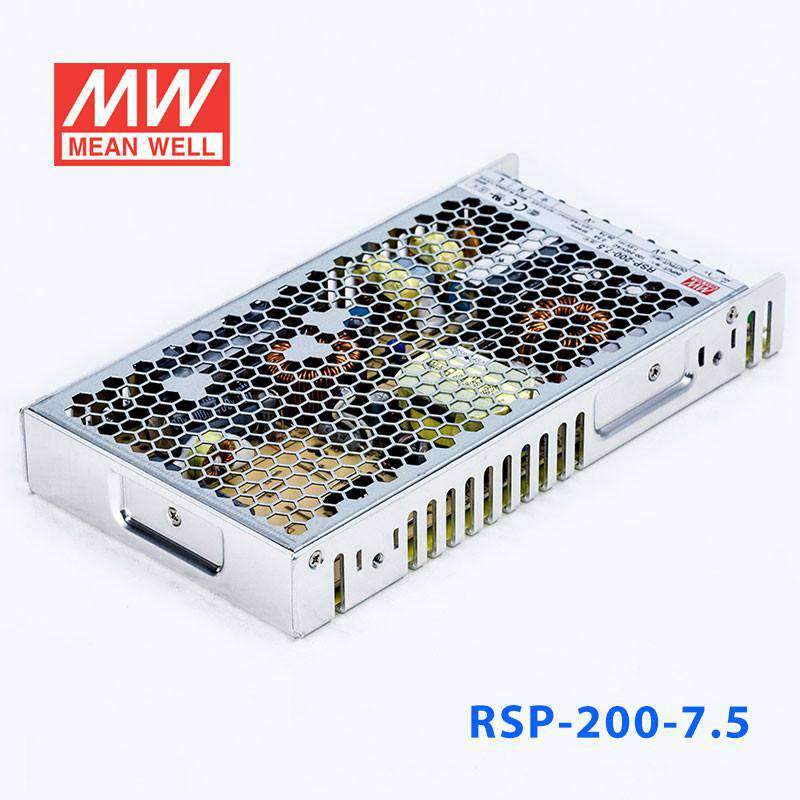

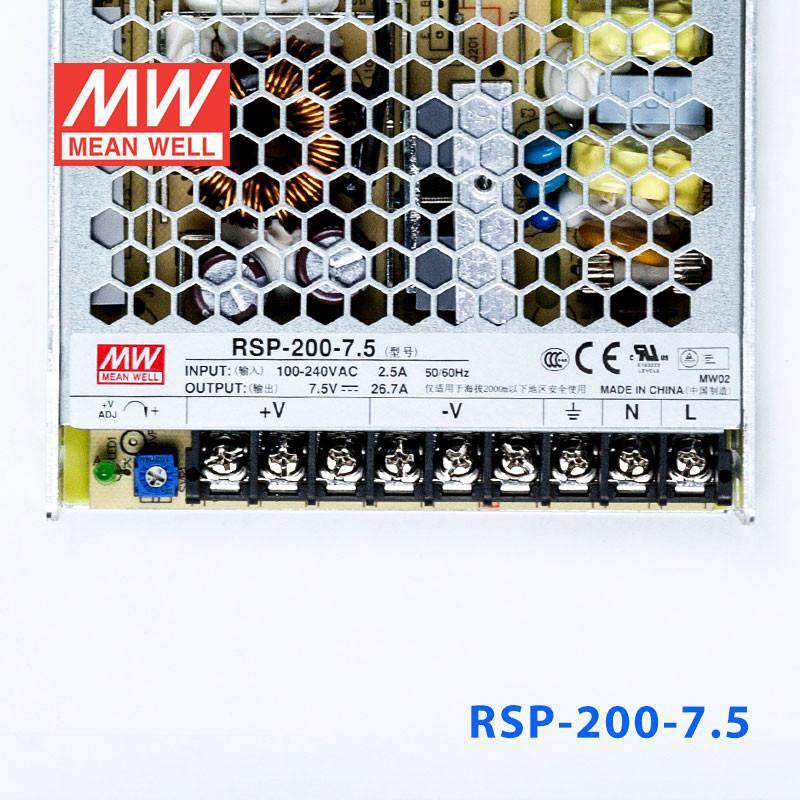

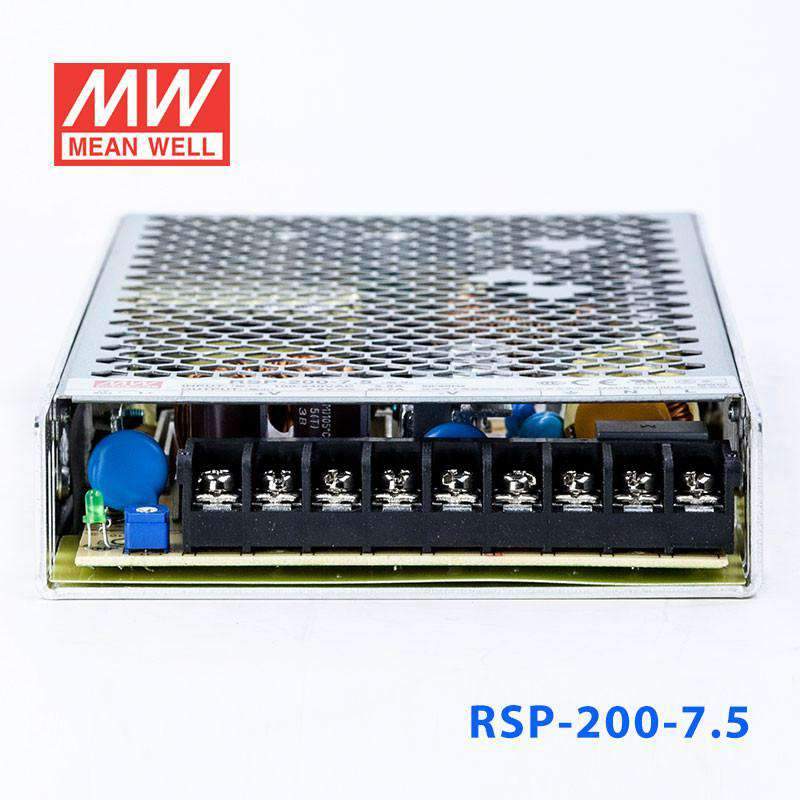

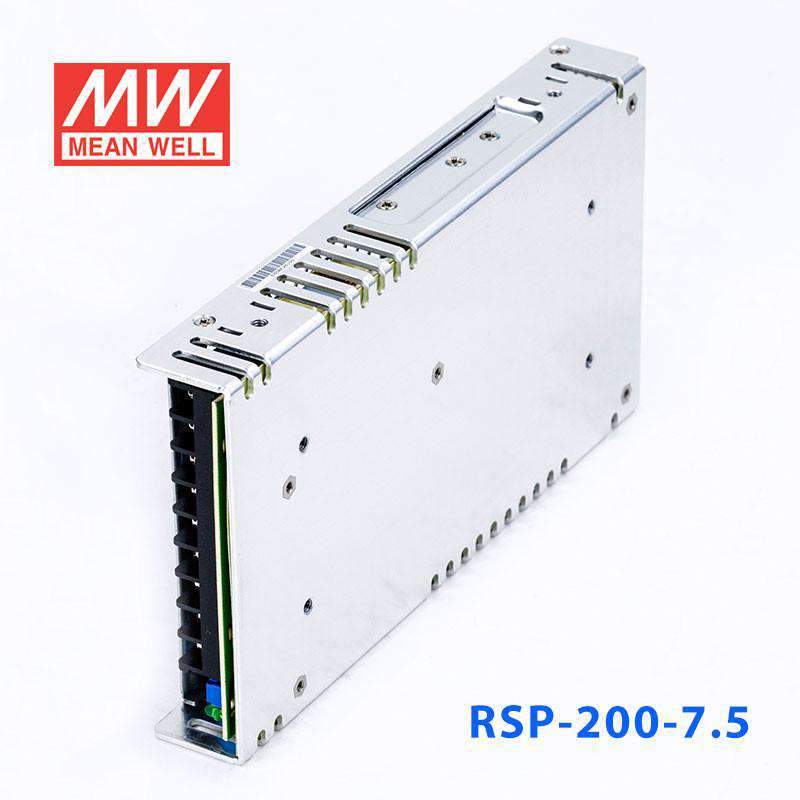

Mean Well RSP-200-7.5 Power Supply 200W 7.5V
The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).
Key Features
- ✓ 215mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200.25 Watt
-
Output Voltage7.5 Volt
-
Rated Current26.7 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.59 lb
::specification::
Frequently Asked Questions
What 7.5V applications can the RSP-200-7.5 support at 26.7A?
The RSP-200-7.5 delivers 7.5V at 26.7A (200.25W) and is suited for 7.5V rail industrial control boards, specialty embedded systems, CNC machine logic supplies, and multi-board 7.5V distribution panels. At nearly 27A it provides substantially more current than the RSP-150-7.5 at 20A. The 88–264VAC input accommodates worldwide mains.
How does the RSP-200-7.5 compare to the RSP-100-7.5 and RSP-150-7.5?
The RSP-100-7.5 delivers 7.5V at 13.5A (101.25W, 179mm). The RSP-150-7.5 delivers 7.5V at 20A (150W, 199mm). The RSP-200-7.5 delivers 7.5V at 26.7A (200.25W, 215mm). All are 1U low-profile with 30mm height. The RSP-200-7.5 is the highest-current 7.5V option in this platform family.
Is the RSP-200-7.5 compatible with Australian and New Zealand market requirements?
Yes. The RSP-200-7.5 holds c_rcm certification alongside BSMI, CB, CCC, CE, EAC, TÜV, and UL, making it eligible for deployment in Australia and New Zealand.
What is the operating temperature range of the RSP-200-7.5?
The RSP-200-7.5 is rated from -30°C to +70°C ambient, identical to all other RSP-200 models. No IP ingress rating is provided; the unit must be enclosed for protection in dusty or wet environments.
What are all the RSP-200 series voltage options?
The RSP-200 series voltage options are: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (200W/24V/8.4A), RSP-200-27 (200W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (200W/48V/4.2A).
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-200 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-200-12 Power Supply 200W 12V | 200.4W | 12V | 16.7A | Indoor | $40.75 | View |
| Mean Well RSP-200-24 Power Supply 200W 24V | 200W | 24V | 8.4A | Indoor | $43.95 | View |
| Mean Well RSP-200-5 Power Supply 200W 5V | 200W | 5V | 40A | Indoor | $48.85 | View |
