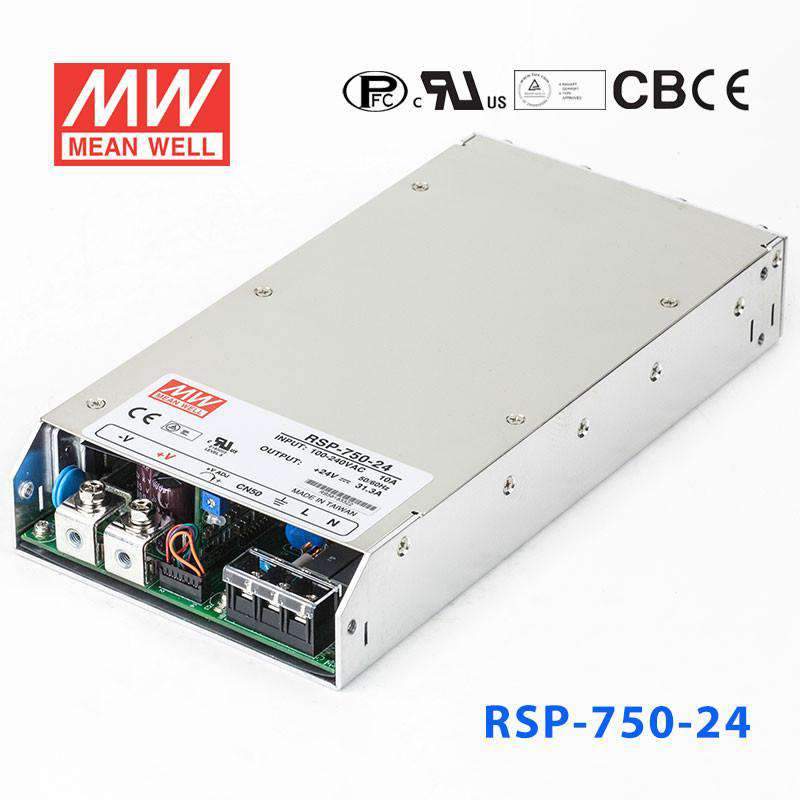

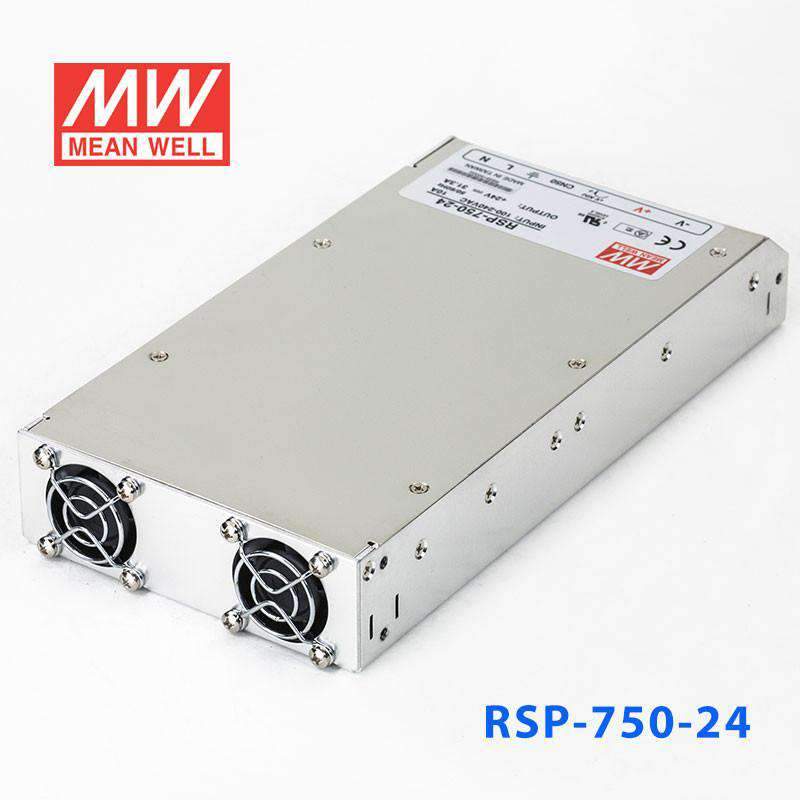

Mean Well RSP-750-24 Power Supply 750W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-750-24 Power Supply 750W 24V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Built-in constant current limiting circuit |
| Protections:Short circuit/ Overload / Over voltage |
| Cooling by free air convection |
| 1U low profile 30mm |
| Remote ON-OFF control |
| LED indicator for power on |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| Overload protection | 105%~135% Constant current limiting, auto-recovery |
| Over temperature protection | Shut down o/p voltage, re-power on to recover |
| Setup, rise, hold up time | 600ms,30ms,16ms at full load |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -25~+70ºC(refer to output derating curve) |
| Safety standards | UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved |
| EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Connection | 5P/9.5mm pitch terminal block |
| Dimension (LxWxH) (mm) | 159x97x 30mm |
| Packing | 30pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating751.2 Watt
-
Output Voltage24 Volt
-
Rated Current31.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.84 in
-
Width5 in
-
Height1.61 in
-
Weight3.62 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What systems commonly use the RSP-750-24 in industrial automation?
The RSP-750-24 delivers 751.2W at 24V and 31.3A, a strong match for large PLC systems, multi-axis servo controllers, and industrial robots running on a 24V DC bus. Its 1U form factor (250.0 × 127.0 × 41.0 mm) suits rack and panel enclosures.
What is the operating temperature range of the RSP-750-24?
The RSP-750-24 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL. A 5-year warranty is included.
How does the RSP-750-24 compare to the RSP-750-27 and RSP-750-48 at higher voltages?
All three share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-24 delivers 751.2W at 31.3A, the RSP-750-27 delivers 750.6W at 27.8A, and the RSP-750-48 delivers 753.6W at 15.7A. Total power is nearly identical across the three; current decreases as voltage increases.
Does the RSP-750-24 offer conformal coating?
Yes. The RSP-750-24 is available with optional conformal coating for added environmental protection. It achieves up to 92% efficiency, includes built-in active PFC, and weighs 1.64 kg.
