Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

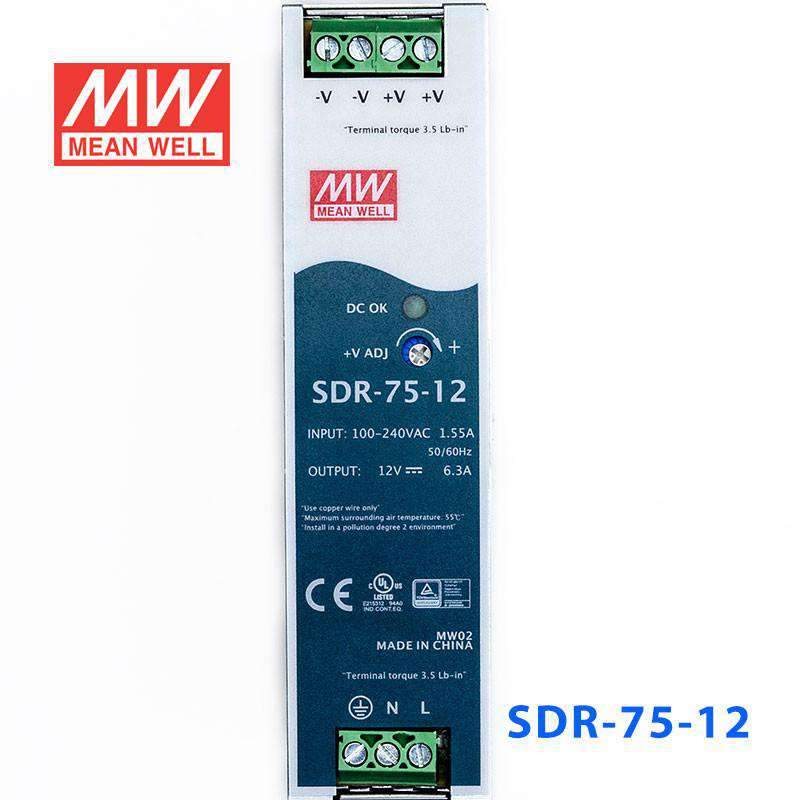

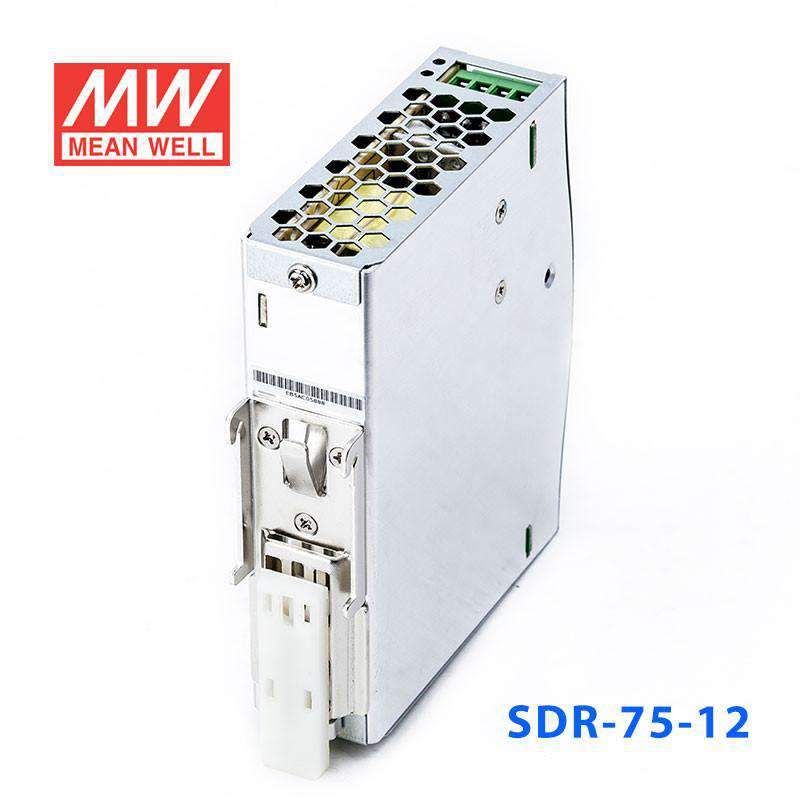

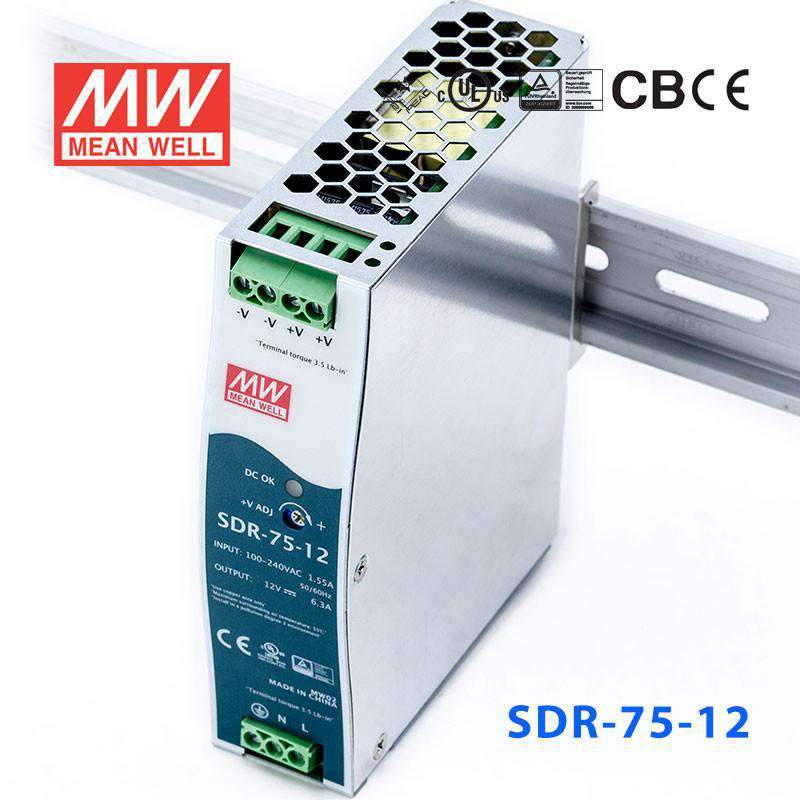

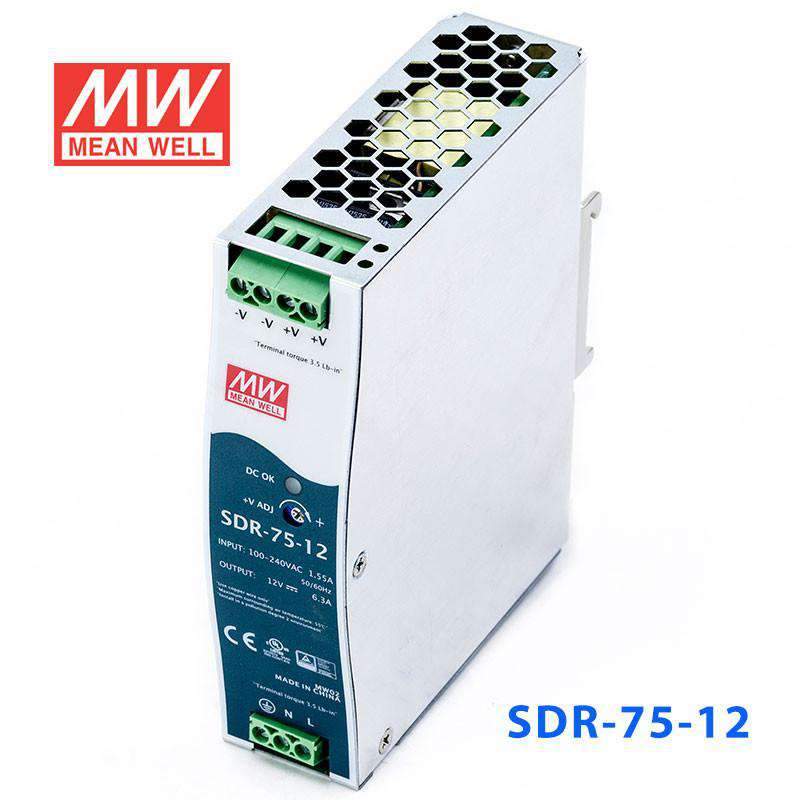

Mean Well SDR-75-12 Single Output Industrial Power Supply 75W 12V - DIN Rail
metal case, slim size, 94% high efficiency and complete functions, built-in active PFC, 130%~150% peak load capabolity
SKU:
SDR-75-12
$39.89 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SDR-75-12 Single Output Industrial Power Supply 75W 12V -...
$39.89 USD
Unit price /
Unavailable
Description
Description
Features
| High efficiency up to 94% |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

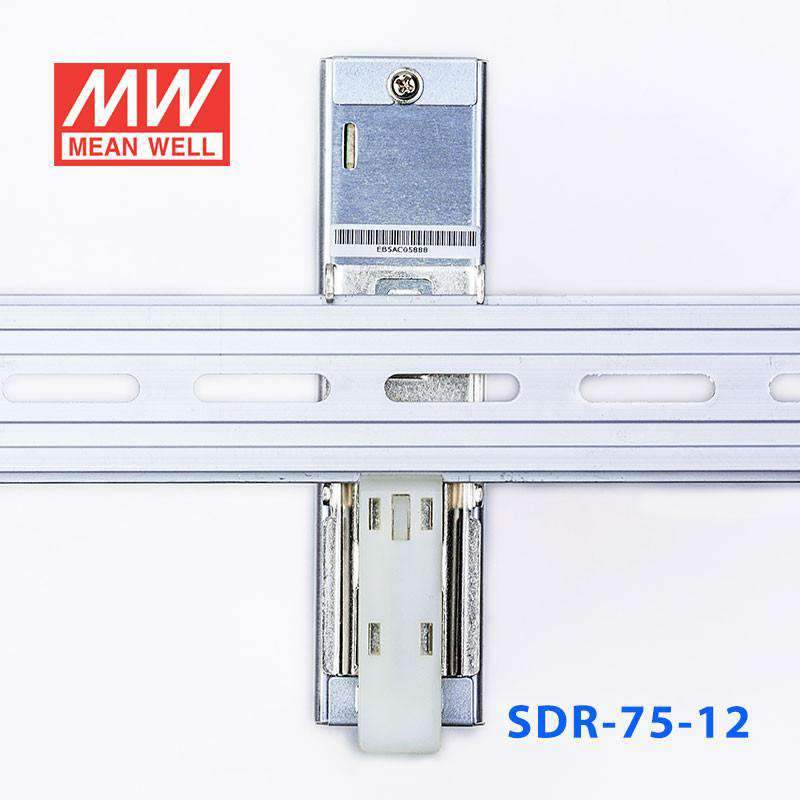

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| 150% peak load capability |
| Comply with SEMI F47 |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| DC adjustment range | 12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55V |
| Overload protection | Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75) |
| Overload protection | >150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds |
| Over voltage protection Range | 14~17V for 12V model |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Over temp. protection | Re-power on to recover |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC |
| Working temperature | -30~+70°C |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (WxHxD)(mm) | 32x125.2x102 |
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.02 in
-
Height1.26 in
-
Weight1.12 lb
