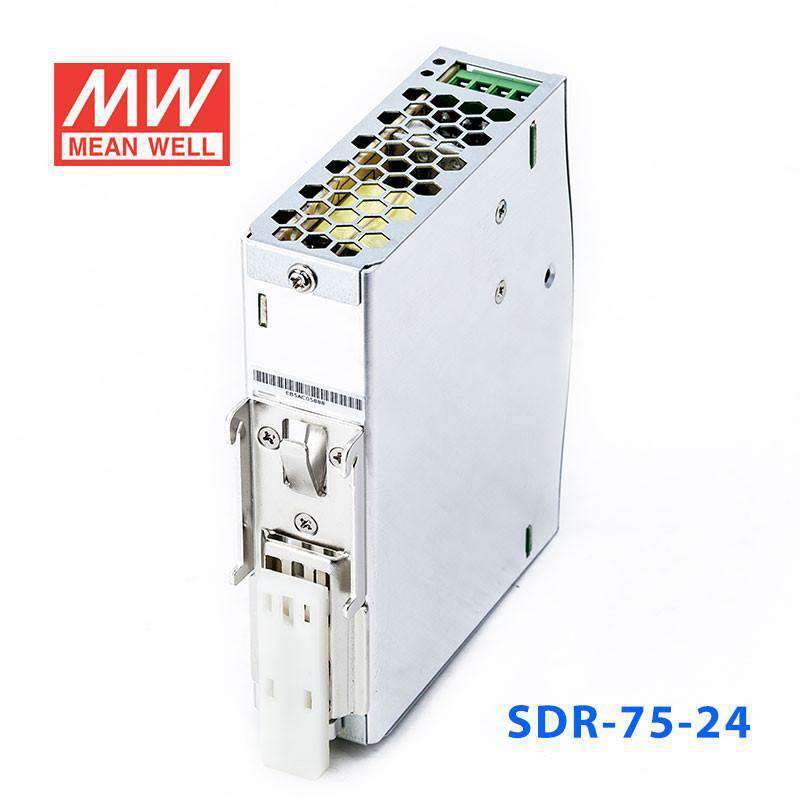

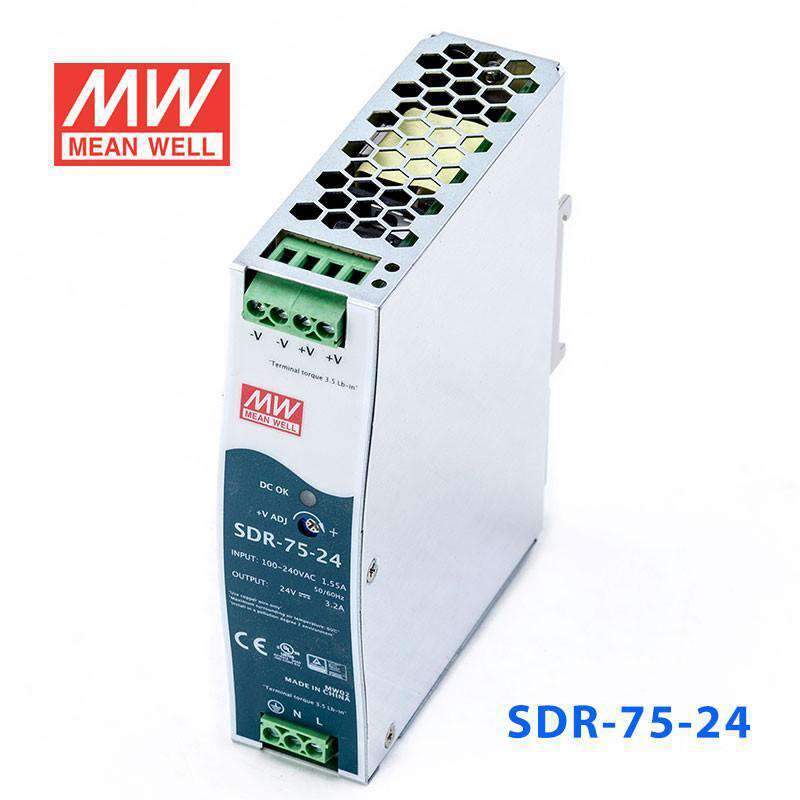

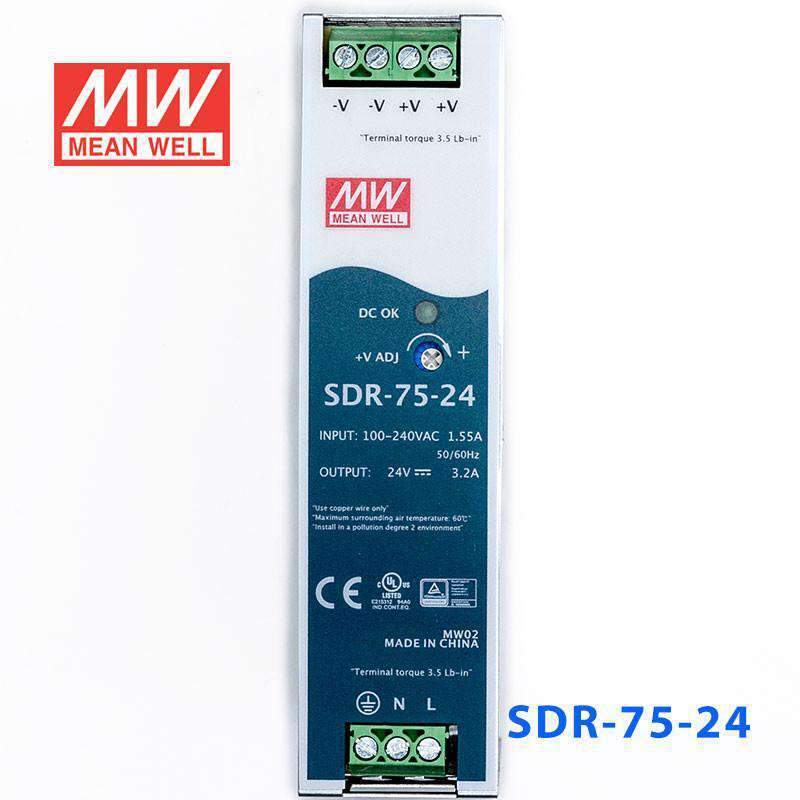

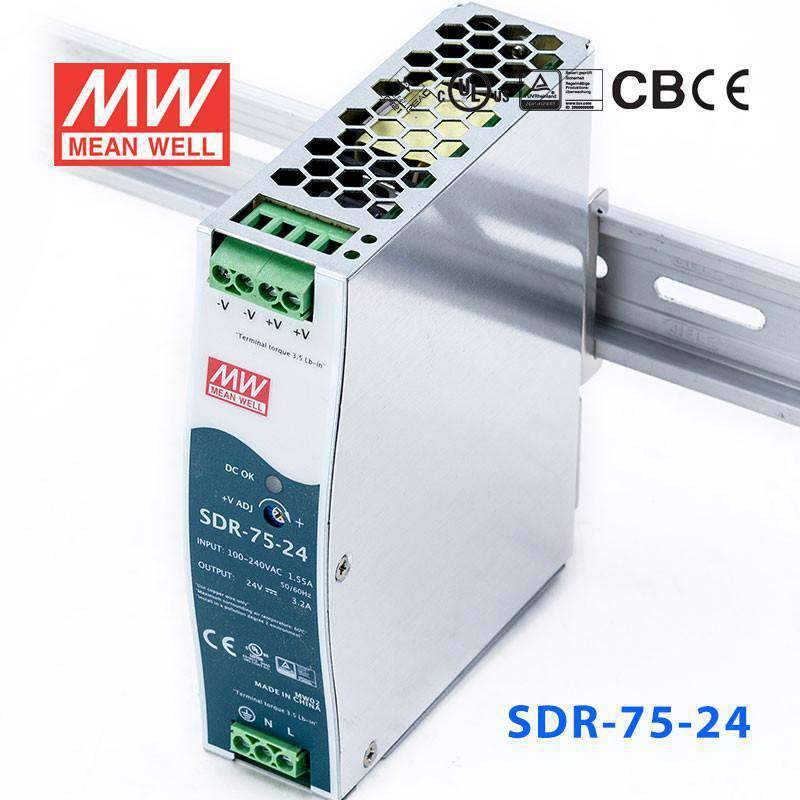

Mean Well SDR-75-24 Single Output Industrial Power Supply 75W 24V - DIN Rail

metal case, slim size, 94% high efficiency and complete functions, built-in active PFC, 130%~150% peak load capabolity
$39.89 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

High efficiency up to 94%
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

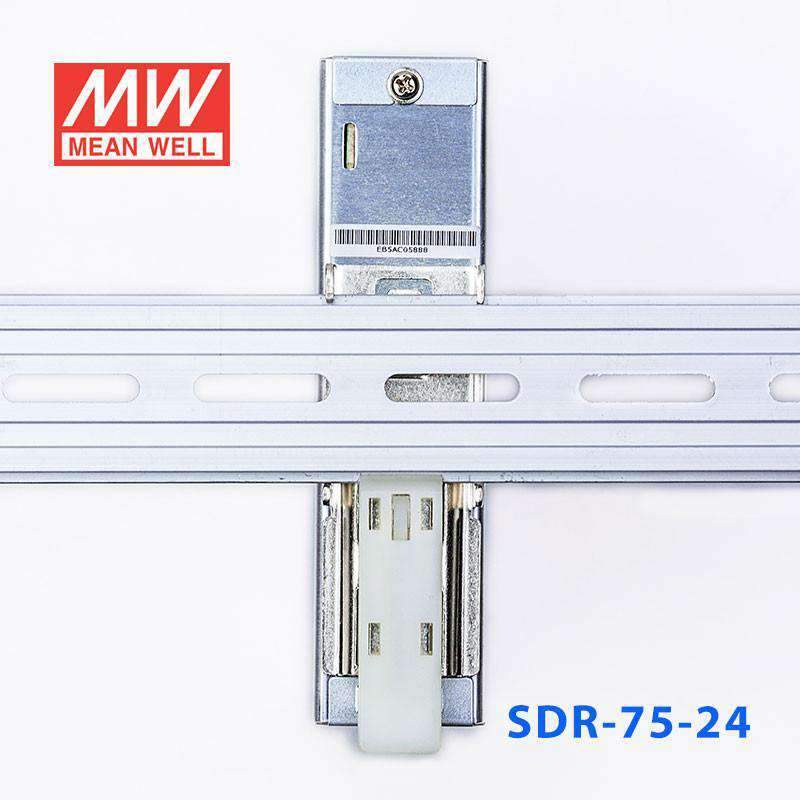

Can be installed on DIN rail TS-35 / 7.5 or 15
UL508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
150% peak load capability
Comply with SEMI F47
3 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range 12V: 12~14V (only for SDR-75/120), 24V: 24~28V, 48V: 48~55V
Overload protection Normally works within 110%~150% rated output power for 3 seconds and then shut down output voltage with auto-recovery (re-power on to recover for SDR-75)
Overload protection >150% rated power or short circuit, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
Over voltage protection Range 14~17V for 12V model
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Over temp. protection Re-power on to recover
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC
Working temperature -30~+70°C
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3; SEMI
Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (WxHxD)(mm) 32x125.2x102

Specifications

  • Brand
    Mean Well
  • Series
    SDR Series
  • Power Rating
    76.8 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.2 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,cUL,EAC,TUV
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    4.93 in
  • Width
    4.02 in
  • Height
    1.26 in
  • Weight
    1.12 lb
