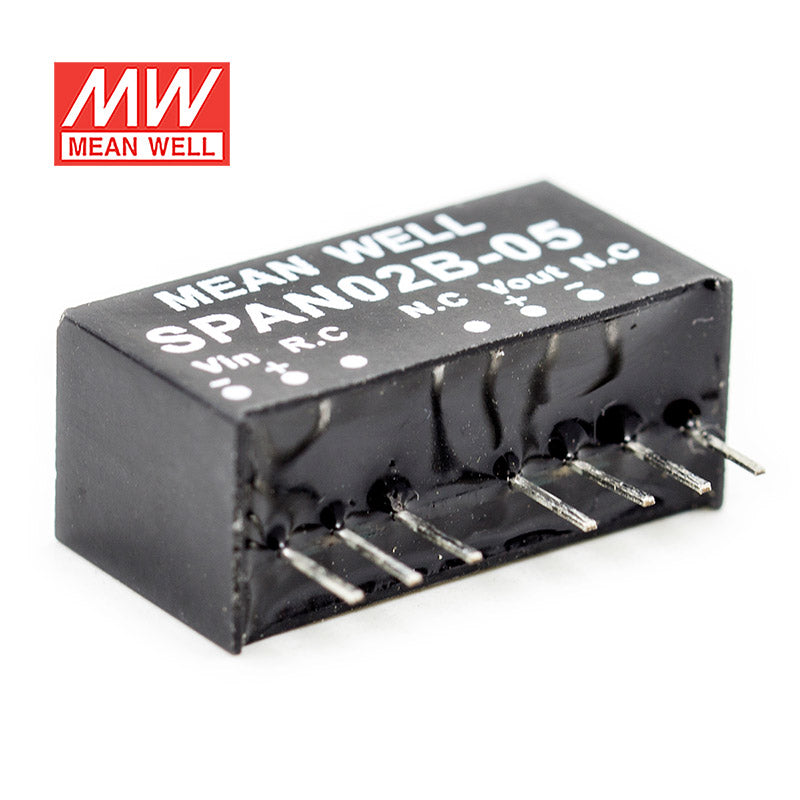

Mean Well SPAN02B-05 DC-DC Converter - 2W - 18~36V in 5V out 400mA
SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Key Features
- ✓SIP8 package with industry standard pinout 2:1 wide input range
- ✓Operating temperature range -40 ~ +90℃
- ✓No minimum load required
- ✓Comply to EN55032 radiated Class A without additional
- ✓Hcoigmhpeofnfiecinetnscy up to 85%
- ✓Protections: Short circuit (Continuous) / Overload
- ✓1.5KVDC I/O isolation
- ✓Remote ON/OFF control
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPAN Series
-
Power Rating2 Watt
-
Output Voltage5 Volt
-
Rated Current0.4 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPAN02B-05 to power 5V embedded controllers from a higher-voltage control supply?
Yes, it is intended for low-power 5V electronics that need constant voltage output from an 18-36VAC input range. The 2W rating makes it a fit for embedded controllers, interface boards, and similar low-power circuits.
Is the SPAN02B-05 suitable for industrial sensor or communication modules that run on 5V?
It can be used where a regulated 5V rail is needed and the source is within 18-36VAC. With constant voltage operation and a 2W output rating, it aligns with low-power sensor, signaling, and communication electronics.
Can this model be used in automation boards where space is very limited?
Yes, its 21.8 × 11.1 × 9.2 mm dimensions and 0.0048 kg weight support use in tightly packed automation boards. That small footprint is useful when adding a dedicated 5V rail inside compact equipment.
Is the SPAN02B-05 appropriate for low-power HMI or control-panel electronics?
It is appropriate for low-power panel electronics that require a steady 5V output and fit within the 2W rating. The 18-36VAC input range makes it suitable for systems built around higher-voltage control power.
What are the differences between the SPAN02B-05 and the other SPAN02B versions?
All listed SPAN02B models are rated at 2W, but their outputs differ. The range includes SPAN02B-03 at 3.3V and 500A, SPAN02B-05 at 5V and 400A, SPAN02B-12 at 12V and 167A, and SPAN02B-15 at 15V and 134A.
Can the SPAN02B-05 be used in outdoor control boxes or harsh environments?
The converter is rated for -40°C to +90°C operation, which covers a wide temperature range for industrial equipment. No IP rating is listed, so the provided specs do not confirm outdoor exposure or washdown suitability.
