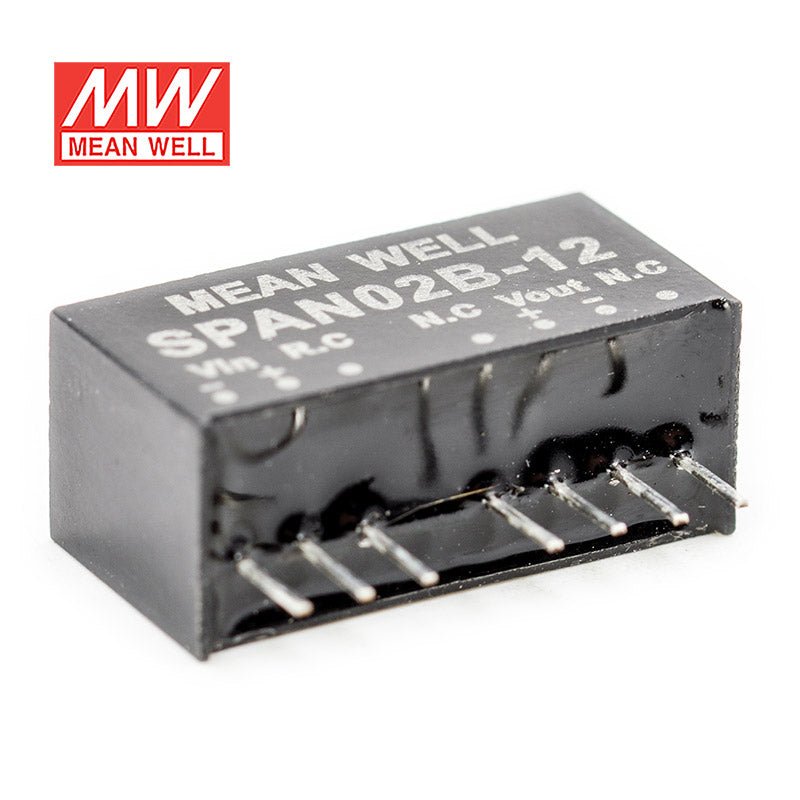

Mean Well SPAN02B-12 DC-DC Converter - 2W - 18~36V in 12V out

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

• SIP8 package with industry standard pinout 2:1 wide input range
• Operating temperature range -40 ~ +90℃
• No minimum load required
• Comply to EN55032 radiated Class A without additional
• Hcoigmhpeofnfiecinetnscy up to 85%
• Protections: Short circuit (Continuous) / Overload
• 1.5KVDC I/O isolation
• Remote ON/OFF control
• 3 years warranty

Applications

• Telecom/datacom system
• Wireless network
• Industrial control facility
• Instrument
• Analyzer
• Detector
• Data switch
