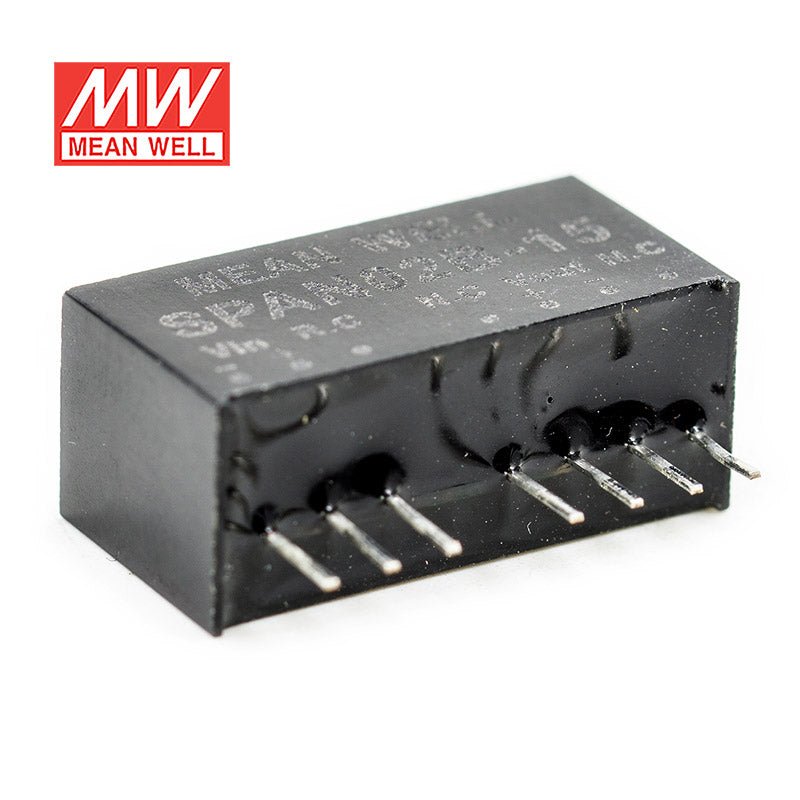

Mean Well SPAN02B-15 DC-DC Converter - 2W - 18~36V in 15V out

$7.87 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

"

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

  • SIP8 package with industry standard pinout 2:1 wide input range
  • Operating temperature range -40 ~ +90℃
  • No minimum load required
  • Comply to EN55032 radiated Class A without additional
  • Hcoigmhpeofnfiecinetnscy up to 85%
  • Protections: Short circuit (Continuous) / Overload
  • 1.5KVDC I/O isolation
  • Remote ON/OFF control
  • 3 years warranty

Applications

  • Telecom/datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch
"

Specifications

  • Brand
    Mean Well
  • Series
    SPAN Series
  • Power Rating
    2 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.13 Ampere
  • Input Voltage
    18V~36V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    3 Year
  • Length
    0.86 in
  • Width
    0.44 in
  • Height
    0.36 in
  • Weight
    0.01 lb
