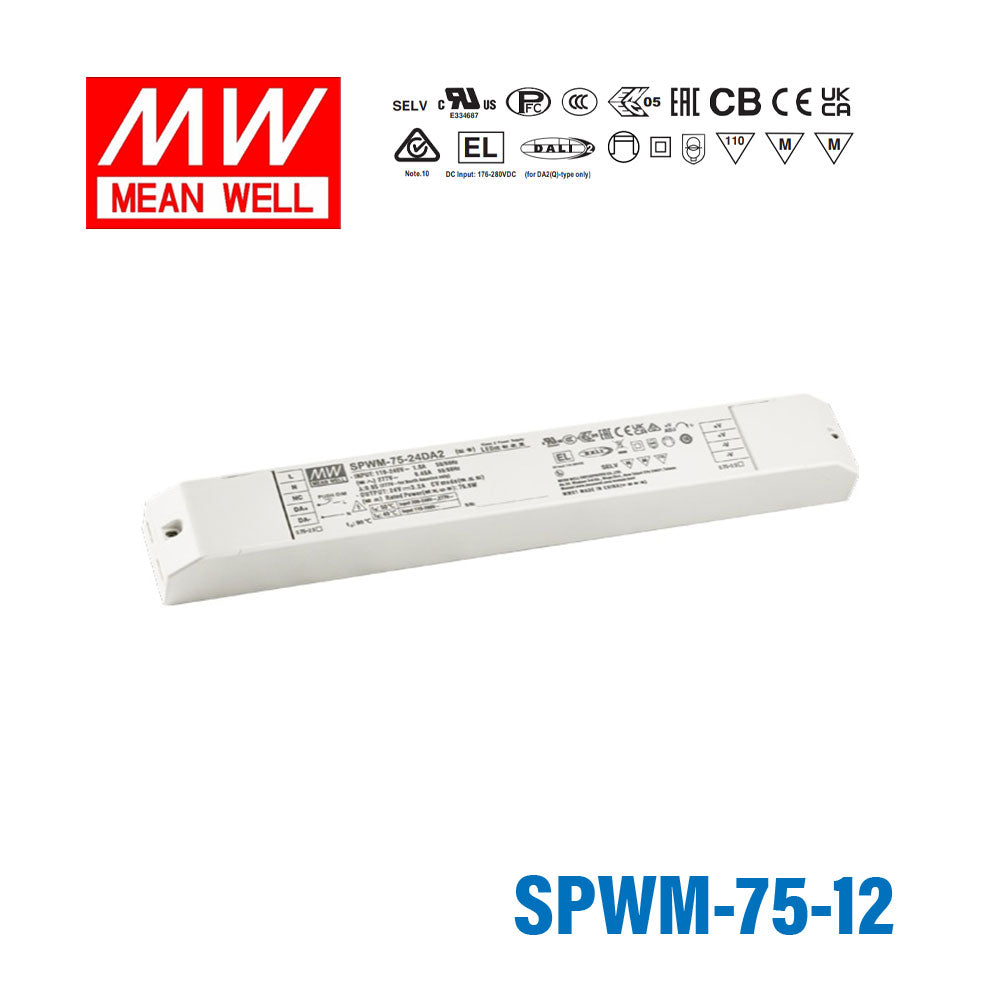

MEAN WELL SPWM-75-12 75.6W 12V CV LED Driver
Notify me when it's back in stock
Your order will be processed within 24 hours
MEAN WELL SPWM-75-12 75.6W 12V CV LED Driver
Description
Description
The MEAN WELL SPWM-75 series is a 75W constant voltage AC/DC LED driver featuring PWM-style output, specifically designed for LED strip lighting applications requiring stable brightness and consistent colour performance. Operating from a wide 100–305VAC input range with built-in active PFC, it supports both 12V and 24V output variants and achieves efficiency up to 90%. The driver utilises a fanless, free-air convection design within a slim plastic housing and delivers flicker-free operation compliant with CE ErP requirements. With 3-in-1 dimming support (0–10V, PWM signal, or resistance), the SPWM-75 provides flexible control for architectural, decorative, and residential lighting systems.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length11.42 in
-
Width1.5 in
-
Height1.12 in
-
Weight0.62 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the MEAN WELL SPWM-75-12 designed for?
The SPWM-75-12 is a constant voltage LED driver intended for 12V LED strip lighting applications. Its PWM-style output is designed to support stable brightness and consistent colour performance in those types of loads.
What are the key output specs of the SPWM-75-12?
This model provides a 12V DC output with a rated current of 6.3A. Its power rating is 75.6W, which makes it suitable for 12V constant voltage LED loads within that capacity.
What dimming methods does the SPWM-75-12 support?
The SPWM-75-12 supports 0-10V, 10V PWM, and resistance dimming control. That gives buyers flexibility when selecting a compatible dimming approach for commercial or architectural LED strip applications.
How does the SPWM-75-12 differ from constant current LED drivers?
The SPWM-75-12 is a constant voltage driver, not a constant current driver. It is intended for 12V constant voltage LED products such as LED strips, rather than LED loads that require a fixed current output.
Is the SPWM-75-12 suitable for demanding indoor or outdoor environments?
This model is specified for operation from -40°C to 80°C, which supports use across a wide ambient temperature range. It also uses a fanless free-air convection design in a slim plastic housing, which can be useful where low-maintenance operation is preferred.
What input range and efficiency can buyers expect from the SPWM-75-12?
The SPWM-75-12 operates from a wide 100-305VAC input range and includes active power factor correction. The SPWM-75 series reaches efficiency up to 90%, making it a practical choice for energy-conscious LED strip lighting projects.
What warranty is offered on the SPWM-75-12?
The SPWM-75-12 carries a 5-year warranty. For buyers specifying LED drivers for long-life projects, that can be an important factor when comparing lifecycle value and manufacturer support.
Other SPWM-75 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| MEAN WELL SPWM-75-24DA2Q 76.8W 24V CV LED Driver | 76.8W | 24V | 3.2A | Indoor | $35.70 | View |
| MEAN WELL SPWM-75-24DA2 76.8W 24V CV LED Driver | 76.8W | 24V | 3.2A | Indoor | $32.70 | View |
| MEAN WELL SPWM-75-24 76.8W 24V CV LED Driver | 76.8W | 24V | 3.2A | Indoor | $29.70 | View |
| MEAN WELL SPWM-75-12DA2Q 75.6W 12V CV LED Driver | 75.6W | 12V | 6.3A | Indoor | $35.70 | View |
| MEAN WELL SPWM-75-12DA2 75.6W 12V CV LED Driver | 75.6W | 12V | 6.3A | Indoor | $32.70 | View |
