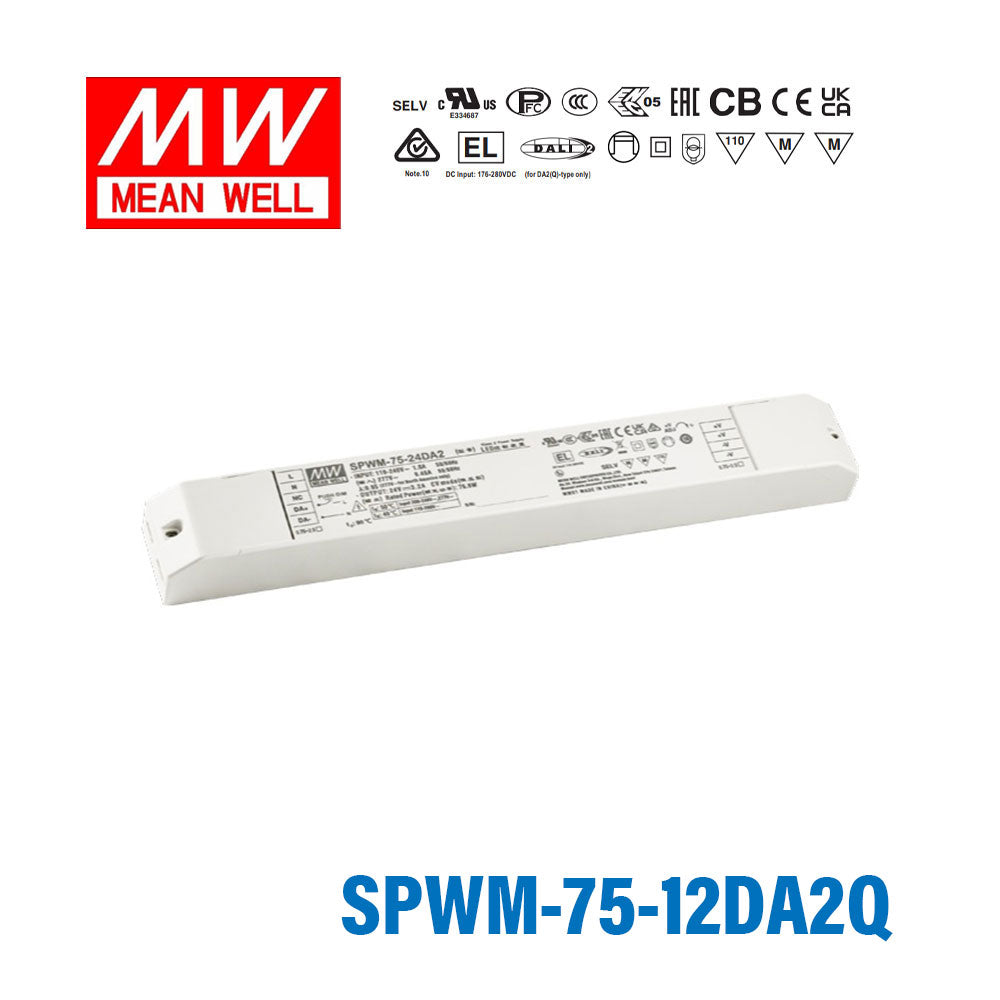

MEAN WELL SPWM-75-12DA2Q 75.6W 12V CV LED Driver 6.3A
The SPWM-75 is a 75.6W Mean Well AC-DC constant voltage LED driver (input: 100~305VAC, output: 12V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 6.3A
- ✓ DALI dimming support
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CE, EAC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage100V~305V
-
No of Output4
-
Dimming ControlDALI2,Push Dimming
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length11.42 in
-
Width1.5 in
-
Height1.12 in
-
Weight0.62 lb
::specification::
Frequently Asked Questions
What kind of lighting applications is the MEAN WELL SPWM-75-12DA2Q designed for?
This model is designed for constant voltage LED strip applications that need multi-channel control, such as tunable white and RGBW lighting. It is positioned for projects where colour mixing, colour temperature adjustment, and dimming are required from a single LED driver. That makes it relevant for commercial, architectural, and other controlled LED strip installations.
What makes the SPWM-75-12DA2Q different from a standard 12V LED driver?
The SPWM-75-12DA2Q is not just a basic 12V constant voltage driver because it supports DALI-2 DT8 control for advanced lighting adjustment. This variant is built for multi-channel output and is intended for tunable white and RGBW use cases rather than simple single-channel constant voltage lighting. Buyers choosing this model are usually looking for control flexibility as well as power conversion.
Is the SPWM-75-12DA2Q compatible with DALI-2 lighting control systems?
Yes. The product description specifically identifies this model as supporting DALI-2 DT8 lighting control, and it also supports PUSH dimming. That makes it suitable for projects where the control method is an important part of the product selection.
What are the main electrical ratings of the MEAN WELL SPWM-75-12DA2Q?
This model is rated at 75.6W output power with a 12V constant voltage output. Its rated current is 6.3A. Those published ratings make it a 12V constant voltage LED driver intended for applications that need higher-capacity LED strip power in this class.
Can the SPWM-75-12DA2Q be used in demanding temperature conditions?
This model has a stated operating temperature range from -40°C to 80°C. That wide range makes it more suitable than many general-purpose drivers for environments where ambient conditions may vary significantly. Final suitability still depends on the overall equipment design and operating conditions around the driver.
Does the SPWM-75-12DA2Q support low-maintenance operation for commercial projects?
Yes. The product description highlights fanless operation and a flicker-free design, both of which are relevant for professional lighting projects. It also carries a 5-year warranty, which is useful for buyers evaluating lifecycle expectations and long-term maintenance planning.
