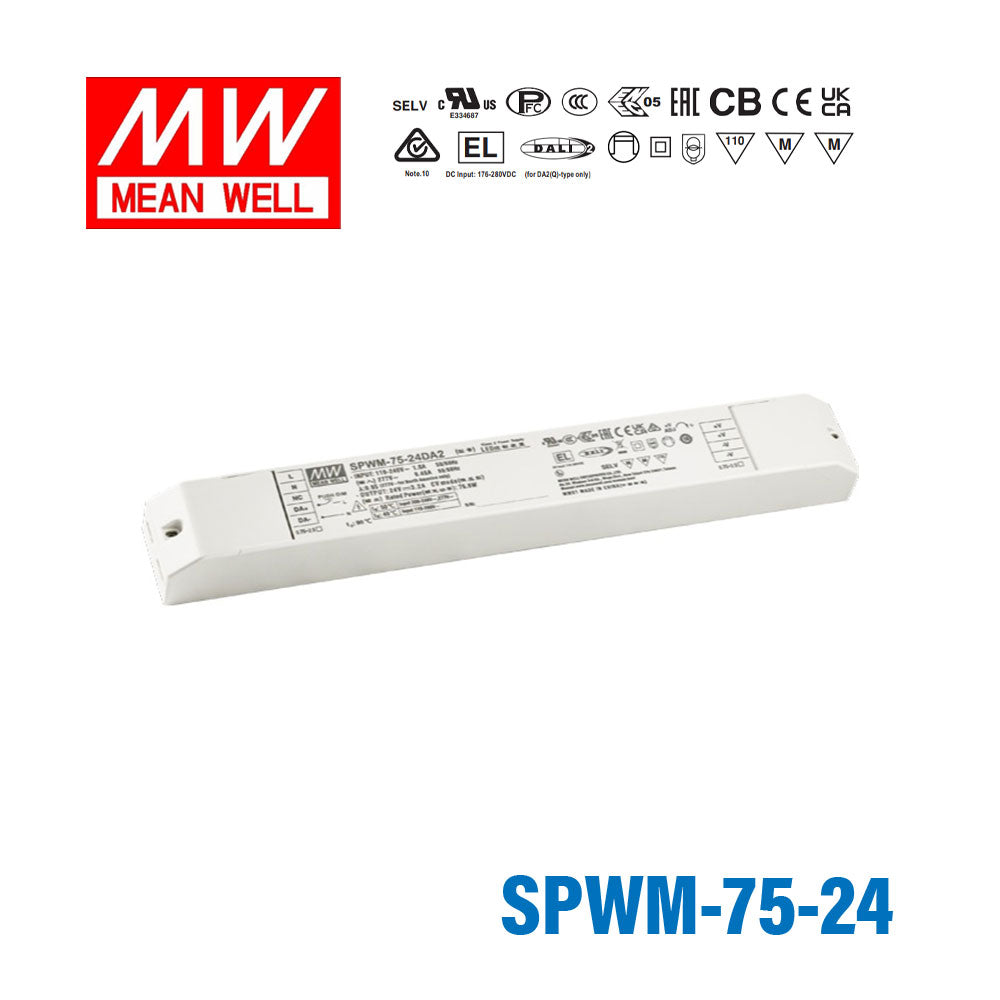

MEAN WELL SPWM-75-24 76.8W 24V CV LED Driver

The SPWM-75-24 is a constant voltage LED driver built for 24V LED strip lighting applications. Its PWM-style output is intended to support stable brightness and consistent colour performance in those systems. This model is not a constant current driver.

This model provides a 24V DC output and is rated for 3.2A, with a total power rating of 76.8W. It operates from a wide 100-305VAC input range and includes active power factor correction. These specifications make it suitable for constant-voltage LED loads that match its output rating.

The SPWM-75-24 supports 0-10V dimming, 10V PWM dimming, and resistance-based dimming control. That gives buyers flexibility when selecting a compatible dimming method for a commercial or architectural lighting project. The supported dimming types are specific to this model's listed control options.

This LED driver is specified for operation from -40°C to 80°C. It uses a fanless, free-air convection design, which can be useful where low maintenance and silent operation are preferred. Buyers should still confirm that the full operating environment stays within the product's rated temperature range.

The SPWM-75-24 is the 24V version, so it is intended for lighting systems that require a 24V constant-voltage output. Compared with a 12V variant, the key difference is the output voltage, which needs to match the voltage requirement of the LED load. This model's rated output is 24V at 3.2A.

The SPWM-75-24 combines active PFC, up to 90% efficiency, flicker-free operation, and a slim plastic housing in a 75W-class LED driver. It is backed by a 5-year warranty and weighs 0.28 kg, which can help when evaluating specification-driven projects. These details make it a practical option for buyers looking for a branded constant-voltage LED driver with dimming support.
