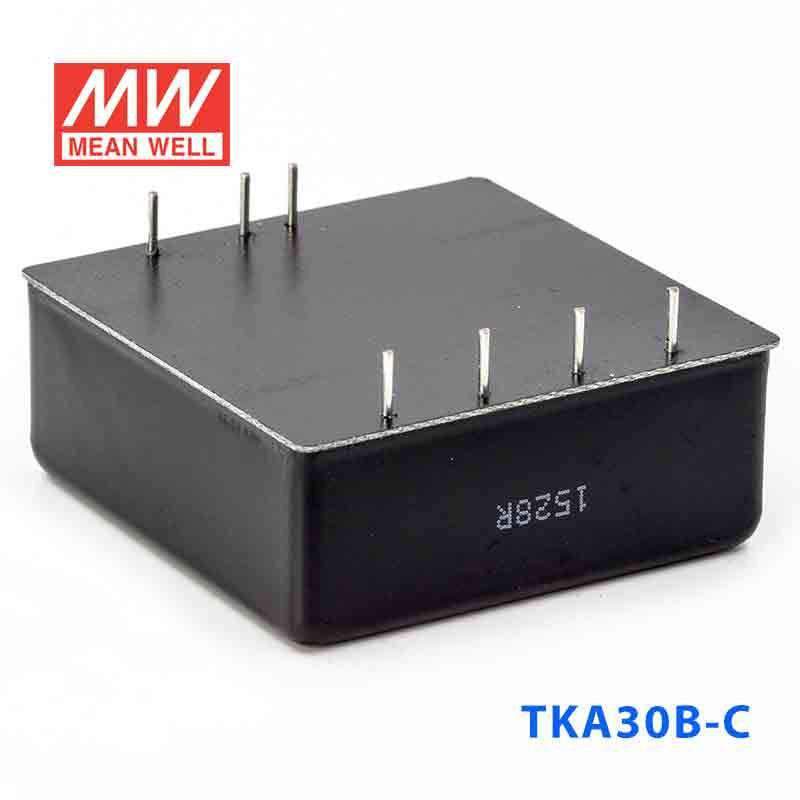

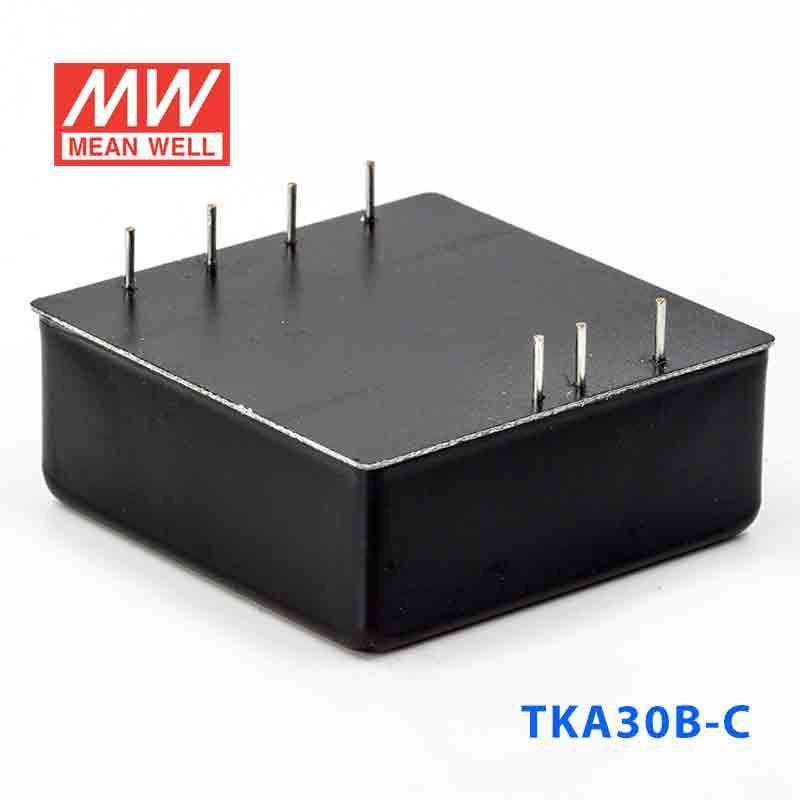

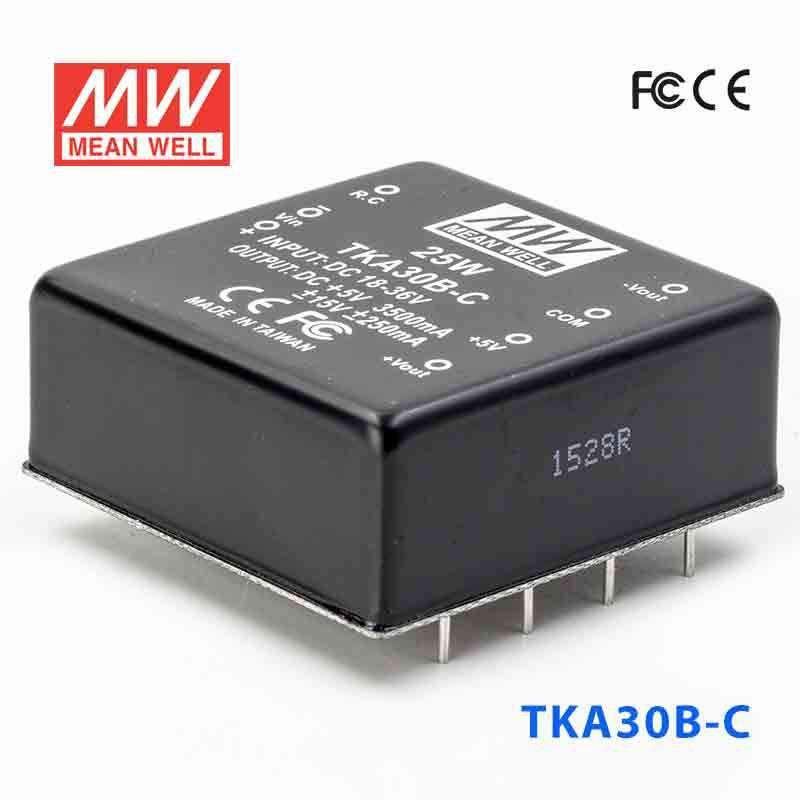

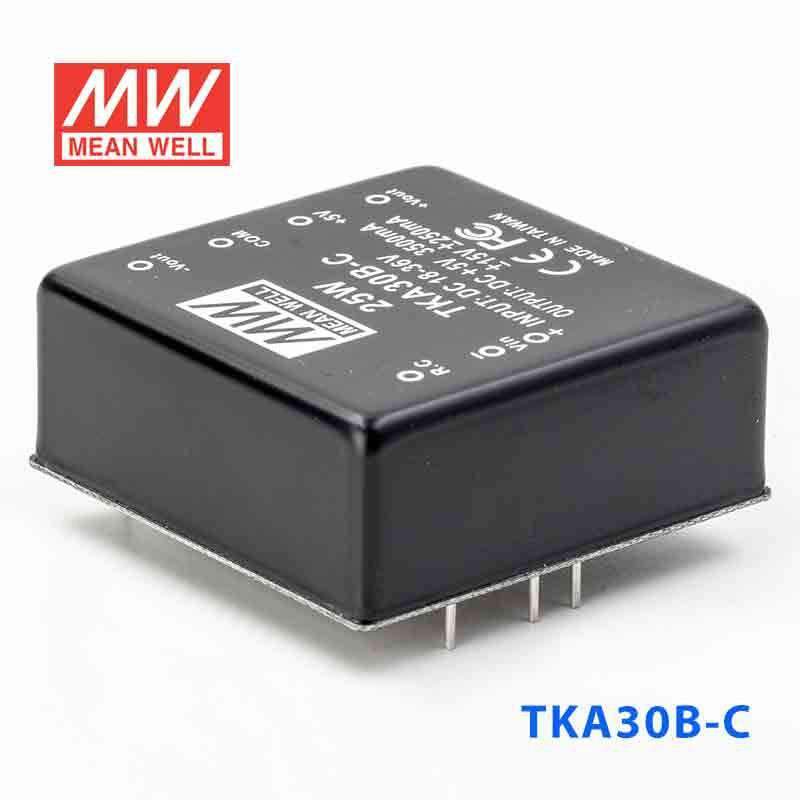

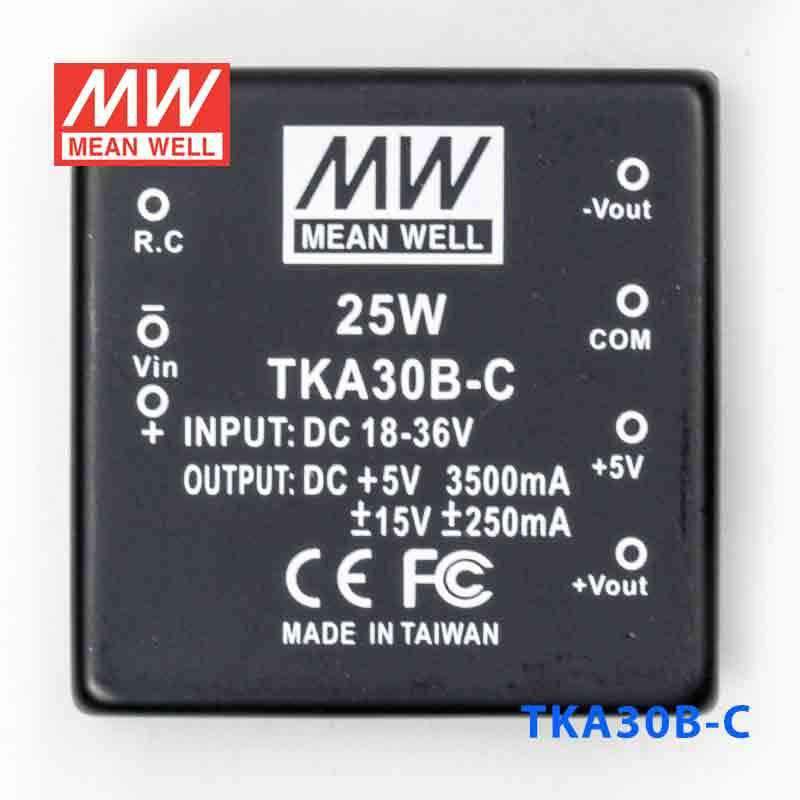

Mean Well TKA30B-C DC-DC Converter - 25W - 18~36V in ±12V out
Overview
TKA30B-C is the +5V / ±15V output model of this series: rated power 25W, typical efficiency 82%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- Built-in EMI filter
- Remote ON-OFF control
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- Epoxy encapsulated
- 100% burn-in test
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- +5V / ±15V
- CURRENT RANGE
- 700 ~ 3500mA / ±50 ~ ±250mA
- RATED POWER
- 25W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATIONNote.3
- ±1.0%
- LOAD REGULATIONNote.4
- +5V: ±2.0%, ±V1: ±5.0%
- VOLTAGE ACCURACY
- +5V: ±2.0%, ±V1: ±5.0%
- SWITCHING FREQUENCY
- 100KHz min.
INPUT
- VOLTAGE RANGE
- A: 9 ~ 18VDC B: 18~36VDC C: 36~72VDC
- EFFICIENCY (Typ.)
- 82%
- DC CURRENT Full load
- A: 2.61A B: 1.27A C: 0.64A
- DC CURRENT No load
- A: 40mA B: 18mA C: 10mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVERLOAD
- 110 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- REMOTE CONTROL
- Power on: R.C ~-Vin > 4.5~5.5VDC or open, Power off: R.C~ -Vin <0.8VDC or short
- MTBF
- 100Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*50.8*21.0mm or 2"*2"*0.82" inch (L*W*H)
- PACKING
- 110g ; 5pcs/per tube, 140pcs/28 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can the TKA30B-C be used in industrial control gear that has 18-36VDC available and needs ±15V output?
Yes, its published input range is 18-36VDC and its output is listed as +5V / ±15V. The unit is rated at 25W for loads that match those specifications.
Is this model appropriate for powering ±15V embedded electronics in automation systems?
It is intended for +5V / ±15V output from an 18-36VDC source. With a published power rating of 25W, it suits embedded electronics that stay within that power envelope.
Can I use the TKA30B-C for ±15V monitoring or control modules in a 24V-class DC environment?
It can fit that type of application when the source falls within 18-36VDC and the module requires ±15V output. The provided specs list 25W power and a published output current of ±50 ~ ±250mA.
Does the TKA30B-C fit space-constrained industrial or embedded builds?
The product is listed at 50.8 x 50.8 x 21.0 mm and 110g, so it is compact in physical size. Electrically, it is specified for 18-36VDC input and +5V / ±15V output.
Is the TKA30B-C suitable for outdoor exposure or just wide-temperature operation?
The published operating range is -40°C to +85°C, which supports use across broad temperature conditions. However, there is no IP rating in the provided specs, so the data does not confirm outdoor or wet-location suitability.
What is the spec difference between TKA30B-C and TKA30B-B?
According to the provided sibling data, both are listed as 25W converters with 18-36VDC input and identical dimensions of 50.8 x 50.8 x 21.0 mm. The published distinction is output voltage and current: TKA30B-C is listed at +5V / ±15V (±50 ~ ±250mA) and TKA30B-B is listed at ±12V (±62 ~ ±310mA).
