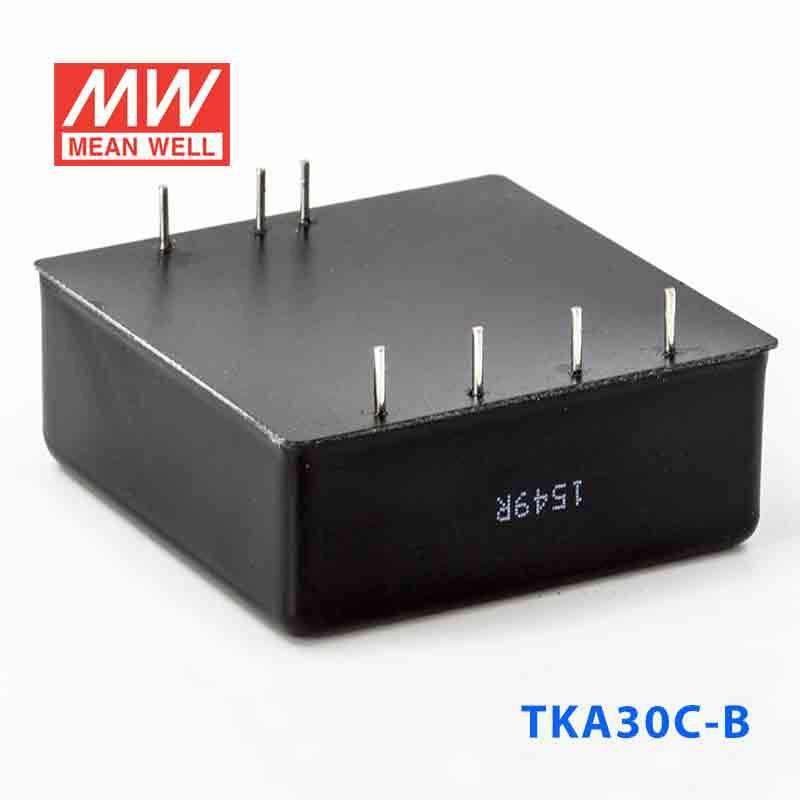

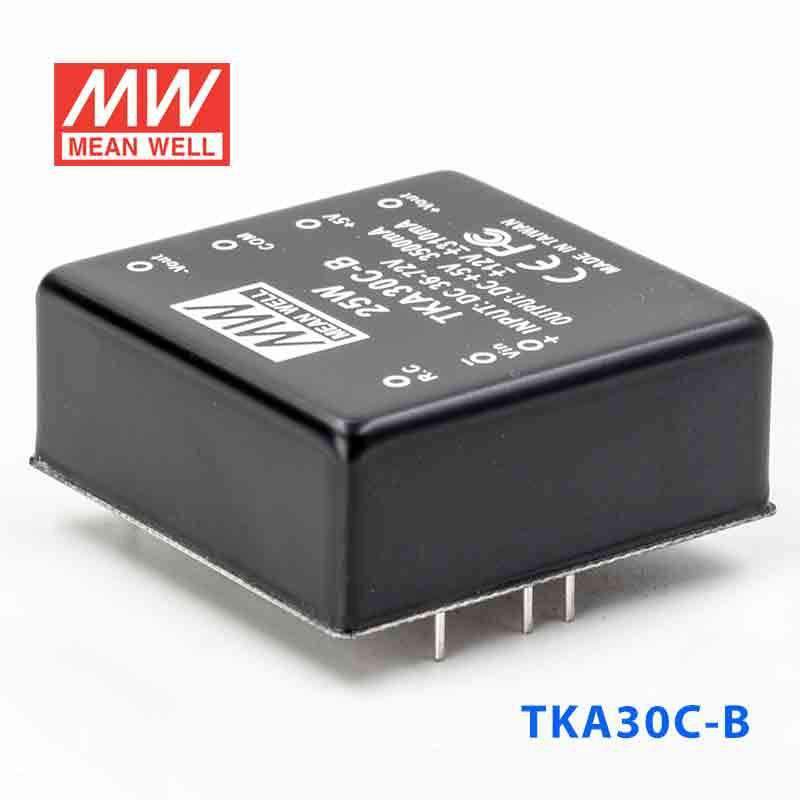

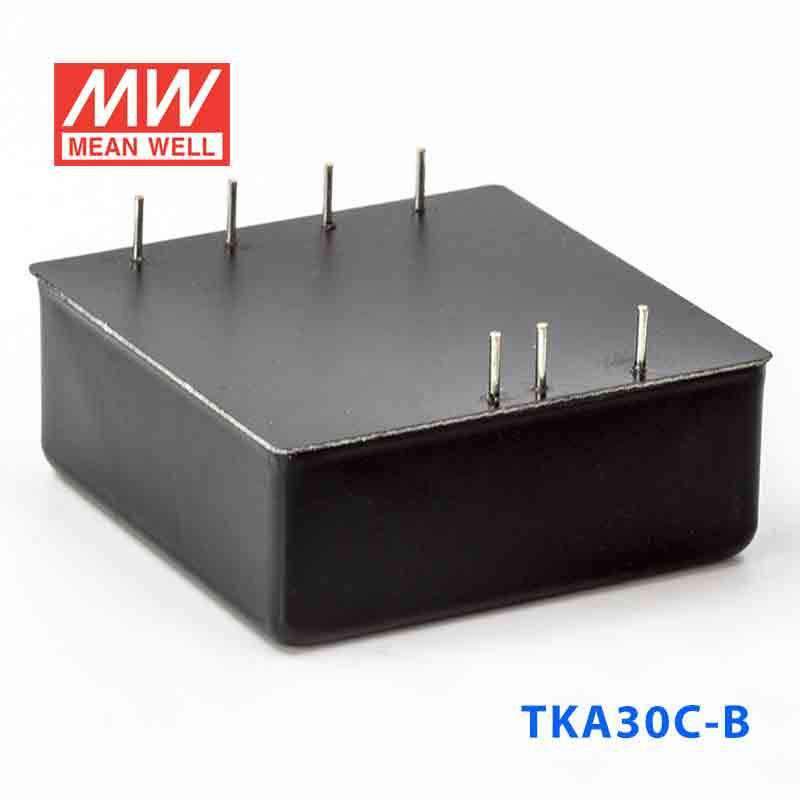

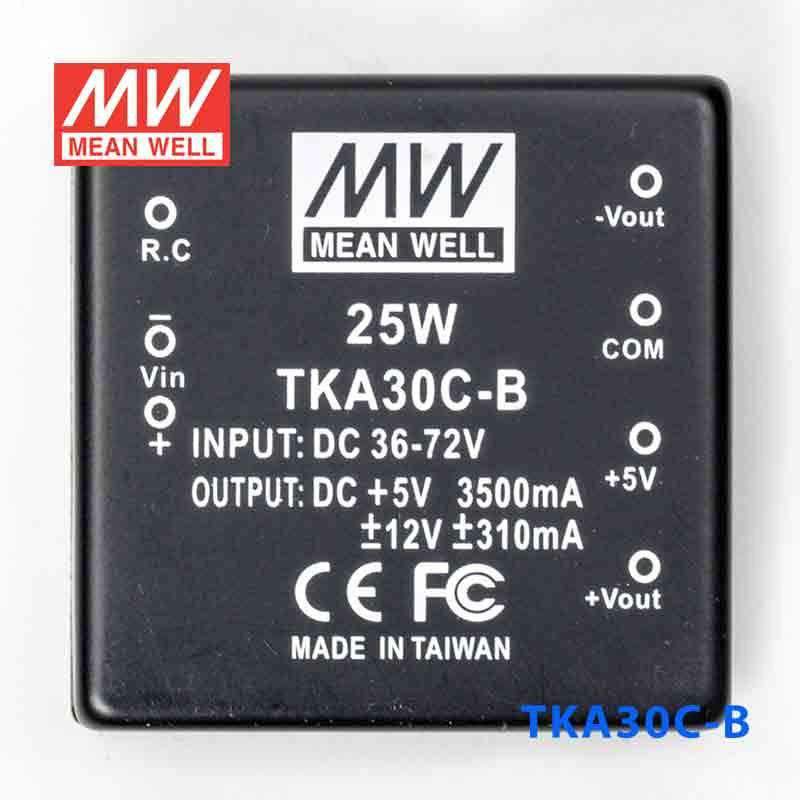

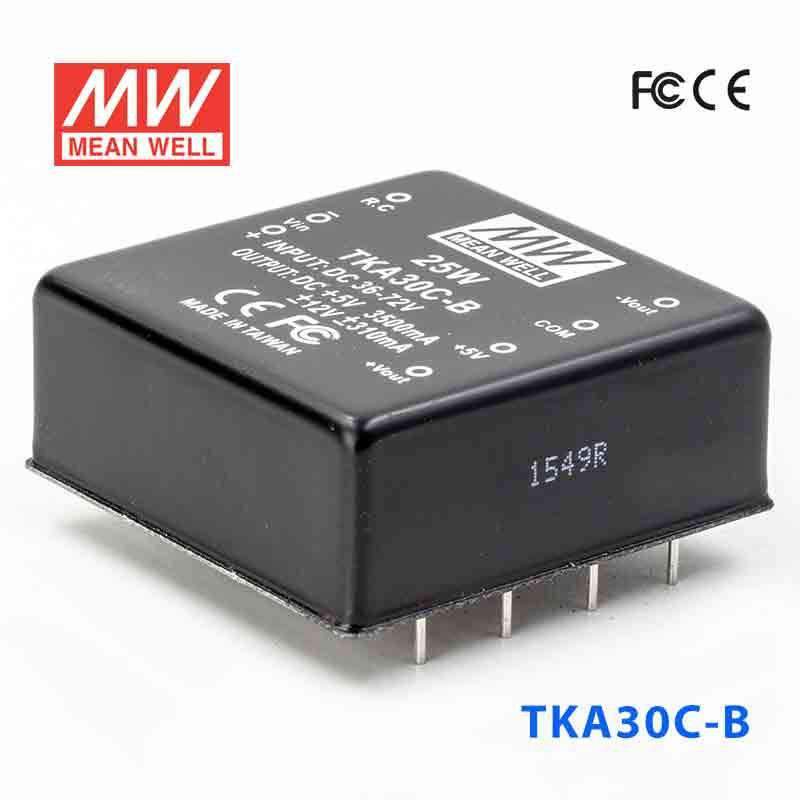

Mean Well TKA30C-B DC-DC Converter - 25W - 36~72V in ±12V out
Description
Description
The TKA30C is a 25W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY ℃ ℃ -40 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes , 10 ~ 95% RH ℃ (0 ~ 50 ) EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTKA Series
-
Power Rating25 Watt
-
Output Voltage12 Volt
-
Rated Current0.31 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.83 in
-
Weight0.24 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the TKA30C-B in a low-power industrial control panel that needs 12V output?
This model is a constant-voltage DC-DC converter with a 12V output and 25W power rating. It fits low-power industrial control or automation sections that stay within that 25W budget and use a 36-72VAC input range.
Is the TKA30C-B suitable for embedded electronics in equipment with a wide AC input range?
It is designed for 36-72VAC input, so it matches equipment that operates across that stated range. Its 12V constant-voltage output and 25W rating make it more appropriate for embedded control electronics than for higher-load 12V devices.
Can the TKA30C-B be used for automation subsystems where space is limited?
The unit measures 50.8 x 50.8 x 21.0 mm and weighs 0.11 kg, so it is relatively compact for enclosed automation hardware. It is still a 25W, 12V constant-voltage converter, so the load must fit within those limits.
What is the difference between the TKA30C-B and TKA30C-C?
Both models are 25W constant-voltage converters with 12V output, 36-72VAC input, 50.8 x 50.8 x 21.0 mm dimensions, 0.11 kg weight, -40 C to +85 C operating temperature, CE and c_emc certifications, and a 2-year warranty. The listed difference is output current: TKA30C-B is 310A and TKA30C-C is 250A.
Is the TKA30C-B suitable for outdoor or harsh-temperature use?
The specified operating range is -40 C to +85 C, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability is not established from this product data.
Other TKA30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well TKA30C-C DC-DC Converter - 25W - 36~72V in ±12V out | 25W | 12V | 0.25A | Indoor | $30.83 | View |
| Mean Well TKA30B-C DC-DC Converter - 25W - 18~36V in ±12V out | 25W | 12V | 0.25A | Indoor | $30.83 | View |
| Mean Well TKA30B-B DC-DC Converter - 25W - 18~36V in ±12V out | 25W | 12V | 0.31A | Indoor | $30.87 | View |
| Mean Well TKA30A-C DC-DC Converter - 25W - 9~18V in 5V out | 25W | 5V | 3.5A | Indoor | $30.83 | View |
| Mean Well TKA30A-B DC-DC Converter - 25W - 9~18V in 5V out | 25W | 5V | 3.5A | Indoor | $30.83 | View |
