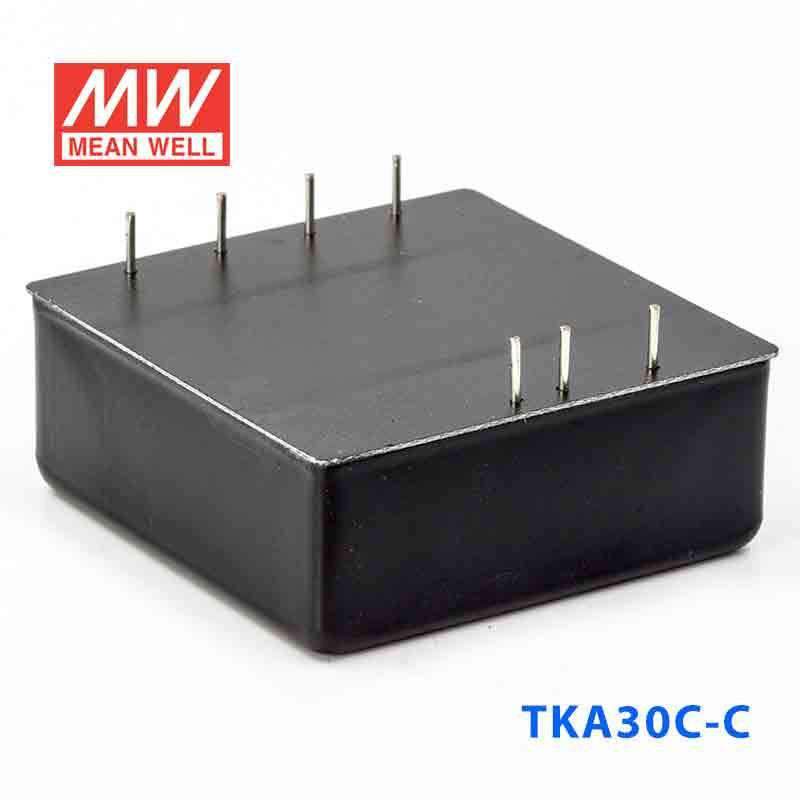

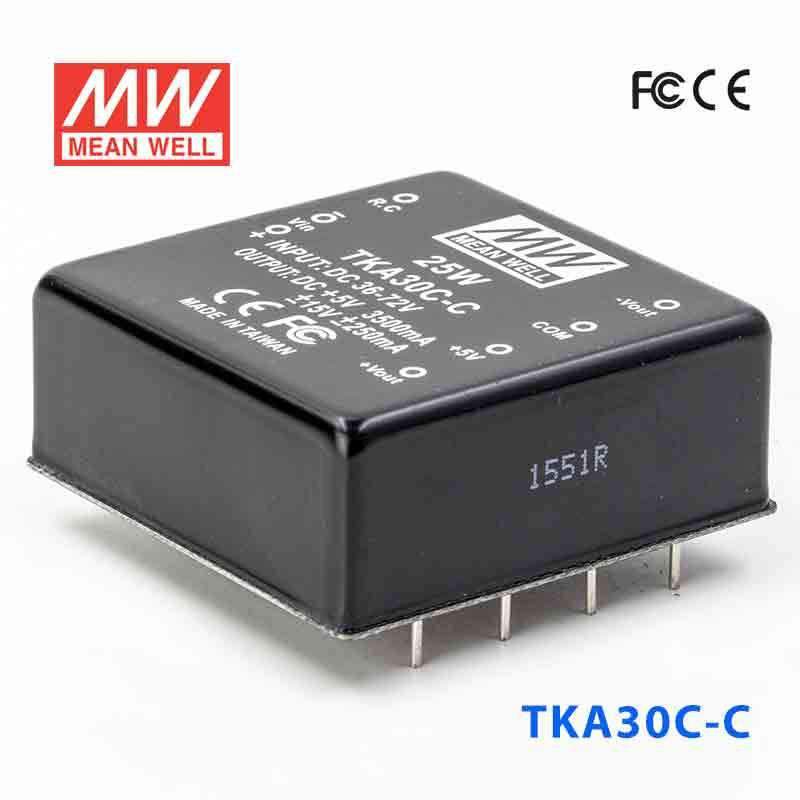

Mean Well TKA30C-C DC-DC Converter - 25W - 36~72V in ±12V out
Description
Description
The TKA30C is a 25W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY ℃ ℃ -40 ~ +105 ± 0.03% / 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes , 10 ~ 95% RH ℃ (0 ~ 50 ) EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTKA Series
-
Power Rating25 Watt
-
Output Voltage12 Volt
-
Rated Current0.25 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.83 in
-
Weight0.24 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the TKA30C-C for a compact embedded control board that needs regulated 12V power?
This model provides constant-voltage 12V output with a 25W power rating. That makes it a fit for compact embedded control sections that are designed around a 36-72VAC input range and stay within 25W.
Is the TKA30C-C appropriate for low-power automation electronics inside industrial equipment?
It is intended for applications needing 12V constant-voltage output from a 36-72VAC input source. With a 25W rating, it is better aligned with low-power automation electronics than with larger 12V loads.
Can the TKA30C-C work in small control enclosures or equipment bays?
Its mechanical size is 50.8 x 50.8 x 21.0 mm and its weight is 0.11 kg, which helps where board area and overall mass matter. Electrically, it remains a 25W, 12V converter, so enclosure fit does not change the load limit.
How does the TKA30C-C compare with the TKA30C-B?
The two models share the same 25W rating, 12V output, 36-72VAC input range, constant-voltage operation, 50.8 x 50.8 x 21.0 mm dimensions, 0.11 kg weight, -40 C to +85 C operating range, CE and c_emc certifications, and 2-year warranty. The listed output current differs: TKA30C-C is 250A, while TKA30C-B is 310A.
Can the TKA30C-C be used in indoor equipment exposed to low or high ambient temperatures?
The operating temperature range is -40 C to +85 C, so the converter is specified for very cold and very warm conditions within that band. Because no IP rating is provided, the specs do not confirm suitability for direct outdoor exposure.
Other TKA30 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well TKA30C-B DC-DC Converter - 25W - 36~72V in ±12V out | 25W | 12V | 0.31A | Indoor | $30.83 | View |
| Mean Well TKA30B-C DC-DC Converter - 25W - 18~36V in ±12V out | 25W | 12V | 0.25A | Indoor | $30.83 | View |
| Mean Well TKA30B-B DC-DC Converter - 25W - 18~36V in ±12V out | 25W | 12V | 0.31A | Indoor | $30.87 | View |
| Mean Well TKA30A-C DC-DC Converter - 25W - 9~18V in 5V out | 25W | 5V | 3.5A | Indoor | $30.83 | View |
| Mean Well TKA30A-B DC-DC Converter - 25W - 9~18V in 5V out | 25W | 5V | 3.5A | Indoor | $30.83 | View |
