Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

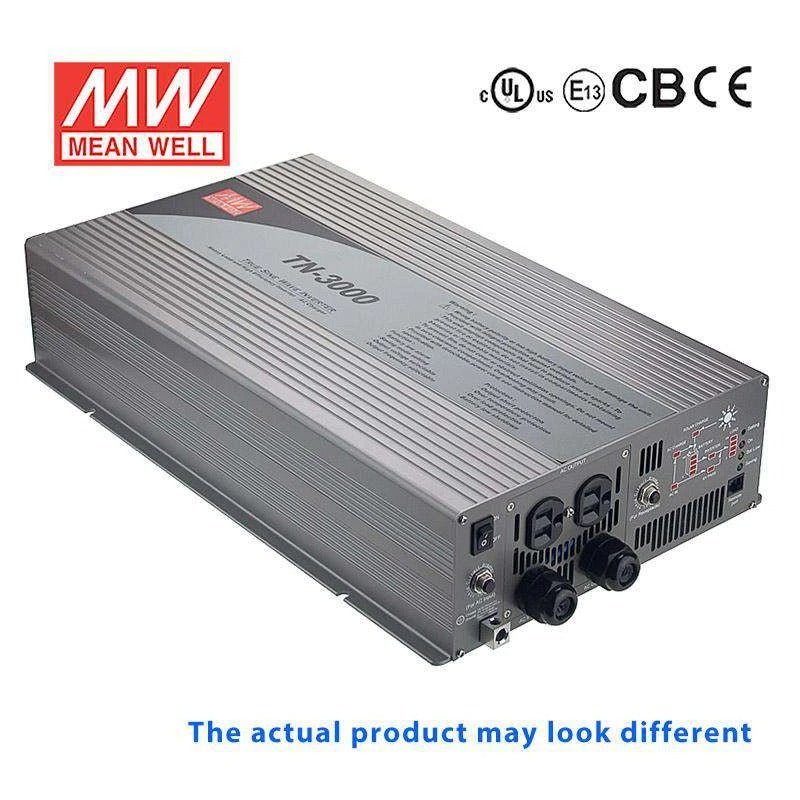

Mean Well TN-3000-112G True Sine Wave 40W 110V 15A - DC-AC Power Inverter
by-pass function, high surge power up to 200%, conformal coating
SKU:
TN-3000-112G
$1,261.35 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well TN-3000-112G True Sine Wave 40W 110V 15A - DC-AC Power In...
$1,261.35 USD
Unit price /
Unavailable
Description
Description
Features
| True sine wave output (THD<3%) |
| High surge power up to 6000W |
| High efficiency up to 92% |
| Standby saving mode can be selectable |
| Front panel indicator for operation status |
| Thermostatically controlled cooling fan |
| Power ON-OFF switch |
| Protections: Short circuit / Overload / Over voltage |
| Built-in solar / AC charger |
| Computer-based monitoring software (Note.7) |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC adjustable via front panel or monitoring software |
| AC output waveform | True sine wave,THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover |
| Overload | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | Bat I/P - AC I/P:3.0KVAC Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | 0~+60°C (refer to output derating curve ) |
| Safety standards | EN60950-1 approved |
| EMC standards | EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 466.8x283.5x100mm |
| Packing | 1pcs / 154kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesTN Series
-
Power Rating3000 Watt
-
Output Voltage110 Volt
-
Input Voltage10.5V~15V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length18.38 in
-
Width11.16 in
-
Height3.94 in
-
Weight28.44 lb
