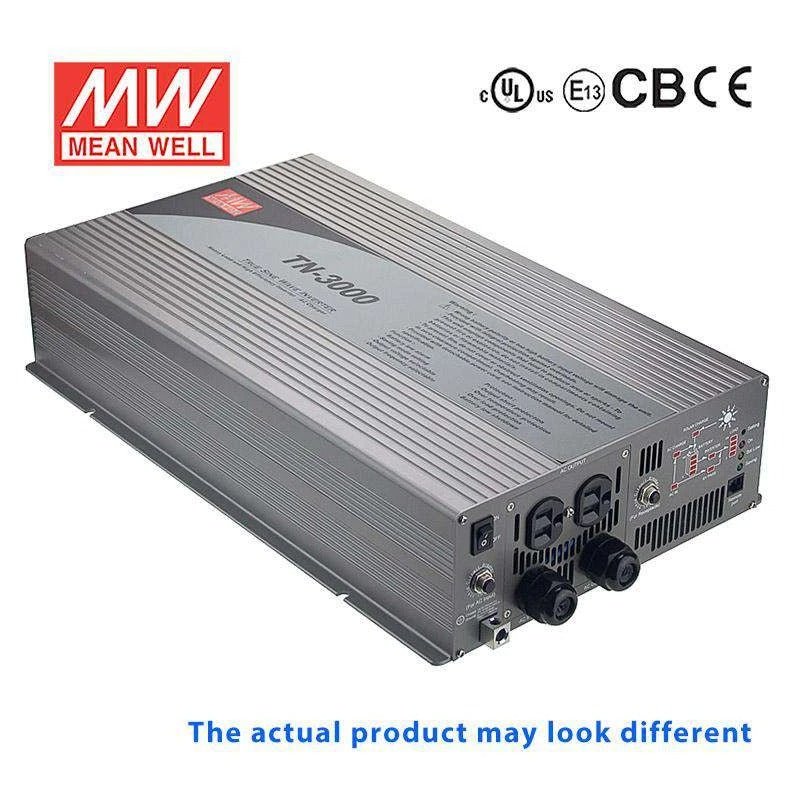

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well TN-3000-224B True Sine Wave 40W 230V 30A - DC-AC Power Inverter

$1,313.91 USD
Shipping calculated at checkout.

Your order will be processed within 24 hours

Description

Features

True sine wave output (THD<3%)
High surge power up to 6000W
High efficiency up to 92%
Standby saving mode can be selectable
Front panel indicator for operation status
Thermostatically controlled cooling fan
Power ON-OFF switch
Protections: Short circuit / Overload / Over voltage
Built-in solar / AC charger
Computer-based monitoring software (Note.7)
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC adjustable via front panel or monitoring software
AC output waveform True sine wave,THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover
Overload Shut down o/p voltage, re-power on to recover
Withstand voltage Bat I/P - AC I/P:3.0KVAC Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature 0~+60°C (refer to output derating curve )
Safety standards EN60950-1 approved
EMC standards EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 466.8x283.5x100mm
Packing 1pcs / 154kg

Specifications

  • Brand
    Mean Well
  • Series
    TN Series
  • Power Rating
    3000 Watt
  • Output Voltage
    230 Volt
  • Rated Current
    -
  • Input Voltage
    21V~30V
  • Standards Met
    CB,CE,cUL,E13,EAC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    0°C~40°C
  • Warranty
    3 Year
  • Length
    18.38 in
  • Width
    11.16 in
  • Height
    3.94 in
  • Weight
    28.44 lb

File Downloads

::specification::
