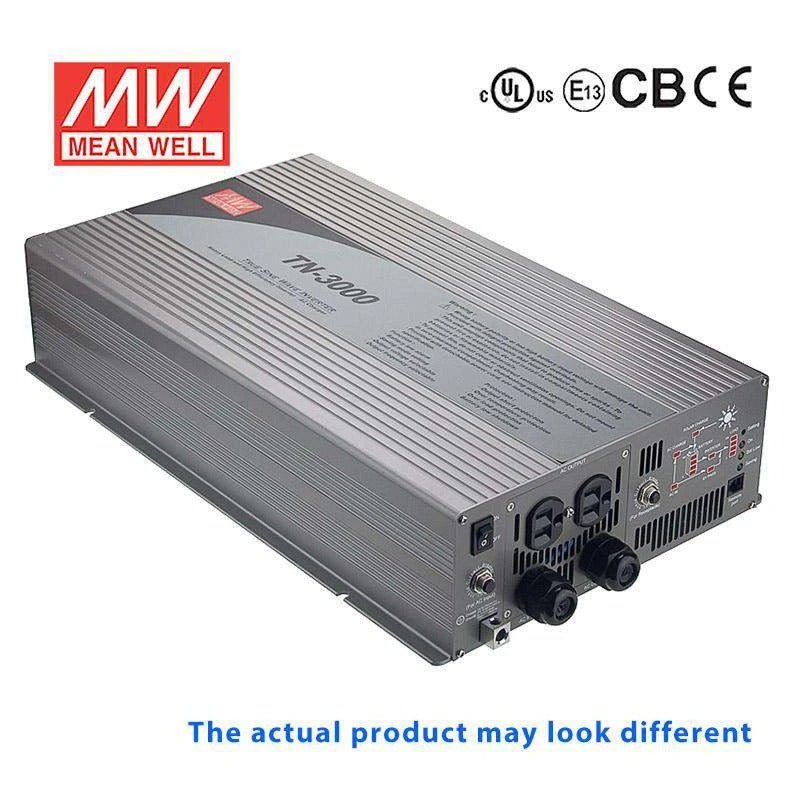

Mean Well TN-3000-212C True Sine Wave 40W 230V 15A - DC-AC Power Inverter
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well TN-3000-212C True Sine Wave 40W 230V 15A - DC-AC Power In...
Description
Description
The TN-3000 is a 3000W Mean Well power converter (input range: 10.5~15VDC).
Key Features
- ✓ Input voltage range: 10.5~15VDC
- ✓ Protections: Short circuit / Over temperature / Reverse polarity
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTN Series
-
Power Rating3000 Watt
-
Output Voltage230 Volt
-
Input Voltage10.5V~15V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length18.38 in
-
Width11.16 in
-
Height3.94 in
-
Weight28.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well TN-3000-212C designed for?
The TN-3000-212C is a DC-AC power inverter for applications that need a 230V AC true sine wave output from a DC power source. It is aimed at higher-power use cases where output quality, surge capability, and monitoring features matter.
What output power does the TN-3000-212C provide?
This model is rated at 3000W continuous output power. It also supports high surge power up to 6000W, which helps with loads that draw a larger startup demand than their normal running load.
Does this inverter produce a true sine wave output?
Yes. The TN-3000-212C provides a true sine wave output with THD below 3%, which makes it suitable for applications that need cleaner AC power than a modified sine wave inverter can provide.
What output voltage does this model provide?
The TN-3000-212C is a 230V AC output model. That makes it the correct variant to consider when your equipment is designed for 230V AC operation rather than lower-voltage AC output versions.
What protection and operating features are included in the TN-3000-212C?
This inverter includes short circuit, overload, and over voltage protection. It also features a front panel status indicator, a power ON-OFF switch, a thermostatically controlled cooling fan, selectable standby saving mode, and computer-based monitoring software support.
Can the TN-3000-212C be used in demanding environments?
It is specified for operation from 0°C to 40°C, so it is intended for controlled operating conditions within that temperature range. Buyers should also account for its 12.9 kg weight when planning placement in equipment or vehicle-based systems.
Does this model include charging functionality?
Yes. The TN-3000-212C includes a built-in solar charger and AC charger, which is a differentiating feature versus inverter-only models. That can make it a better fit for systems that need charging capability integrated into the same unit.
What warranty comes with the TN-3000-212C?
This model includes a 3-year warranty. For B2B buyers, that can be relevant when comparing lifecycle support and replacement planning across inverter options.
