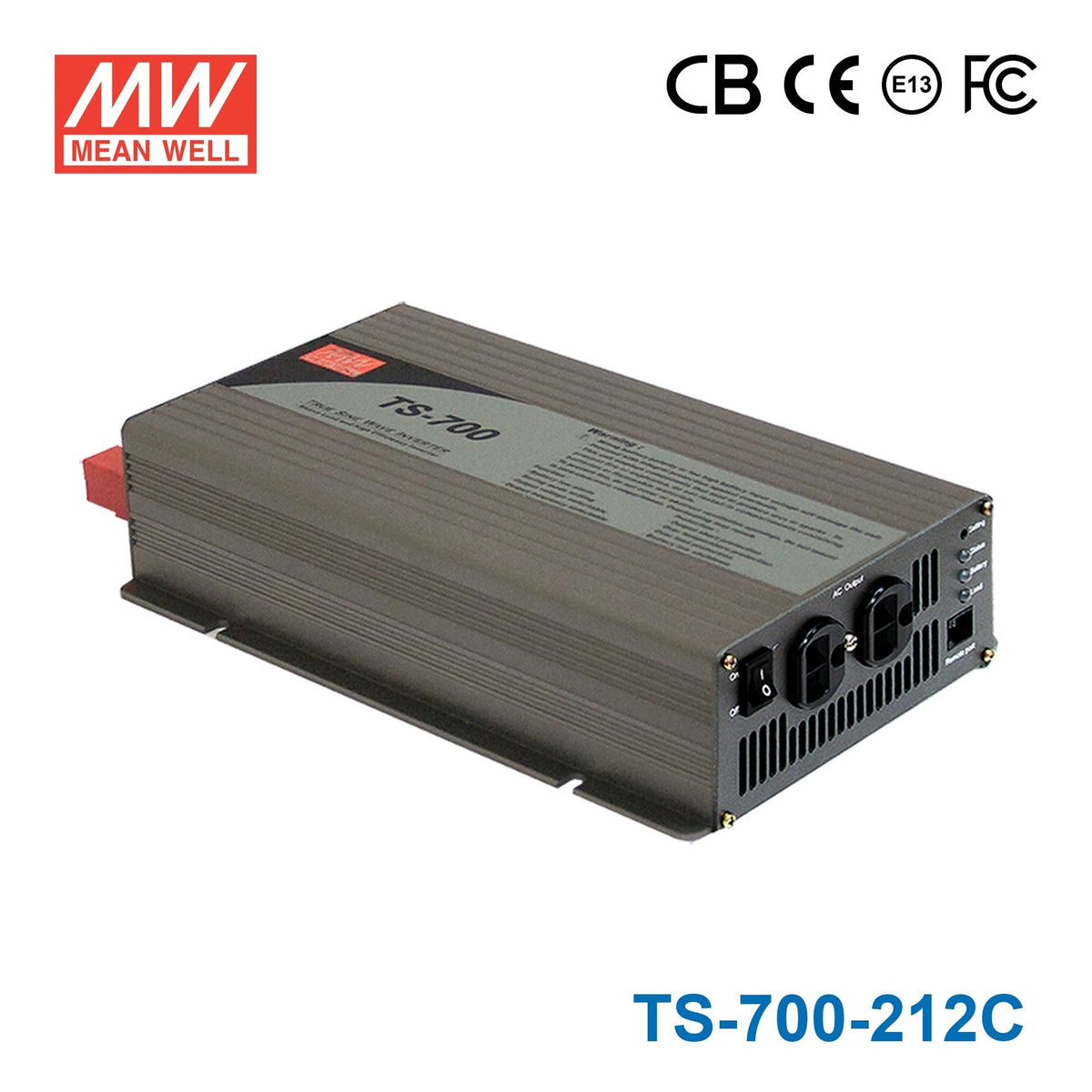

Mean Well TS-700-212C True Sine Wave 700W 12VDC to 230VAC 3A - DC-A...
The TS-700 is a 700W Mean Well power converter.
Key Features
- ✓ Protections: Over temperature / Reverse polarity
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesTS Series
-
Power Rating700 Watt
-
Output Voltage230 Volt
-
Input Voltage10.5V~15V
-
No of Output1
-
Standards MetCB,CE,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length11.61 in
-
Width7.24 in
-
Height2.76 in
-
Weight8.38 lb
::specification::
Frequently Asked Questions
What type of output does the Mean Well TS-700-212C provide?
The TS-700-212C provides a true sine wave AC output, which is specified with THD below 3%. It is designed as a 700W DC-AC inverter with adjustable AC output settings that include 230V operation. For buyers comparing waveform quality, this model is positioned for applications that need cleaner AC output than modified sine wave alternatives.
Is the TS-700-212C suitable for 230V equipment?
Yes, this model is intended for 230V AC output and the front panel settings include adjustable AC output options up to 230/240VAC. That makes it relevant for equipment or systems that require a 230V-class inverter output. Buyers should still confirm the connected load matches the inverter's 700W rating.
What power capacity does the Mean Well TS-700-212C support?
This inverter is rated for 700W continuous power and is specified with surge power up to 800W. That gives some headroom for loads with a brief startup demand above their normal running level. For ongoing operation, the main sizing figure to use is the 700W power rating.
What protections are built into the TS-700-212C?
The TS-700-212C includes protection for short circuit, overload, and over voltage. These built-in protections are important in B2B and industrial environments where uptime and equipment protection matter. The unit also includes front-panel status indication for operating condition monitoring.
Can the TS-700-212C be used in enclosed equipment or warmer operating areas?
The stated operating temperature range is 0°C to 40°C, so it is intended for controlled operating environments within that band. It also uses a thermostatically controlled cooling fan, which helps manage heat under load. For warmer cabinets or harsh environments, buyers should check that the actual ambient temperature stays within the specified range.
What makes the TS-700-212C different from a lower-grade inverter?
Its key differentiators are true sine wave output, efficiency up to 88.5%, and built-in remote ON-OFF control. Compared with simpler inverter options, this model is aimed at applications where output quality, operational status visibility, and branded industrial protections are important. It also carries a 3-year warranty from Mean Well.
