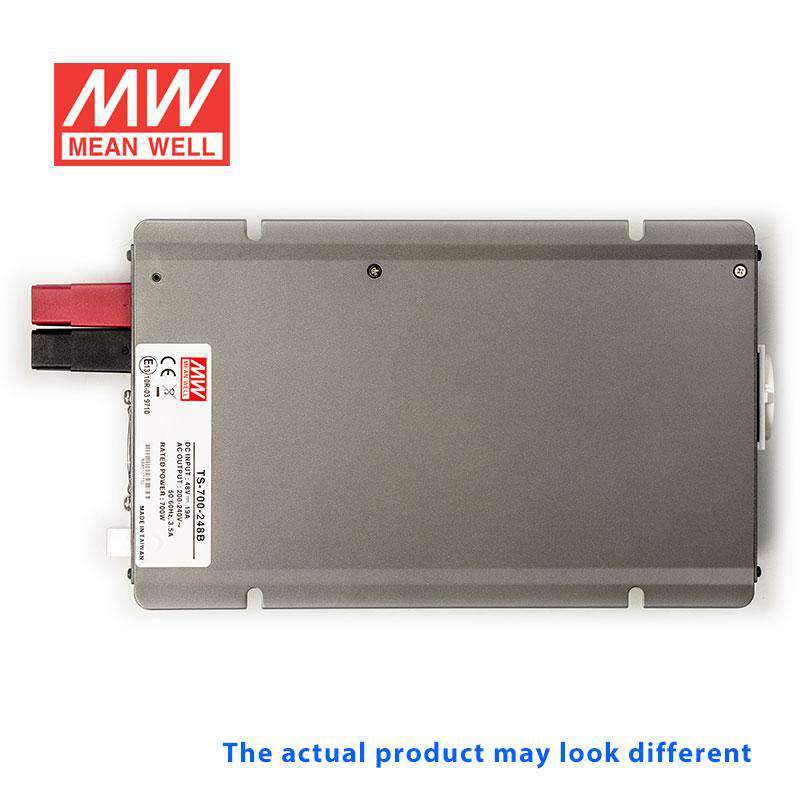

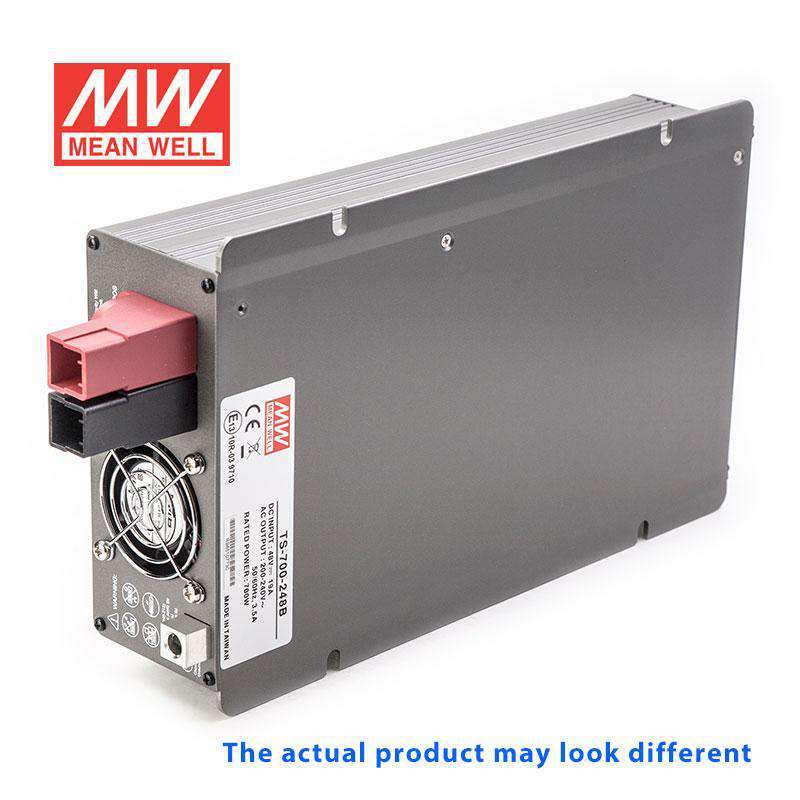

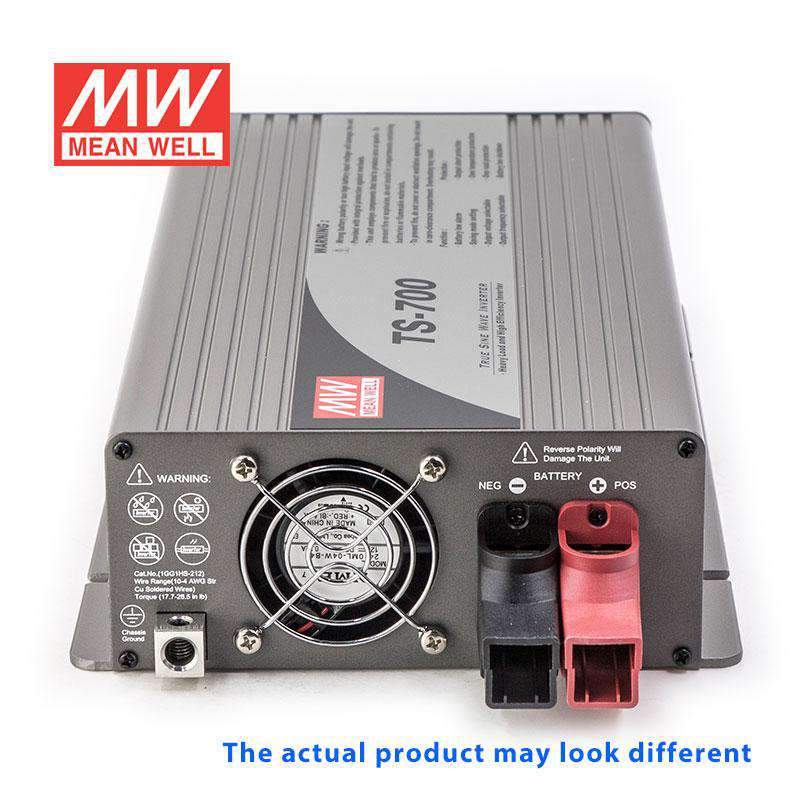

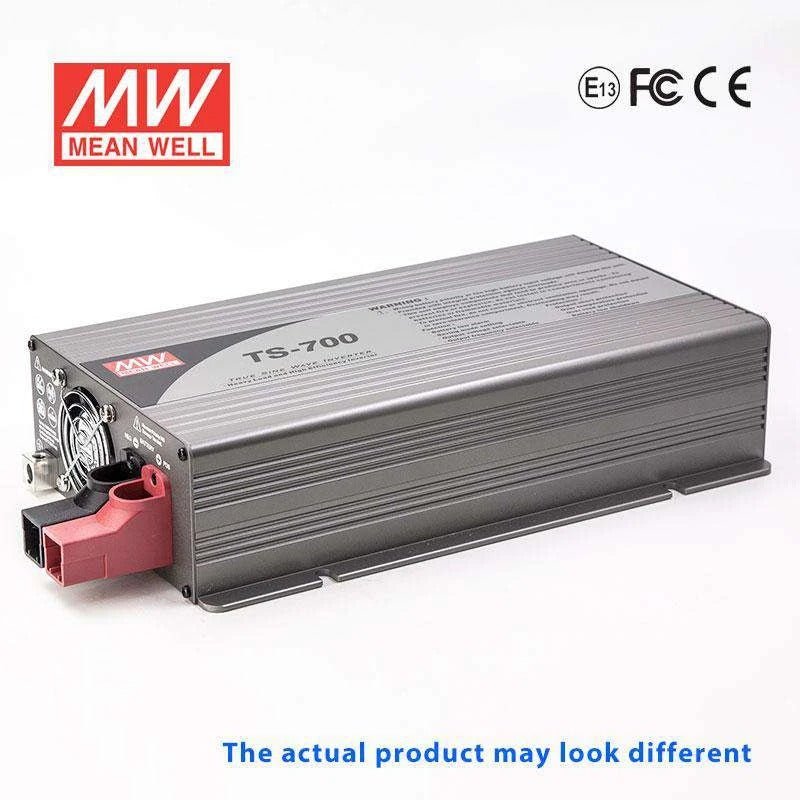

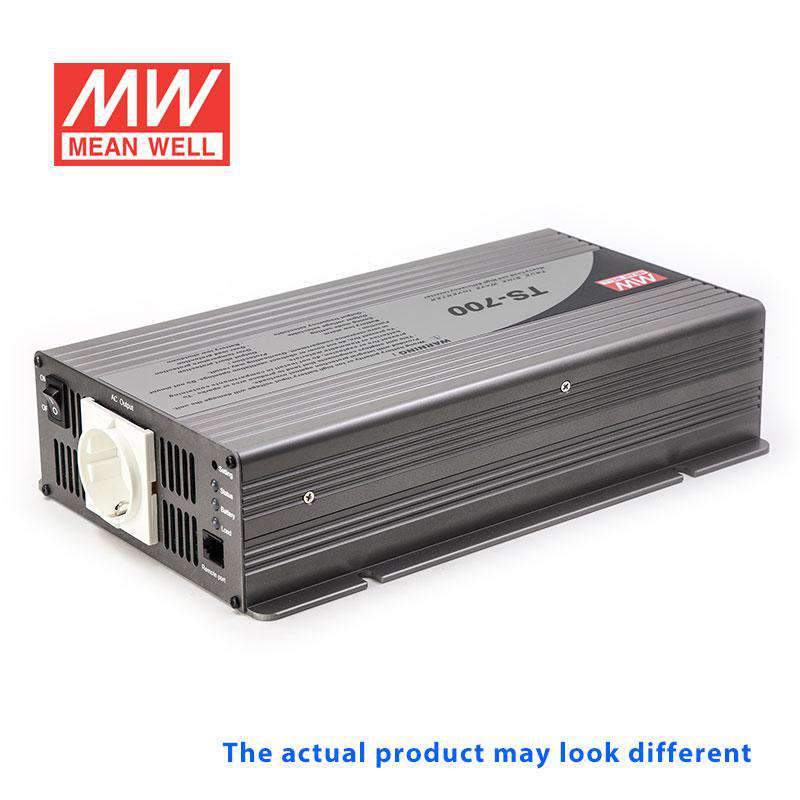

Mean Well TS-700-248C True Sine Wave 700W 230V 19A - DC-AC Power Inverter

$348.21 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

True sine wave output (THD<3%)
High surge power up to 800W
High efficiency up to 88.5%
Thermostatically controlled cooling fan
Built-in remote ON-OFF control
Front panel indicator for operation status
Power ON-OFF switch
Protections: Short circuit / Overload / Over voltage
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on the front panel
AC output waveform True sine wave, THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover, by internal RTH1 detect power transistor
Overload Shut down o/p voltage, re-power on to recover
Withstand voltage Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature -10~+60°C (refer to output derating curve )
Safety standards EN60950-1 approved
EMC standards EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8
Dimension (LxWxH) 205x158x67mm
Packing 6pcs / 11.4kg

Specifications

  • Brand
    Mean Well
  • Series
    TS Series
  • Power Rating
    700 Watt
  • Output Voltage
    230 Volt
  • Input Voltage
    42V~60V
  • No of Output
    1
  • Standards Met
    CB,CE,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    0°C~40°C
  • Warranty
    3 Year
  • Length
    11.61 in
  • Width
    7.24 in
  • Height
    2.76 in
  • Weight
    8.38 lb

File Downloads

::specification::
