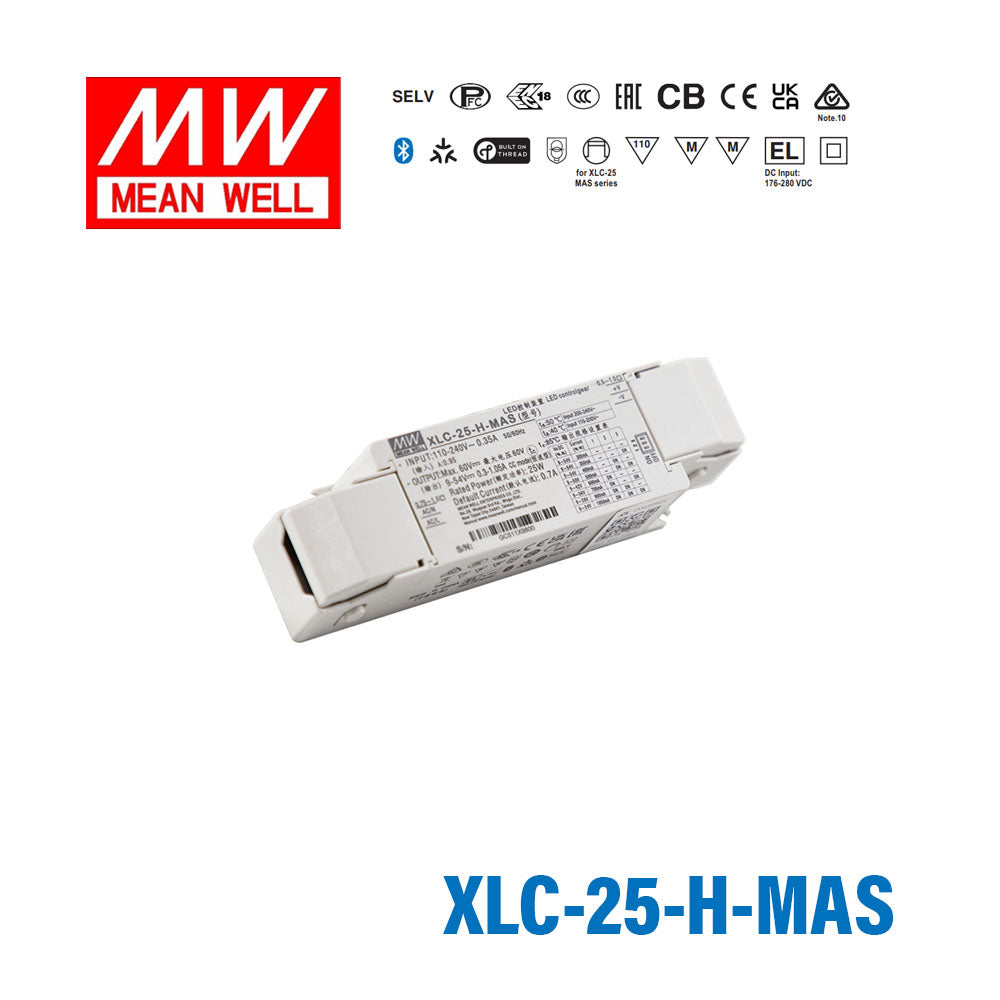

Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief

The Mean Well XLC-25-H-MAS is a 25W multiple-stage constant power LED driver delivering 700mA across a 9~54V constant current region, with the output current selectable by DIP switch. It is housed in an independent-type plastic housing supplied with a strain-relief cap, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-25-H-MAS operates at a case temperature of -25°C to 85°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports Matter over Thread control to the Matter 1.3 specification. Suitable for emergency lighting (EL) installations on a 176~280VDC supply. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

• ✓Constant power mode output with multiple stage selectable by DIP switch
• ✓Plastic housing with class II and PFC design
• ✓Flicker free, complying with CE ErP directive
• ✓Meet emergency lighting (EL) application
• ✓Minimum dimming level 0.5%
• ✓Matter over thread, Matter 1.3 specification
• ✓5 years warranty

• Brand
  Mean Well
• Series
  Mean Well XLC Series
• Power Rating
  25 Watt
• Output Voltage
  60 Volt
• Rated Current
  0.7 Ampere
• Input Voltage
  100V~305V
• No of Output
  1
• Dimming Control
  Dimmable
• Standards Met
  CB,CCC,CE,EAC,ENEC,SELV
• Operation Mode
  Constant Current
• Operating Temperature
  -25°C~85°C
• Warranty
  5 Year
• Length
  5.79 in
• Width
  1.57 in
• Height
  1.26 in
• Weight
  0.31 lb
