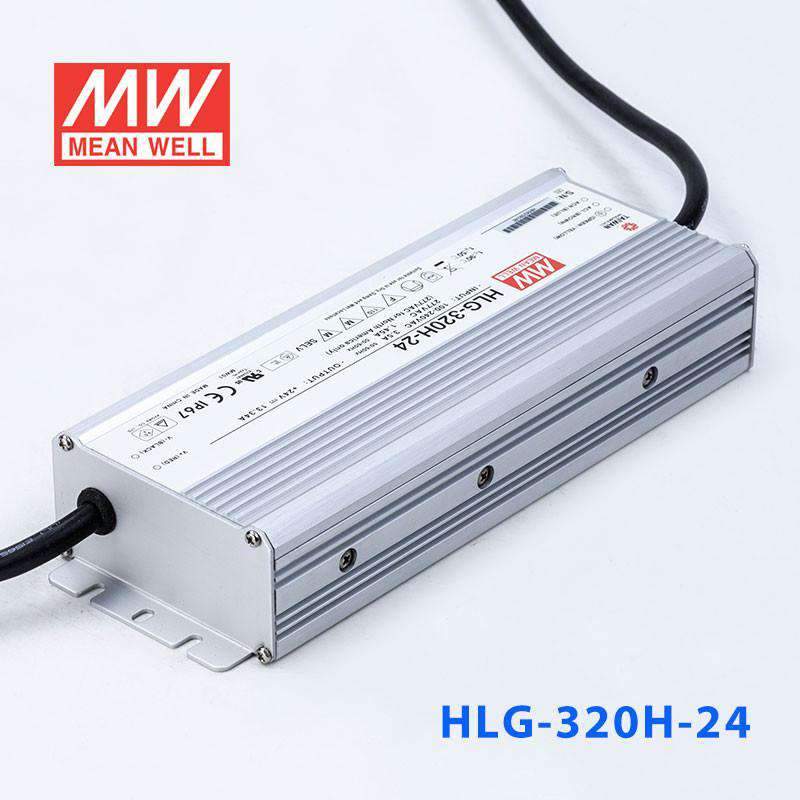

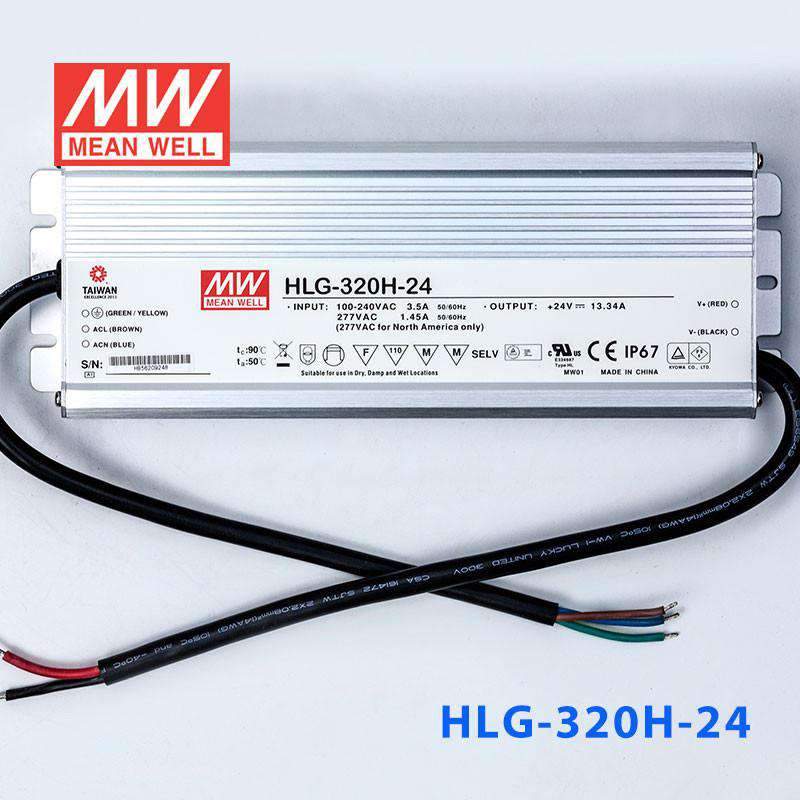

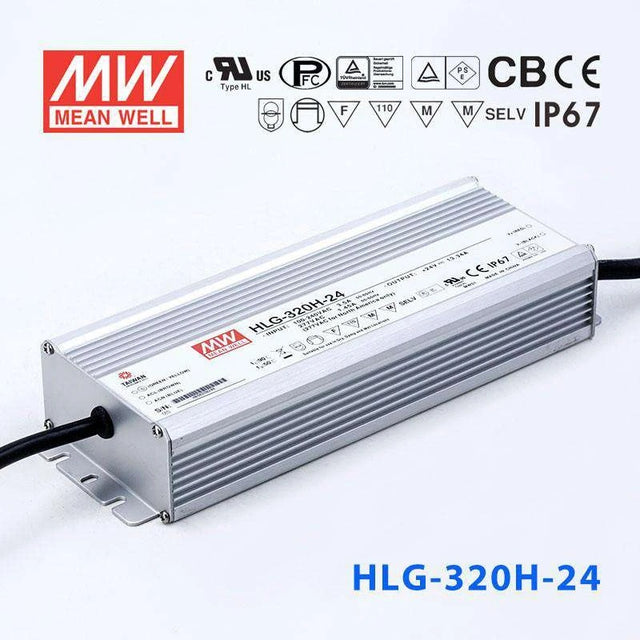

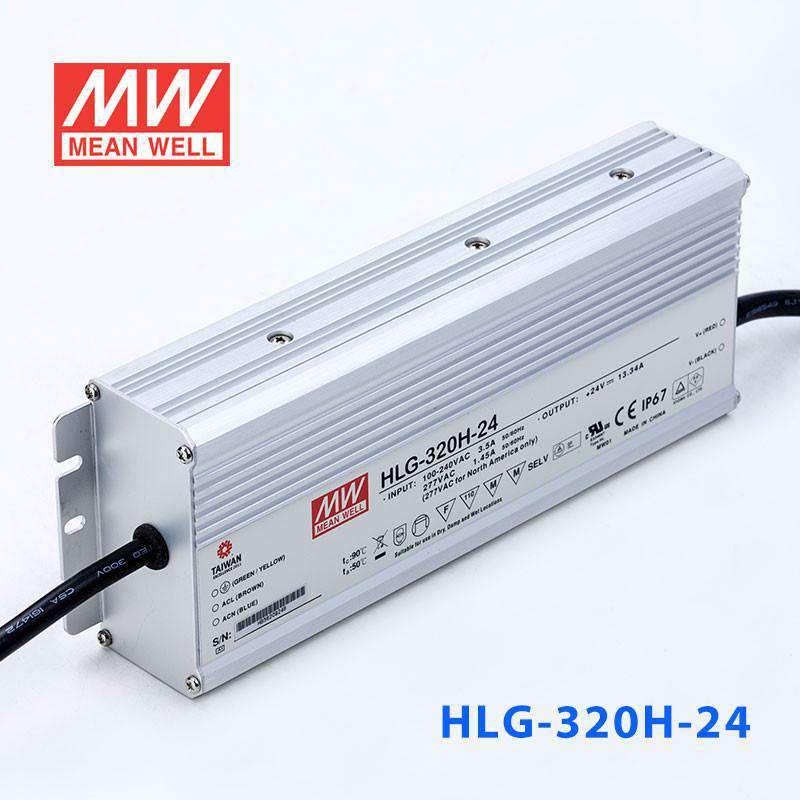

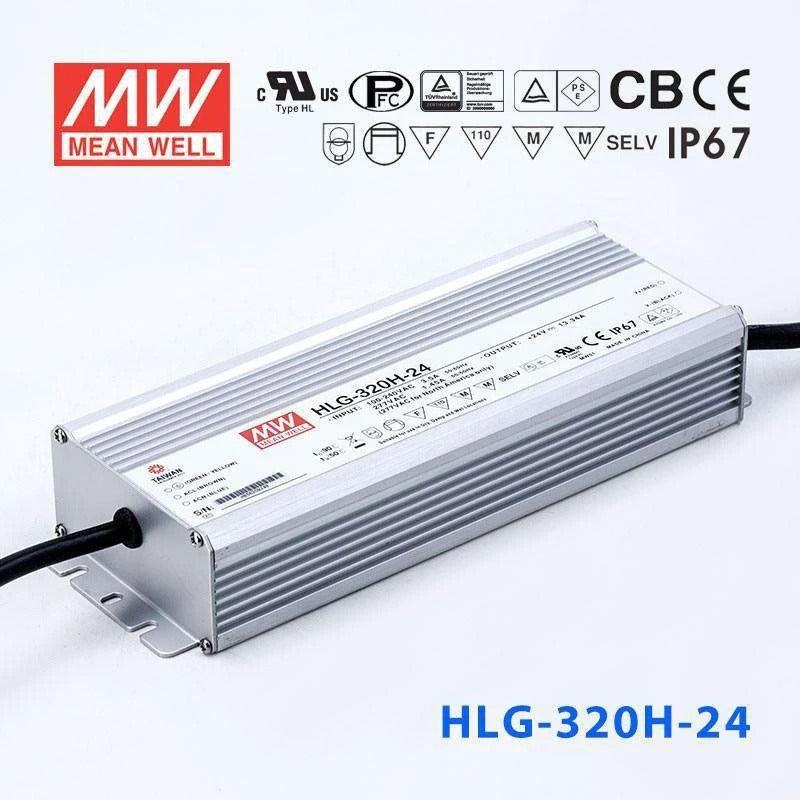

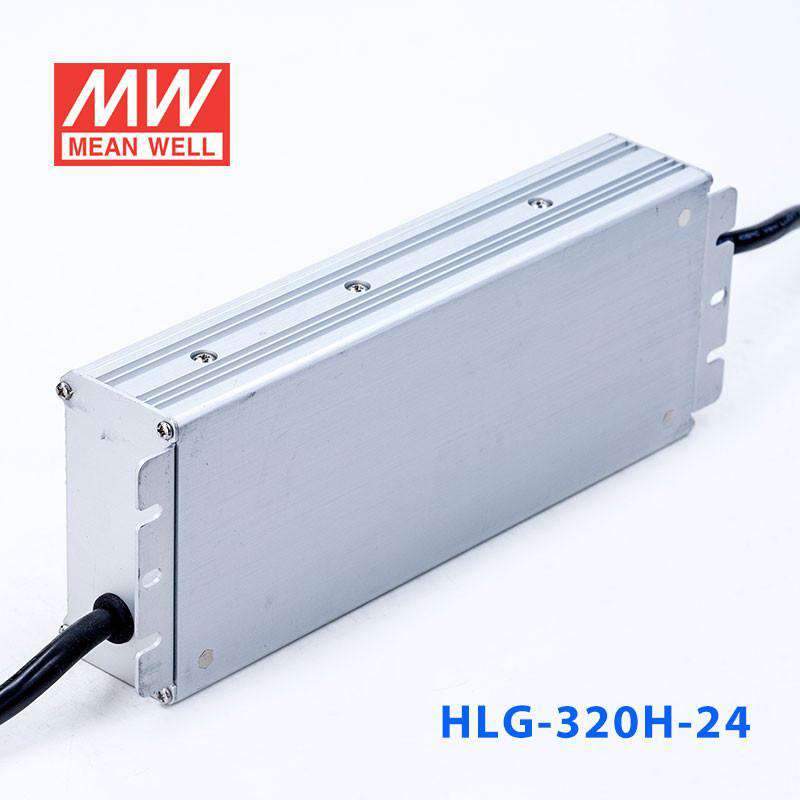

Mean Well HLG-320H-24 Power Supply 320W 24V
The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating320 Watt
-
Output Voltage24 Volt
-
Rated Current13.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.92 in
-
Width3.54 in
-
Height1.72 in
-
Weight4.14 lb
::specification::
Frequently Asked Questions
Can I use the HLG-320H-24 to power a large 24V LED strip installation outdoors?
Yes. The HLG-320H-24 outputs 24V at up to 13.34A (320W) with an IP67 waterproof rating, making it suitable for long 24V LED strip runs in fully exposed outdoor locations. Its aluminium casing and -40°C to +90°C operating range handle harsh weather.
Is the HLG-320H-24 suitable for powering 24V LED signage or channel letters?
Yes. At 320W and 24V it can drive a substantial array of 24V LED sign modules or channel letters. The wide 90-305VAC input and IP67 rating make it a reliable choice for outdoor commercial signage exposed to varying mains voltages and weather.
Can the HLG-320H-24 drive 24V LED high-bay or warehouse lighting?
Yes. With 320W at 24V and constant-current operation, the HLG-320H-24 can power high-bay 24V LED fixtures in warehouses, factories, or large indoor spaces. Its IP67 rating also makes it suitable for damp or dusty industrial environments.
How many meters of 24V LED strip can the HLG-320H-24 handle?
Divide 320W by your strip's power consumption per meter. For instance, a strip rated at 14.4W/m would allow about 22.2 meters (320W / 14.4W per meter). Always check your strip's rated power per meter and keep the total load at or below 320W.
Can the HLG-320H-24 be installed in a location subject to temporary flooding or standing water?
Its IP67 rating protects against temporary immersion up to 1 meter depth, so brief flooding events will not damage the unit. However, it is not designed for continuous submersion. For permanently submerged applications, a higher-rated enclosure would be needed.
