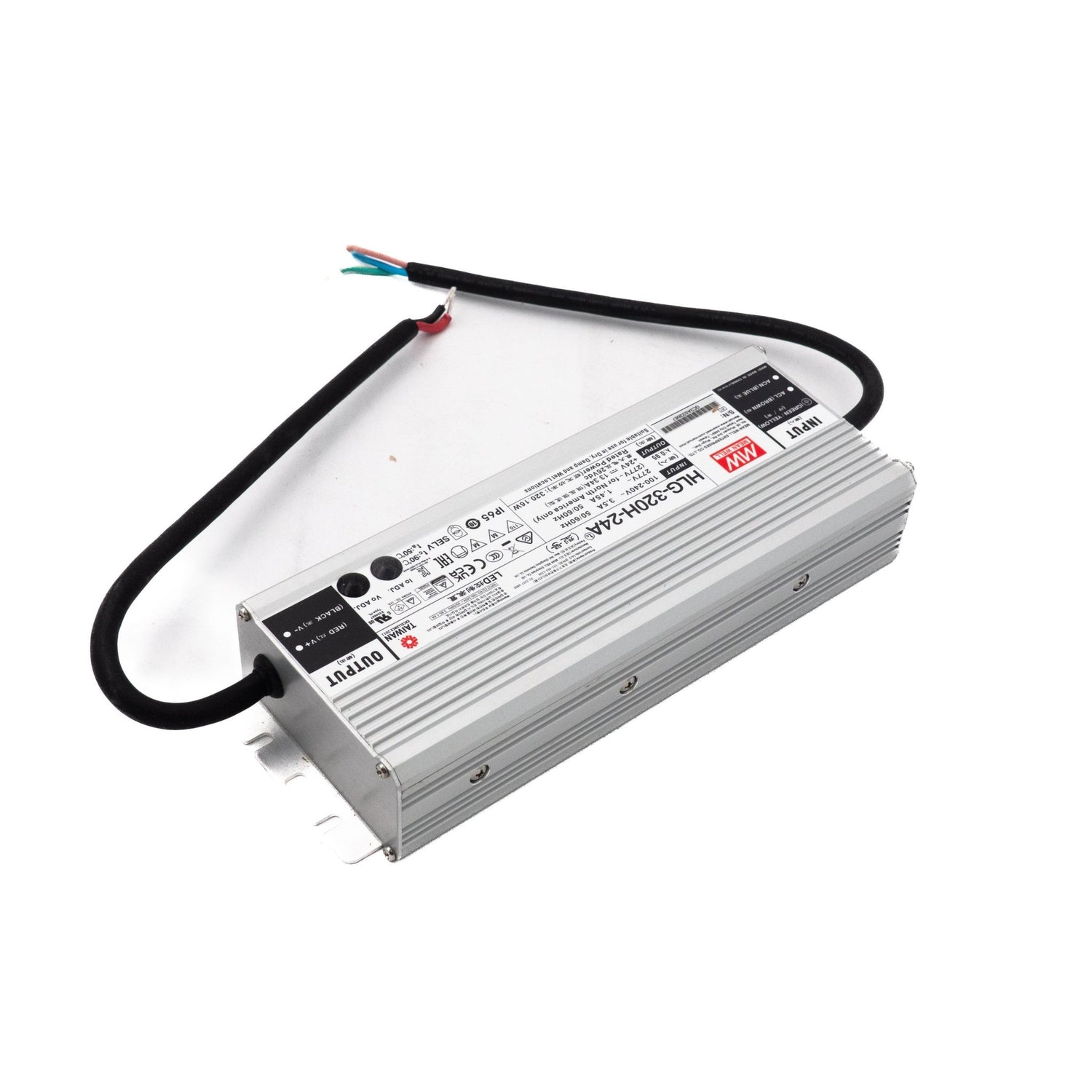

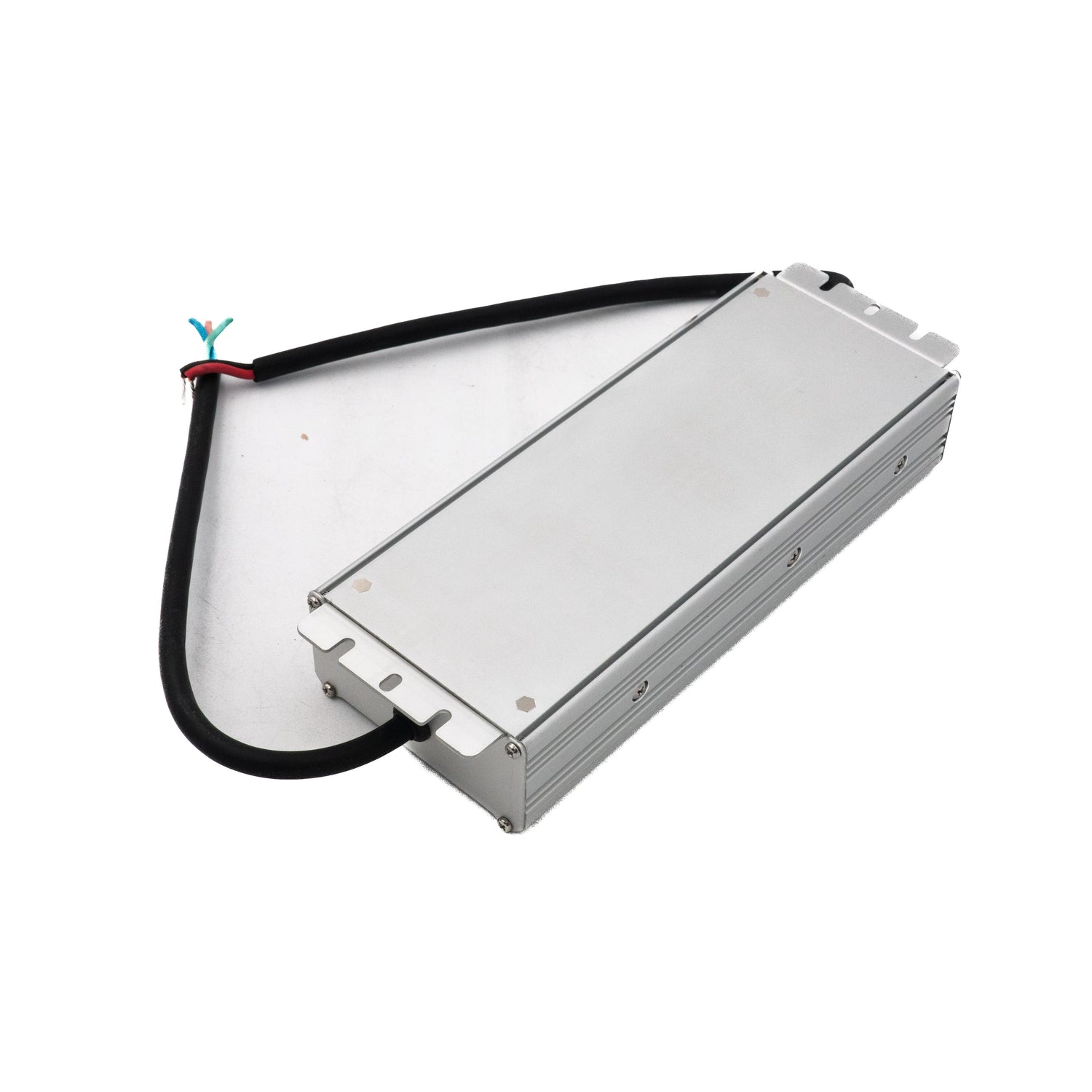

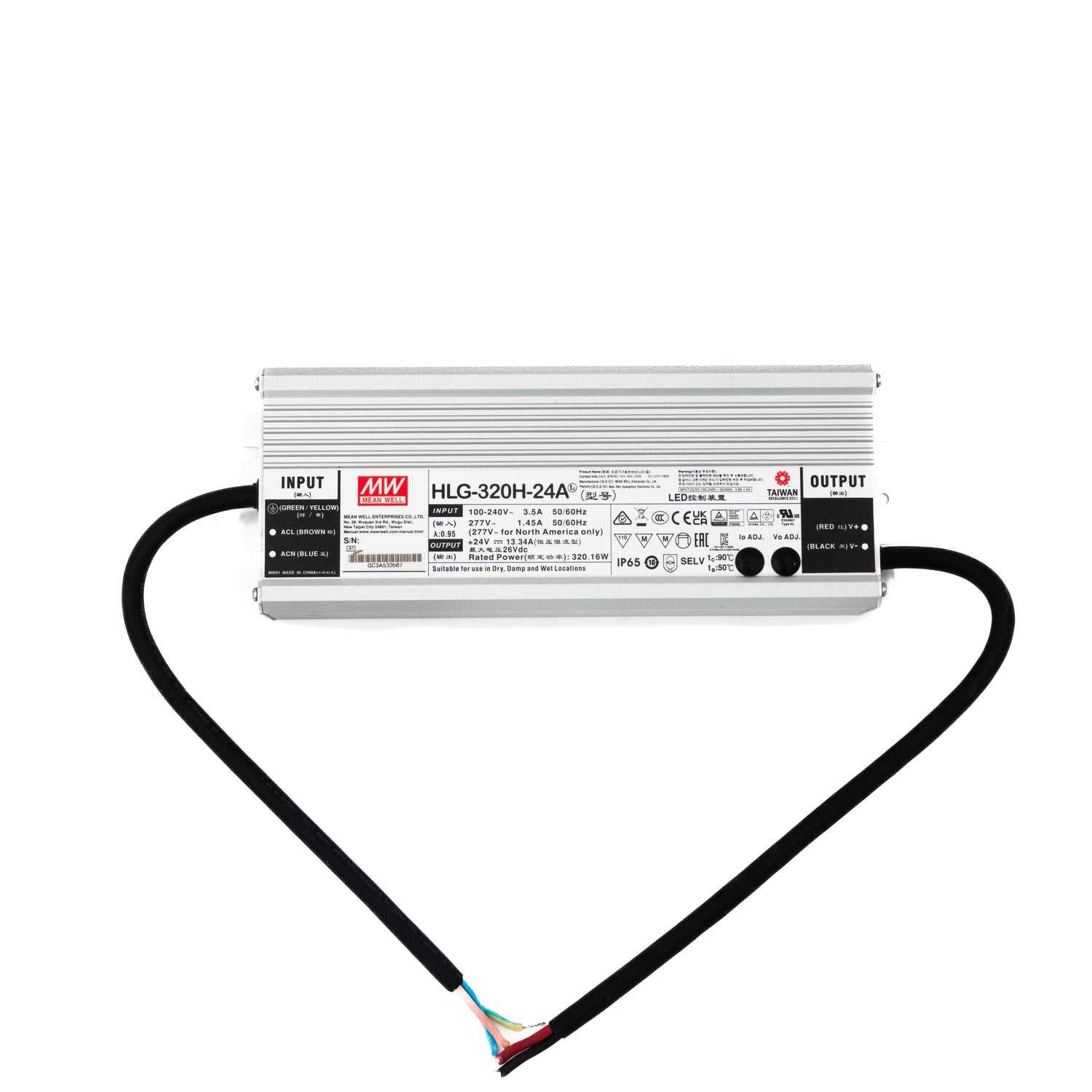

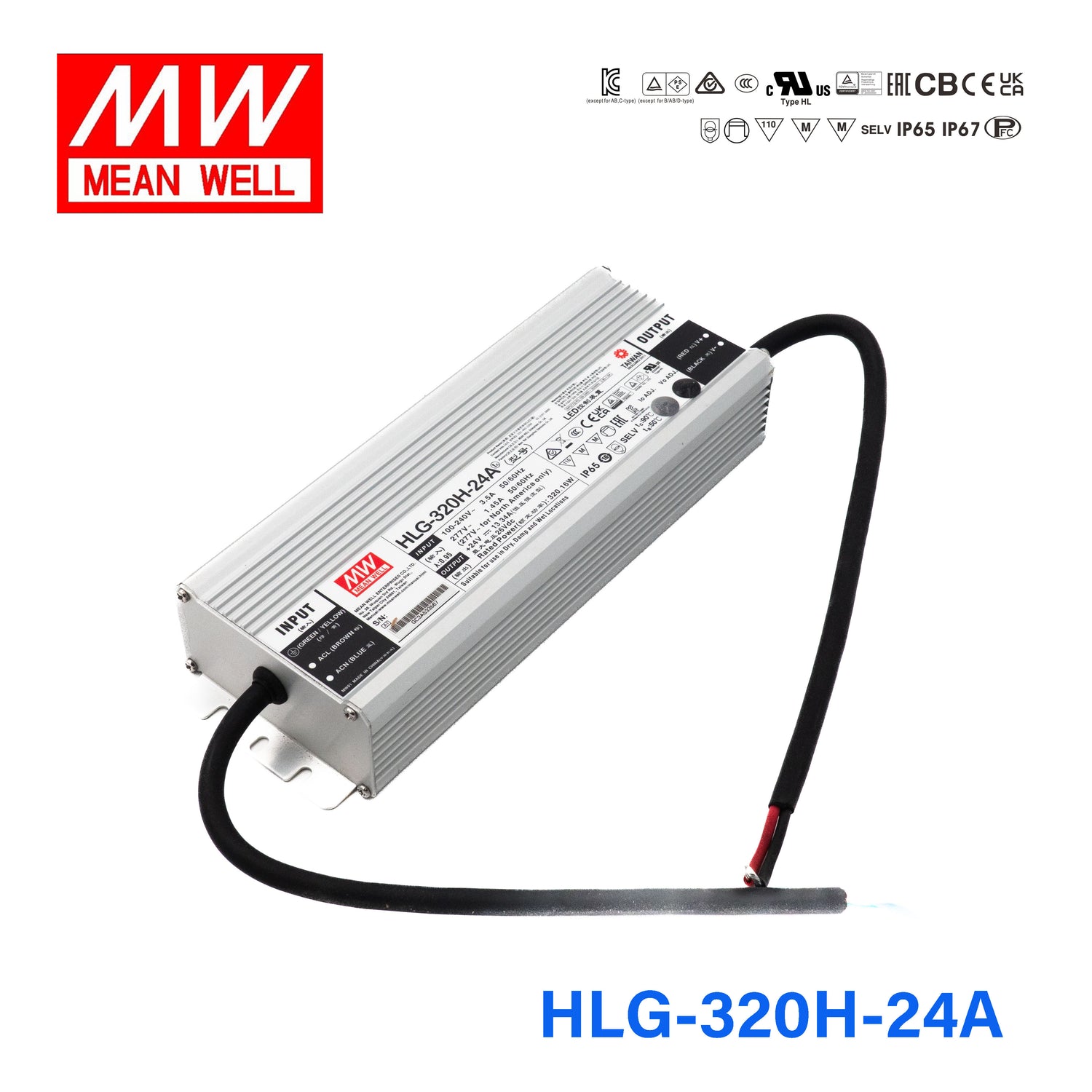

Mean Well HLG-320H-24A Power Supply

Description

Features

Universal AC input (up to 305VAC) / Full range

High efficiency up to 95%

Built-in active PFC function, PF> 0.9 for 60% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

IP67 / IP65 design for indoor or outdoor installations

Cooling by free air convection

Output current adjustable

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	±6% rated output voltage
Current adjustment range	50%~100%
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm);
Connection Output	A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block
Dimension (LxWxH) (mm)	252x 90x 43.8

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

320 Watt
Output Voltage

24 Volt
Rated Current

13.34 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

9.92 in
Width

3.54 in
Height

1.72 in
Weight

4.14 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-320H-24A to fine-tune the voltage for a 24V LED lighting installation?

Yes. The HLG-320H-24A includes a built-in potentiometer that lets you trim the output voltage and current. With a CC voltage range of 12-24V, you can lower the drive level to match specific LED loads without an external dimmer, which is useful for optimizing brightness or extending LED life.

Is the HLG-320H-24A suitable for powering 24V LED strips in commercial display or retail lighting?

Yes. At 320W and 24V with adjustable output, it can power long runs of 24V LED strips used in retail display cases, shelf lighting, or showroom coves. The potentiometer lets you dial in the exact brightness level needed for the display.

Can the HLG-320H-24A drive 24V LED modules for architectural accent lighting?

Yes. With 320W at 24V and adjustable output, it handles large architectural LED accent installations such as facade lighting, cove lighting, or landscape up-lighting. The ability to trim output voltage ensures precise brightness matching across different LED module brands.

How many meters of 24V LED strip can the HLG-320H-24A support?

Divide 320W by your strip's rated wattage per meter. For example, a strip drawing 20W/m allows up to 16 meters (320W / 20W per meter = 16m). Always check your strip's rated power per meter and keep total load at or below 320W for reliable operation.

Can the HLG-320H-24A be installed in a covered outdoor patio or parking structure?

Yes. Its IP65 water-resistant rating protects against dust ingress and low-pressure water jets, which is appropriate for covered outdoor areas like patios, carports, or parking garages. For locations with direct rain exposure, consider the IP67-rated HLG-320H-24 instead.

What are the differences between the HLG-320H-24, 24A, 24AB, and 24B models?

All four share the same 320W / 24V / 13.34A core specs. The base HLG-320H-24 has no adjustment or dimming and is IP67 waterproof. The -24A adds output adjustment via potentiometer and is IP65 water-resistant. The -24AB adds both adjustment and 1-10V/PWM dimming (IP65). The -24B offers dimming input only and retains IP67.
