Mean Well LRS-350-24 Power Supply — 350W 24V 14.6A
Notify me when it's back in stock
Your order will be processed within 24 hours

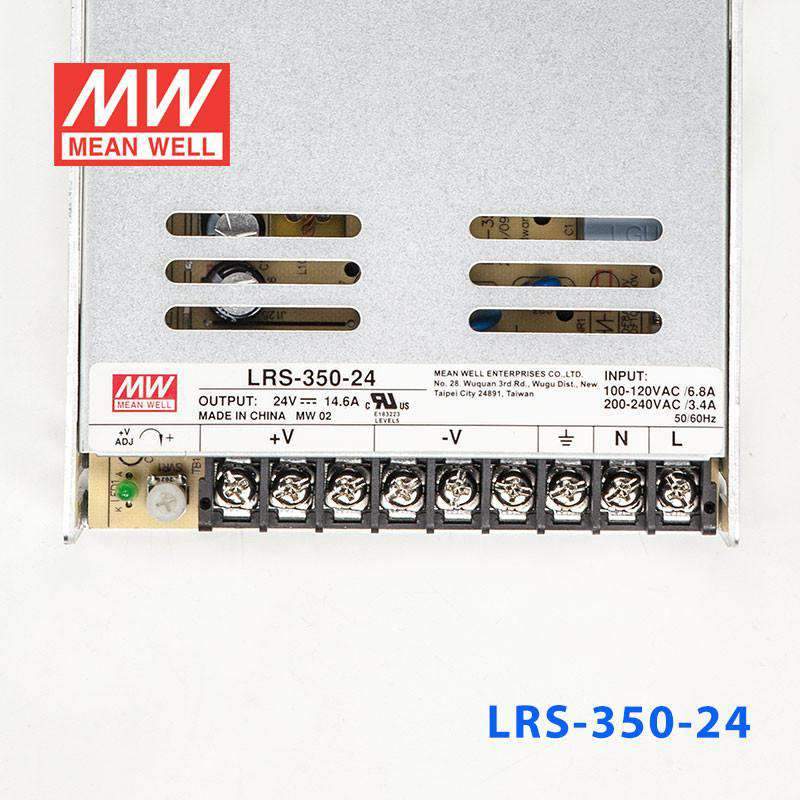

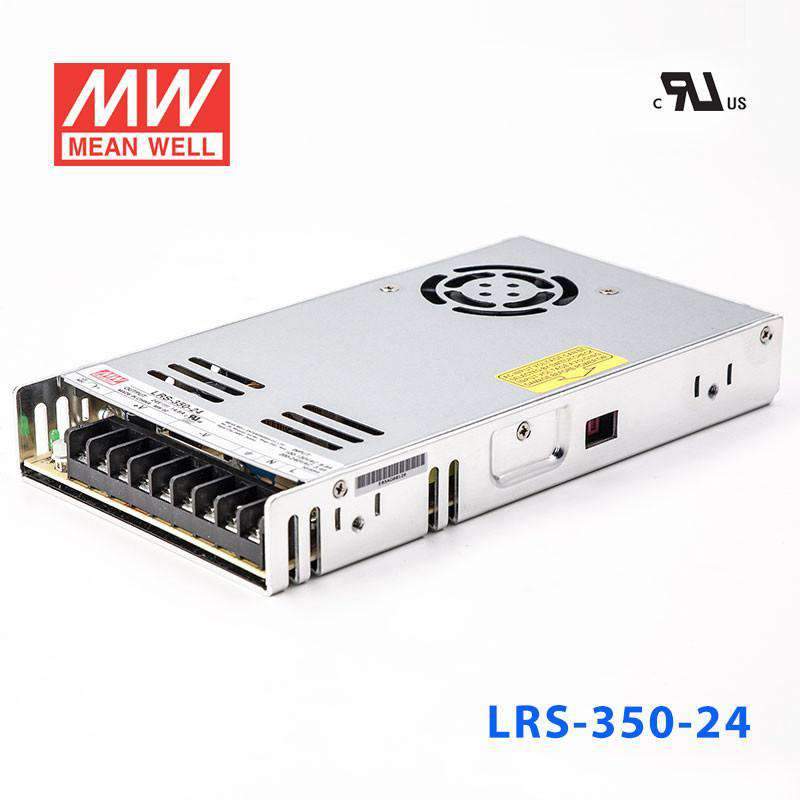

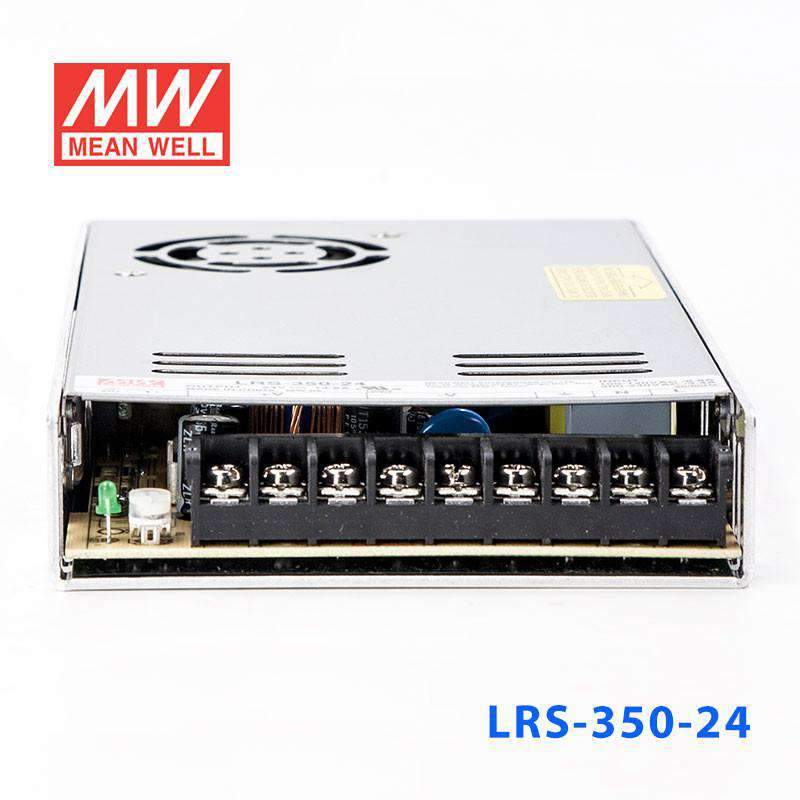

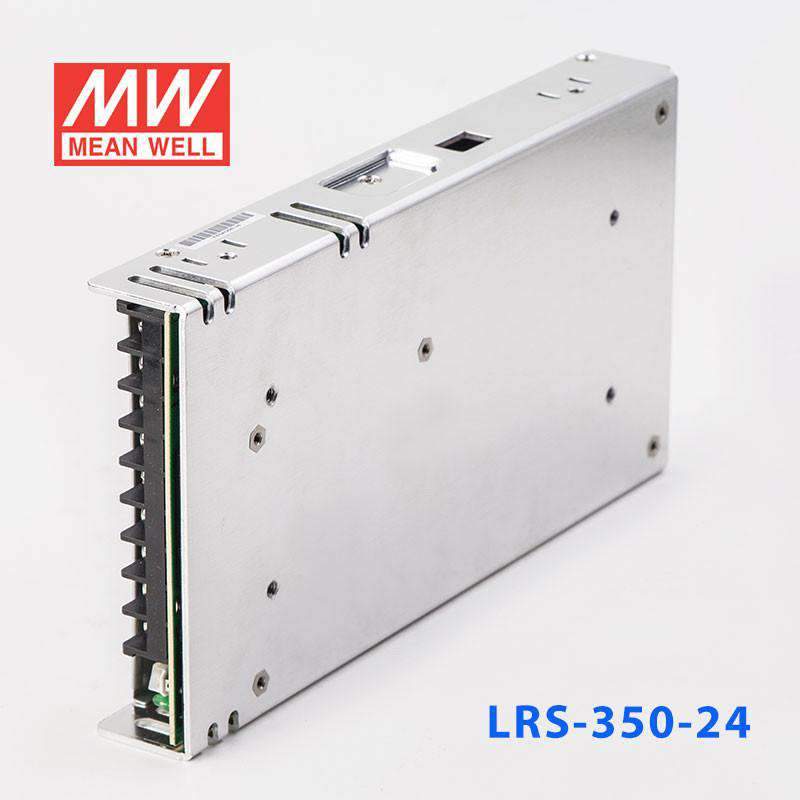

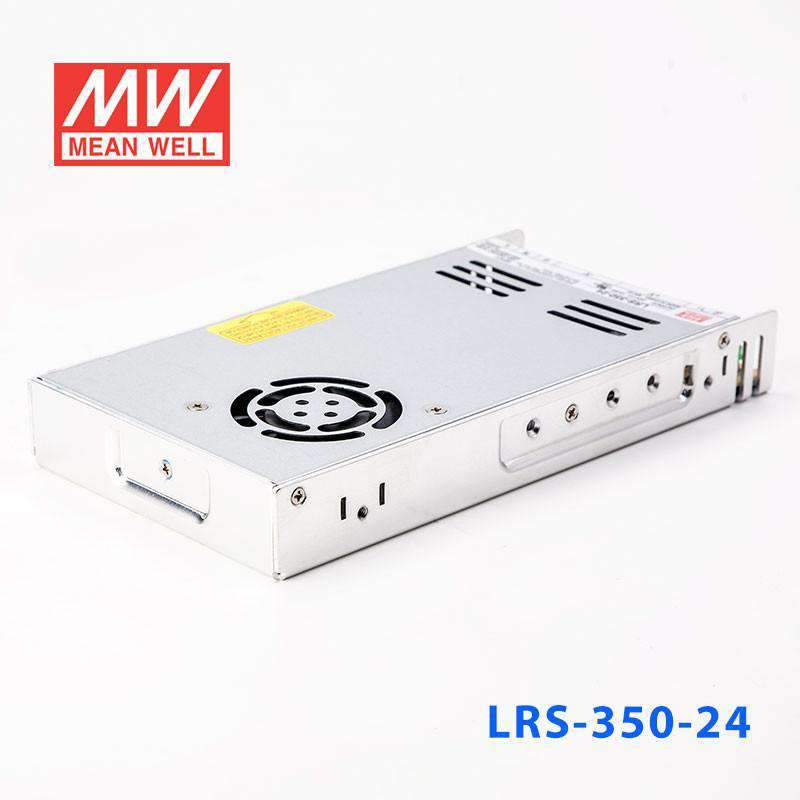

Mean Well LRS-350-24 Power Supply — 350W 24V 14.6A
The Mean Well LRS-350-24 is a high-efficiency, slim-profile 350W enclosed power supply delivering a stable 24V DC output at up to 14.6A. Designed for demanding industrial and commercial applications, it combines a wide universal AC input range with multiple built-in protection features and a comprehensive suite of international safety certifications.
Accepting input voltages from 90 to 264VAC, the LRS-350-24 operates reliably across global power standards without modification. It provides robust protection against short circuits, overload conditions, and over-voltage events, with automatic recovery ensuring minimal downtime in critical installations.
Key Features
- ✓350W (350.4W) constant voltage output at 24V DC / 14.6A
- ✓Universal AC input: 90–264VAC, compatible with worldwide mains standards
- ✓Certified to CB, CE, CQC, EAC, TÜV, and UL standards
- ✓Short circuit, overload, and over-voltage protection with auto-recovery
- ✓Slim form factor: 215.0 × 115.0 × 30.0 mm
- ✓Wide operating temperature range: −25°C to +70°C
- ✓3-year manufacturer warranty
- ✓Input-to-output withstand voltage: 3kVAC
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.68 lb
::specification::
Frequently Asked Questions
What industrial systems is the LRS-350-24 designed to power?
The LRS-350-24 delivers 24V DC at 14.6A, the standard control bus voltage for PLCs, servo drives, multi-axis motion controllers, industrial HMIs, and pneumatic solenoid arrays. Its 350.4W output capacity handles high-density 24V panel loads without the need for parallel supplies.
Is the LRS-350-24 suitable for use in high-temperature environments?
The LRS-350-24 is rated for operation from -25°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-350-24 compare to other voltage options in the LRS-350 series?
The LRS-350 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-350-12: 348W, 12V, 29A; LRS-350-15: 348W, 15V, 23.2A; LRS-350-3.3: 198W, 3.3V, 60A; LRS-350-36: 349.2W, 36V, 9.7A; LRS-350-4.2: 252W, 4.2V, 60A; LRS-350-48: 350.4W, 48V, 7.3A. The LRS-350-24 itself is rated at 350.4W, 24V, 14.6A. All share the same universal input range of 90-264VAC and operating temperature of -25°C to +70°C.
How do I determine if the LRS-350-24 has enough headroom for my load?
The LRS-350-24 is rated at 350.4W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 280.3W sustained draw. The 24V output at 14.6A gives the total current budget across all loads sharing this supply.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LRS-350 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-350-12 Power Supply 350W 12V | 348W | 12V | 29A | Indoor | $31.97 | View |
| Mean Well LRS-350-5 Power Supply 350W 5V | 300W | 5V | 60A | Indoor | $38.11 | View |
| Mean Well LRS-350-15 Power Supply 350W 15V | 348W | 15V | 23.2A | Indoor | $37.13 | View |
| Mean Well LRS-350-48 Power Supply 350W 48V | 350.4W | 48V | 7.3A | Indoor | $37.13 | View |
| Mean Well LRS-350-4.2 Power Supply 350W4.2V | 252W | 4.2V | 60A | Indoor | $38.11 | View |
| Mean Well LRS-350-36 Power Supply 350W 36V | 349.2W | 36V | 9.7A | Indoor | $36.94 | View |
