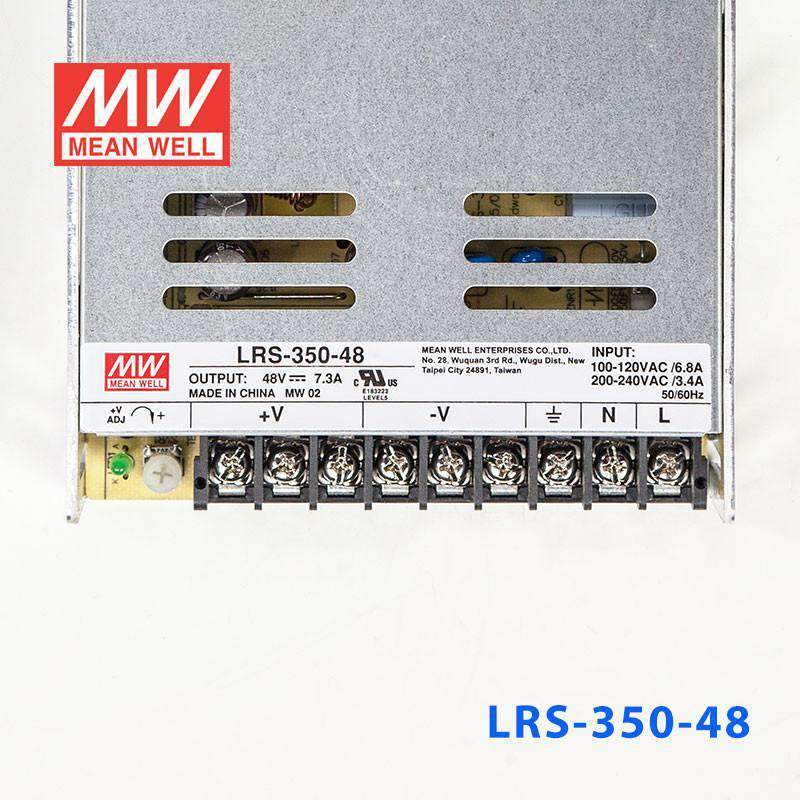

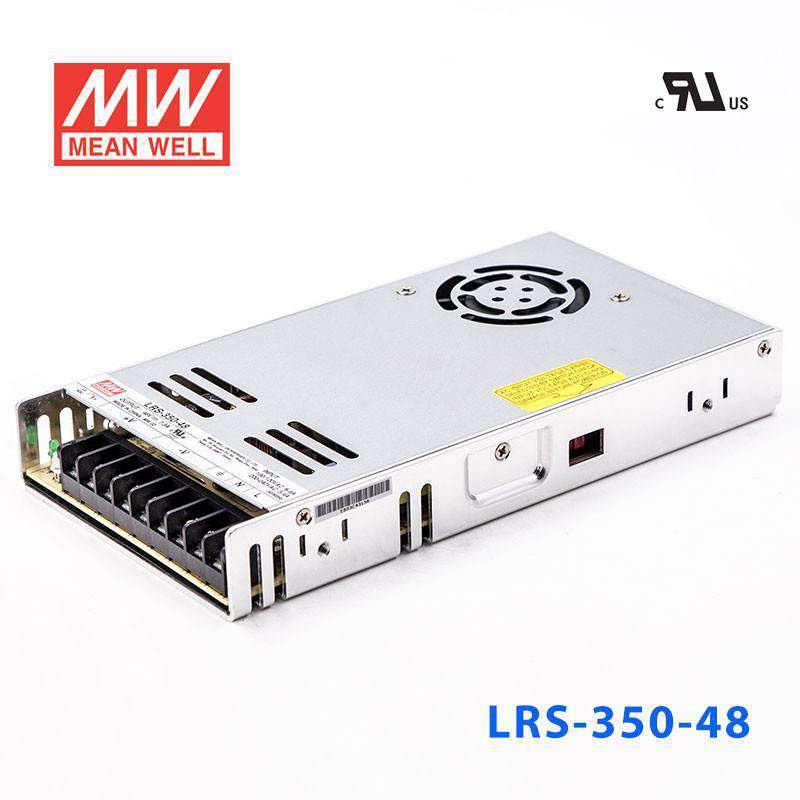

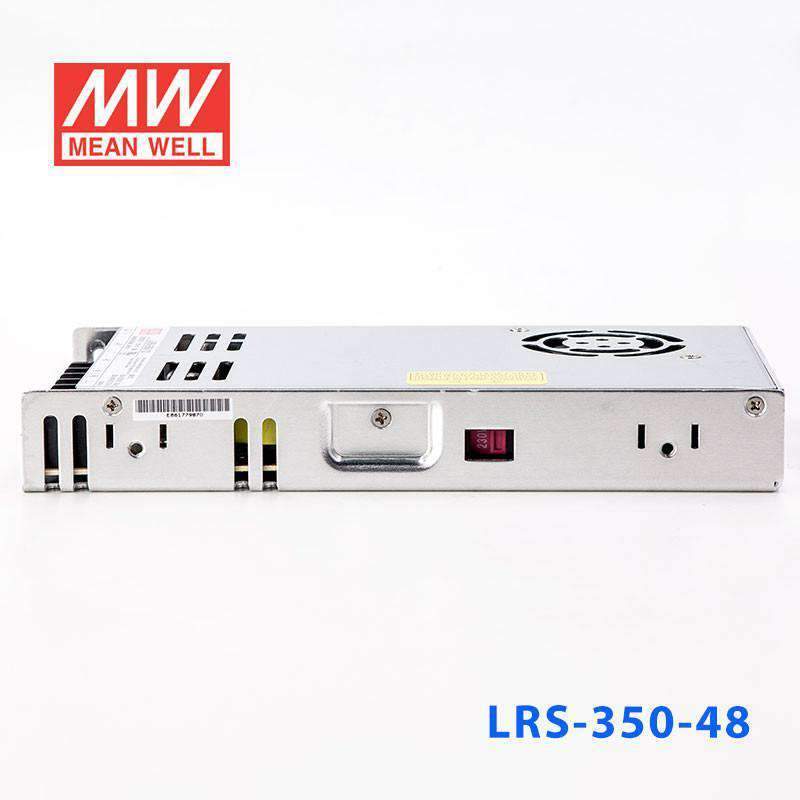

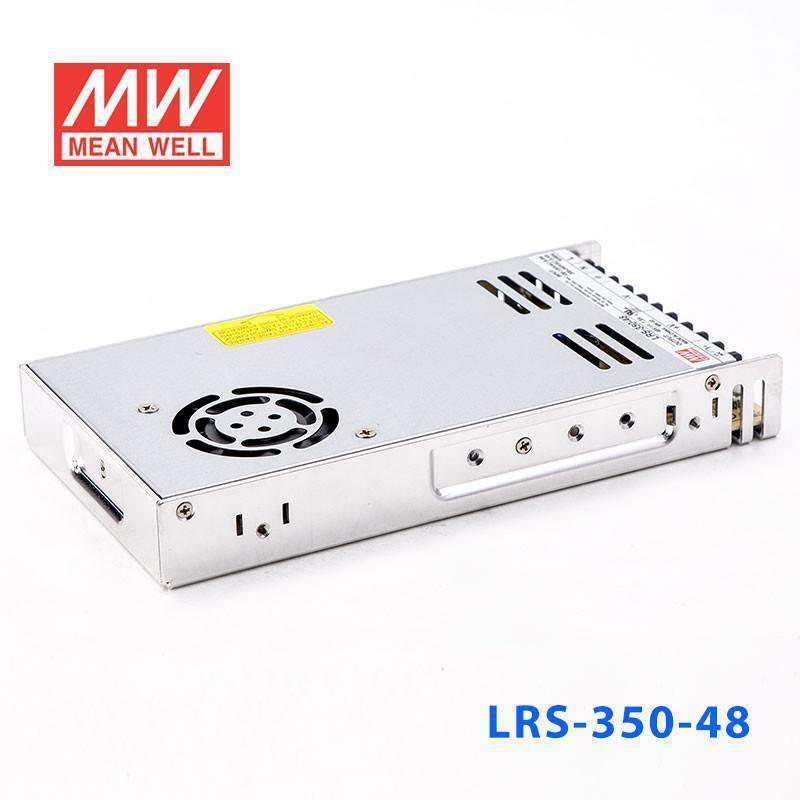

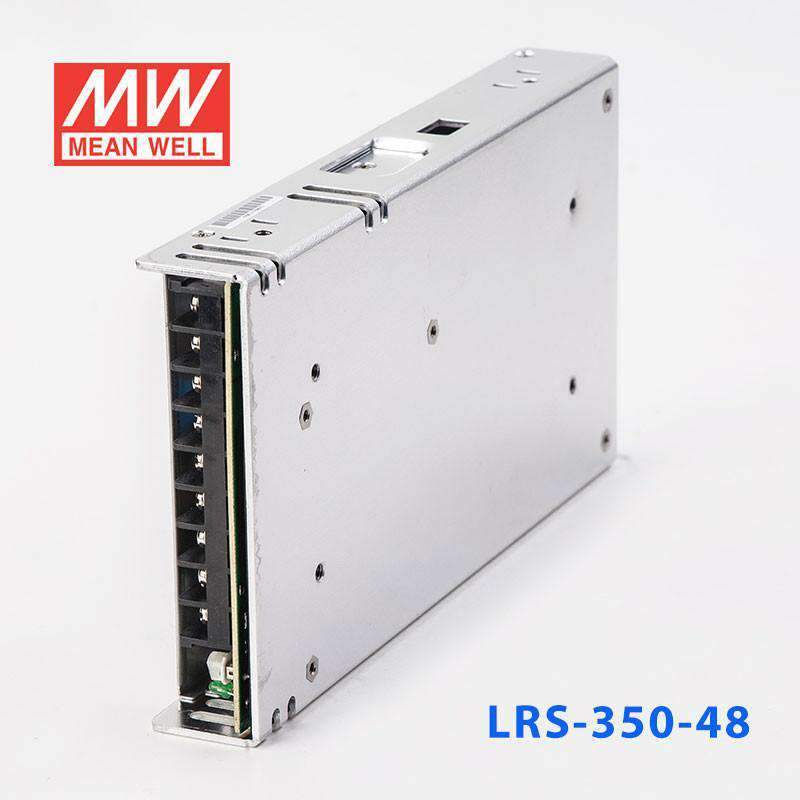

Mean Well LRS-350-48 Power Supply 350W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-350-48 Power Supply 350W 48V
Description
Description
Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification
| AC input voltage range | 115 / 230VAC by switch |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% by potentiometer |
| Overload protection Range | 110%~140% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% rated output voltage |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -25~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | Design refer to EN55022 class A |
| Connection | 9P/9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x 115x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating350.4 Watt
-
Output Voltage48 Volt
-
Rated Current7.3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial or automation applications are appropriate for the LRS-350-48?
The LRS-350-48 provides 48V at 7.3A (350.4W), a common bus voltage for PoE infrastructure, brushless DC motor drives, telecommunications equipment, and industrial Ethernet switches. Its 1U profile and 215 × 115 × 30 mm footprint allow rack or DIN-rail panel integration.
How does the LRS-350-48 compare to the LRS-350N2-48?
Both models output 48V at 7.3A (350.4W) and share identical dimensions (215 × 115 × 30 mm) and weight (0.76 kg). The LRS-350N2-48 adds 200% peak power capability for handling transient motor or load surge currents, while the LRS-350-48 does not offer this peak power feature. Both carry CB, CE, CQC, EAC, TÜV, and UL certifications.
What is the operating temperature range of the LRS-350-48?
The LRS-350-48 operates from -25°C to +70°C. This range covers most industrial indoor environments and allows full-rated operation in enclosures that can reach 70°C ambient without derating.
Is the LRS-350-48 appropriate for 48V DC bus systems in telecom cabinets?
The LRS-350-48 outputs a 48V constant-voltage rail at up to 7.3A, suitable for powering 48V DC bus loads in telecom or IT equipment racks. Its UL and CE certifications support deployment in regulated environments, and the universal 90–264VAC input covers both 120V and 230V supply systems.
Does the LRS-350-48 require derating at high ambient temperatures?
The LRS-350-48 is rated for full 350.4W output up to 70°C ambient. No derating information beyond that upper limit is specified in the product data; operation beyond 70°C is outside the rated range.
