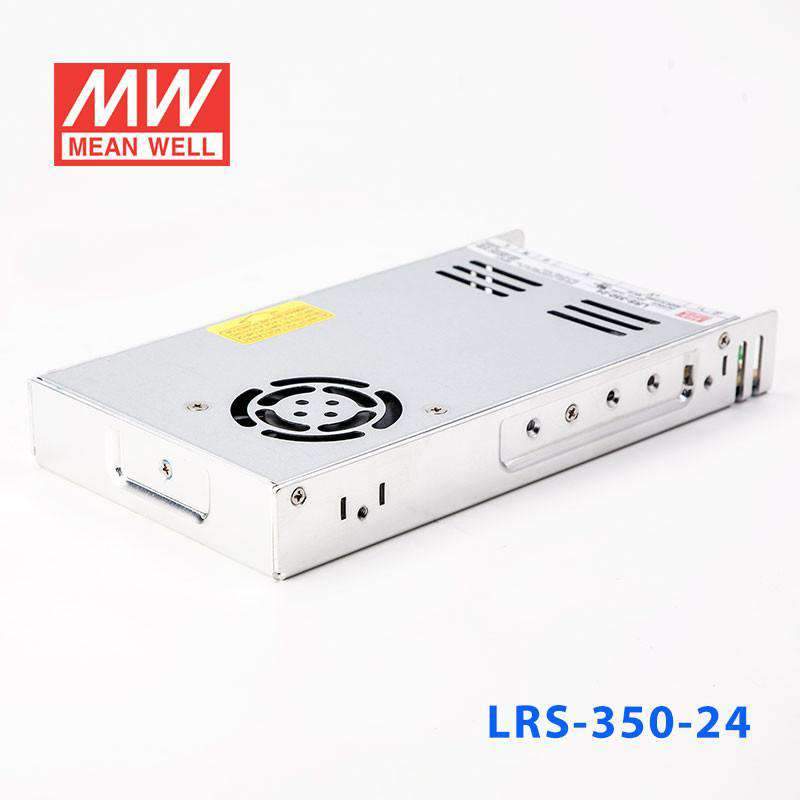

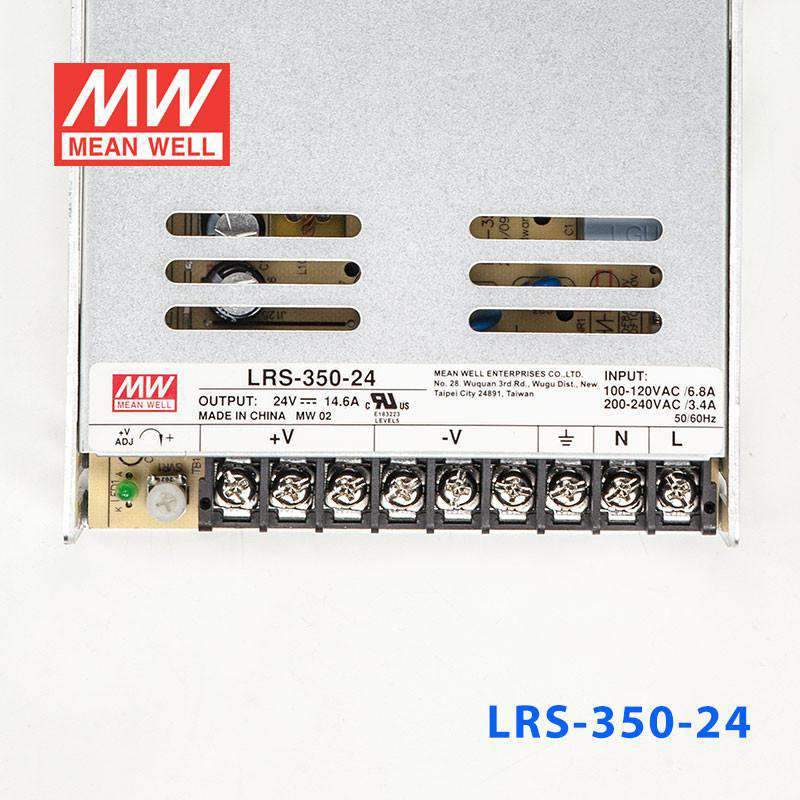

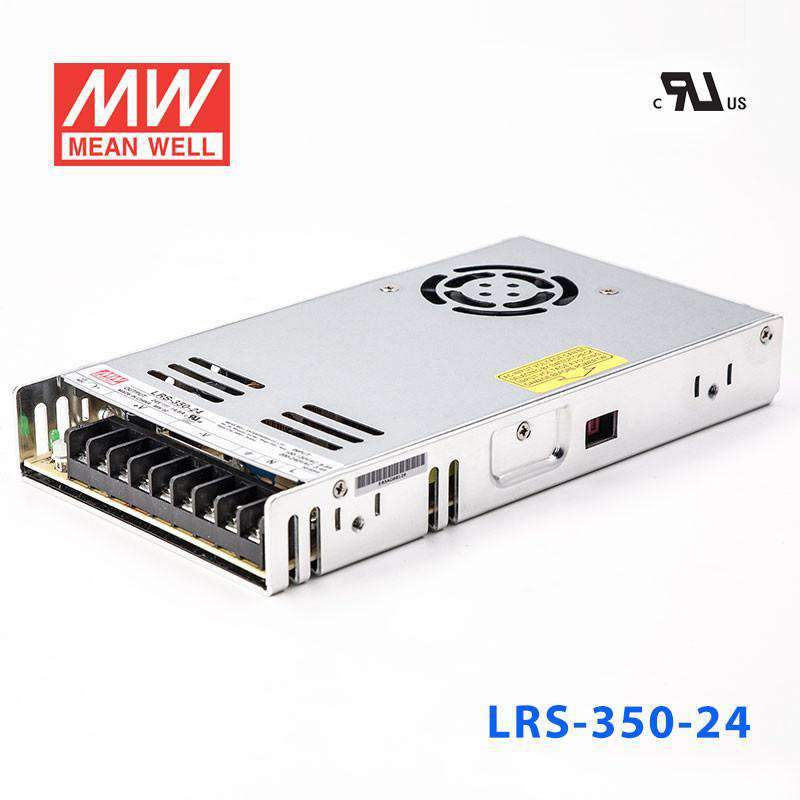

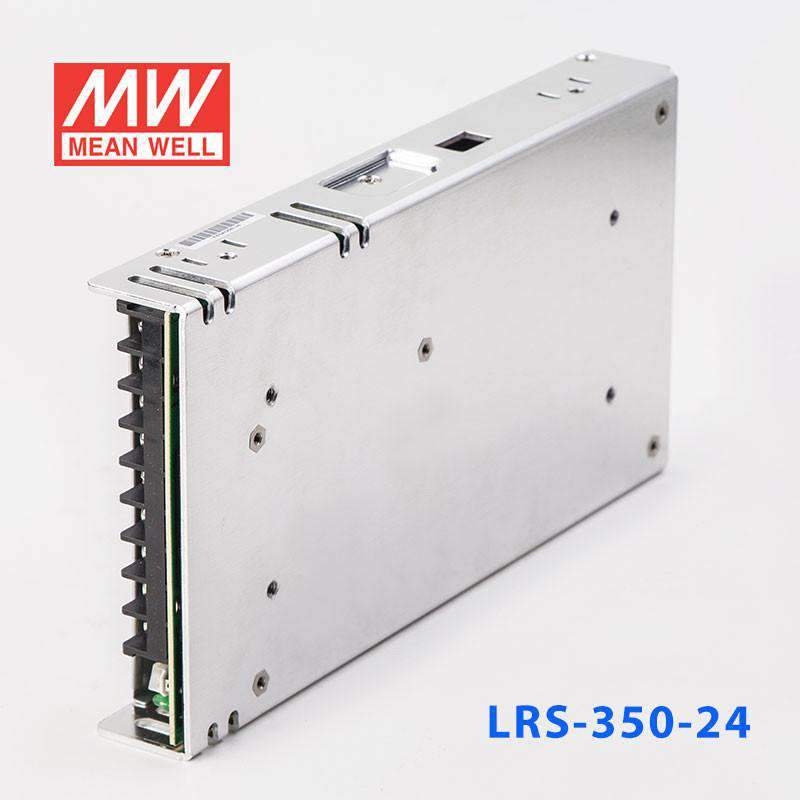

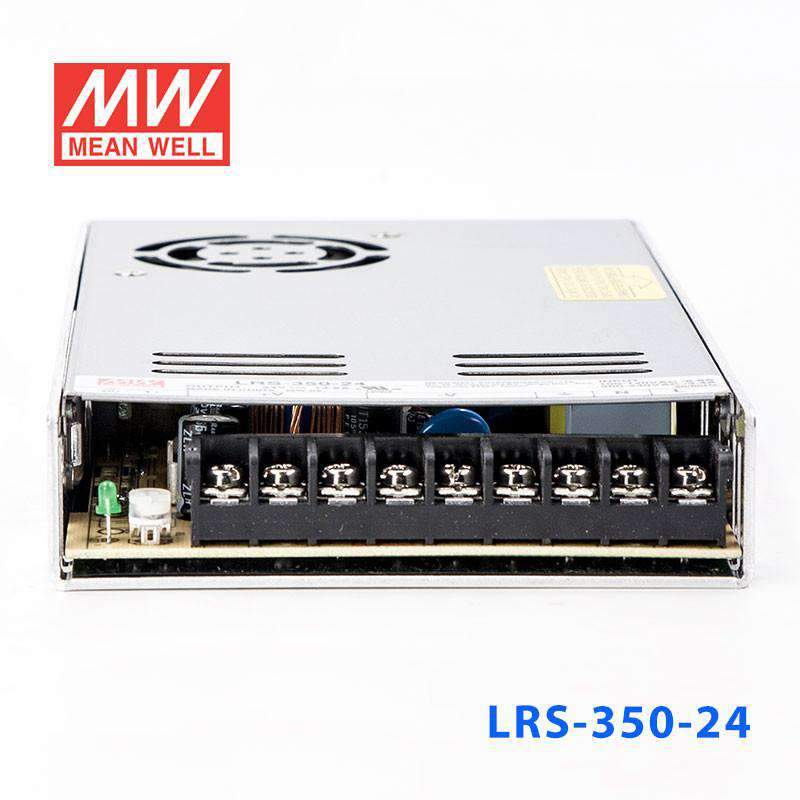

Mean Well LRS-350-24 Power Supply — 350W 24V 14.6A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-350-24 Power Supply — 350W 24V 14.6A
Description
Description
The Mean Well LRS-350-24 is a high-efficiency, slim-profile 350W enclosed power supply delivering a stable 24V DC output at up to 14.6A. Designed for demanding industrial and commercial applications, it combines a wide universal AC input range with multiple built-in protection features and a comprehensive suite of international safety certifications.
Accepting input voltages from 90 to 264VAC, the LRS-350-24 operates reliably across global power standards without modification. It provides robust protection against short circuits, overload conditions, and over-voltage events, with automatic recovery ensuring minimal downtime in critical installations.
Key Features
- ✓350W (350.4W) constant voltage output at 24V DC / 14.6A
- ✓Universal AC input: 90–264VAC, compatible with worldwide mains standards
- ✓Certified to CB, CE, CQC, EAC, TÜV, and UL standards
- ✓Short circuit, overload, and over-voltage protection with auto-recovery
- ✓Slim form factor: 215.0 × 115.0 × 30.0 mm
- ✓Wide operating temperature range: −25°C to +70°C
- ✓3-year manufacturer warranty
- ✓Input-to-output withstand voltage: 3kVAC
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.68 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial systems is the LRS-350-24 designed to power?
The LRS-350-24 delivers 24V DC at 14.6A, the standard control bus voltage for PLCs, servo drives, multi-axis motion controllers, industrial HMIs, and pneumatic solenoid arrays. Its 350.4W output capacity handles high-density 24V panel loads without the need for parallel supplies.
Is the LRS-350-24 suitable for use in high-temperature environments?
The LRS-350-24 is rated for operation from -25°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-350-24 compare to other voltage options in the LRS-350 series?
The LRS-350 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-350-12: 348W, 12V, 29A; LRS-350-15: 348W, 15V, 23.2A; LRS-350-3.3: 198W, 3.3V, 60A; LRS-350-36: 349.2W, 36V, 9.7A; LRS-350-4.2: 252W, 4.2V, 60A; LRS-350-48: 350.4W, 48V, 7.3A. The LRS-350-24 itself is rated at 350.4W, 24V, 14.6A. All share the same universal input range of 90-264VAC and operating temperature of -25°C to +70°C.
How do I determine if the LRS-350-24 has enough headroom for my load?
The LRS-350-24 is rated at 350.4W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 280.3W sustained draw. The 24V output at 14.6A gives the total current budget across all loads sharing this supply.
Other LRS-350 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-350-12 Power Supply 350W 12V | 348W | 12V | 29A | Indoor | $27.99 | View |
| Mean Well LRS-350-5 Power Supply 350W 5V | 300W | 5V | 60A | Indoor | $37.04 | View |
| Mean Well LRS-350-15 Power Supply 350W 15V | 348W | 15V | 23.2A | Indoor | $37.13 | View |
| Mean Well LRS-350-48 Power Supply 350W 48V | 350.4W | 48V | 7.3A | Indoor | $33.64 | View |
| Mean Well LRS-350-4.2 Power Supply 350W4.2V | 252W | 4.2V | 60A | Indoor | $38.11 | View |
| Mean Well LRS-350-36 Power Supply 350W 36V | 349.2W | 36V | 9.7A | Indoor | $35.09 | View |
