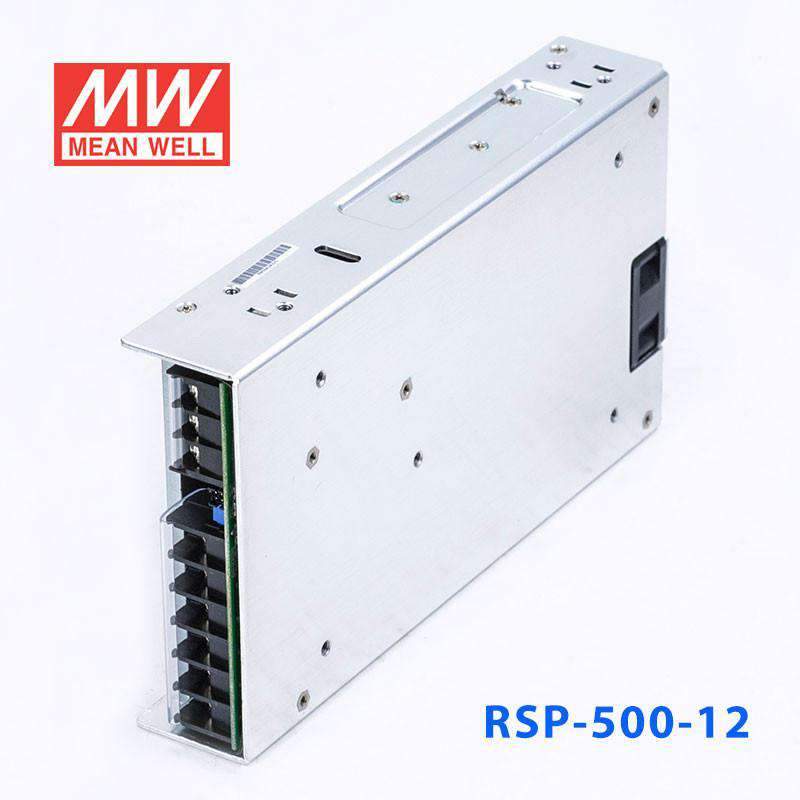

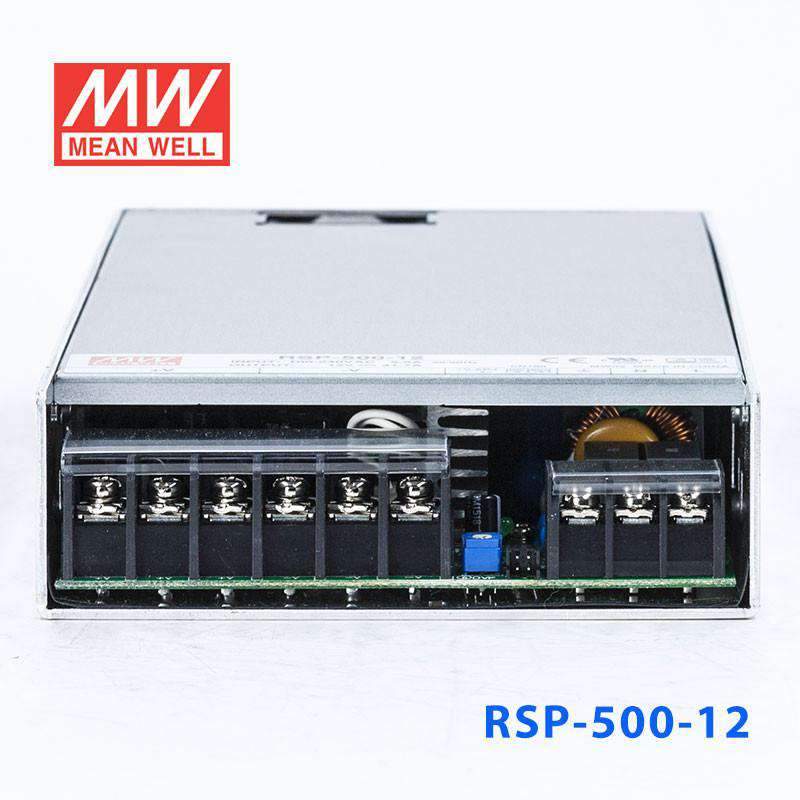

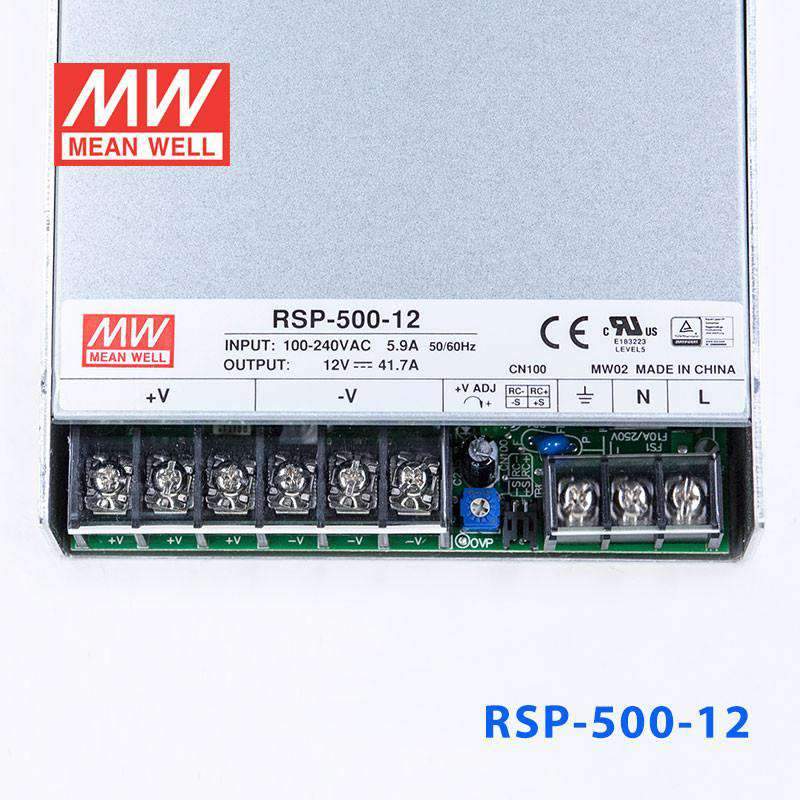

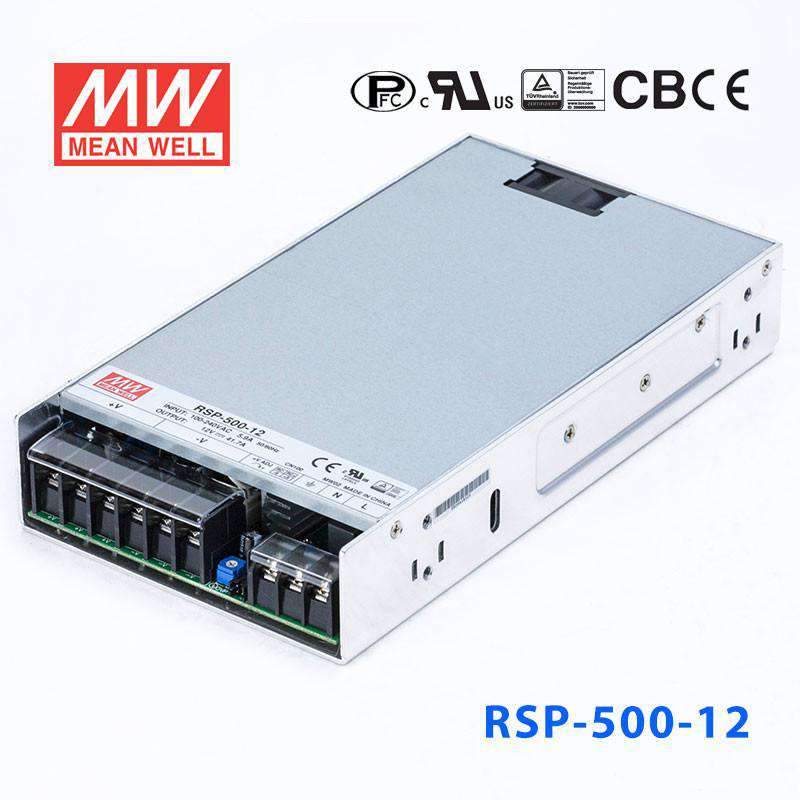

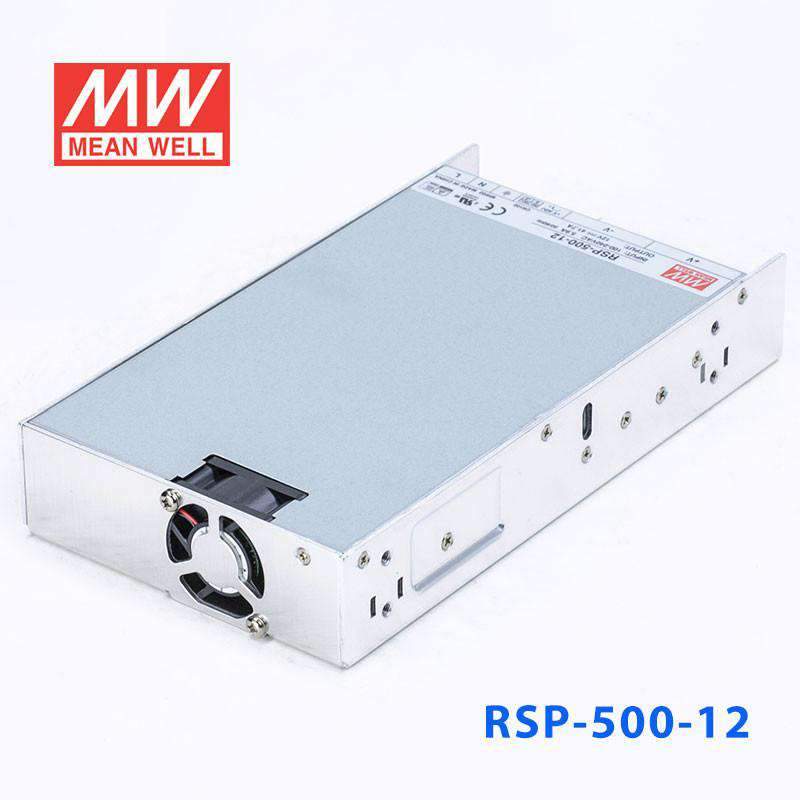

Mean Well RSP-500-12 Power Supply 500W 12V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating500.4 Watt
-
Output Voltage12 Volt
-
Rated Current41.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What applications is the RSP-500-12 suited for at 12V, 500W?
The RSP-500-12 outputs 12V at 41.7A (500.4W), appropriate for network infrastructure equipment, embedded server nodes, and industrial automation controllers operating on a 12V bus. Its 1U form factor (230.0 × 127.0 × 40.5 mm) allows standard rack integration.
What temperature range does the RSP-500-12 support?
The RSP-500-12 operates from -30°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-500-12 compare to the RSP-320-12 and RSP-750-12 at 12V?
The RSP-320-12 provides 320.4W at 26.7A in a 215.0 × 115.0 × 30.0 mm chassis. The RSP-500-12 steps up to 500.4W at 41.7A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-12 provides 750W at 62.5A in a 250.0 × 127.0 × 41.0 mm chassis. All accept universal AC input, with the RSP-500-12 accepting 85-264VAC.
What is the input voltage range of the RSP-500-12?
The RSP-500-12 accepts 85-264VAC, supporting the full range of worldwide single-phase AC power systems. It includes built-in active PFC and weighs 1.3 kg.
