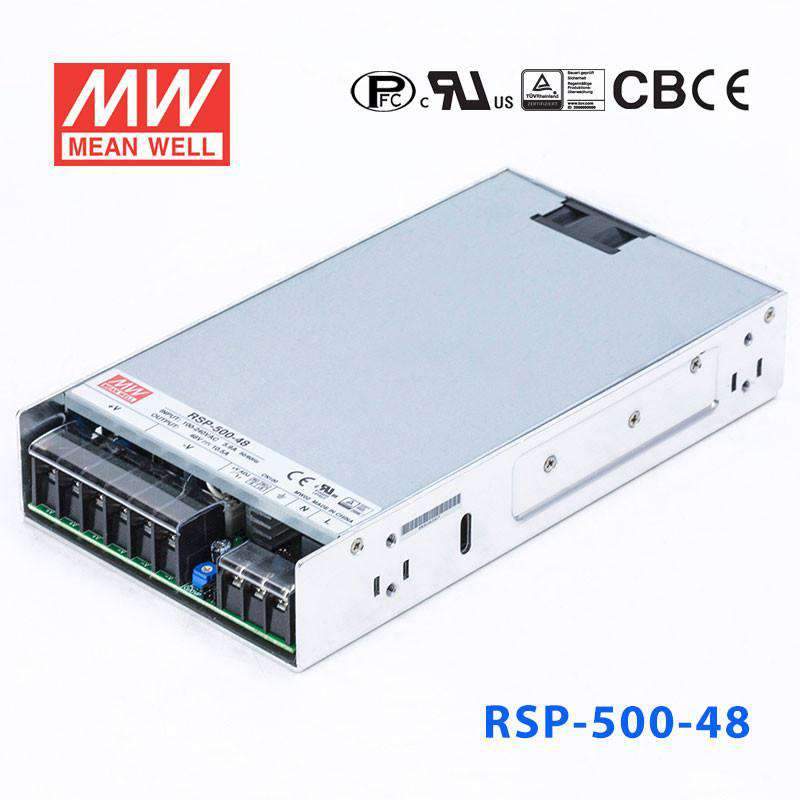

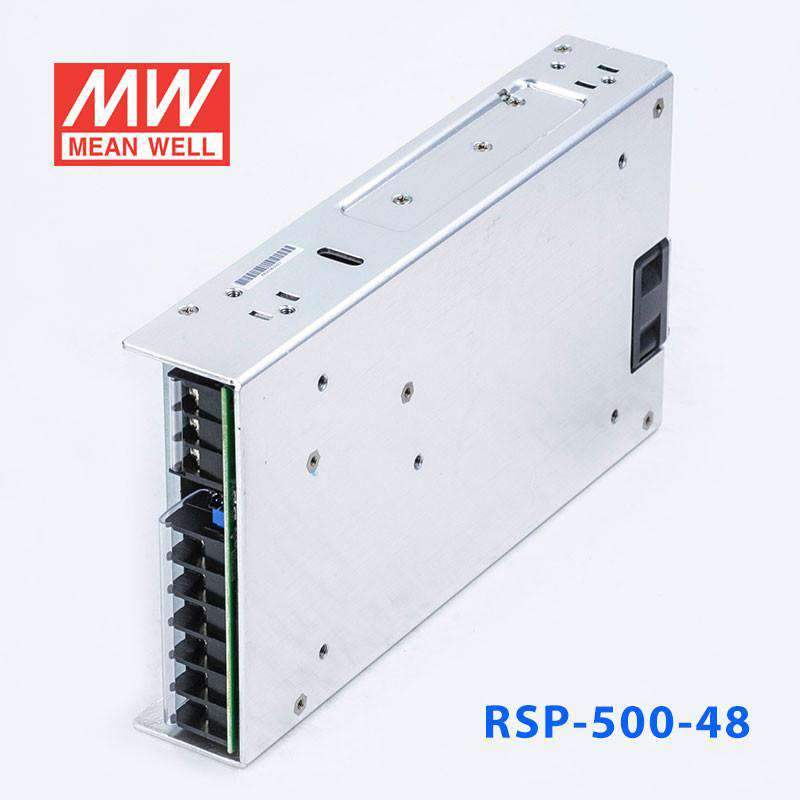

Mean Well RSP-500-48 Power Supply 500W 48V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |

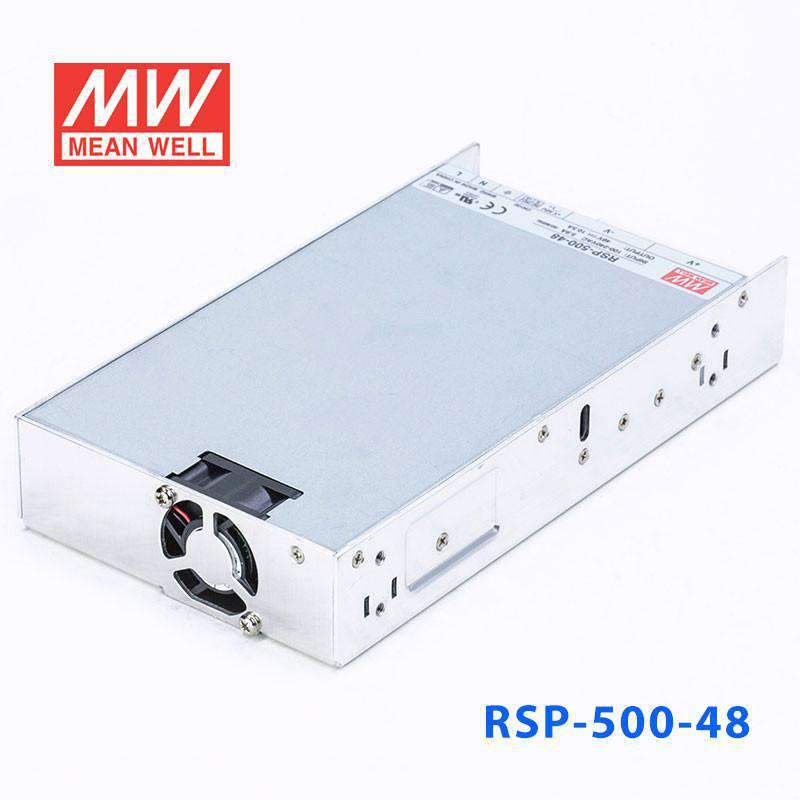

| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| Built-in remote sense and ON/OFF control |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |

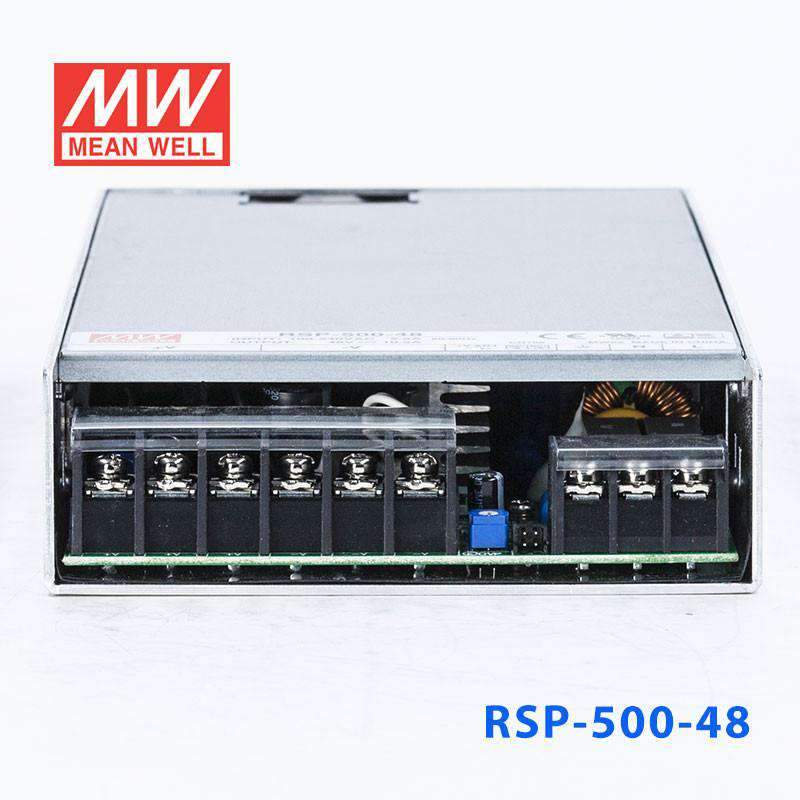

| Connection Input | 3P / 9.5mm pitch terminal block |

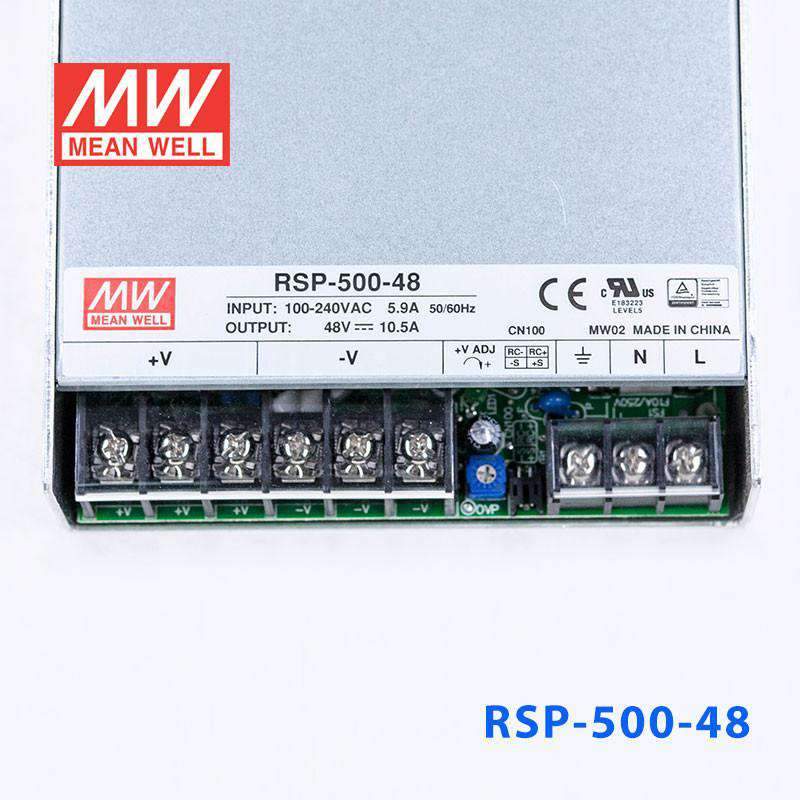

| Connection Output | 6P / 11mm pitch terminal block |
| Dimension (LxWxH) | 230x127x40.5 |
| Case No. | 226A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating504 Watt
-
Output Voltage48 Volt
-
Rated Current10.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the RSP-500-48 used for in 48V DC systems?
The RSP-500-48 delivers 48V at 10.5A (504W), appropriate for powering PoE-capable network equipment, small telecom rectifier applications, and 48V battery float-charge systems. Its 1U profile (230.0 × 127.0 × 40.5 mm) suits standard rack enclosures.
What is the ambient operating range of the RSP-500-48?
The RSP-500-48 operates from -30°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-500-48 compare to the RSP-320-48 and RSP-750-48 at 48V?
The RSP-320-48 provides 320W at 6.7A in a 215.0 × 115.0 × 30.0 mm chassis. The RSP-500-48 increases to 504W at 10.5A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-48 delivers 753.6W at 15.7A in a 250.0 × 127.0 × 41.0 mm chassis. All three accept universal AC input.
Does the RSP-500-48 include active PFC?
Yes. The RSP-500-48 includes built-in active PFC across its 85-264VAC input range. It weighs 1.3 kg and carries a 3-year warranty.
