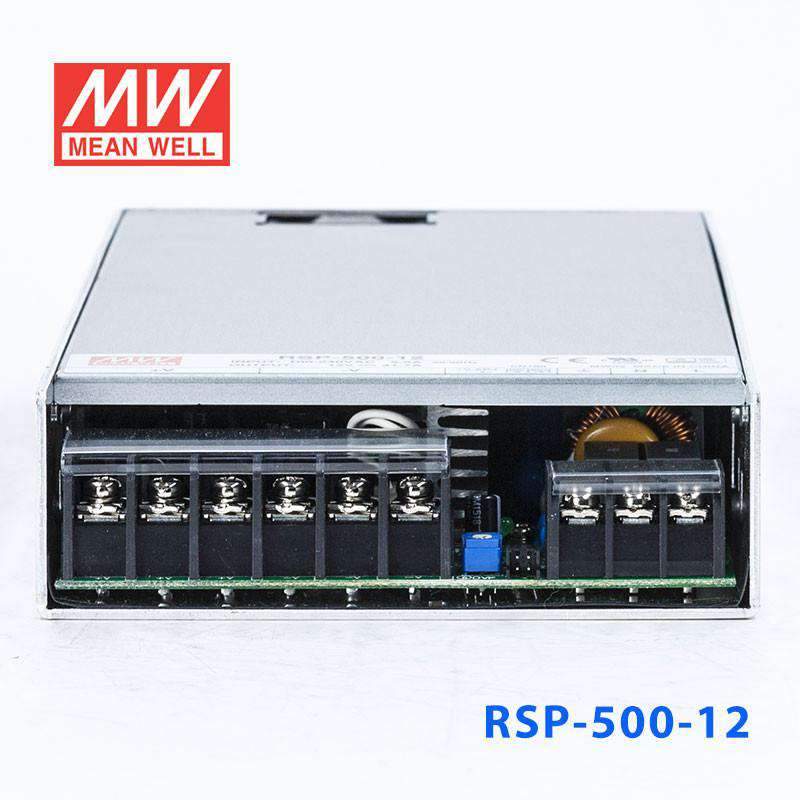

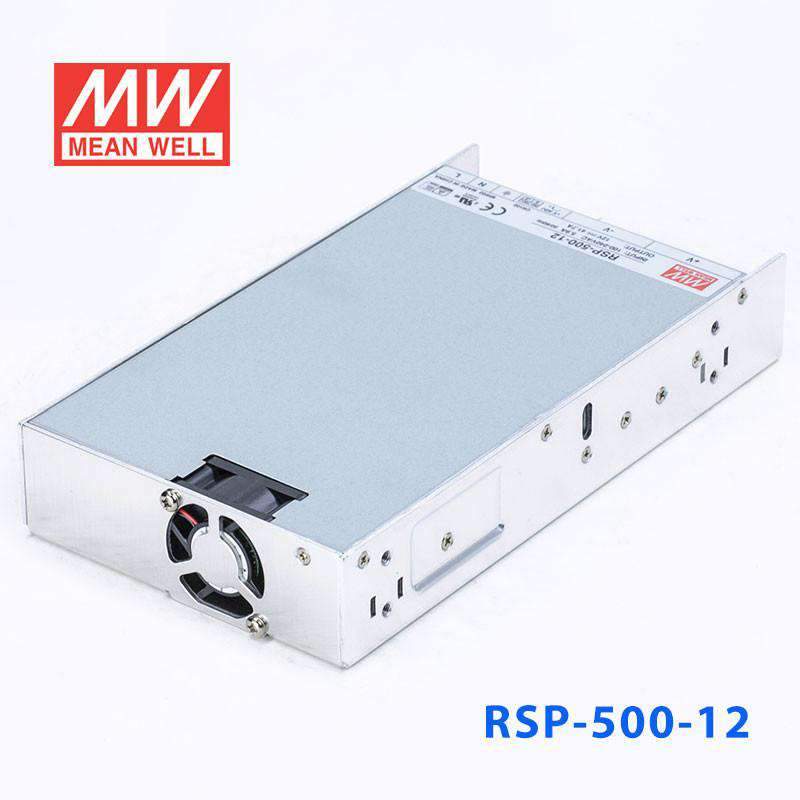

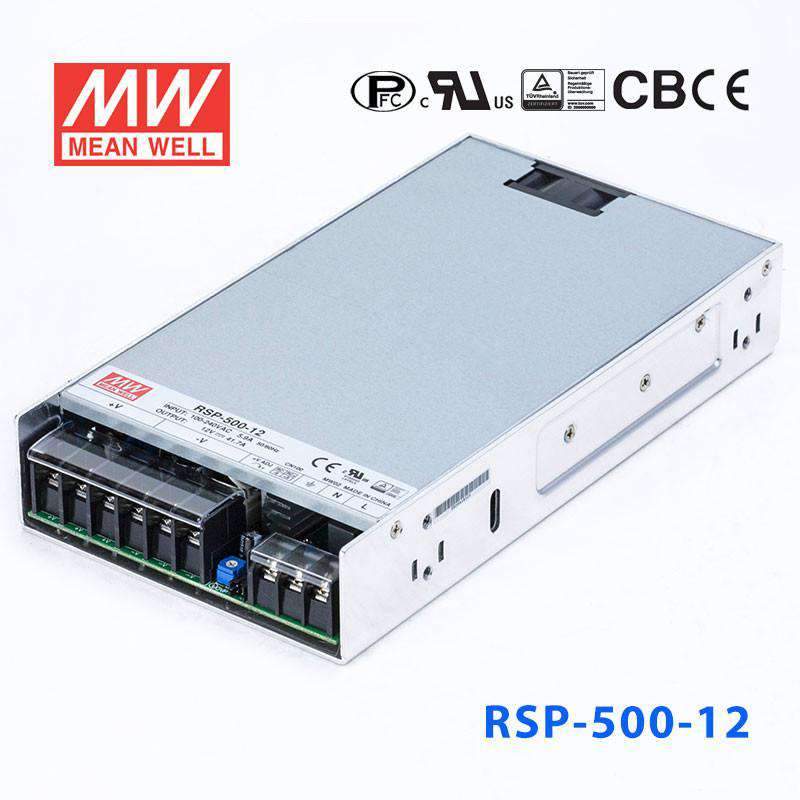

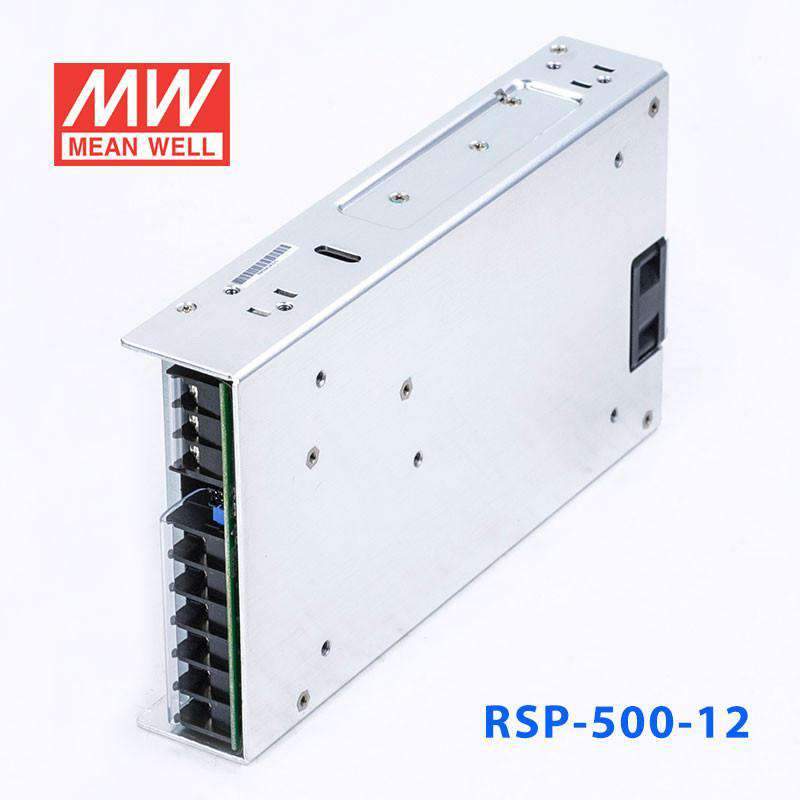

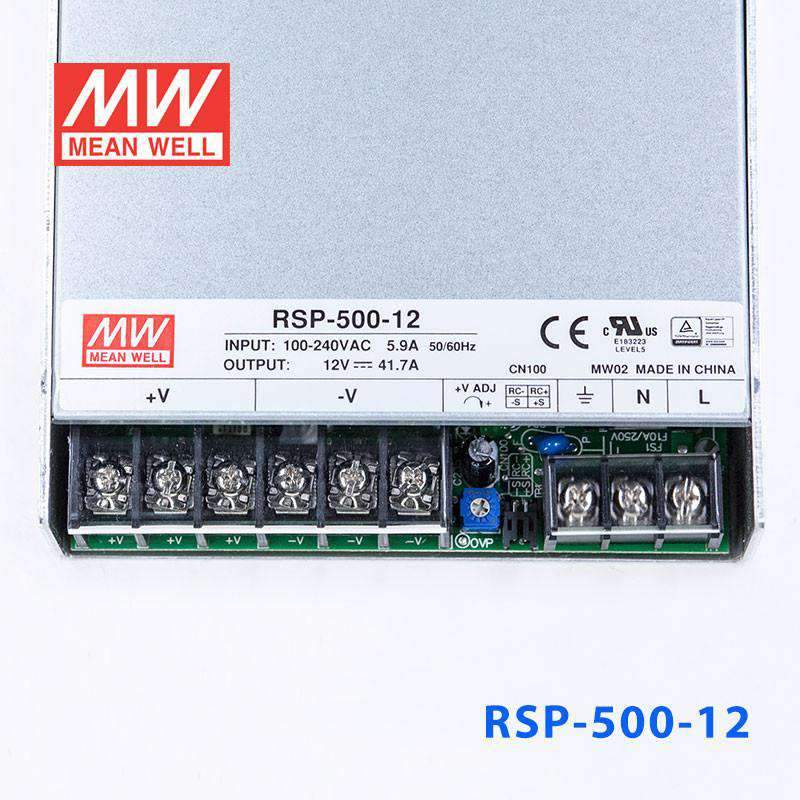

Mean Well RSP-500-12 Power Supply 500W 12V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| Built-in remote sense and ON/OFF control |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Connection Input | 3P / 9.5mm pitch terminal block |
| Connection Output | 6P / 11mm pitch terminal block |
| Dimension (LxWxH) | 230x127x40.5 |
| Case No. | 226A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating500.4 Watt
-
Output Voltage12 Volt
-
Rated Current41.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the RSP-500-12 suited for at 12V, 500W?
The RSP-500-12 outputs 12V at 41.7A (500.4W), appropriate for network infrastructure equipment, embedded server nodes, and industrial automation controllers operating on a 12V bus. Its 1U form factor (230.0 × 127.0 × 40.5 mm) allows standard rack integration.
What temperature range does the RSP-500-12 support?
The RSP-500-12 operates from -30°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-500-12 compare to the RSP-320-12 and RSP-750-12 at 12V?
The RSP-320-12 provides 320.4W at 26.7A in a 215.0 × 115.0 × 30.0 mm chassis. The RSP-500-12 steps up to 500.4W at 41.7A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-12 provides 750W at 62.5A in a 250.0 × 127.0 × 41.0 mm chassis. All accept universal AC input, with the RSP-500-12 accepting 85-264VAC.
What is the input voltage range of the RSP-500-12?
The RSP-500-12 accepts 85-264VAC, supporting the full range of worldwide single-phase AC power systems. It includes built-in active PFC and weighs 1.3 kg.
