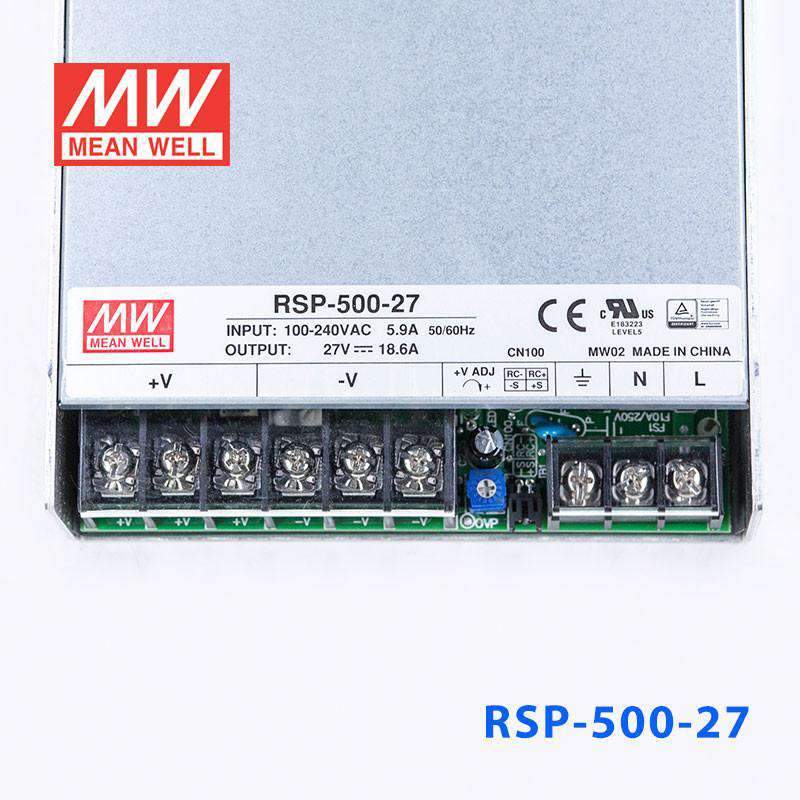

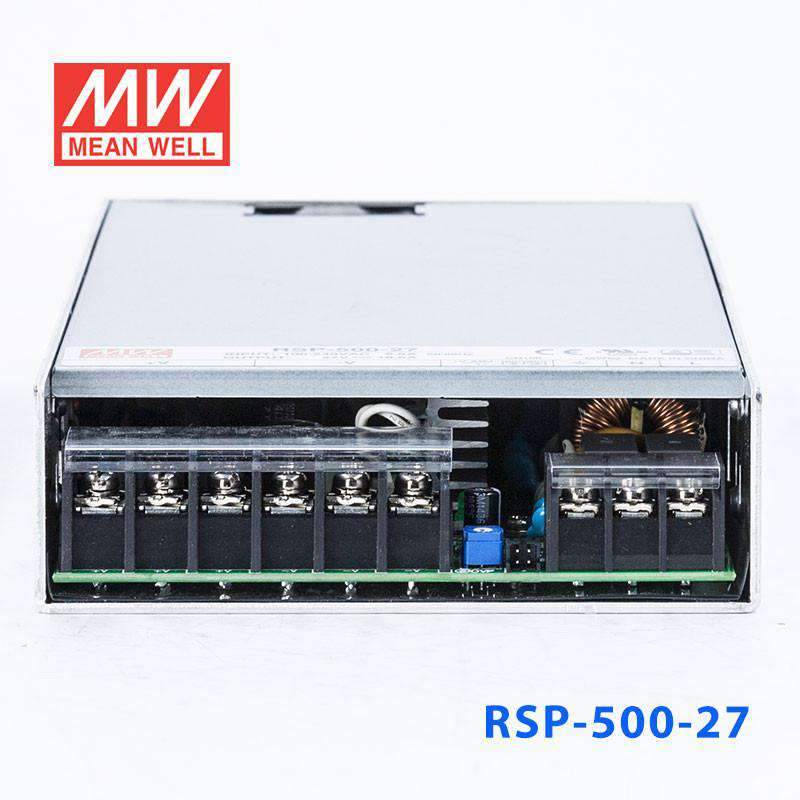

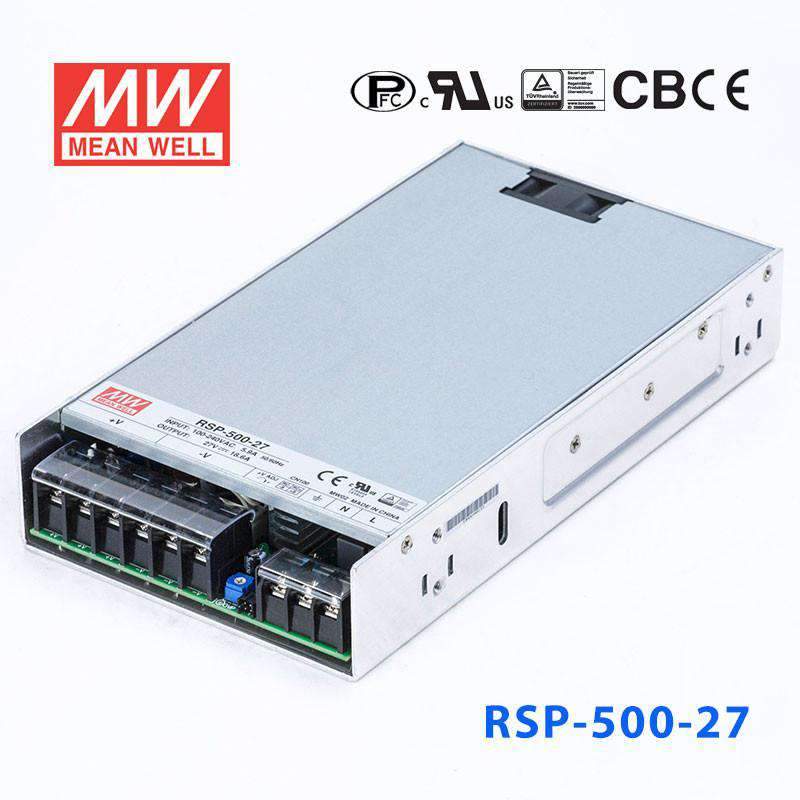

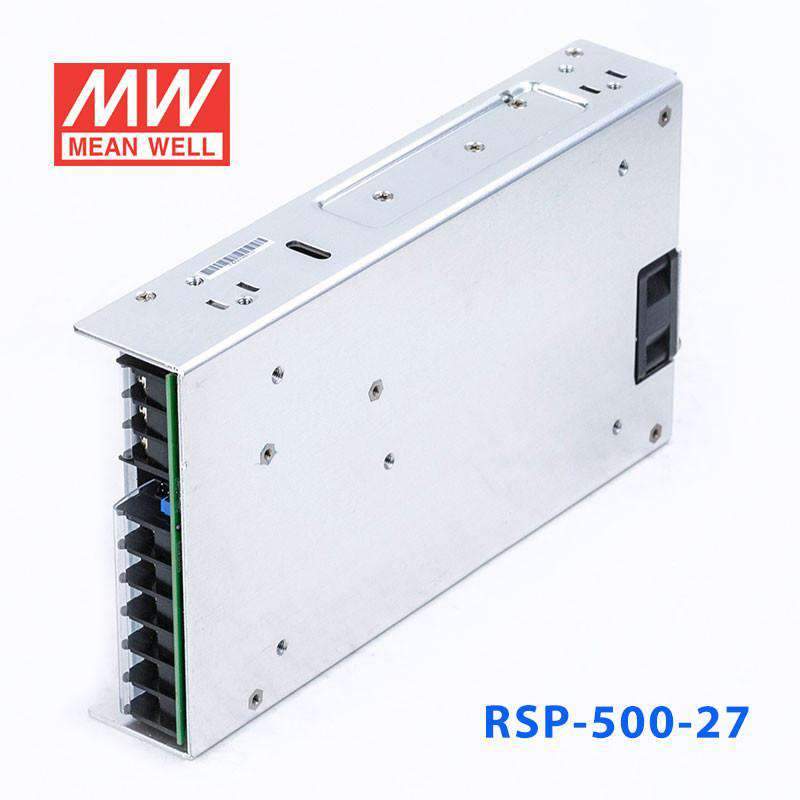

Mean Well RSP-500-27 Power Supply 500W 27V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |

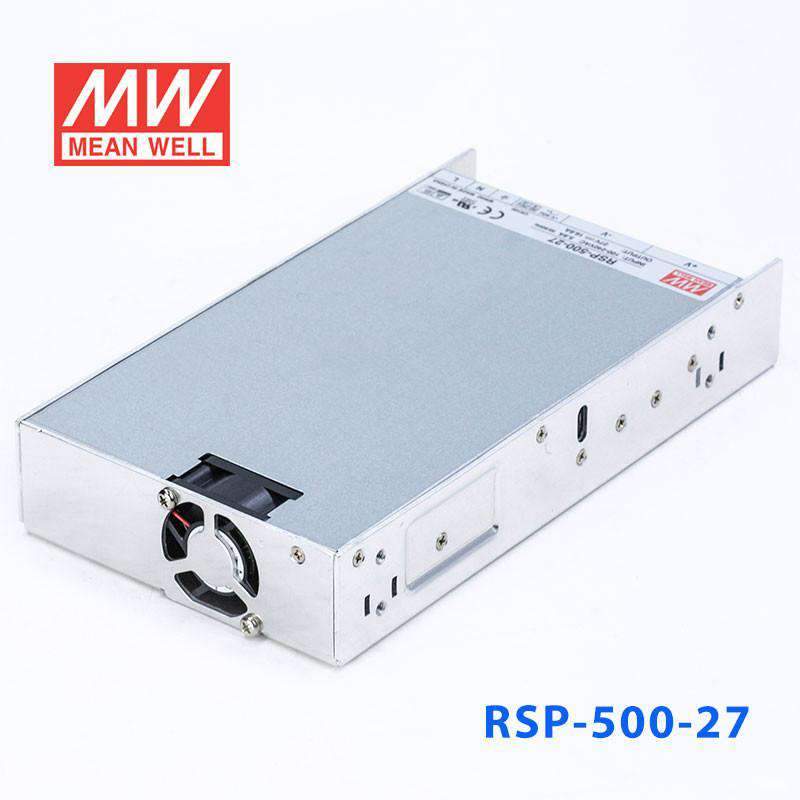

| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| Built-in remote sense and ON/OFF control |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
| Connection Input | 3P / 9.5mm pitch terminal block |
| Connection Output | 6P / 11mm pitch terminal block |
| Dimension (LxWxH) | 230x127x40.5 |
| Case No. | 226A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating502.2 Watt
-
Output Voltage27 Volt
-
Rated Current18.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications require 27V DC that the RSP-500-27 can serve?
The RSP-500-27 provides 27V at 18.6A (502.2W), used to power certain motion control amplifiers, specialized 24-28V nominal equipment, and industrial bus systems. Its 1U form factor (230.0 × 127.0 × 40.5 mm) is compatible with standard rack enclosures.
What is the operating temperature range of the RSP-500-27?
The RSP-500-27 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications.
How does the RSP-500-27 compare to the RSP-500-24 and RSP-500-48?
All three use the same 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-24 provides 504W at 21A, the RSP-500-27 provides 502.2W at 18.6A, and the RSP-500-48 provides 504W at 10.5A. Power output is similar across the group; current decreases as voltage increases.
What does the RSP-500-27 weigh and what warranty is included?
The RSP-500-27 weighs 1.3 kg and includes a 3-year warranty. It incorporates built-in active PFC and accepts 85-264VAC universal input.
