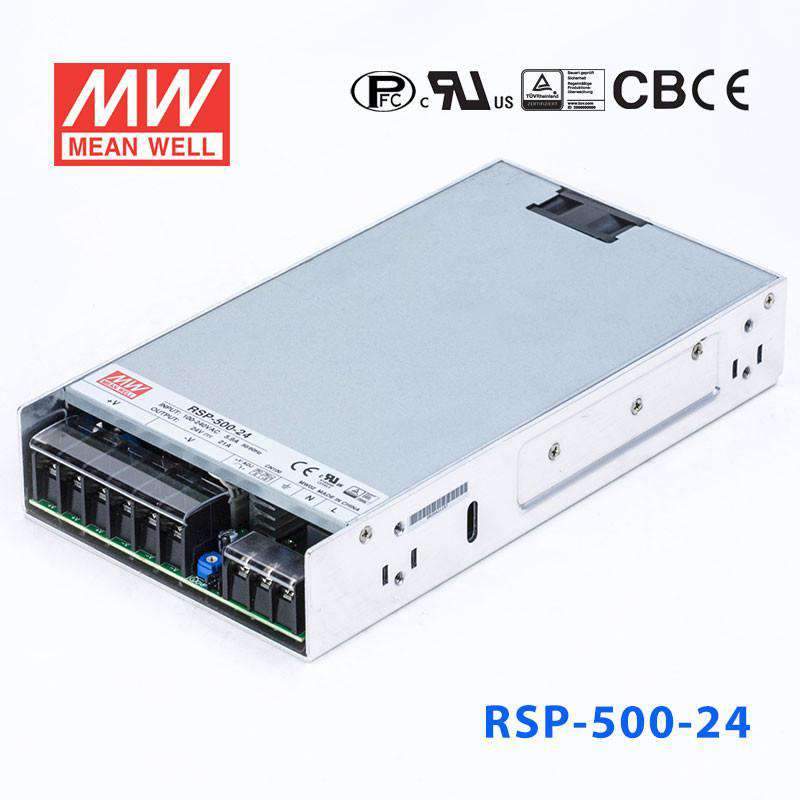

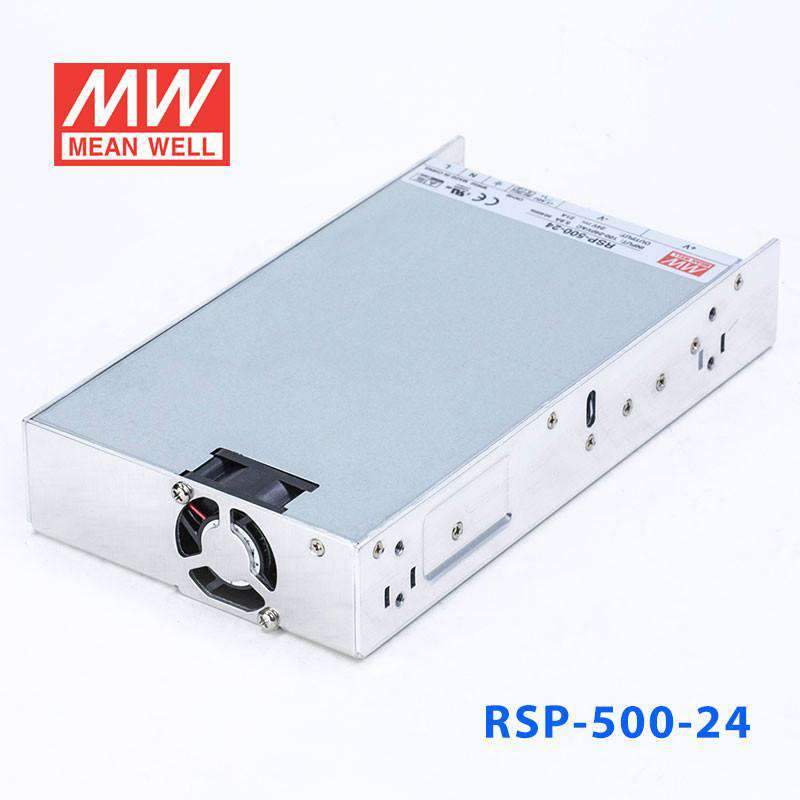

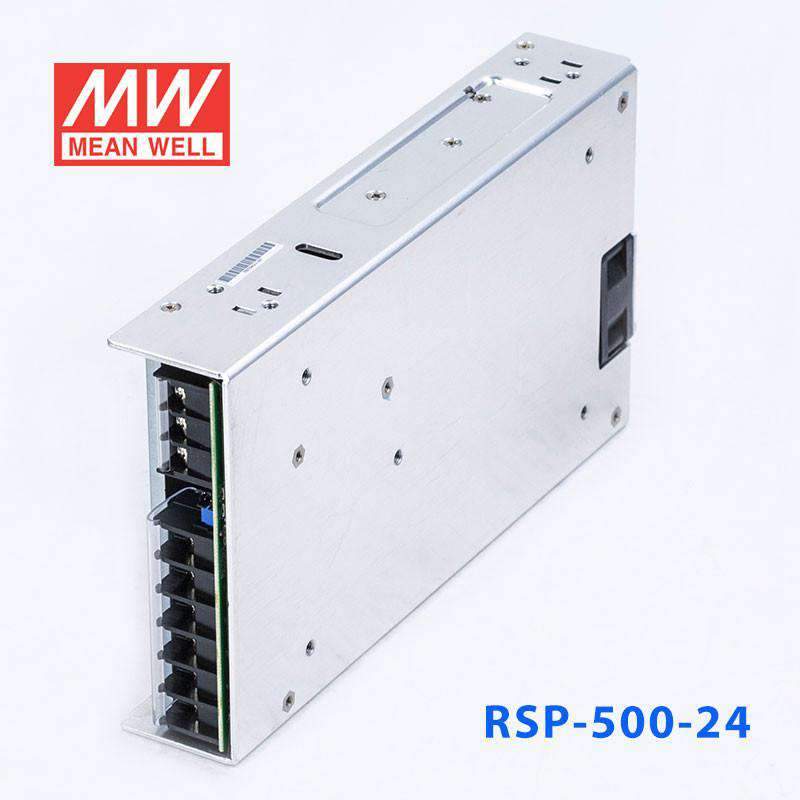

Mean Well RSP-500-24 Power Supply 500W 24V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| Built-in remote sense and ON/OFF control |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |

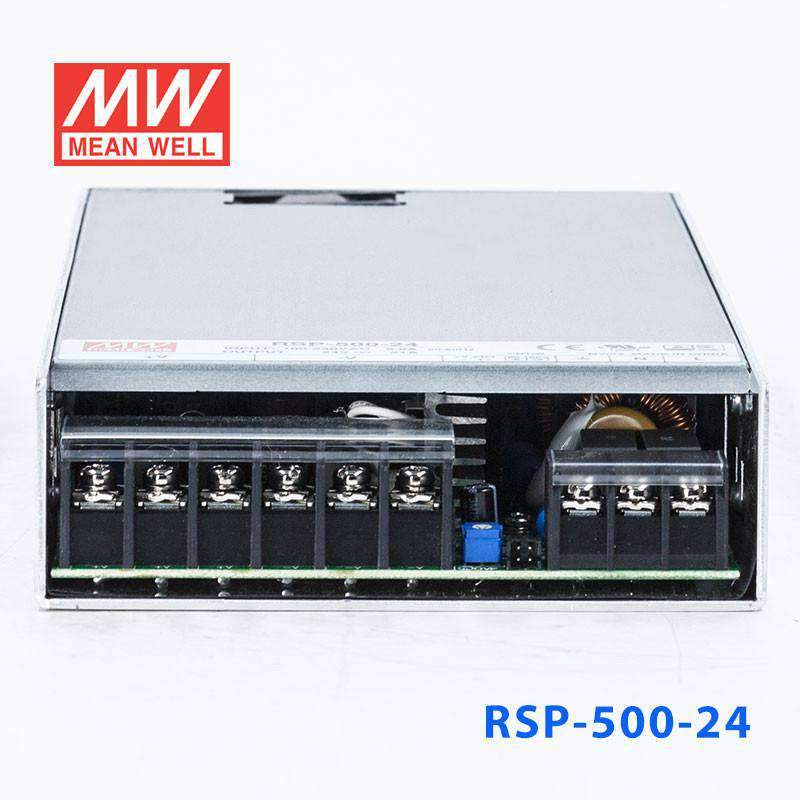

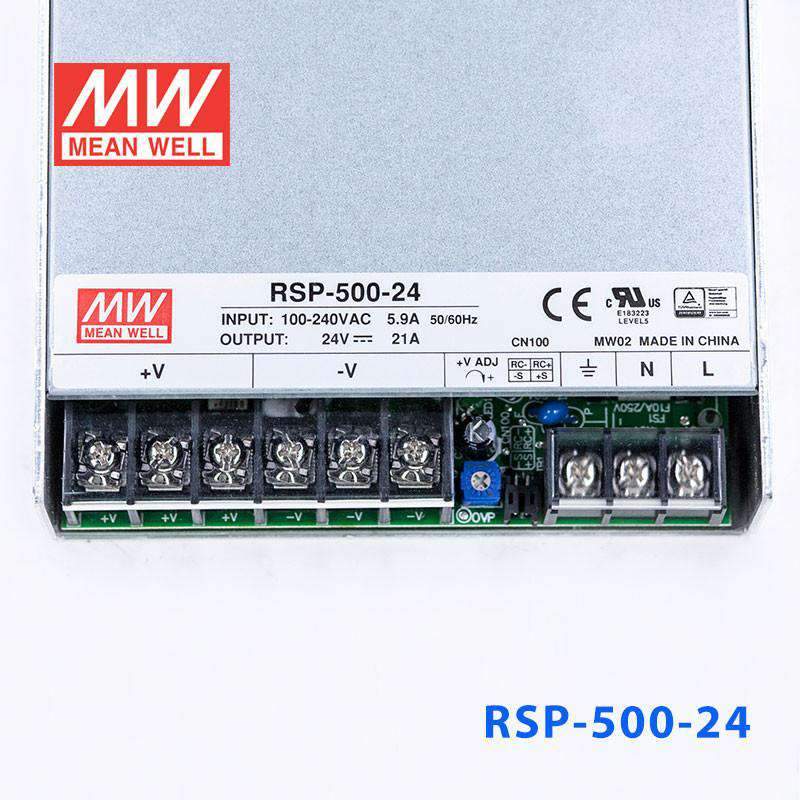

| Connection Input | 3P / 9.5mm pitch terminal block |
| Connection Output | 6P / 11mm pitch terminal block |
| Dimension (LxWxH) | 230x127x40.5 |
| Case No. | 226A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating504 Watt
-
Output Voltage24 Volt
-
Rated Current21 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial systems is the RSP-500-24 suited to power?
The RSP-500-24 outputs 24V at 21A (504W), matching the 24V DC bus used extensively in PLC systems, industrial robotics, and distributed I/O modules. Its 1U low-profile form factor (230.0 × 127.0 × 40.5 mm) supports rack and panel deployment.
What is the ambient operating range of the RSP-500-24?
The RSP-500-24 operates from -30°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is rated for indoor enclosed use.
How does the RSP-500-24 compare to the RSP-500-27 at similar voltages?
Both units share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-24 delivers 504W at 21A, while the RSP-500-27 delivers 502.2W at 18.6A. Power output is nearly identical; the RSP-500-27 provides a slightly higher voltage at lower current.
Does the RSP-500-24 include active PFC?
Yes. The RSP-500-24 includes built-in active PFC across its 85-264VAC input range. The unit weighs 1.3 kg and carries a 3-year warranty.
