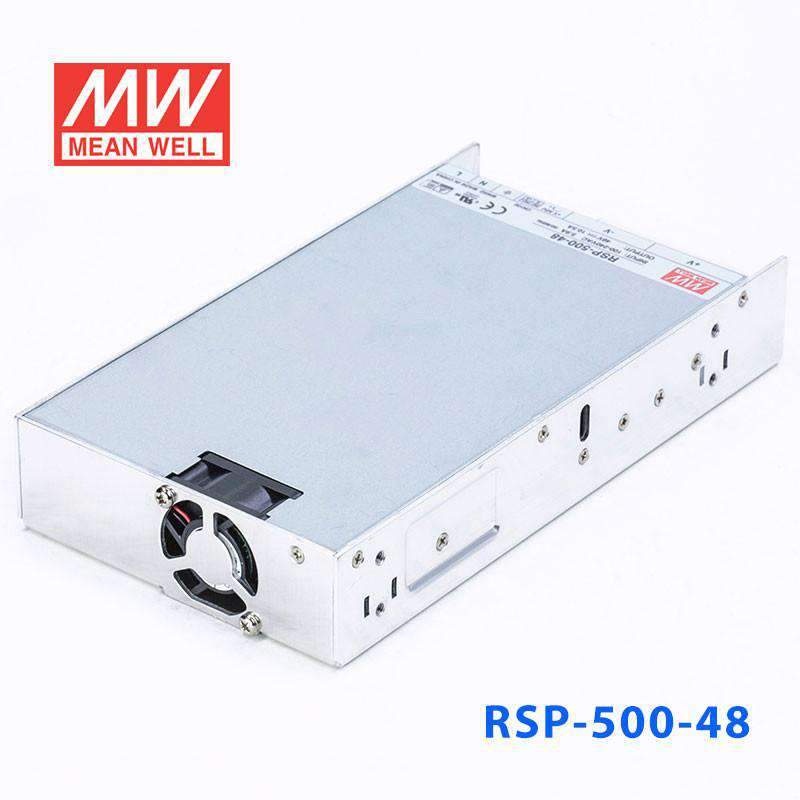

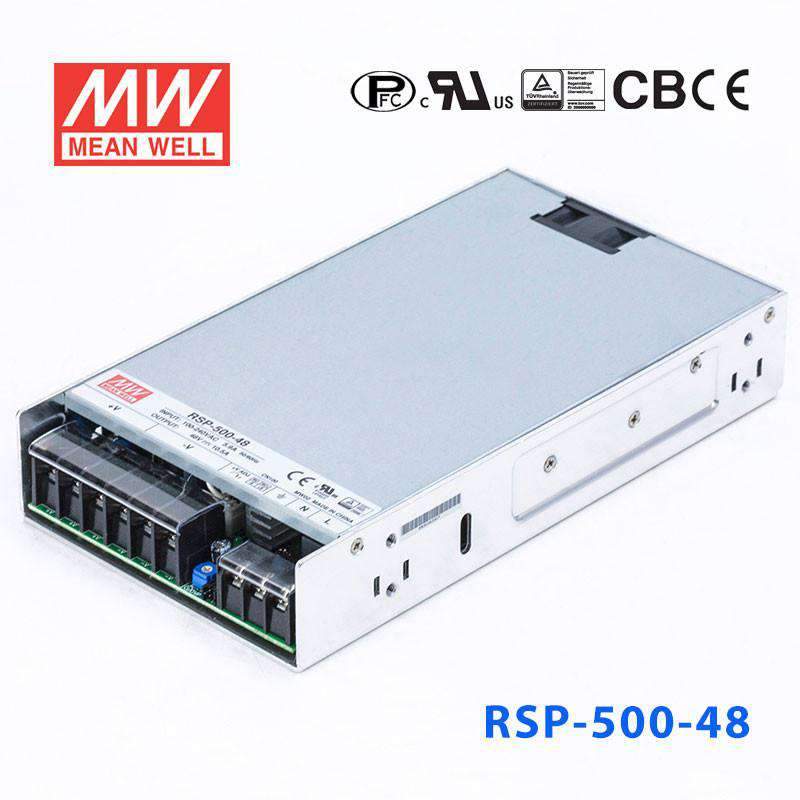

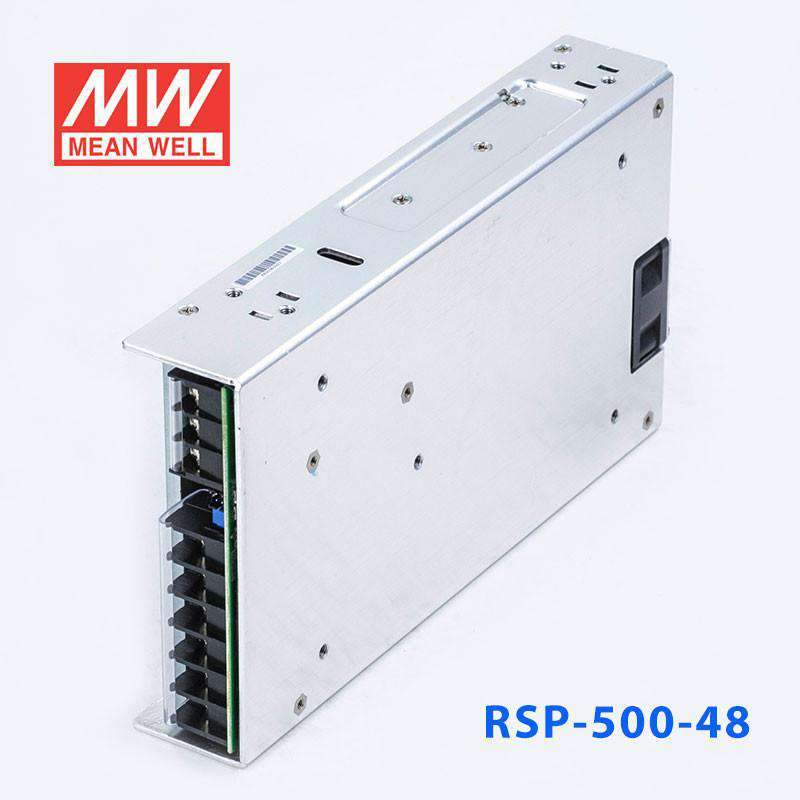

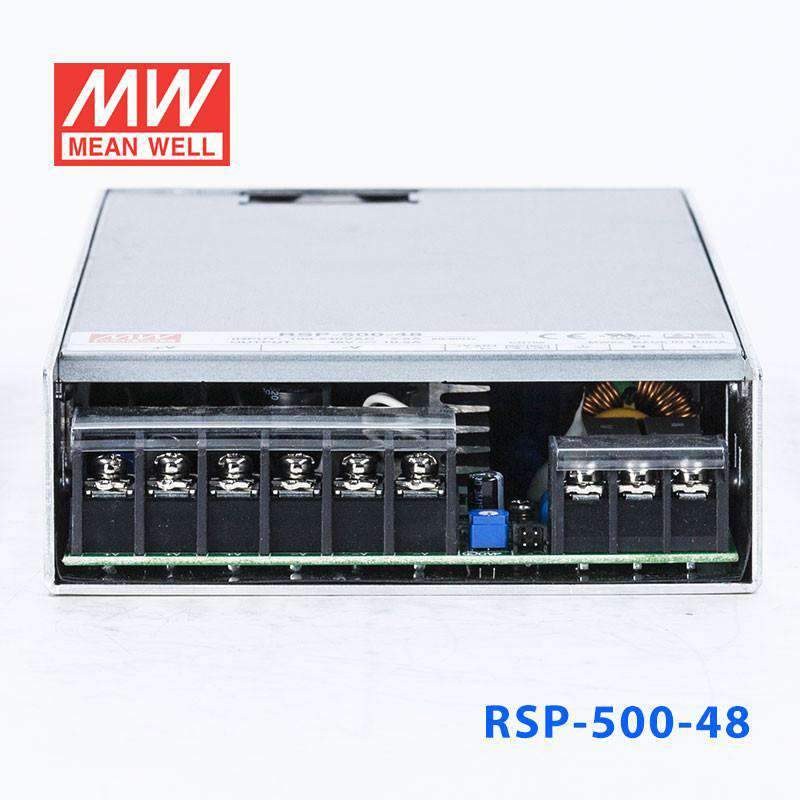

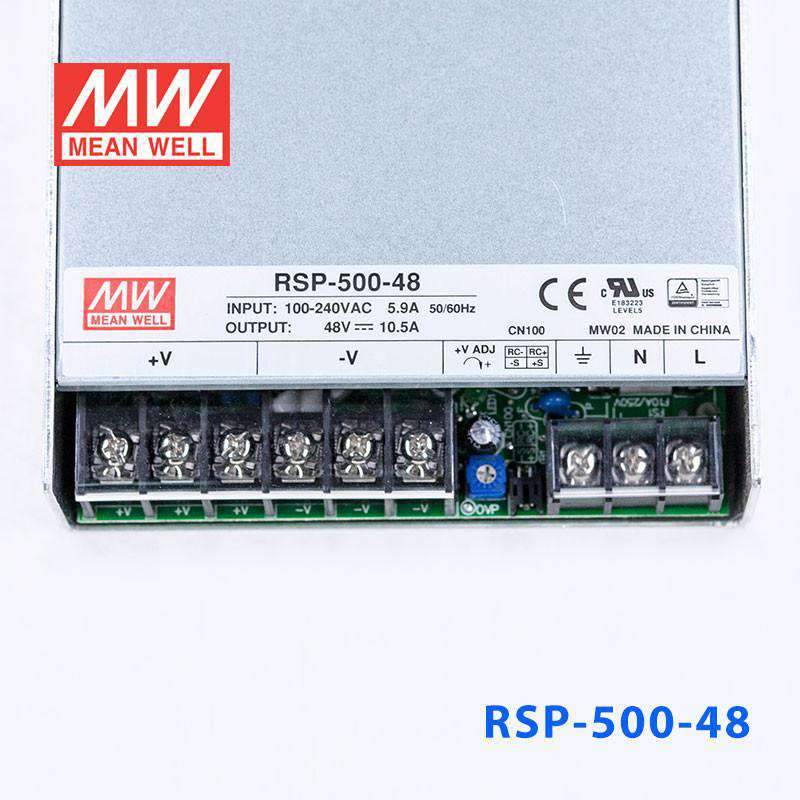

Mean Well RSP-500-48 Power Supply 500W 48V
The RSP-500 is a 500W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating504 Watt
-
Output Voltage48 Volt
-
Rated Current10.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
What is the RSP-500-48 used for in 48V DC systems?
The RSP-500-48 delivers 48V at 10.5A (504W), appropriate for powering PoE-capable network equipment, small telecom rectifier applications, and 48V battery float-charge systems. Its 1U profile (230.0 × 127.0 × 40.5 mm) suits standard rack enclosures.
What is the ambient operating range of the RSP-500-48?
The RSP-500-48 operates from -30°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-500-48 compare to the RSP-320-48 and RSP-750-48 at 48V?
The RSP-320-48 provides 320W at 6.7A in a 215.0 × 115.0 × 30.0 mm chassis. The RSP-500-48 increases to 504W at 10.5A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-48 delivers 753.6W at 15.7A in a 250.0 × 127.0 × 41.0 mm chassis. All three accept universal AC input.
Does the RSP-500-48 include active PFC?
Yes. The RSP-500-48 includes built-in active PFC across its 85-264VAC input range. It weighs 1.3 kg and carries a 3-year warranty.
