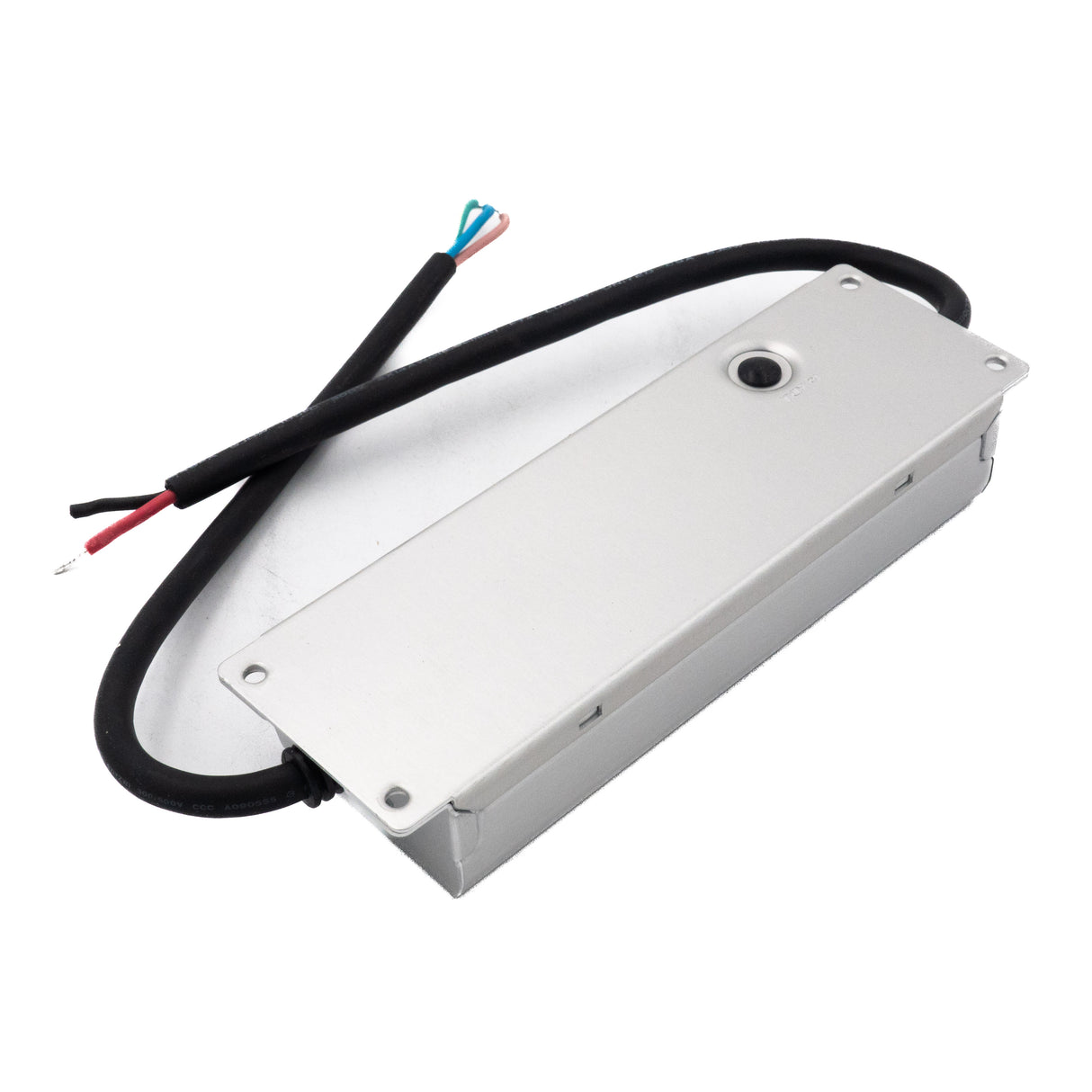

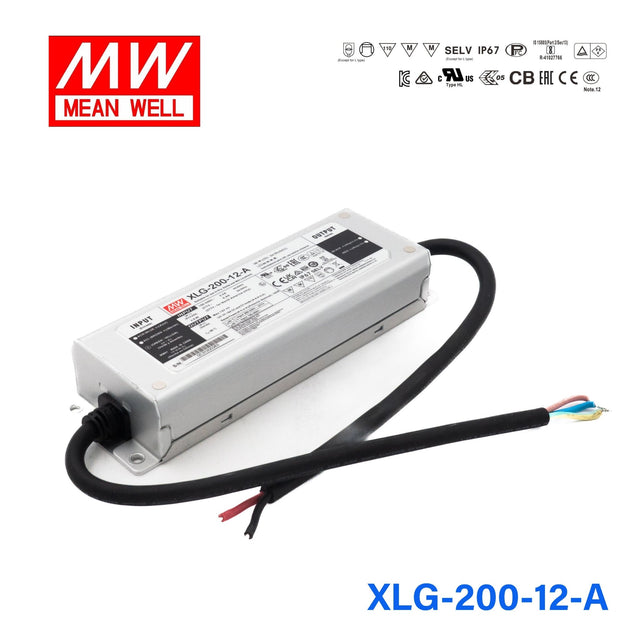

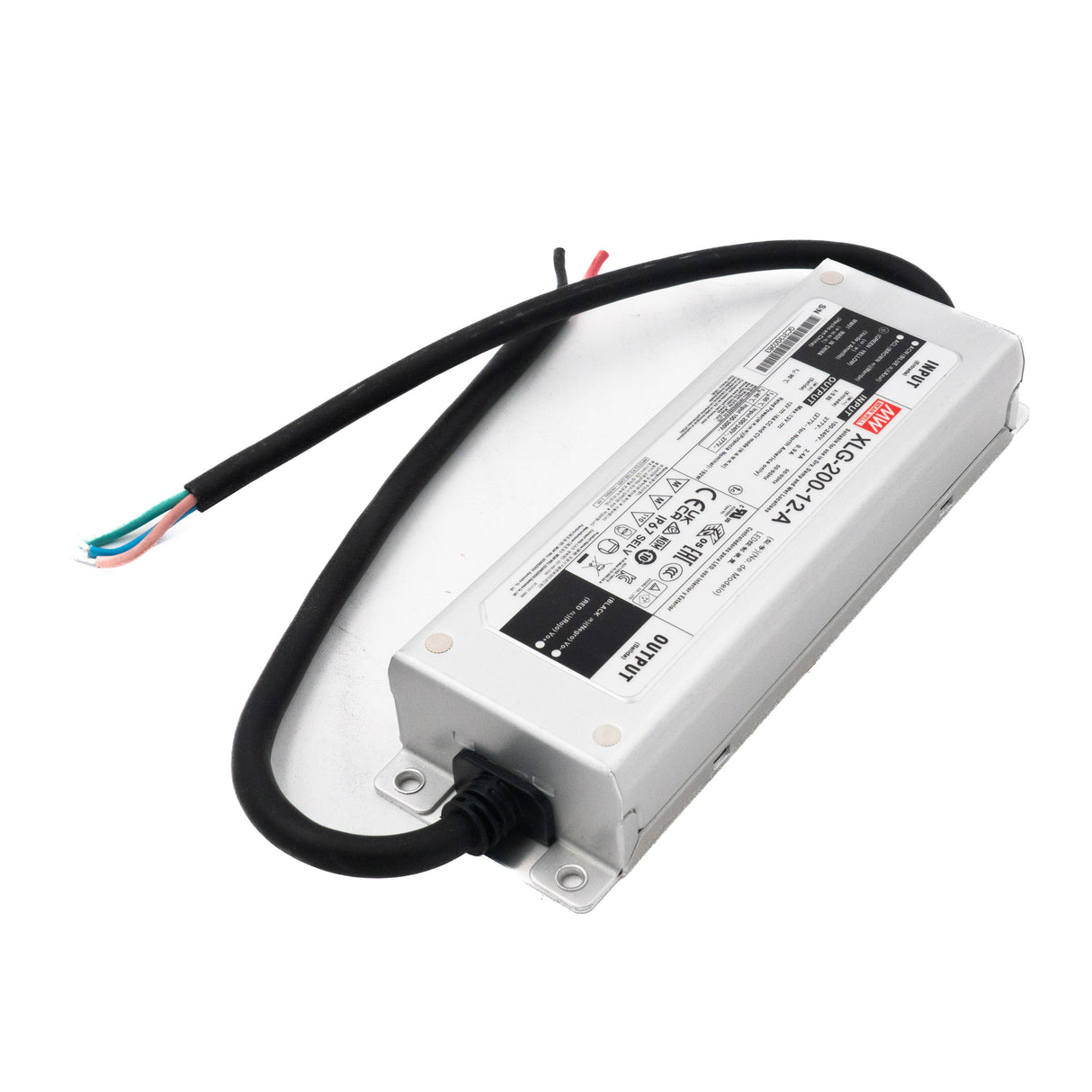

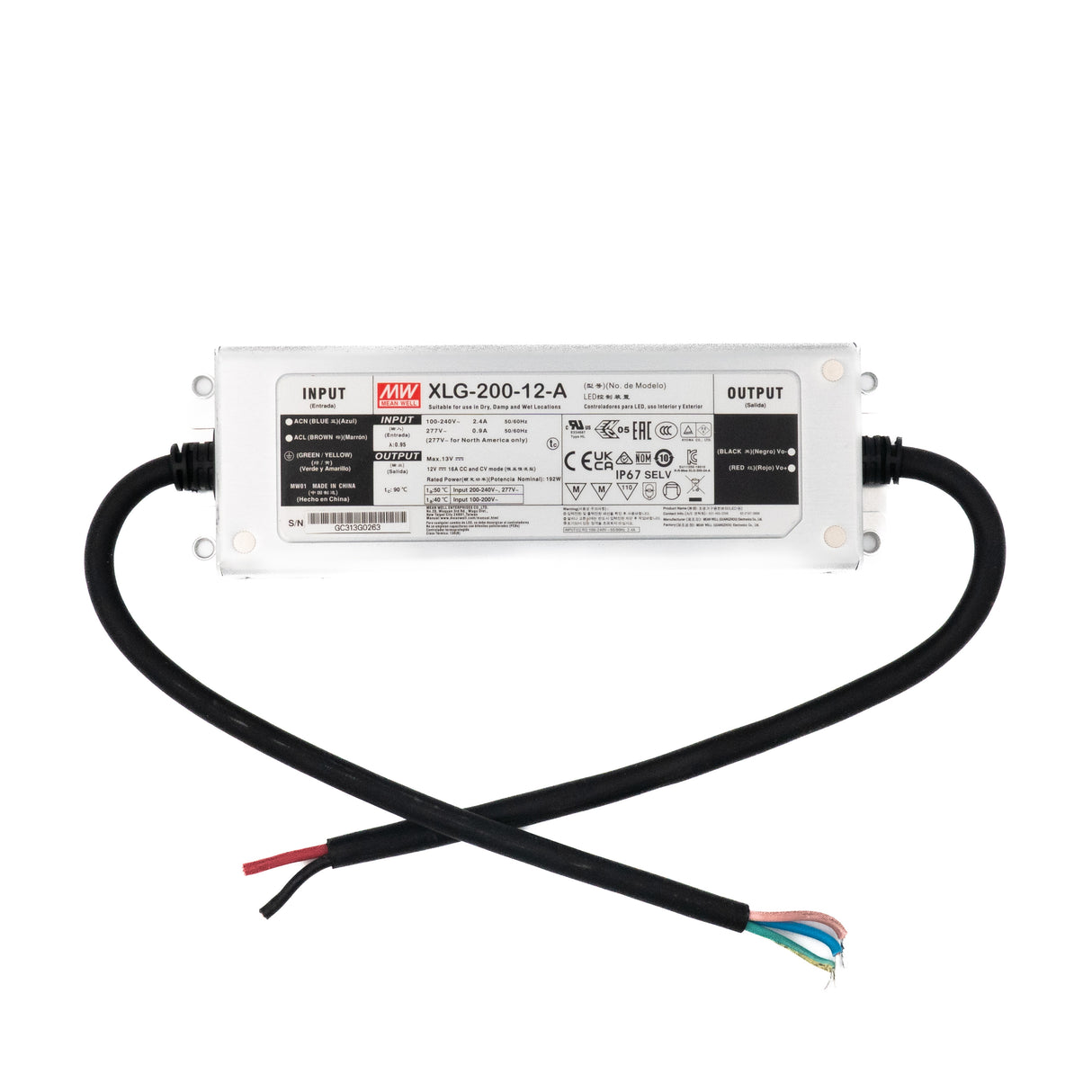

Mean Well XLG-200-12-A Power Supply 192W 12V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-200-12-A Power Supply 192W 12V - Adjustable
The XLG-200-12 is a 200W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384;GB19510.1,GB19510.14; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29) ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13);IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating192 Watt
-
Output Voltage12 Volt
-
Rated Current16 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the XLG-200-12-A power 12V LED strip lighting in an outdoor sign or display?
Yes. The XLG-200-12-A is IP67 rated, so it is fully sealed against dust and temporary water immersion. It can be installed inside outdoor sign cabinets, raceway enclosures, or weatherproof boxes used for 12V LED strip signage without additional sealing.
How many meters of 12V LED strip can the XLG-200-12-A support?
The XLG-200-12-A delivers 192W at 12V. For a 14.4 W/m strip that is approximately 13.3 meters (192 ÷ 14.4); for a 24 W/m high-density strip, up to 8 meters (192 ÷ 24). Always check your strip's rated power per meter and apply a 20% derating margin to avoid overloading.
Is the XLG-200-12-A suitable for 12V LED strip cove or indirect architectural lighting?
Yes. The 192W output at 12V provides sufficient capacity for extended 12V LED strip runs used in architectural cove lighting, valances, and indirect lighting channels. Its wide 100–305VAC input accommodates 120V and 230V building supply voltages.
Can the XLG-200-12-A be used to drive 12V LED strips in refrigerated retail display cases?
Yes. The operating temperature range of -40°C to +90°C means this driver handles the cold temperatures in refrigerated cases reliably. The IP67 metal enclosure protects against condensation that forms when ambient air meets cold interior surfaces.
Is the XLG-200-12-A appropriate for 12V LED strip installations in vehicle wash bays or wet industrial areas?
Yes. IP67 protection means this driver is sealed against dust ingress and temporary immersion in up to 1 meter of water. This level of protection is appropriate for high-humidity or washdown environments such as vehicle wash bays, food processing facilities, and similar industrial settings.
How does the XLG-200-12-A differ from the XLG-200-12-AB?
Both models output 192W at 12V with 16A and share the same IP67 rating, 199 × 63 × 35.5 mm dimensions, and 100–305VAC input. The XLG-200-12-AB adds dimming capability over the XLG-200-12-A, which supports output adjustment only. All certifications and operating specs are otherwise identical.
