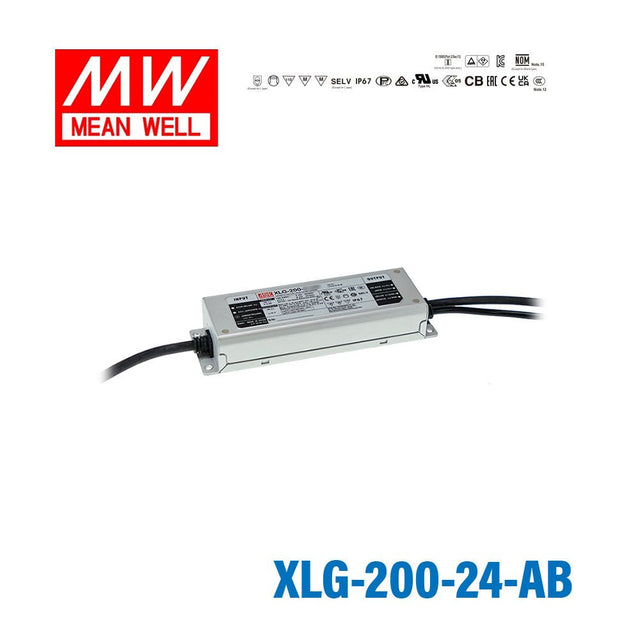

Mean Well XLG-200-24-AB Power Supply 200W 24V - Adjustable and Dimmable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%

SKU:

XLG-200-24-AB

Model

75W 24V Adjustable

$27.63 USD

SKU: XLG-75-24-A

75W 24V Adjustable and Dimmable

$32.50 USD

SKU: XLG-75-24-AB

100W 24V Adjustable

$28.84 USD

SKU: XLG-100-24-A

100W 24V Adjustable and Dimmable

$35.71 USD

SKU: XLG-100-24-AB

150W 24V Adjustable

$34.24 USD

SKU: XLG-150-24-A

150W 24V Adjustable and Dimmable

$38.22 USD

SKU: XLG-150-24-AB

200W 24V Adjustable

$40.79 USD

SKU: XLG-200-24-A

200W 24V Adjustable and Dimmable

$45.69 USD

SKU: XLG-200-24-AB

Product variants

$45.69 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 100~305VAC (Class I)

Full power output at 70~100% constant power mode operation

Metal case with IP67, suitable for outdoor application

Surge protection with 6KV/4KV (10KV/6KV optional)

3 in 1 dimming function (Dim to off and isolation design)

India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Protection functions: OVP/SCP/OCP/OTP

Lifetime > 50,000 hrs. and 5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 65A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	125%~150% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	199x63x35.5
Packing	16pcs / 14.2kg

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

199.2 Watt
Output Voltage

24 Volt
Rated Current

8.3 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

0-10V,10V PWM,Built-in Potentiometer,Resistance
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

7.83 in
Width

2.48 in
Height

1.4 in
Weight

1.87 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the XLG-200-24-AB be used outdoors in a wet or exposed environment?

Yes. The IP67 rating means the XLG-200-24-AB is sealed against dust and temporary water immersion up to 1 meter. It can be installed inside outdoor enclosures, sign cabinets, or weatherproof fixtures exposed to rain or condensation without additional sealing.

How many meters of 24V LED strip can the XLG-200-24-AB power?

The XLG-200-24-AB delivers 199.2W at 24V. For a 10 W/m strip that is approximately 19.9 meters (199.2 ÷ 10); for a 14.4 W/m strip, about 13.8 meters (199.2 ÷ 14.4). Always verify your strip's rated power per meter and include a 20% safety margin when planning your run length.

Is the XLG-200-24-AB suitable for dimmable 24V LED strip in hospitality or museum lighting?

Yes. The AB suffix confirms dimming capability, making this driver compatible with dimming controllers for atmosphere-sensitive environments like hotel lobbies, restaurants, and museum galleries that use 24V LED strip for adjustable accent and ambient lighting.

Can the XLG-200-24-AB drive 24V LED strips in large outdoor 24V signage and channel letter installations?

Yes. With 199.2W at 24V and IP67 protection, this driver supports large 24V illuminated signage runs including channel letters and backlit panels mounted on building exteriors. The -40°C to +90°C operating range covers climatic extremes encountered on outdoor facades.

Is the XLG-200-24-AB appropriate for 24V LED strip lighting in industrial washdown or food-processing facilities?

Yes. The IP67 enclosure is designed to withstand water jets and high humidity, making this driver suitable for washdown-environment luminaires in food processing, breweries, and similar industrial settings that require both moisture resistance and reliable LED power.

Does the XLG-200-24-AB work on international supply voltages without manual switching?

Yes. The 100–305VAC wide-range input automatically accepts 120V, 208V, 230V, and 277V supplies without any manual configuration. This makes the unit suitable for international deployments or multi-voltage commercial buildings.

Can I use the XLG-200-24-AB for 24V LED backlighting in large-format outdoor advertising displays?

Yes. The combination of 199.2W capacity, IP67 weatherproofing, and dimming capability makes this driver well matched to large outdoor advertising lightboxes that require both substantial LED strip power and the option to adjust brightness for day and night operation.
