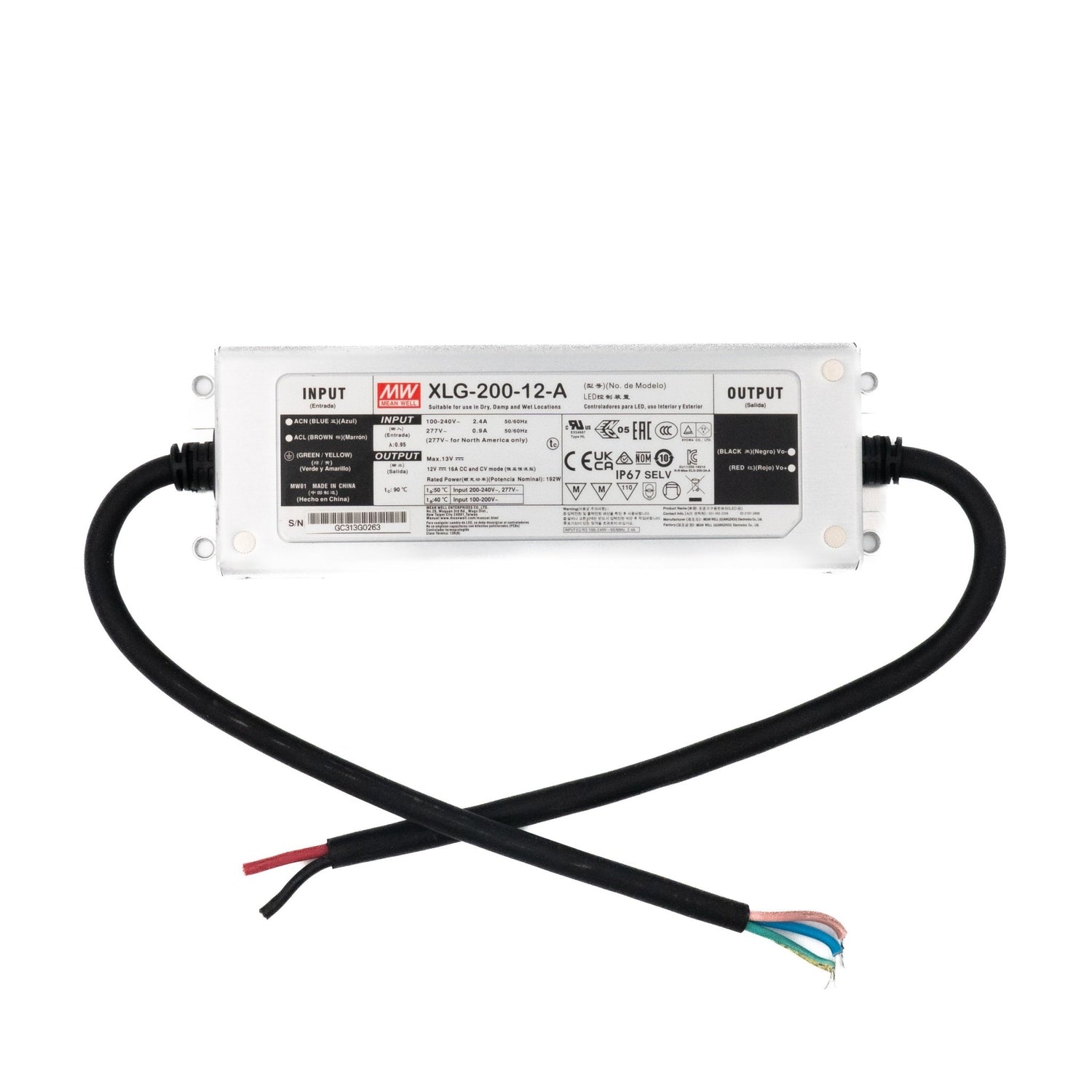

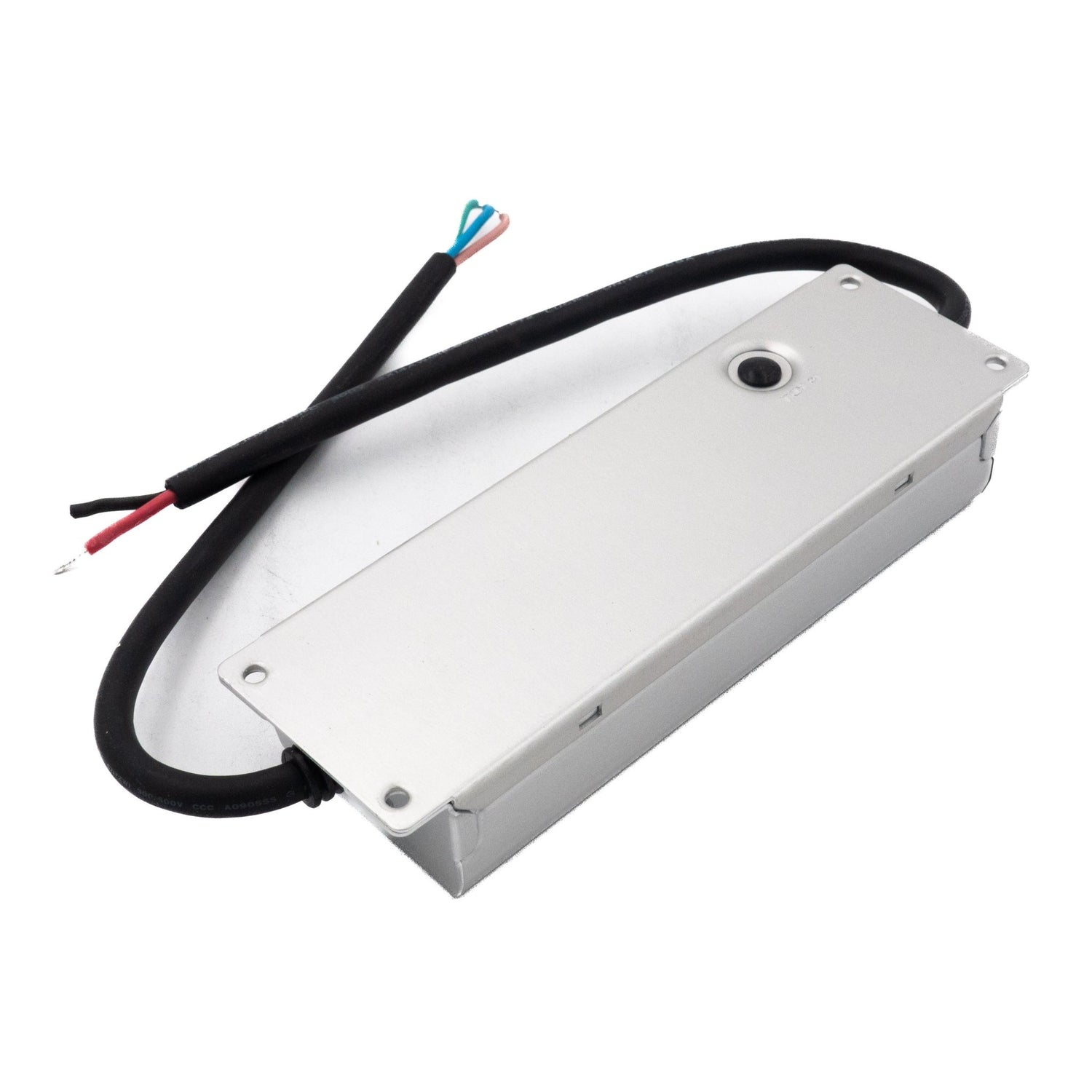

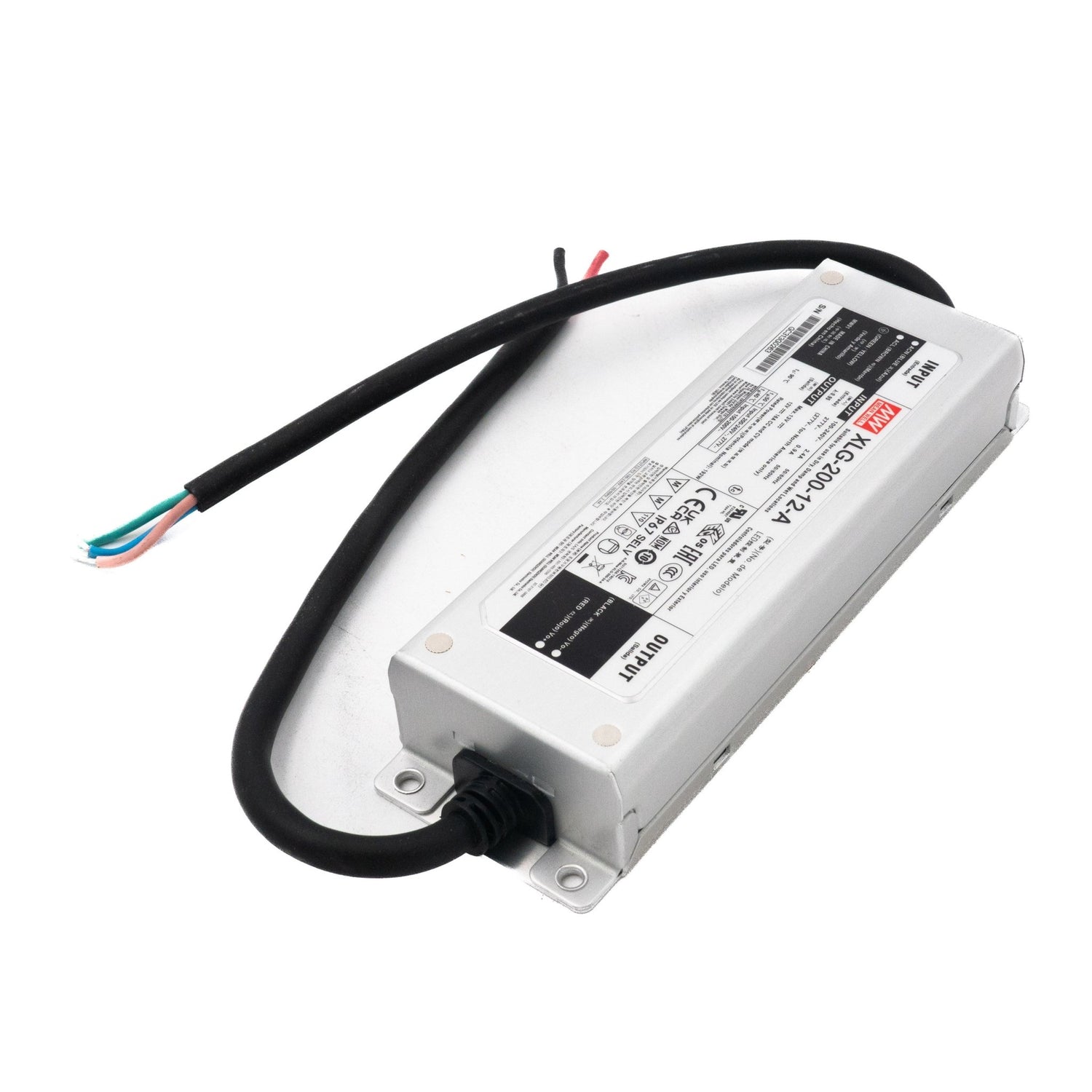

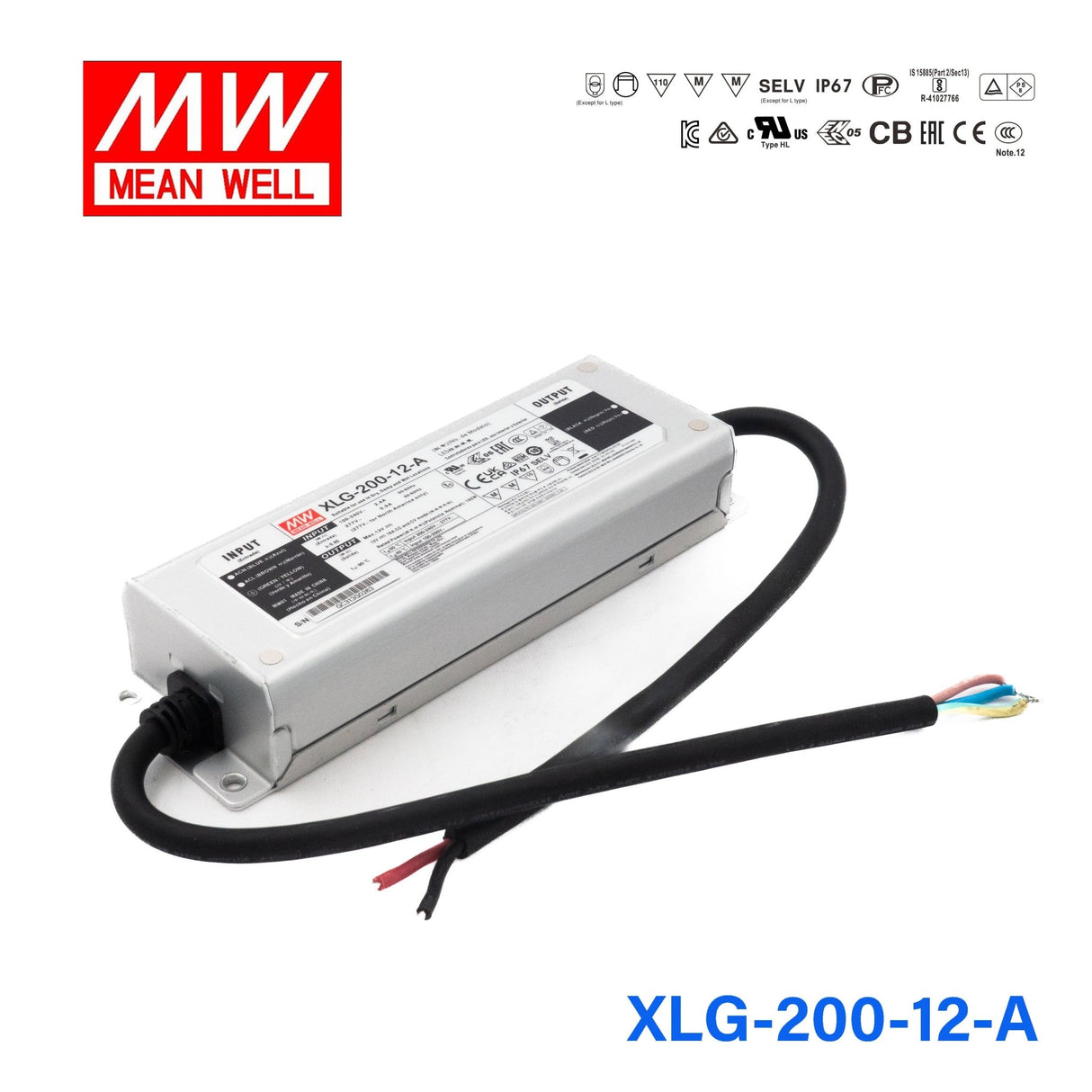

Mean Well XLG-200-12-A Power Supply 192W 12V - Adjustable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%
$40.79 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Wide input range 100~305VAC (Class I)
Full power output at 70~100% constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Lifetime > 50,000 hrs. and 5 years warranty

General Specification

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 65A at 230VAC
DC adjustment range ±10% rated output voltage
Over-voltage protection 125%~150% rated output voltage
Setup, rise, hold up time 500ms, 100ms, 12ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+90°C
Safety standards UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 199x63x35.5
Packing 16pcs / 14.2kg

Specifications

  • Brand
    Mean Well
  • Series
    XLG Series
  • Power Rating
    192 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    16 Ampere
  • Input Voltage
    100V~305V
  • No of Output
    1
  • Dimming Control
    Built-in Potentiometer
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    7.83 in
  • Width
    2.48 in
  • Height
    1.4 in
  • Weight
    1.87 lb
