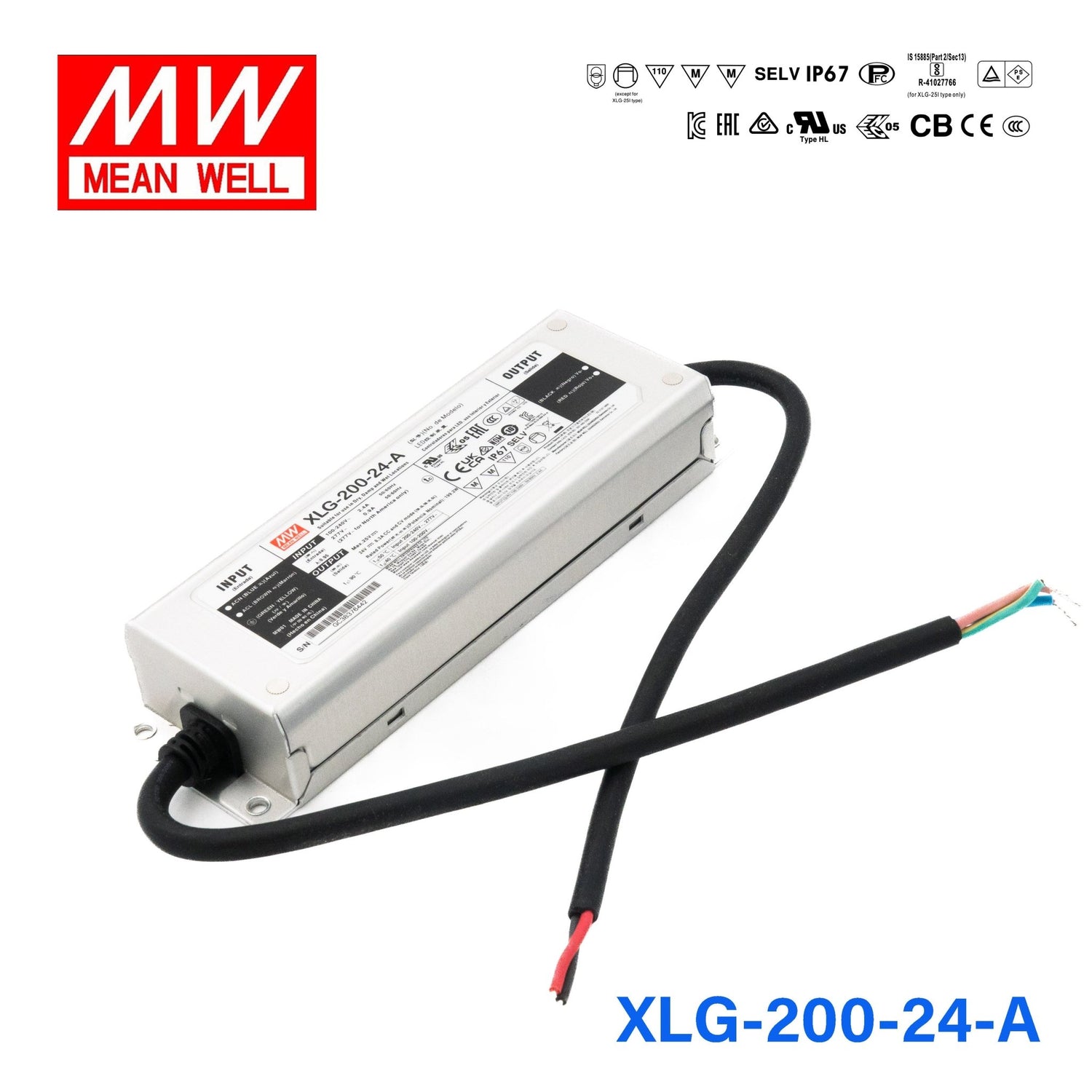

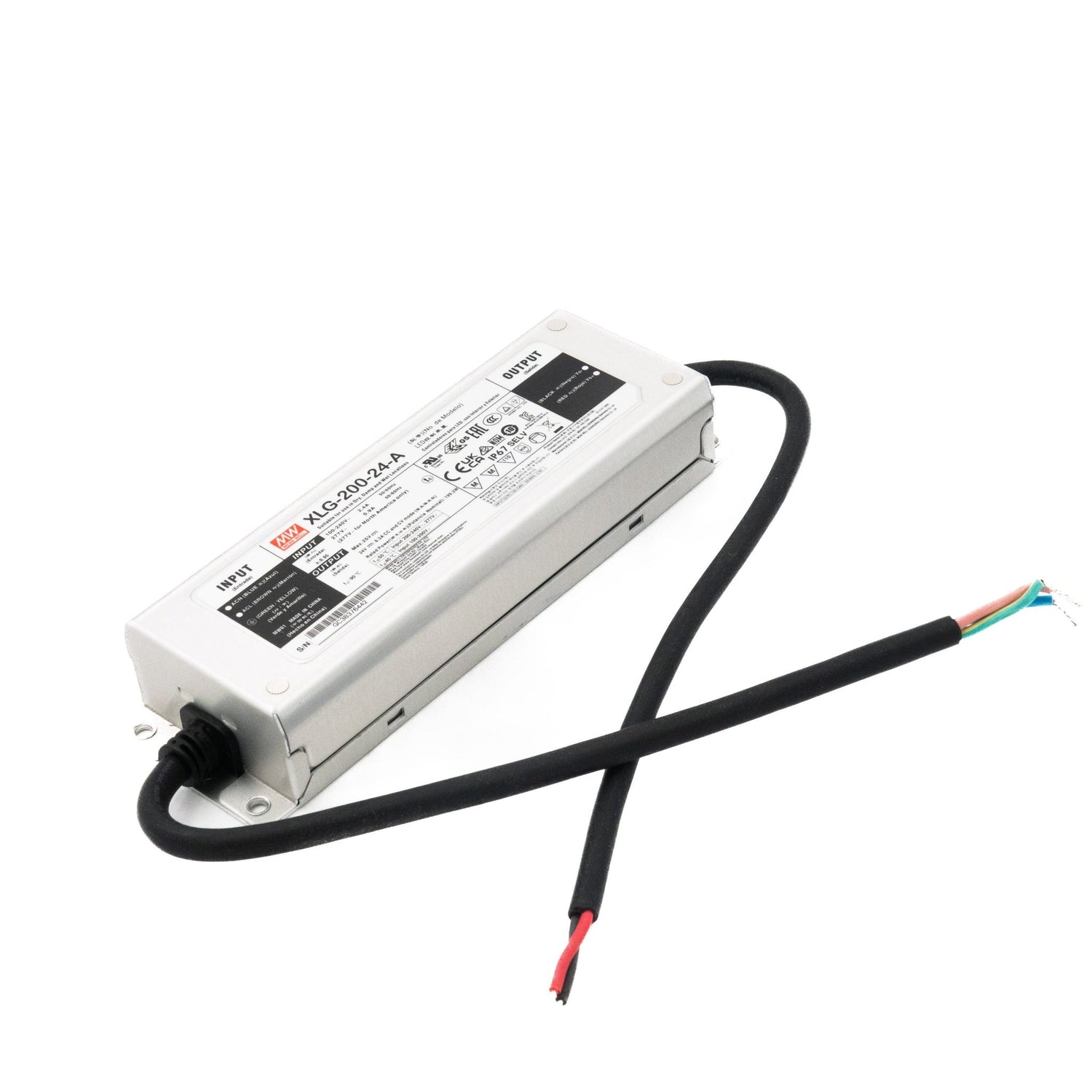

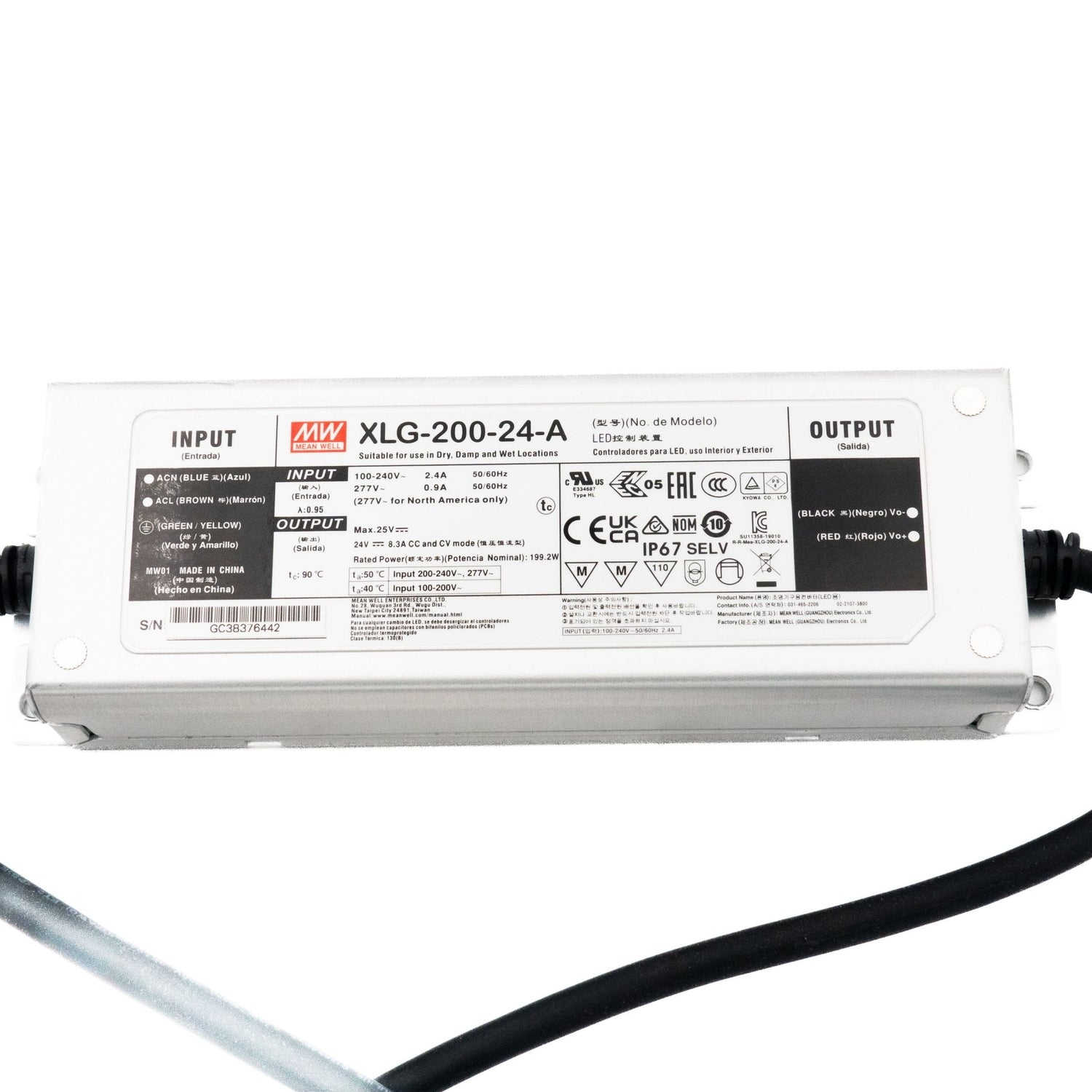

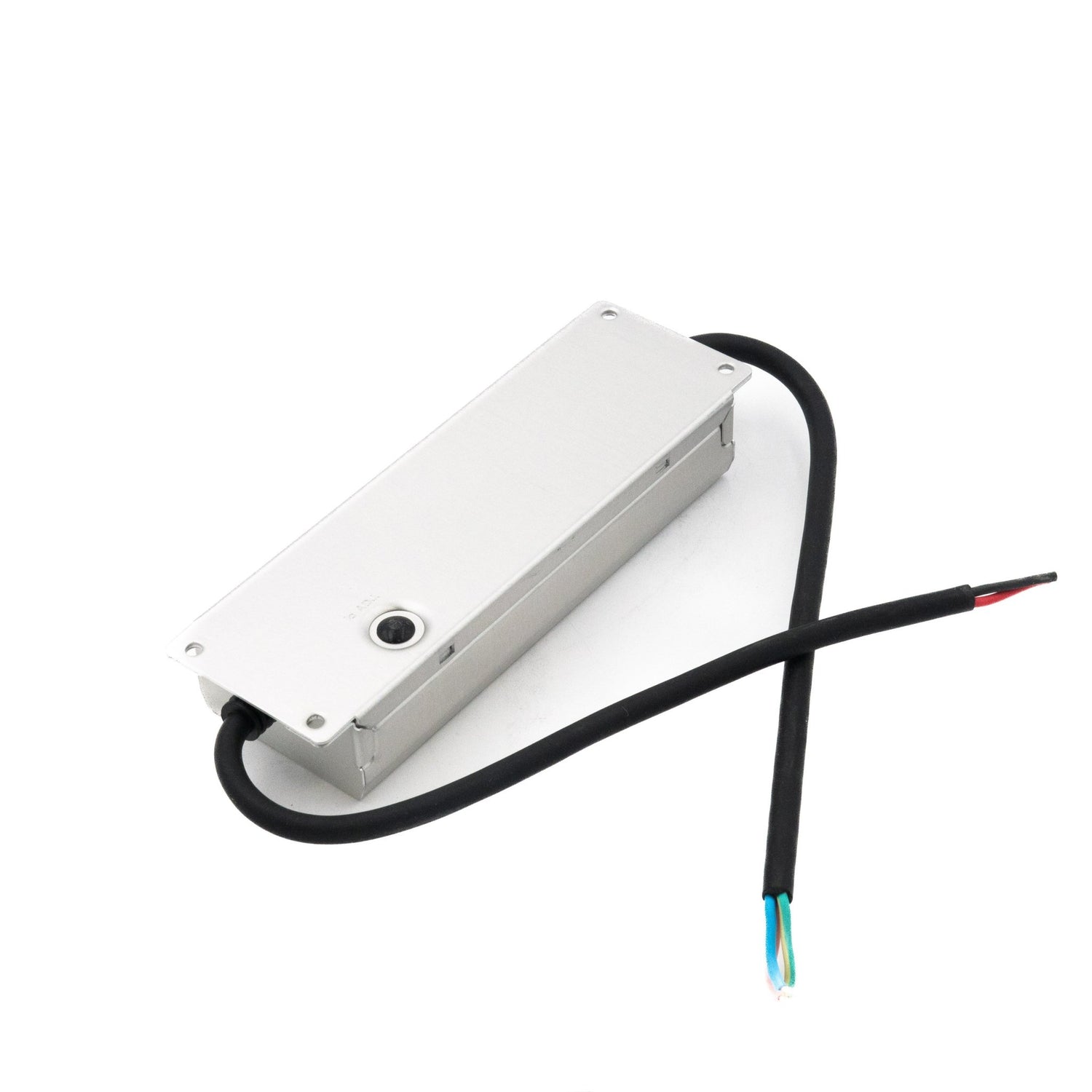

Mean Well XLG-200-24-A Power Supply 200W 24V - Adjustable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%

SKU:

XLG-200-24-A

Model

75W 24V Adjustable

$27.63 USD

SKU: XLG-75-24-A

75W 24V Adjustable and Dimmable

$32.50 USD

SKU: XLG-75-24-AB

100W 24V Adjustable

$28.84 USD

SKU: XLG-100-24-A

100W 24V Adjustable and Dimmable

$35.71 USD

SKU: XLG-100-24-AB

150W 24V Adjustable

$34.24 USD

SKU: XLG-150-24-A

150W 24V Adjustable and Dimmable

$38.22 USD

SKU: XLG-150-24-AB

200W 24V Adjustable

$40.79 USD

SKU: XLG-200-24-A

200W 24V Adjustable and Dimmable

$45.69 USD

SKU: XLG-200-24-AB

Product variants

$40.79 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 100~305VAC (Class I)

Full power output at 70~100% constant power mode operation

Metal case with IP67, suitable for outdoor application

Surge protection with 6KV/4KV (10KV/6KV optional)

3 in 1 dimming function (Dim to off and isolation design)

India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Protection functions: OVP/SCP/OCP/OTP

Lifetime > 50,000 hrs. and 5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 65A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	125%~150% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	199x63x35.5
Packing	16pcs / 14.2kg

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

199.2 Watt
Output Voltage

24 Volt
Rated Current

8.3 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

7.83 in
Width

2.48 in
Height

1.4 in
Weight

1.87 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the XLG-200-24-A power a large 24V LED strip installation in an outdoor environment?

Yes. The XLG-200-24-A is IP67 rated, providing full sealing against dust and temporary water immersion. It is suitable for outdoor LED strip applications in enclosures exposed to rain, condensation, or high humidity without additional weatherproofing.

How many meters of 24V LED strip will the XLG-200-24-A support?

The XLG-200-24-A delivers 199.2W at 24V. For a 10 W/m strip that is approximately 19.9 meters (199.2 ÷ 10); for a 20 W/m strip, about 10 meters (199.2 ÷ 20). Check your strip's rated power per meter and apply a 20% derating margin for safe continuous operation.

Is the XLG-200-24-A suitable for powering 24V LED strips in large retail lightboxes or illuminated displays?

Yes. With 199.2W at 24V, this driver can supply extended 24V LED strip runs used in large-format retail lightboxes, backlit wall graphics, and point-of-purchase displays. The 8.3A output current supports dense or high-wattage 24V strip products.

Can I use the XLG-200-24-A for 24V LED landscape or architectural facade lighting?

Yes. The IP67 enclosure and -40°C to +90°C operating range make this driver appropriate for landscape or facade applications where it will be exposed to weather extremes, freeze-thaw cycles, and high summer temperatures. The compact 199 × 63 × 35.5 mm metal housing fits in standard outdoor junction boxes.

Is the XLG-200-24-A a good choice for 24V LED strip lighting in commercial kitchen environments?

Yes. IP67 protection makes this driver resistant to water spray and steam exposure common in commercial kitchen ventilation areas and under-counter installations. The wide temperature tolerance also accommodates the heat generated in kitchen environments.

How does the XLG-200-24-A compare to the XLG-200-24-AB?

Both models output 199.2W at 24V with 8.3A and share identical IP67 rating, dimensions of 199 × 63 × 35.5 mm, and 100–305VAC input. The XLG-200-24-AB adds dimming capability that the XLG-200-24-A does not have. All other specs and certifications are the same.
