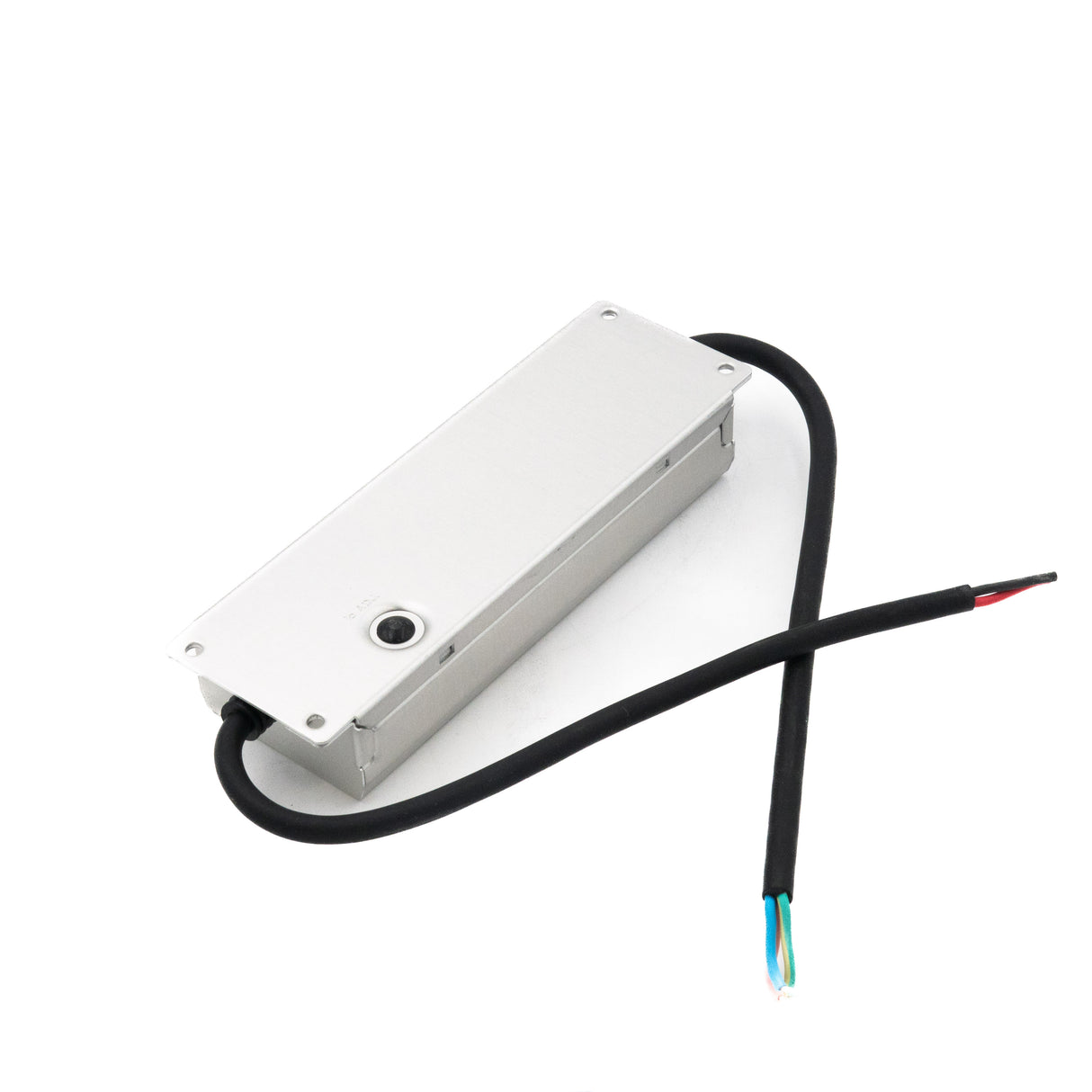

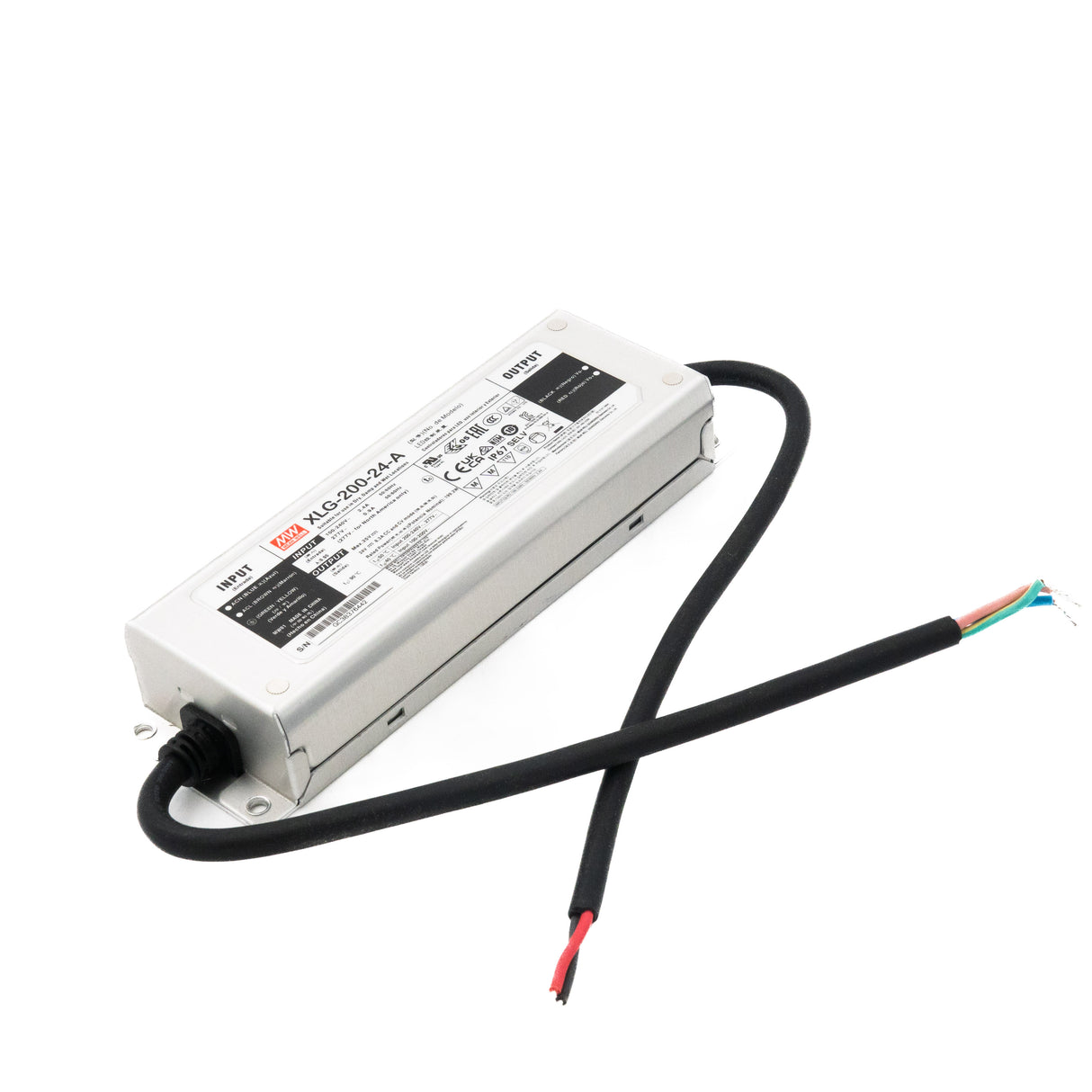

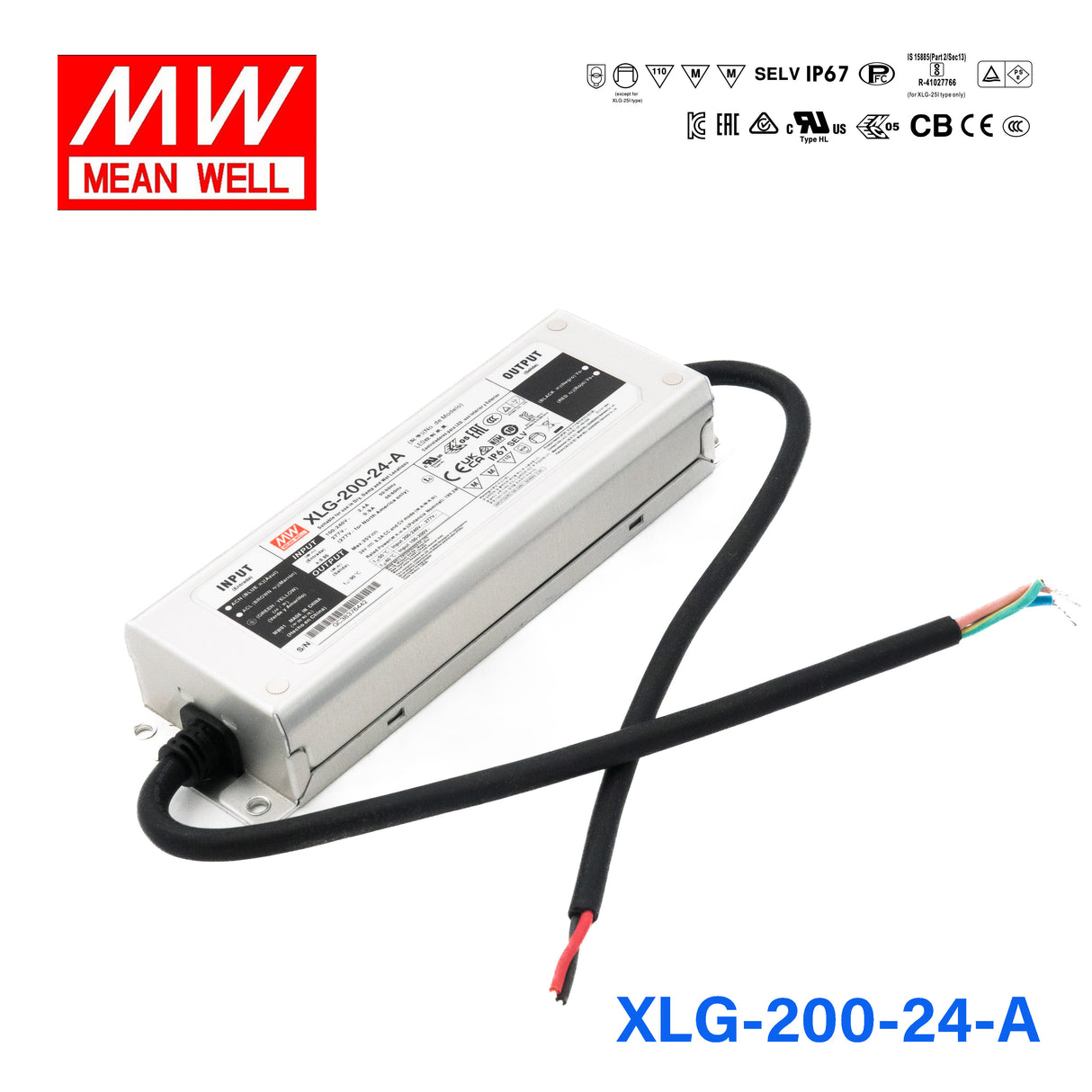

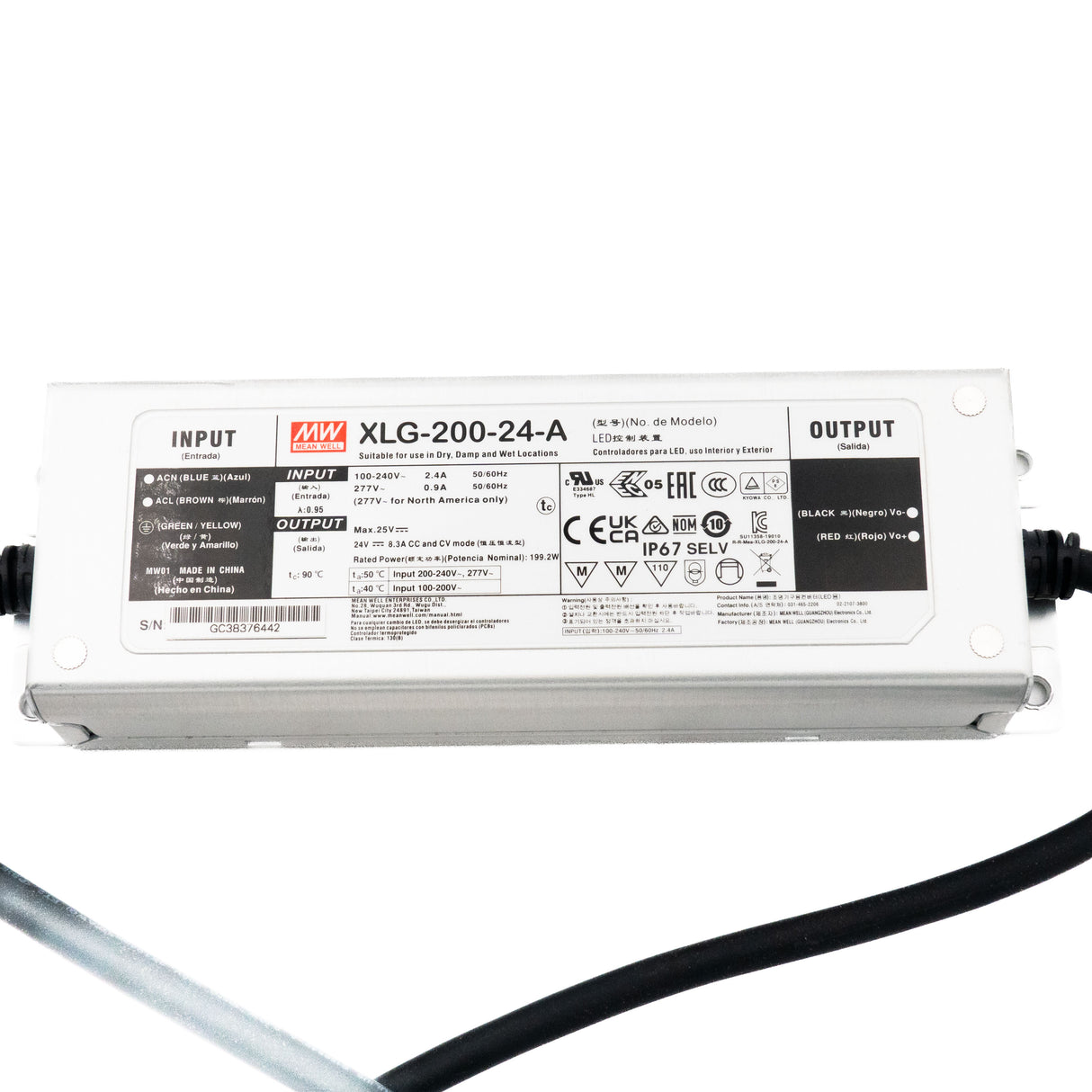

Mean Well XLG-200-24-A Power Supply 200W 24V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-200-24-A Power Supply 200W 24V - Adjustable
The XLG-200-24 is a 200W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384;GB19510.1,GB19510.14; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29) ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13);IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating199.2 Watt
-
Output Voltage24 Volt
-
Rated Current8.3 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the XLG-200-24-A power a large 24V LED strip installation in an outdoor environment?
Yes. The XLG-200-24-A is IP67 rated, providing full sealing against dust and temporary water immersion. It is suitable for outdoor LED strip applications in enclosures exposed to rain, condensation, or high humidity without additional weatherproofing.
How many meters of 24V LED strip will the XLG-200-24-A support?
The XLG-200-24-A delivers 199.2W at 24V. For a 10 W/m strip that is approximately 19.9 meters (199.2 ÷ 10); for a 20 W/m strip, about 10 meters (199.2 ÷ 20). Check your strip's rated power per meter and apply a 20% derating margin for safe continuous operation.
Is the XLG-200-24-A suitable for powering 24V LED strips in large retail lightboxes or illuminated displays?
Yes. With 199.2W at 24V, this driver can supply extended 24V LED strip runs used in large-format retail lightboxes, backlit wall graphics, and point-of-purchase displays. The 8.3A output current supports dense or high-wattage 24V strip products.
Can I use the XLG-200-24-A for 24V LED landscape or architectural facade lighting?
Yes. The IP67 enclosure and -40°C to +90°C operating range make this driver appropriate for landscape or facade applications where it will be exposed to weather extremes, freeze-thaw cycles, and high summer temperatures. The compact 199 × 63 × 35.5 mm metal housing fits in standard outdoor junction boxes.
Is the XLG-200-24-A a good choice for 24V LED strip lighting in commercial kitchen environments?
Yes. IP67 protection makes this driver resistant to water spray and steam exposure common in commercial kitchen ventilation areas and under-counter installations. The wide temperature tolerance also accommodates the heat generated in kitchen environments.
How does the XLG-200-24-A compare to the XLG-200-24-AB?
Both models output 199.2W at 24V with 8.3A and share identical IP67 rating, dimensions of 199 × 63 × 35.5 mm, and 100–305VAC input. The XLG-200-24-AB adds dimming capability that the XLG-200-24-A does not have. All other specs and certifications are the same.
