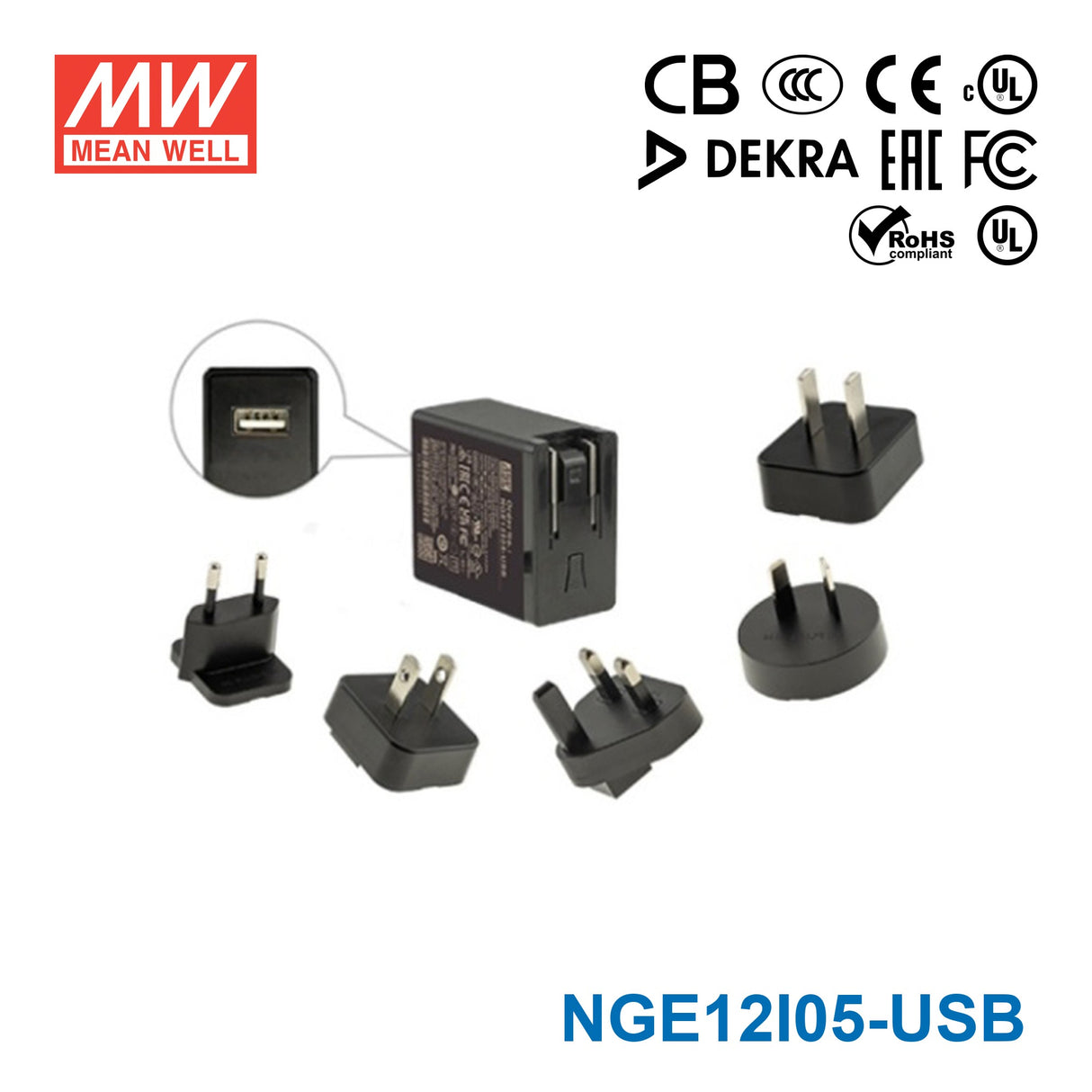

Mean Well NGE12I05-USB AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 12W 5V 2.4A - USB Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE12I05-USB AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE12I05 is a 12W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current2.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
What is the Mean Well NGE12I05-USB designed for?
The NGE12I05-USB is a 12W AC-DC wall-mounted green adaptor that provides a regulated 5V DC output at up to 2.4A through a USB output. It is suited to commercial and industrial applications that need a compact external power supply with interchangeable AC plugs.
What are the main electrical output specifications of this model?
This model is rated for 12W total output power with a 5V DC output and a maximum rated current of 2.4A. It is a fixed-output, non-dimmable power adaptor intended for devices that match those output requirements.
Does the NGE12I05-USB support international or wide-range input power?
Yes, it has a universal input range of 80 to 264VAC or 113 to 370VDC. The adaptor also features interchangeable AC plugs, which makes it useful for deployments across different regions where compatible plug options are required.
What protections are built into the NGE12I05-USB?
The adaptor includes short circuit, overload, and over-voltage protection. Its overload protection uses hiccup mode and recovers automatically after the fault condition is removed.
Is this adaptor suitable for demanding temperature environments?
Yes, the specified working temperature range is -30C to +70C, subject to the manufacturer's derating guidance. That wide range makes it a practical option for equipment used in cold or warm operating environments.
How energy efficient is the Mean Well NGE12I05-USB?
This model meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. It is designed for applications where standby efficiency and reduced energy waste matter.
What certifications or safety standards does this power adaptor meet?
The NGE12I05-USB is listed with a broad set of safety approvals, including IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1, UL62368-1, and additional regional approvals such as RCM, PSE, BSMI, EAC, and CCC. This makes it suitable for buyers who need a model with extensive compliance coverage for regulated markets.
What are the physical size, weight, and warranty for this model?
The adaptor dimensions are 48 x 28 x 55mm, and the listed weight is 0.083kg. Mean Well specifies a 3-year warranty for this model.
