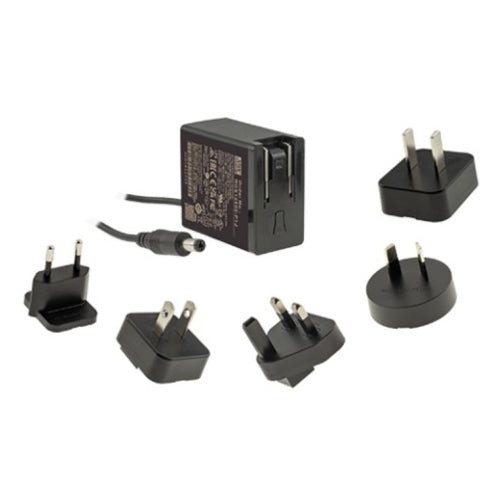

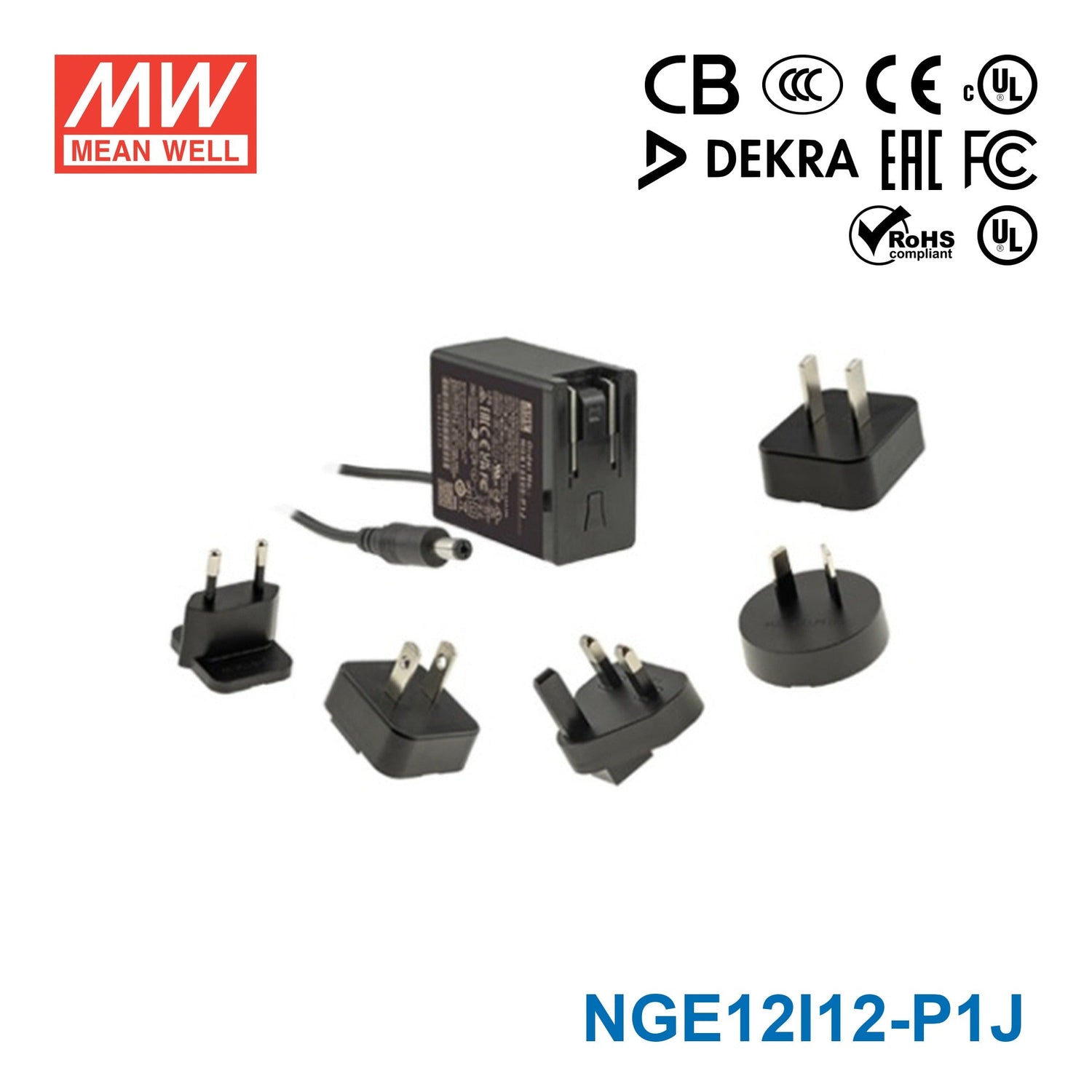

Mean Well NGE12I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 12W 12V 1A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE12I12-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Description
Description
Features:
- MEAN WELL Patent Application Number: 202330347779.4
- Interchangeable AC plugs
- Universal AC input / Full range
- Ultra slim(28mm)
- No load power consumption< 0.075W
- Energy efficiency level VI
- Class II power (no earth pin)
- Protections: Short circuit / Overload / Over voltage
- Pass LPS
- Extremely low leakage current <100uA
- -30℃ ~ + 70℃ wide range working temperature
- Various DC plug quick adapter accessories are available
- 3 years warranty
General Specification
AC input voltage range
80 ~ 264VAC 113 ~ 370VDC
AC inrush current (max.)
COLD START 40A / 115VAC 80A / 230VAC
Setup, rise, hold up time
1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load
Overload protection
Protection type: Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power
Over-voltage protection
Protection type: Clamp by zener diode | 115% ~ 140% rated output voltage
Withstand voltage
I/P-O/P:4000VAC
Working temperature
-30 ~ +70℃ (Refer to "Derating Curve")
Safety standards
CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved.
Dimension (LxWxH)
48x28x55mm
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating12 Watt
-
Output Voltage12 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NGE12I12-P1J designed for?
The Mean Well NGE12I12-P1J is a 12W AC-DC wall-mounted power adaptor with a regulated 12V DC output at up to 1A. It is intended for equipment that requires a 12V power supply within that output limit. Its wall-plug format and interchangeable plug design make it suited to compact commercial and OEM power-adaptor use.
Is the NGE12I12-P1J compatible with 12V devices that draw 1A or less?
Yes. This model is rated for 12V DC output and up to 1A, so it is intended for 12V equipment whose current demand does not exceed 1A. If the load requires more than 1A or a different voltage, this adaptor is not the right match.
What input range does this adaptor support?
The NGE12I12-P1J has a universal input range of 80 to 264VAC, and it also supports 113 to 370VDC input. That makes it suitable for projects that need broad mains compatibility across different regions. The interchangeable AC plug feature further supports multi-market use.
Is this power adaptor suitable for energy-conscious applications?
Yes. This model is rated to Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those specifications make it a practical option where low standby power and improved energy performance matter.
Can the NGE12I12-P1J be used in demanding temperature conditions?
It is specified for a wide operating temperature range of -30°C to +70°C. That makes it suitable for applications exposed to colder or hotter ambient conditions than many standard indoor adaptors. Final suitability still depends on the temperature limits of the complete end product.
What protection and safety features are included in this model?
The NGE12I12-P1J includes short-circuit, overload, and over-voltage protection. It is a Class II power unit with no earth pin, passes LPS, and is described as having leakage current below 100uA. The product data also lists multiple safety approvals, including IEC62368-1 and IEC60601-1 series certifications.
