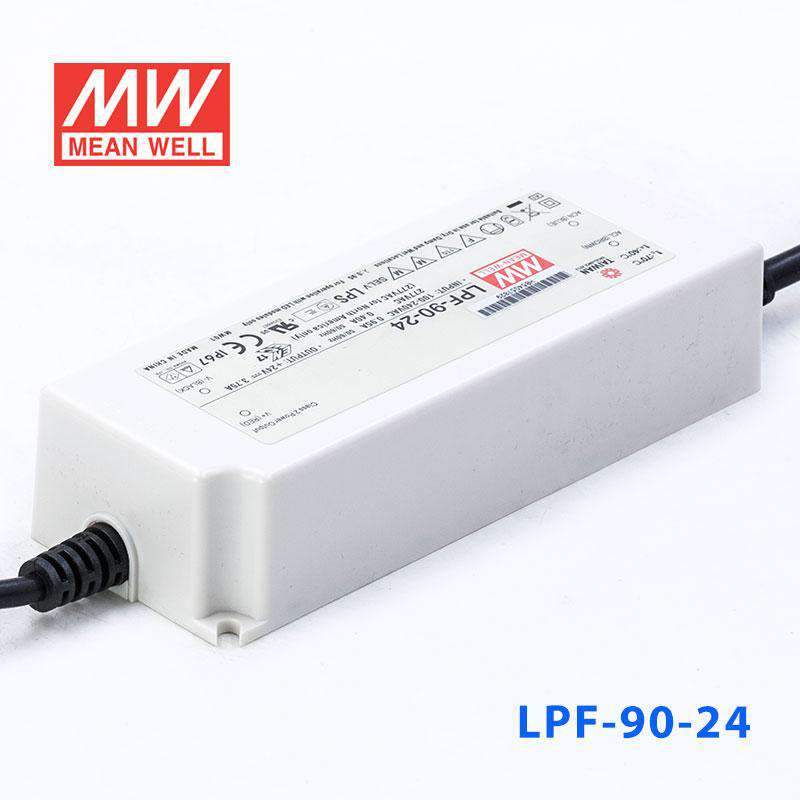

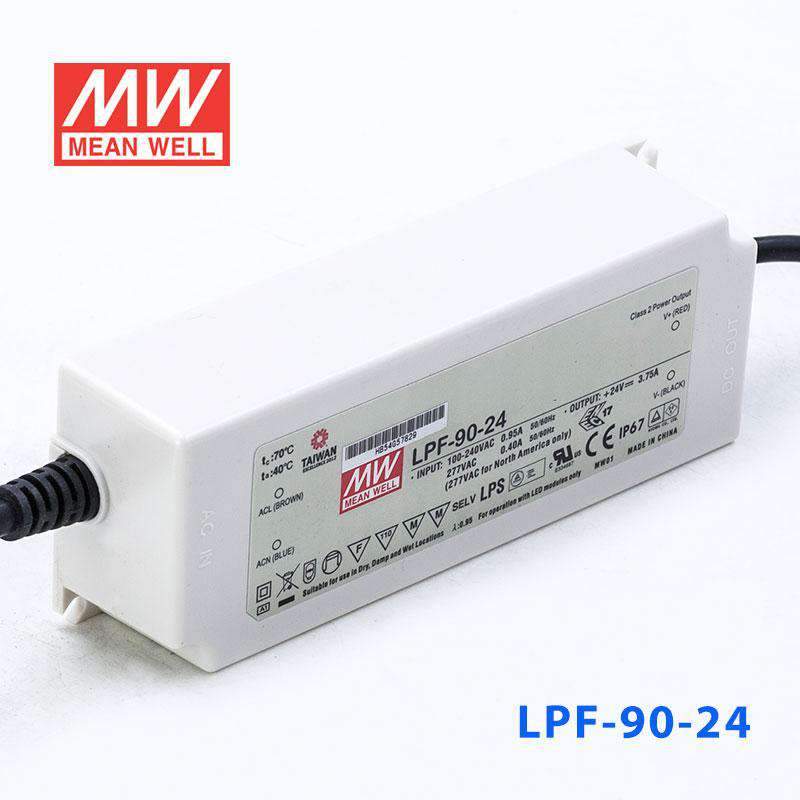

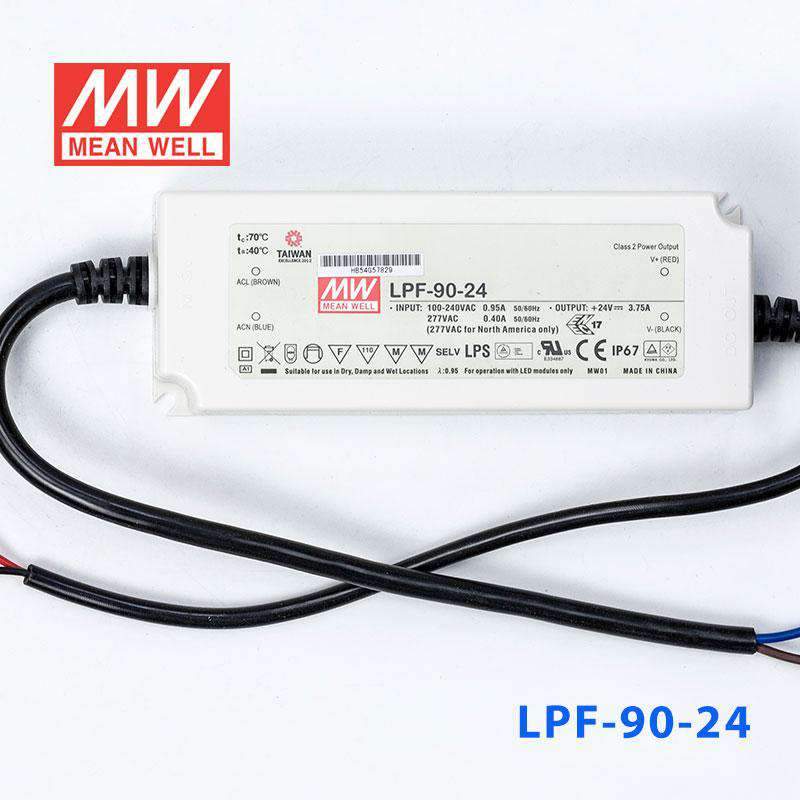

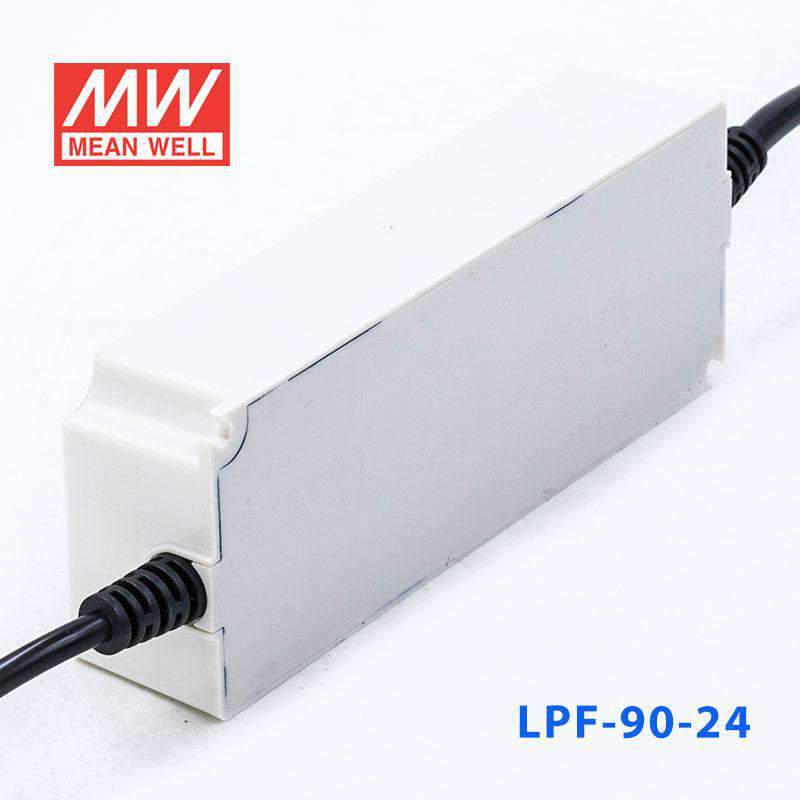

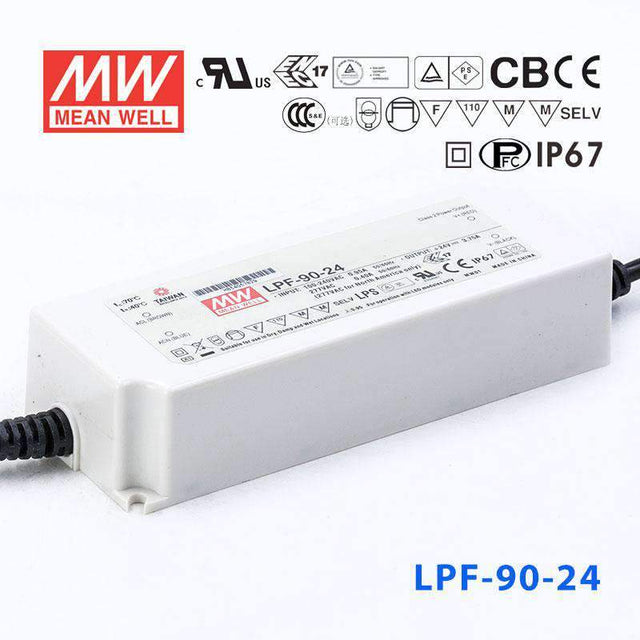

Mean Well LPF-90-24 Power Supply 90W 24V
The LPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90-24 for 24V LED strip lighting?
Yes, if the strip or lighting load is designed for 24V operation and stays within 90W and 3.75A. This makes it a fit for 24V lighting loads that need more output than smaller 24V drivers.
Is the LPF-90-24 suitable for 24V cove, accent, or display lighting?
It can be used for those types of lighting as long as the fixture or strip is a 24V load and the total demand does not exceed 90W or 3.75A. The 90-305VAC input range also supports use across a wide range of AC supply conditions.
Can the LPF-90-24 be used in outdoor sign or facade lighting?
Yes, the IP67 waterproof rating supports use in outdoor and wet environments. Its operating temperature range is -40°C to +70°C, so it is designed for exposed lighting locations when paired with a compatible 24V load.
How much 24V LED strip can this power supply run?
Use the 90W output limit to estimate the maximum strip length: maximum length = 90W divided by the strip wattage per meter. The math is 90W / W per meter, but you should check your strip rated power per meter before choosing the final run length.
Is the LPF-90-24 appropriate for wet or dusty environments?
Yes, IP67 means the enclosure is sealed for outdoor and wet-location use. The fully isolated plastic case also helps it fit applications where a sealed driver housing is required.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPF-90 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-90-54 Power Supply 90W 54V | 90.18W | 54V | 1.67A | IP67 | $43.58 | View |
| Mean Well LPF-90-48 Power Supply 90W 48V | 90.24W | 48V | 1.88A | IP67 | $44.92 | View |
| Mean Well LPF-90-42 Power Supply 90W 42V | 90.3W | 42V | 2.15A | IP67 | $43.58 | View |
| Mean Well LPF-90-36 Power Supply 90W 36V | 90W | 36V | 2.5A | IP67 | $43.58 | View |
| Mean Well LPF-90-30 Power Supply 90W 30V | 90W | 30V | 3A | IP67 | $43.58 | View |
| Mean Well LPF-90-20 Power Supply 90W 20V | 90W | 20V | 4.5A | IP67 | $43.58 | View |
| Mean Well LPF-90-15 Power Supply 75W 15V | 75W | 15V | 5A | IP67 | $43.58 | View |
