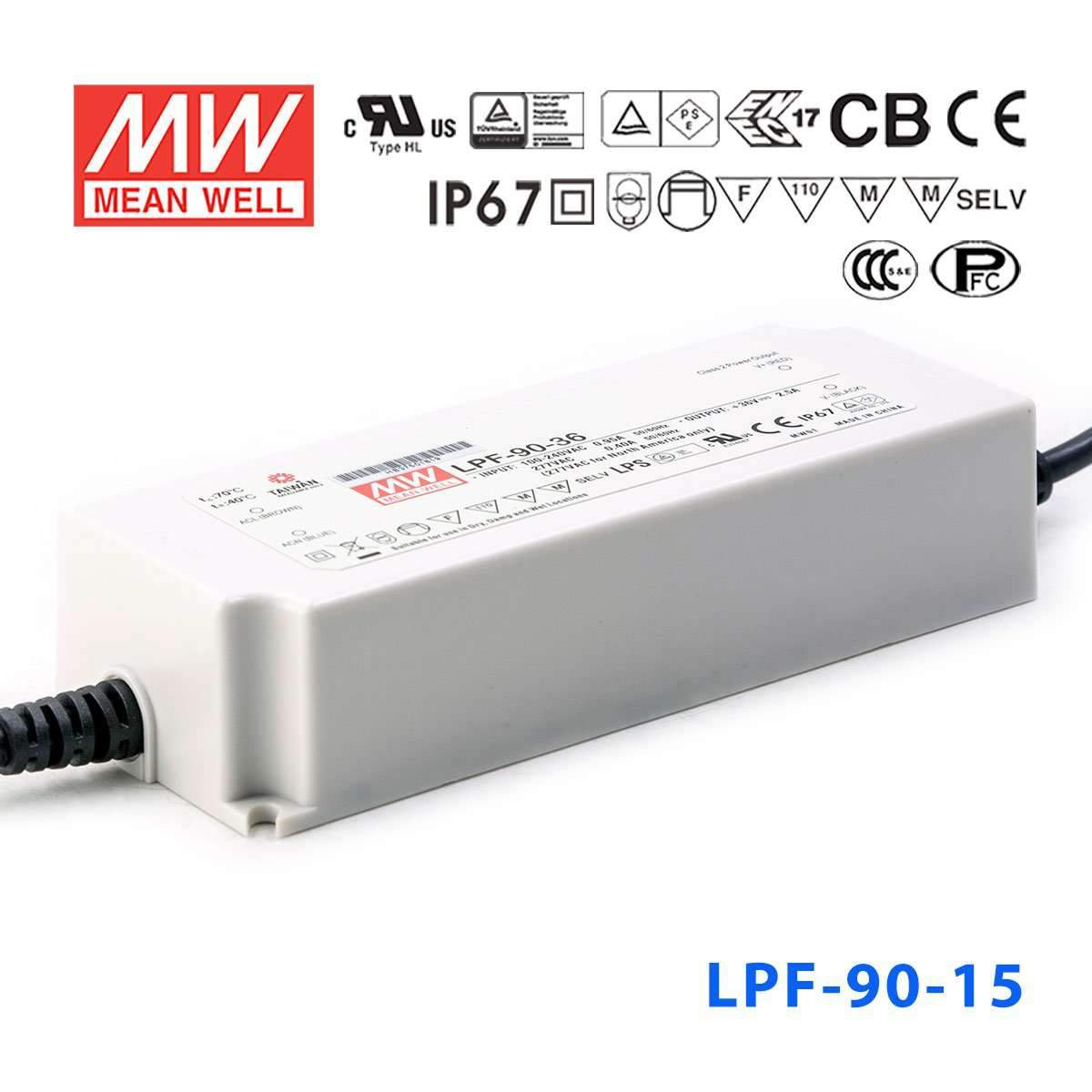

Mean Well LPF-90-15 Power Supply 75W 15V
The LPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90-15 for 15V LED strip lighting in signage or display projects?
Yes, if the strip or lighting load is designed for 15V operation and the total load stays within 75W and 5A. That makes it suitable for 15V LED strip or sign lighting loads that need higher output capacity than smaller 15V models.
Is the LPF-90-15 a good fit for outdoor 15V lighting applications?
Yes, the power supply is rated IP67 waterproof, so it is intended for wet and dusty environments. Its operating temperature range is -40°C to +70°C, which supports outdoor lighting conditions when the connected load is a 15V load up to 75W.
Can this power supply be used for 15V LED sign cabinets or channel lighting?
It can be used where the lighting system requires 15V output and the total demand does not exceed 75W or 5A. For sign-related loads, the key check is matching the 15V output and staying within the rated power and current.
How much 15V LED strip can the LPF-90-15 power?
Use the 75W maximum output to estimate length: maximum length = 75W divided by your strip wattage per meter. The math is 75W / W per meter, but you should check your strip rated power per meter before sizing the run.
Is the LPF-90-15 waterproof enough for exposed locations?
The enclosure is IP67 waterproof, so it is designed for outdoor and wet-location use rather than dry indoor-only spaces. It also uses a fully isolated plastic case and Class II design without FG.
