Can I use the LPF-90-30 for 30V LED strip or linear lighting?

Yes, if the lighting load is designed for 30V operation and does not exceed 90W or 3A. This model is intended for 30V loads, so voltage match and total wattage are the main checks.

Is the LPF-90-30 suitable for 30V LED signage or illuminated display applications?

It can be used where the lighting system requires 30V output and stays within the 90W, 3A rating. That makes it suitable for 30V LED sign or display loads that need a higher-power sealed driver.

Can this model be used for outdoor 30V lighting projects?

Yes, the IP67 waterproof rating makes it appropriate for outdoor and wet-location use. The unit is also rated for -40°C to +70°C operation, which supports a wide range of environmental conditions.

How do I size LED strip length with the LPF-90-30?

Estimate the maximum length by dividing the 90W output by your strip wattage per meter. The sizing math is 90W / W per meter, but you need to check your strip rated power per meter and verify that the strip is a 30V product.

Is the LPF-90-30 a better fit than other LPF-90 voltage options?

The LPF-90 family changes by output rating: LPF-90-15 is 75W, 15V, 5A; LPF-90-20 is 90W, 20V, 4.5A; LPF-90-24 is 90W, 24V, 3.75A; LPF-90-30 is 90W, 30V, 3A; LPF-90-36 is 90W, 36V, 2.5A; LPF-90-42 is 90.3W, 42V, 2.15A; LPF-90-48 is 90.24W, 48V, 1.88A; and LPF-90-54 is 90.18W, 54V, 1.67A. The matching dimming versions are LPF-90D-15, LPF-90D-20, LPF-90D-24, LPF-90D-30, LPF-90D-36, LPF-90D-42, LPF-90D-48, and LPF-90D-54 with the same listed wattage, voltage, and current ratings.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

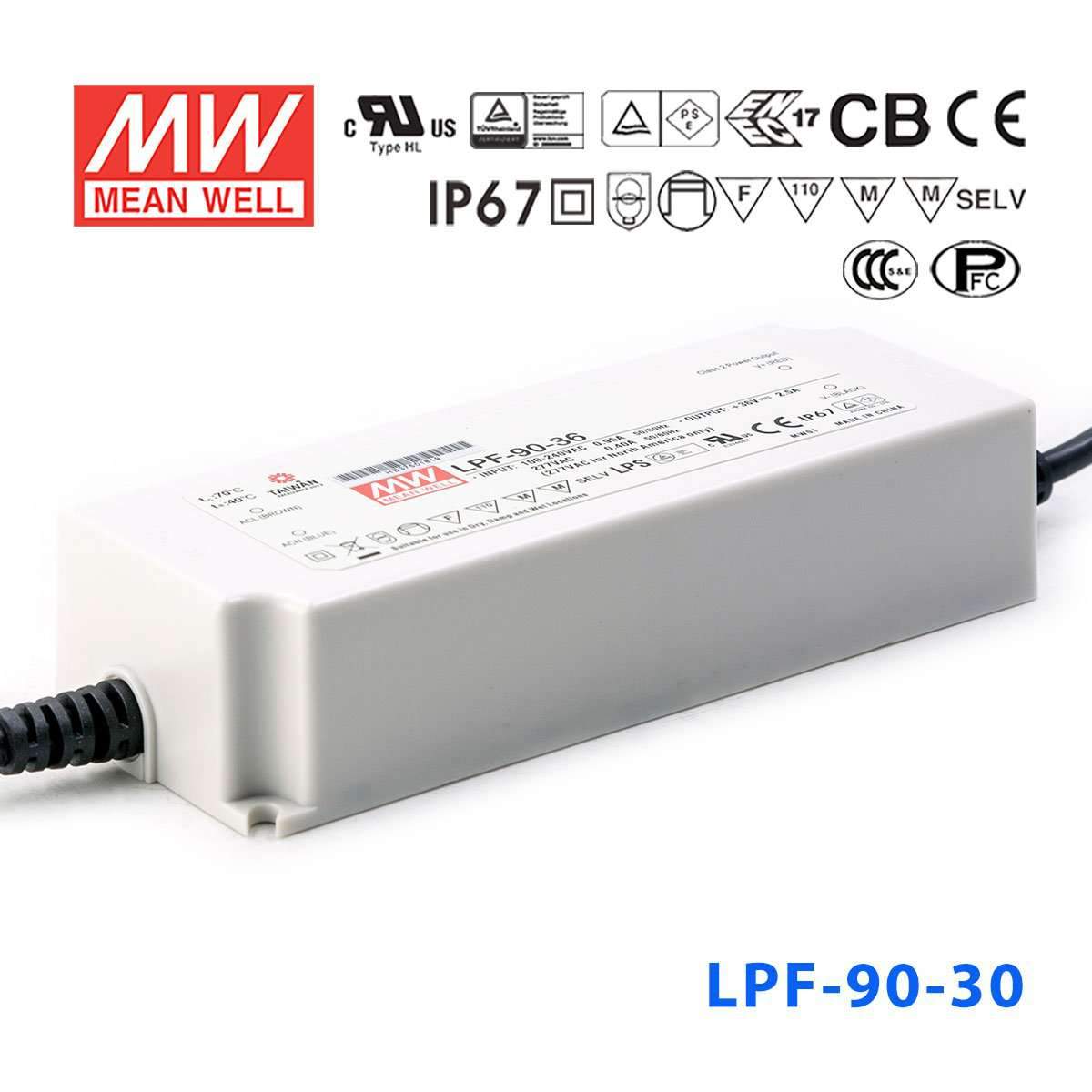

Mean Well LPF-90-30 Power Supply 90W 30V

Name: Mean Well LPF-90-30 Power Supply 90W 30V
Brand: Mean Well
SKU: LPF-90-30
Price: 43.58 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU:

LPF-90-30

$43.58 USD ~~$152.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The LPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

LPF Series
Power Rating

90 Watt
Output Voltage

30 Volt
Rated Current

3 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

6.34 in
Width

2.4 in
Height

1.42 in
Weight

1.54 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LPF-90-24 Power Supply 90W 24V	90W	24V	3.75A	IP67	$40.87	View
Mean Well LPF-90-54 Power Supply 90W 54V	90.18W	54V	1.67A	IP67	$43.58	View
Mean Well LPF-90-48 Power Supply 90W 48V	90.24W	48V	1.88A	IP67	$44.92	View
Mean Well LPF-90-42 Power Supply 90W 42V	90.3W	42V	2.15A	IP67	$43.58	View
Mean Well LPF-90-36 Power Supply 90W 36V	90W	36V	2.5A	IP67	$43.58	View
Mean Well LPF-90-20 Power Supply 90W 20V	90W	20V	4.5A	IP67	$43.58	View
Mean Well LPF-90-15 Power Supply 75W 15V	75W	15V	5A	IP67	$43.58	View
