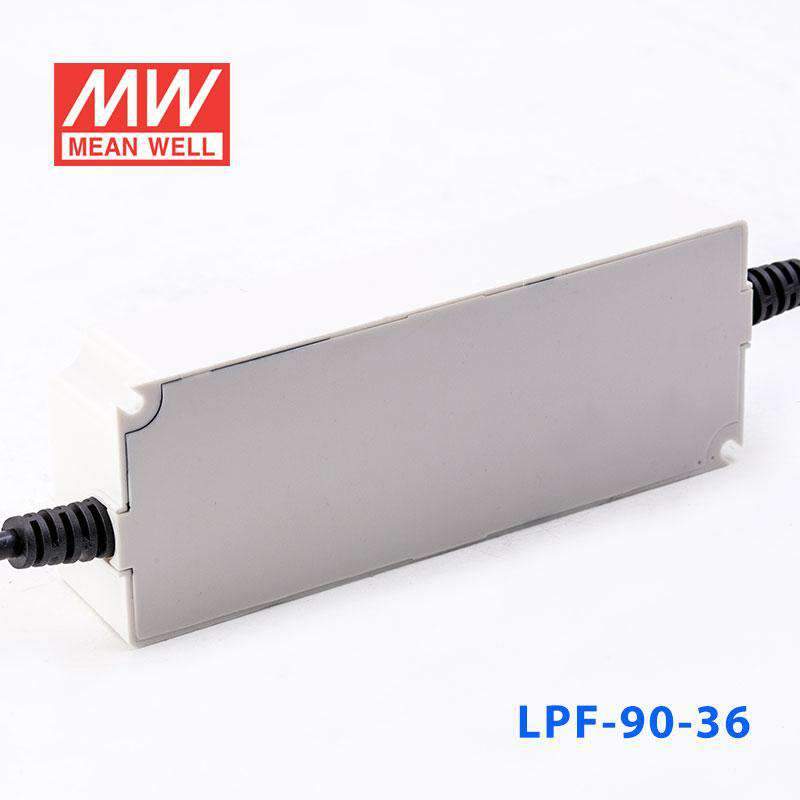

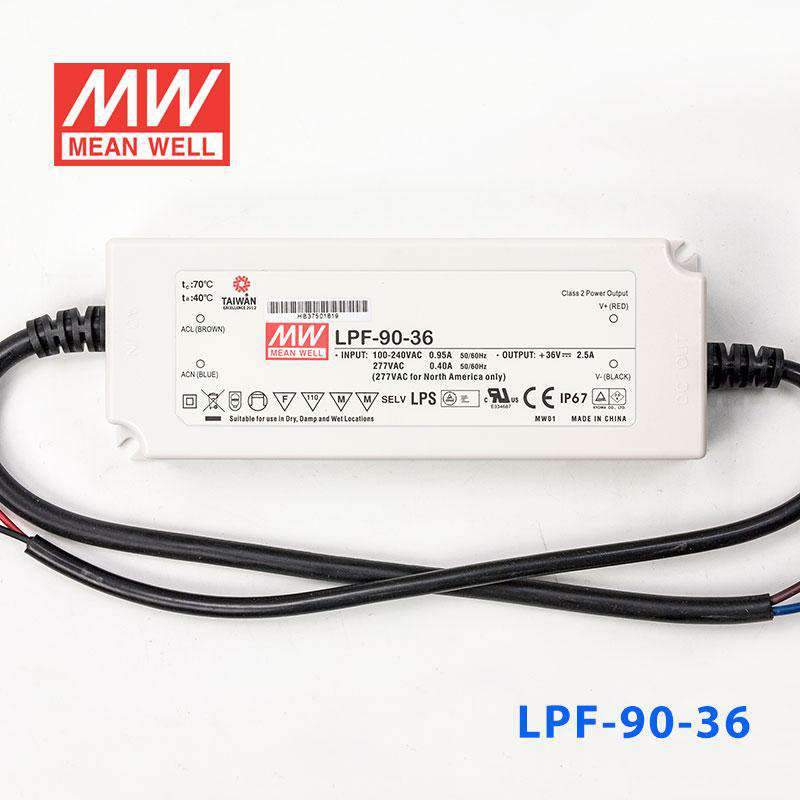

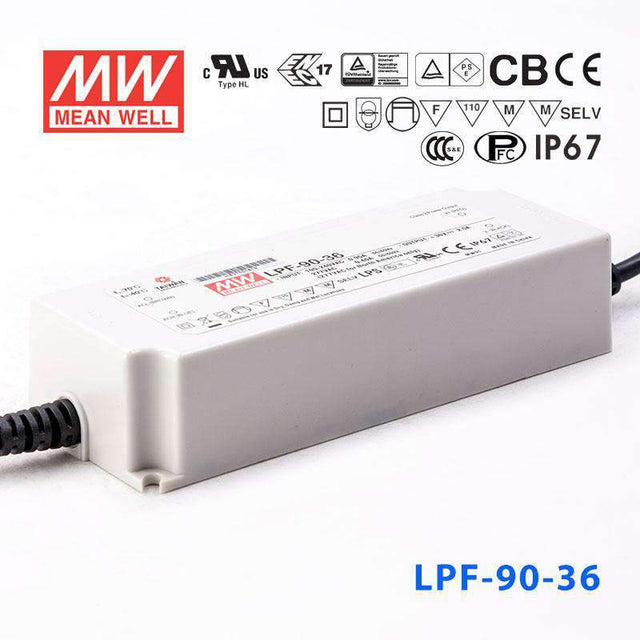

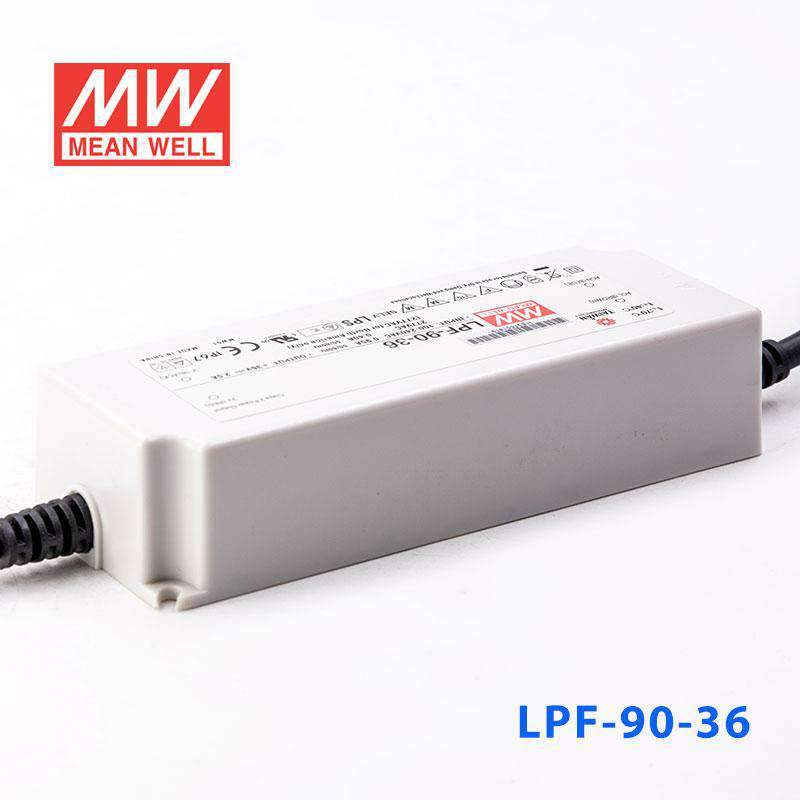

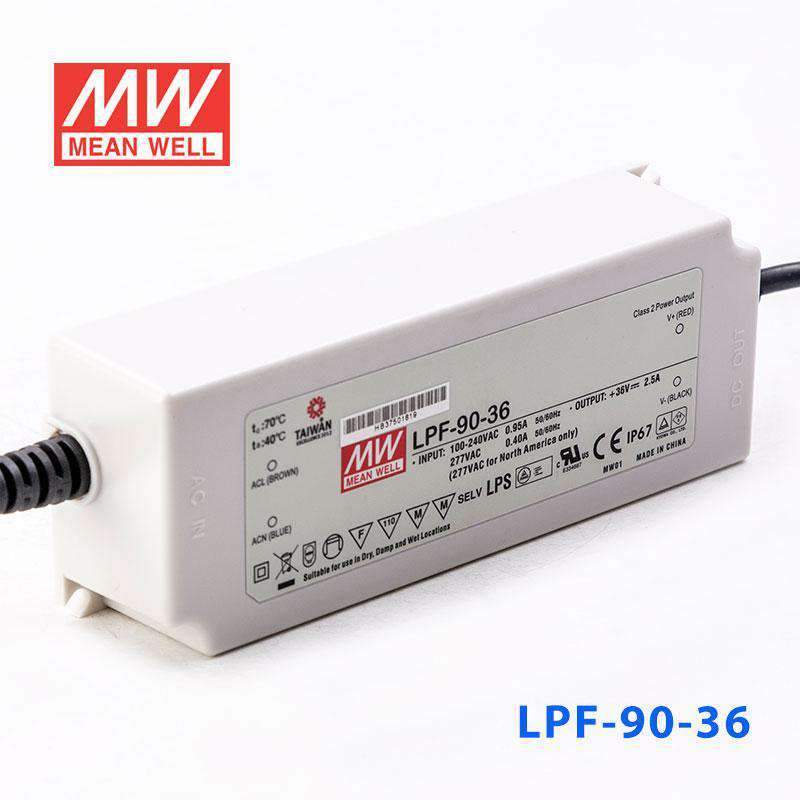

Mean Well LPF-90-36 Power Supply 90W 36V
The LPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90-36 for 36V LED signage or channel letter lighting?
It can be used for 36V LED signage or channel letter lighting when the load matches the driver's 36V output and stays within its 90W maximum. This model operates in constant current mode with a 21-36V range, so the lighting load needs to fit that electrical window.
Is the LPF-90-36 suitable for 36V architectural or linear lighting runs?
Yes, it fits 36V architectural or linear lighting applications that need up to 2.5A and up to 90W total. The constant current operating range is 21-36V, so the fixture or module should be specified within that range.
Can this driver be used for outdoor 36V LED lighting projects?
Yes, the LPF-90-36 is rated IP67 waterproof and has an operating temperature range of -40°C to +70°C, which suits exposed lighting environments. It is commonly considered for outdoor lighting projects when the 36V load and 90W limit match the fixture.
How much 36V LED strip can the LPF-90-36 run?
The power limit is 90W, so the maximum strip length is calculated as 90W divided by the strip's watts per meter. For example, length = 90W / rated W per meter. Check your strip rated power per meter and make sure the total stays within 90W.
Is the LPF-90-36 okay for wet or cold locations?
This model is IP67 waterproof and is rated to operate from -40°C to +70°C. That makes it suitable for wet or outdoor conditions where those limits match the installation environment.
How does the LPF-90-36 compare with the other LPF-90 series models?
Within the non-dimming LPF-90 range, the sibling outputs are LPF-90-15 at 75W, 15V, 5A; LPF-90-20 at 90W, 20V, 4.5A; LPF-90-24 at 90W, 24V, 3.75A; LPF-90-30 at 90W, 30V, 3A; LPF-90-36 at 90W, 36V, 2.5A; LPF-90-42 at 90.3W, 42V, 2.15A; LPF-90-48 at 90.24W, 48V, 1.88A; and LPF-90-54 at 90.18W, 54V, 1.67A. The LPF-90D versions mirror those output classes and add built-in dimming.
