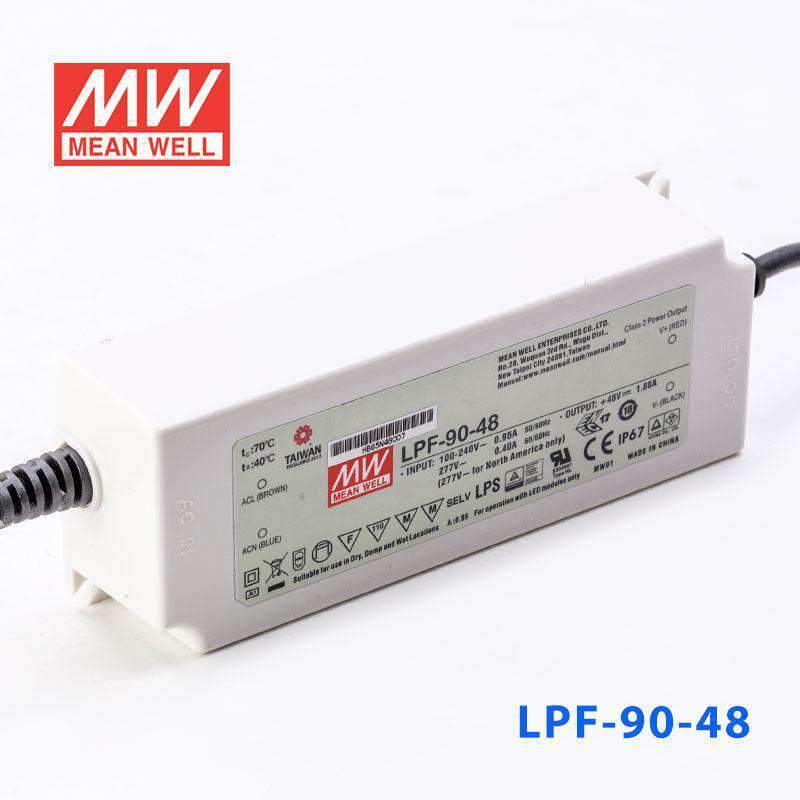

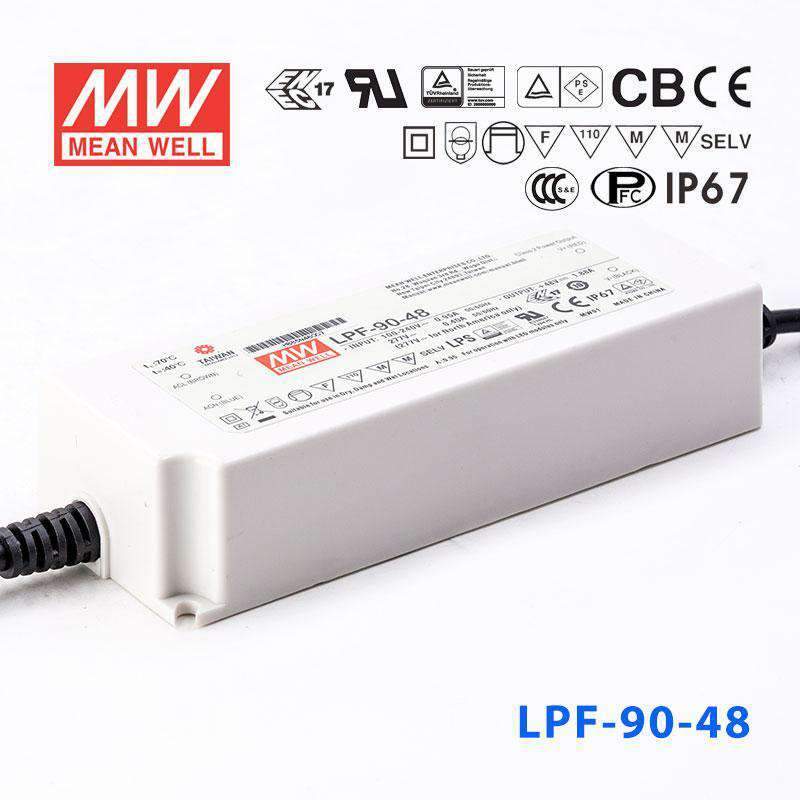

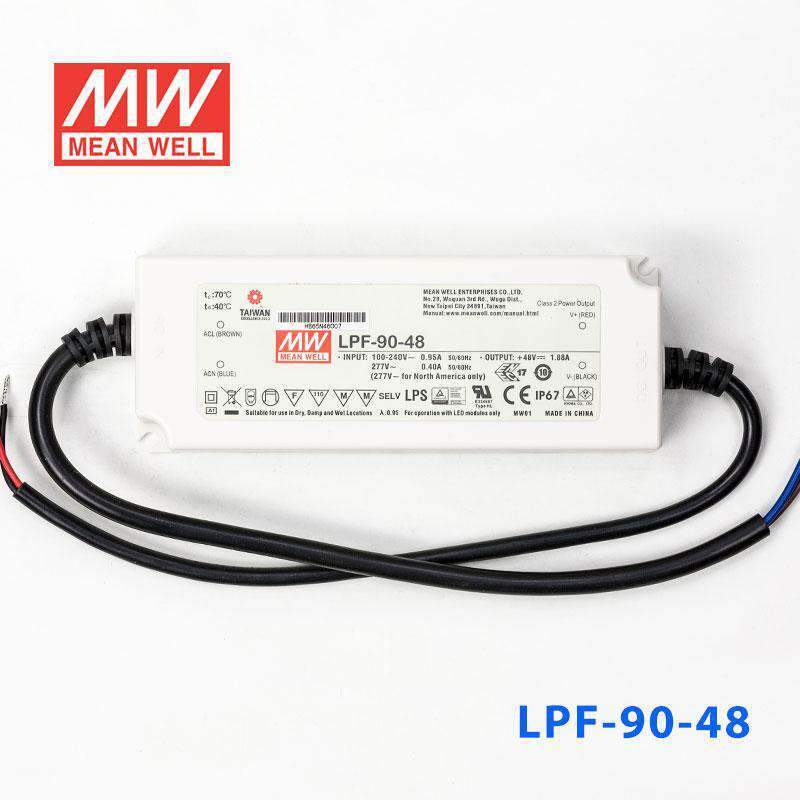

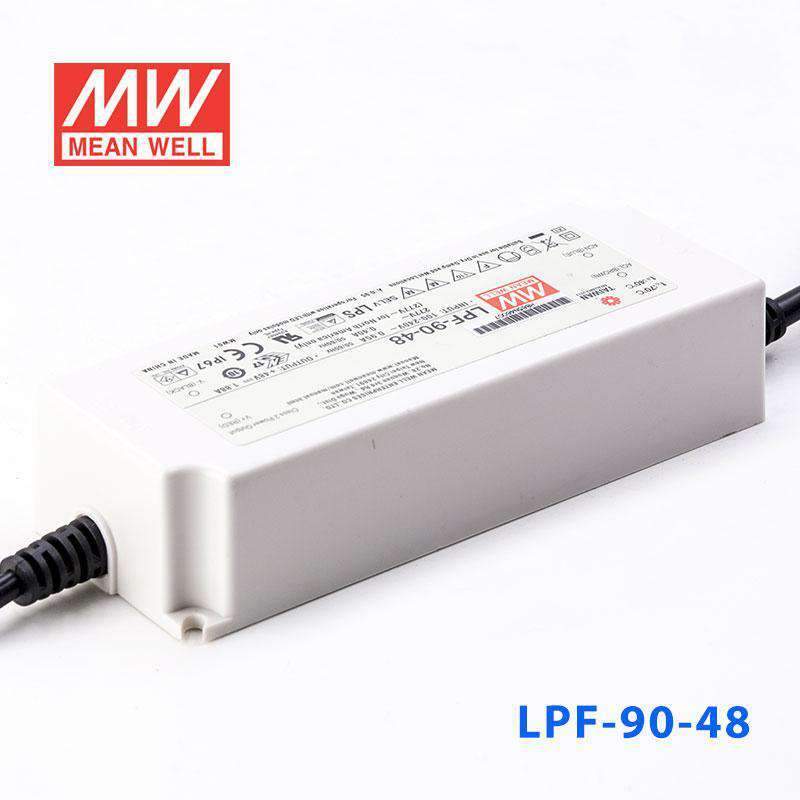

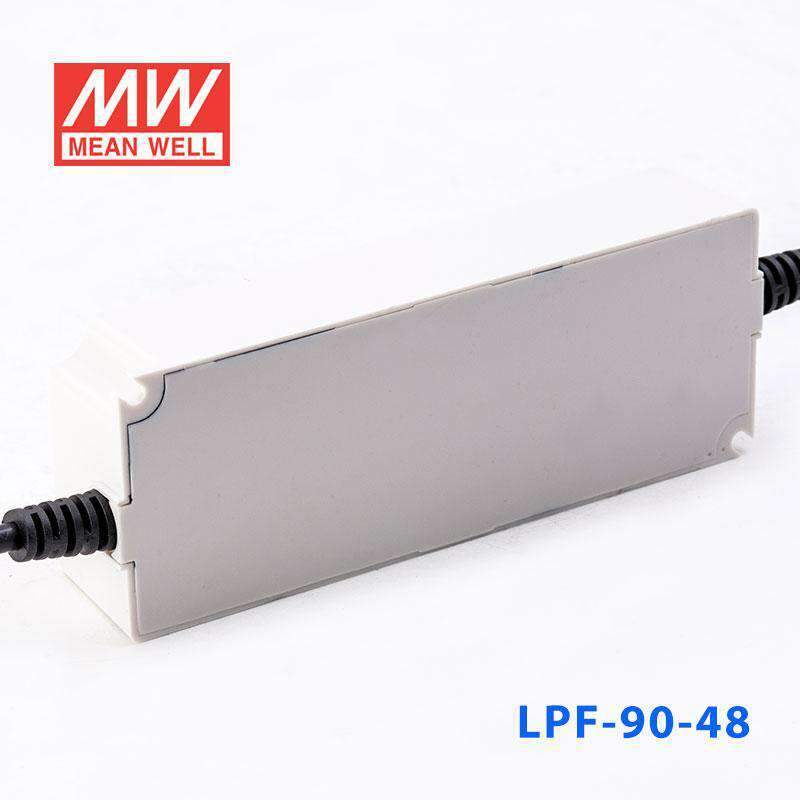

Mean Well LPF-90-48 Power Supply 90W 48V
The LPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90.24 Watt
-
Output Voltage48 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length6.34 in
-
Width2.4 in
-
Height1.42 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the LPF-90-48 for 48V LED signage or lightbox lighting?
It can be used for 48V LED signage or lightbox lighting if the load matches the 48V output and stays within 90.24W. This is a constant current driver with a 28-48V range, so the lighting load should be specified inside that range.
Is the LPF-90-48 suitable for 48V linear or cove lighting fixtures?
Yes, it suits 48V linear or cove lighting fixtures that require up to 1.88A and no more than 90.24W. The connected fixture should be designed for the driver's 28-48V constant current operating range.
Can this driver be used for outdoor 48V architectural lighting?
Yes, the LPF-90-48 has an IP67 waterproof rating and an operating temperature range of -40°C to +70°C, which supports outdoor architectural lighting use. The load still needs to match the 48V class and stay within 90.24W.
How much 48V LED strip can the LPF-90-48 support?
The available power is 90.24W, so the maximum strip length is 90.24W divided by the strip's watts per meter. In other words, length = 90.24W / rated W per meter. Check your strip rated power per meter so the total load does not exceed 90.24W.
Is the LPF-90-48 rated for wet locations?
Yes, it is rated IP67 waterproof, and the operating temperature is -40°C to +70°C. That makes it suitable for wet-location lighting projects where those limits match the site conditions.
How does LPF-90-48 differ from the other LPF-90 output options?
In the non-dimming LPF-90 group, the available outputs are 15V 75W 5A, 20V 90W 4.5A, 24V 90W 3.75A, 30V 90W 3A, 36V 90W 2.5A, 42V 90.3W 2.15A, 48V 90.24W 1.88A, and 54V 90.18W 1.67A. The LPF-90D versions correspond to the same voltage and current classes with built-in dimming added.
