Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

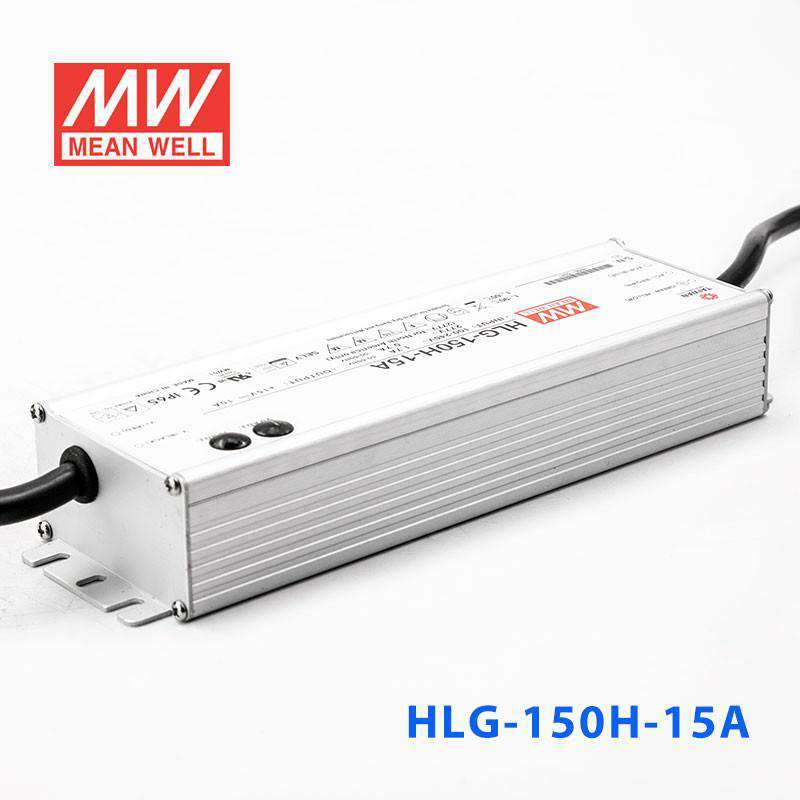

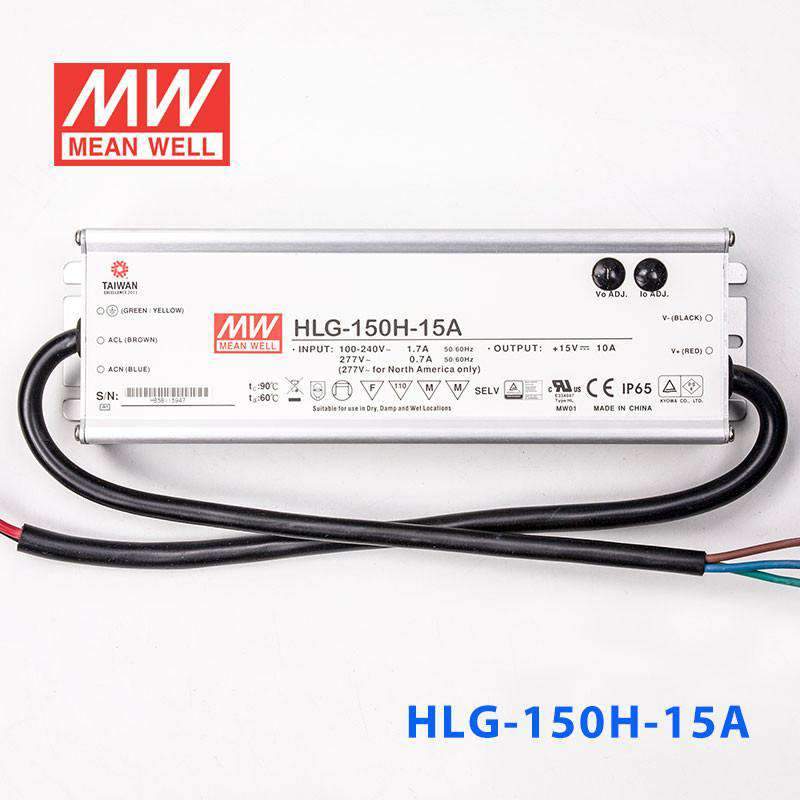

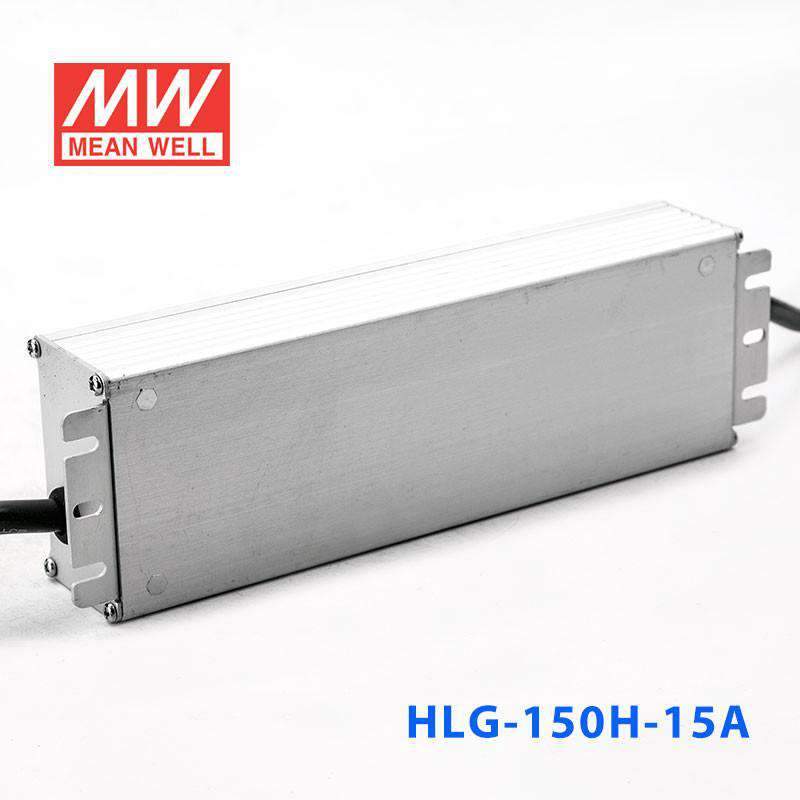

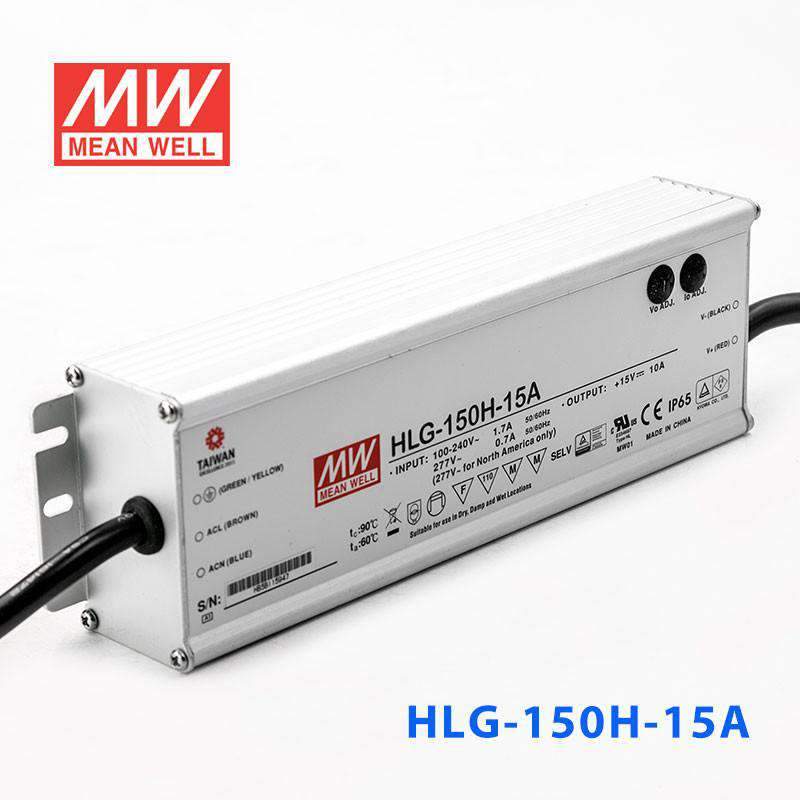

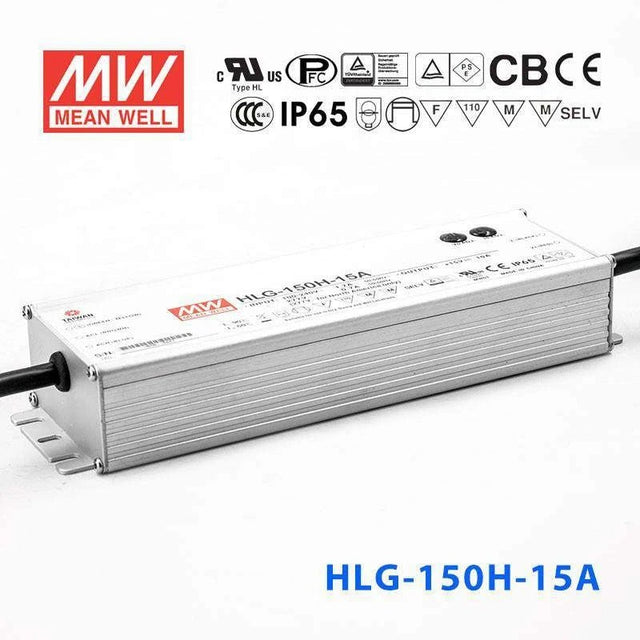

Mean Well HLG-150H-15A Power Supply 150W 15V - Adjustable
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-150H-15A for 15V LED strip lighting where I need to tune the output?
Yes. The HLG-150H-15A delivers 15V at up to 10A (150W) and includes a potentiometer for adjusting output voltage and current. This lets you precisely match the driver to your 15V LED strip's optimal operating point. It carries an IP65 water-resistant rating, so shelter it from direct water submersion.
Is the HLG-150H-15A suitable for powering 15V LED modules in a transit shelter sign?
It works well for transit shelter signage using 15V LED modules. The adjustable output lets you optimize brightness for the specific modules, and 150W handles medium-sized sign arrays. Since it has an IP65 rating, it is suitable for sheltered installations like enclosed sign cabinets.
Can I power 15V LED grow lights with the HLG-150H-15A?
Yes, provided the total load does not exceed 150W. The adjustable output potentiometer is particularly useful in grow light applications because you can fine-tune the current delivery to optimize light intensity for different plant growth stages. The wide 90-305VAC input accommodates various facility power configurations.
How many meters of 15V LED strip can the HLG-150H-15A handle?
The HLG-150H-15A provides up to 150W at 15V. Divide 150W by your strip's wattage per meter to find the maximum run length. For example, a strip rated at 12W/m would allow approximately 12.5 meters (150W / 12W per meter = 12.5m). Always check your strip's rated power per meter and stay within the 150W limit.
Can the HLG-150H-15A be installed outdoors under an awning?
Yes. The IP65 rating protects against dust and low-pressure water jets, which is adequate for sheltered outdoor locations like under awnings, covered walkways, or in ventilated electrical enclosures. For fully exposed outdoor locations without shelter, consider the IP67-rated HLG-150H-15 or HLG-150H-15B.
