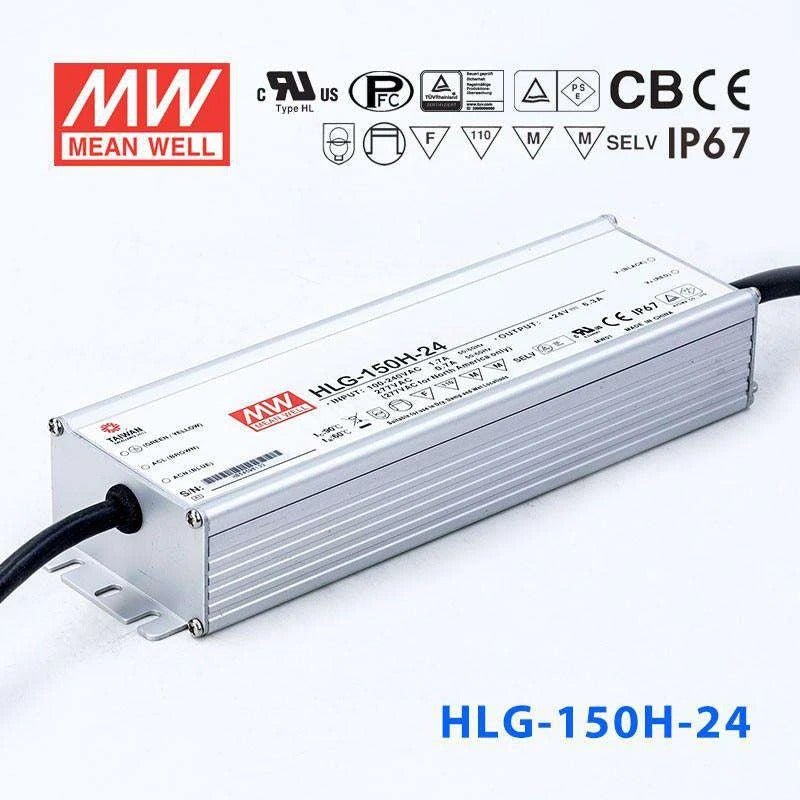

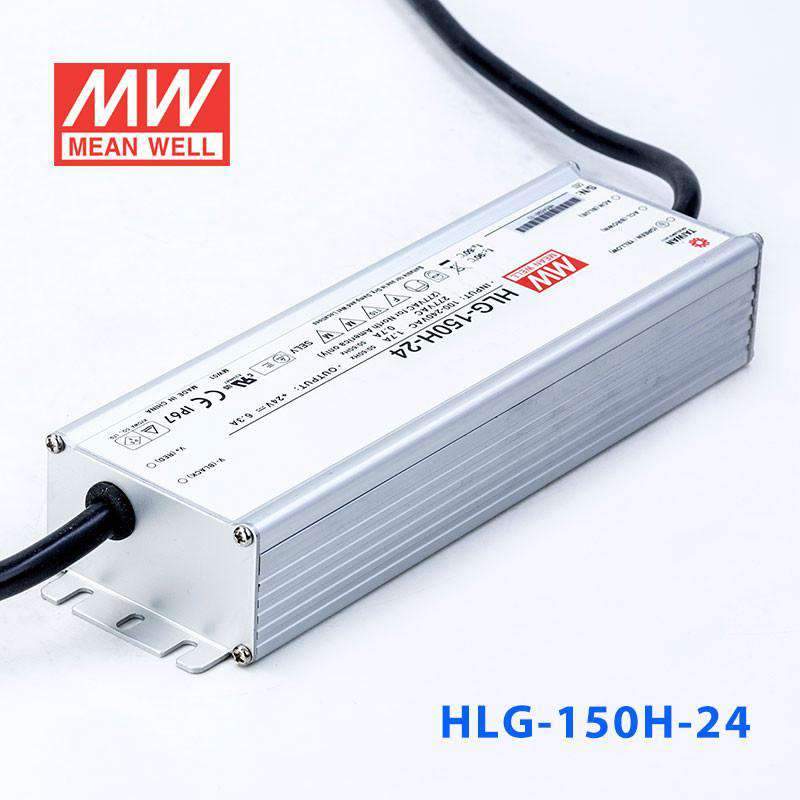

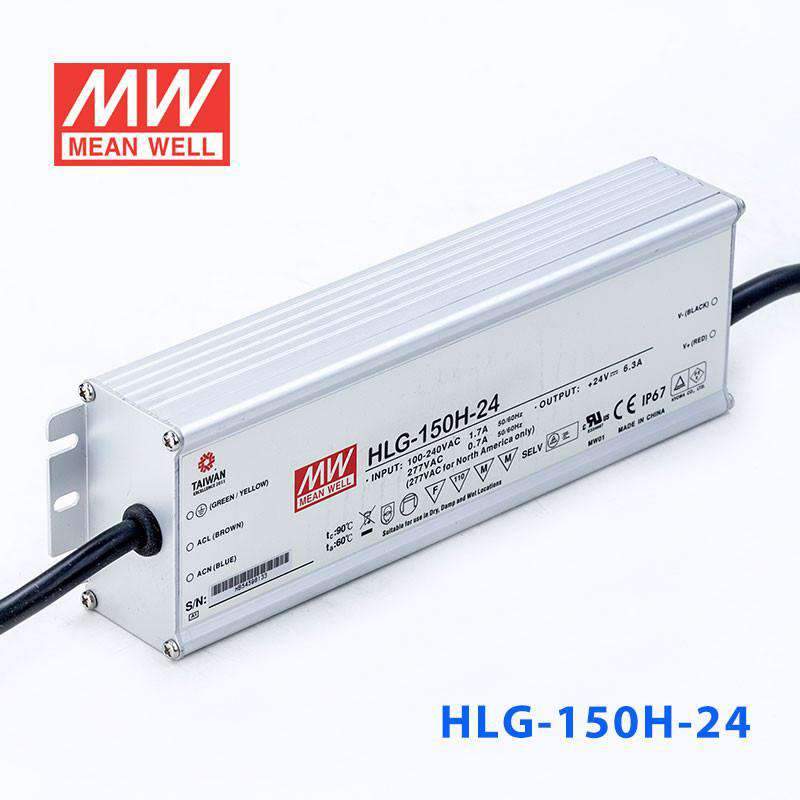

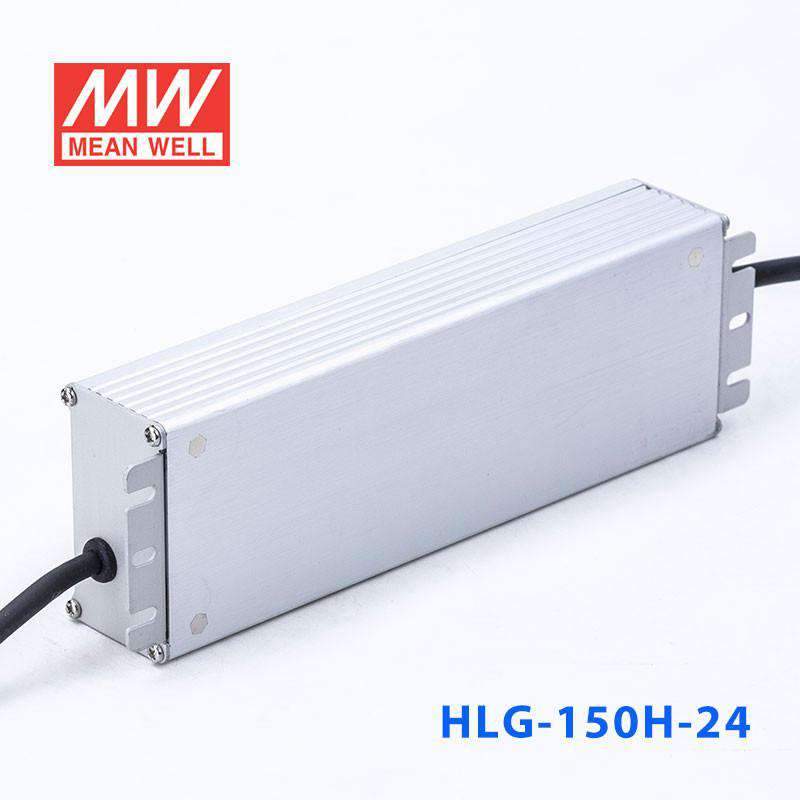

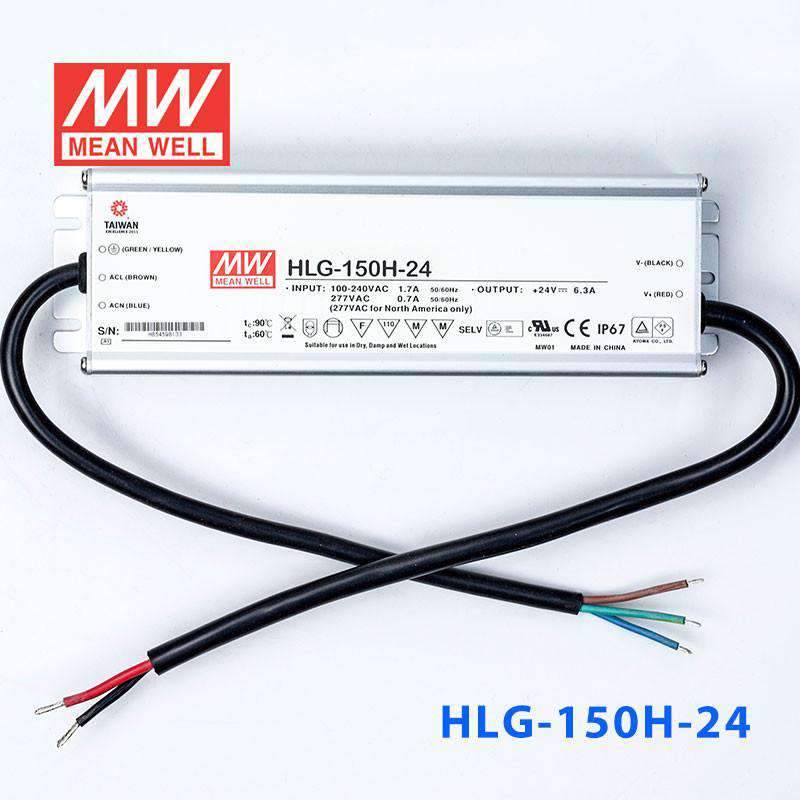

Mean Well HLG-150H-24 Power Supply 150W 24V
Description
Description
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-150H-24 to power standard 24V LED strip lighting outdoors?
Yes. The HLG-150H-24 outputs 24V at up to 6.3A (150W) with an IP67 waterproof rating, making it an excellent choice for outdoor 24V LED strip installations exposed to rain, snow, or high humidity. The aluminium casing and -40°C to +90°C operating range handle harsh weather conditions.
Is the HLG-150H-24 suitable for powering 24V LED channel letter signs?
Yes. At 150W and 24V, it can drive a significant run of standard 24V sign modules. IP67 waterproofing allows outdoor mounting without an additional enclosure, and the wide 90-305VAC input handles commercial mains supplies in most countries.
Can the HLG-150H-24 power 24V LED linear fixtures in a commercial or industrial space?
Yes. The 150W capacity at 24V is well-suited for commercial linear LED fixtures in warehouses, retail spaces, or offices. The constant-current mode with a CC voltage range of 12-24V provides stable output even when fixture loads vary slightly during warm-up.
How many meters of 24V LED strip can the HLG-150H-24 drive?
Divide 150W by the strip's rated power per meter. For example, a 24V strip rated at 14.4W/m allows about 10.4 meters (150W / 14.4W per meter). A 10W/m strip allows 15 meters. Always check your strip's rated power per meter and keep total load at or below 150W.
Can the HLG-150H-24 be installed in an outdoor junction box exposed to rain?
Yes. Its IP67 rating provides complete dust protection and withstands temporary water immersion up to 1 meter. It can be mounted in outdoor junction boxes, on exterior walls, or inside sign cabinets without additional weatherproofing.
What are the differences between the HLG-150H-24, 24A, 24AB, and 24B models?
All four share the same 150W / 24V / 6.3A core specs. The base HLG-150H-24 has fixed output and IP67 waterproof rating. The -24A adds output voltage/current adjustment via built-in potentiometer (IP65). The -24AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -24B adds dimming input only and retains IP67.
Other HLG-150H Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable | 150W | 24V | 6.3A | IP67 | $56.23 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $50.25 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
