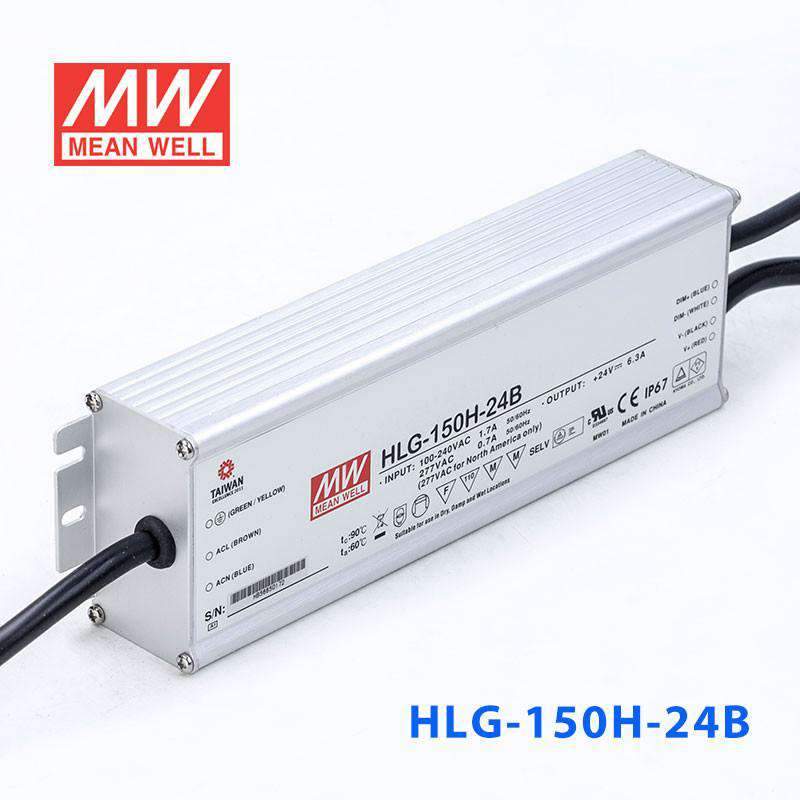

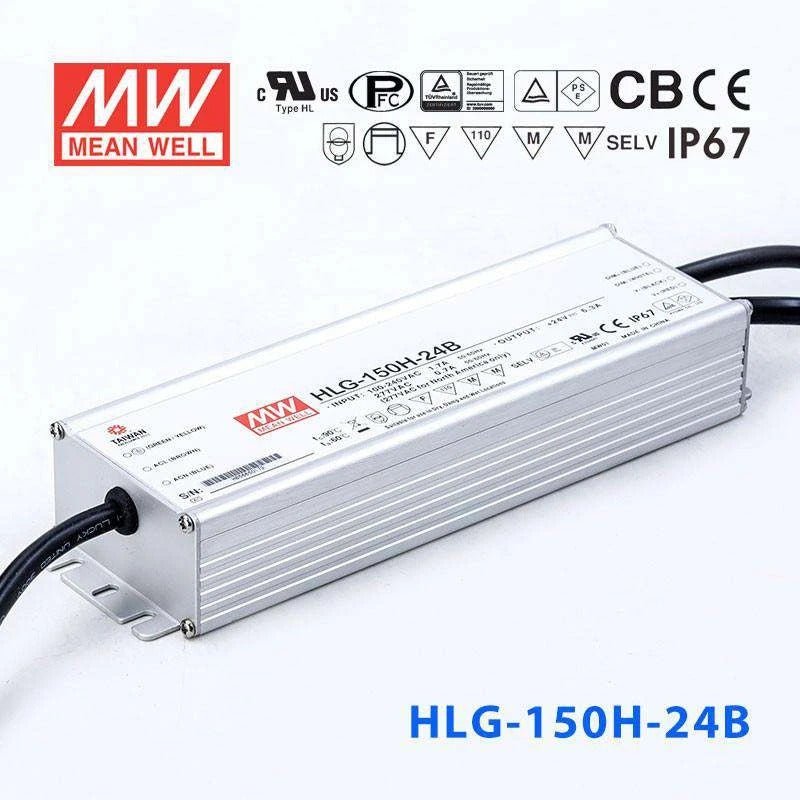

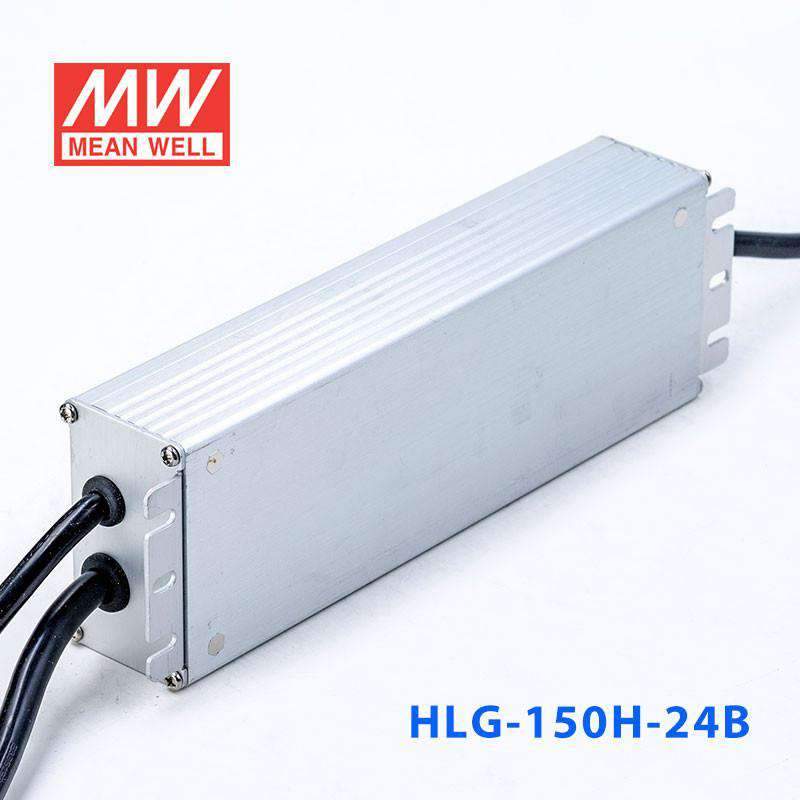

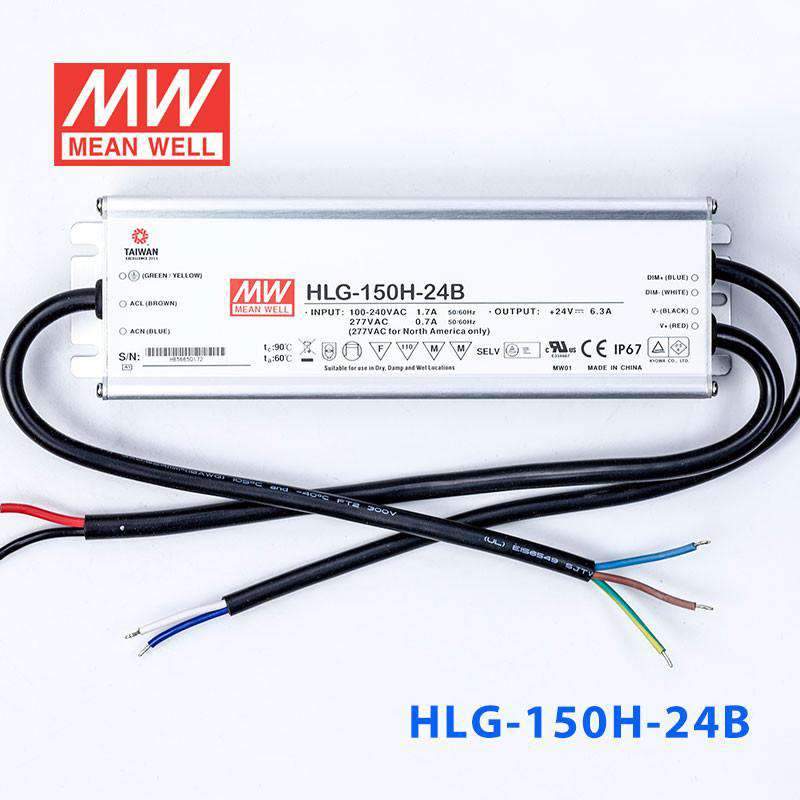

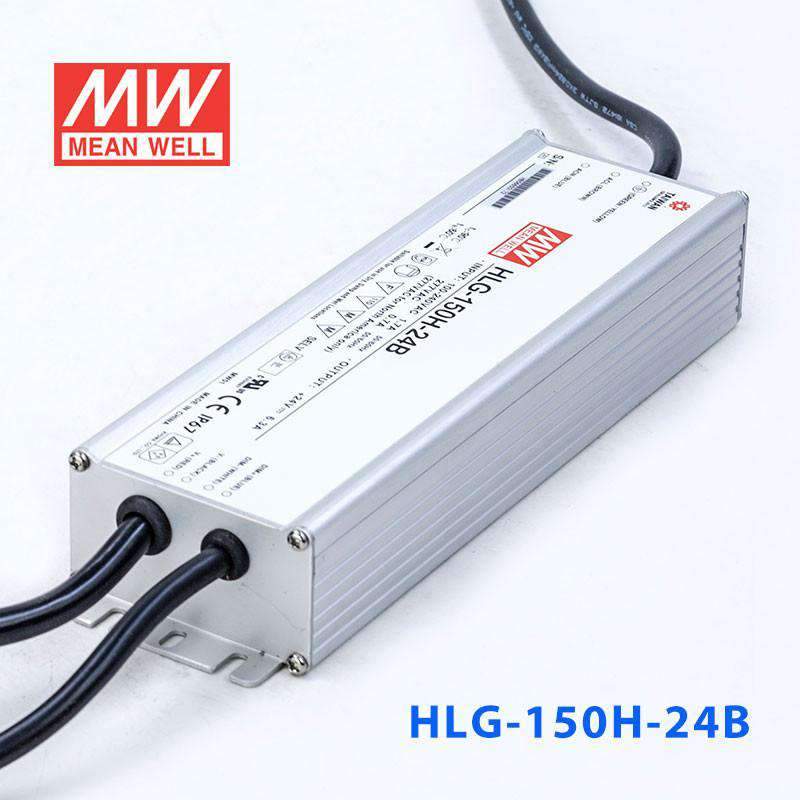

Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-150H-24B Power Supply 150W 24V- Dimmable
Description
Description
The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-150H-24B for dimmable outdoor 24V LED strip lighting?
Yes. The HLG-150H-24B outputs 150W at 24V with a 1-10V/PWM dimming input and carries an IP67 waterproof rating. This is one of the few drivers that combines external dimming control with full outdoor rain and submersion protection in a single unit.
Is the HLG-150H-24B a good choice for dimmable 24V LED landscape or garden lighting?
Yes. Its 150W at 24V capacity can power multiple landscape fixtures, and the dimming input enables nighttime brightness reduction for ambiance or energy savings. The IP67 rating and -40°C to +90°C operating range handle ground-level moisture, irrigation splash, and seasonal temperature extremes.
Can the HLG-150H-24B drive dimmable 24V LED sign modules in a weather-exposed location?
Yes. At 150W and 24V, it powers a substantial run of 24V sign modules. The dimming input allows scheduled brightness changes for nighttime operation, and the IP67 waterproof rating means it can be mounted alongside outdoor signs without a separate weatherproof enclosure.
Can I pair with the HLG-150H-24B to a smart lighting controller for scheduled dimming?
Yes. The dimming input accepts standard 1-10V or PWM signals compatible with most smart lighting controllers, astronomical timers, and building automation systems. This allows automated brightness scheduling without manual adjustment.
How many meters of 24V LED strip can the HLG-150H-24B power?
Divide 150W by the strip's rated wattage per meter. A 24V strip at 14.4W/m allows about 10.4 meters (150W / 14.4W per meter). A 10W/m strip allows 15 meters. Always check your strip's rated power per meter and keep total load at or below 150W.
Can the HLG-150H-24B withstand rain, snow, and temporary water pooling?
Yes. Its IP67 rating certifies complete dust protection and protection against temporary immersion in up to 1 meter of water. It handles rain, snow, condensation, and temporary ground-level flooding. It is not designed for permanent submersion, however.
Other HLG-150H Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-150H-24 Power Supply 150W 24V | 150W | 24V | 6.3A | IP67 | $54.87 | View |
| Mean Well HLG-150H-12 Power Supply 150W 12V | 150W | 12V | 12.5A | IP67 | $50.25 | View |
| Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable | 150W | 48V | 3.2A | IP65 | $54.81 | View |
| Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable | 150W | 42V | 3.6A | IP67 | $54.24 | View |
