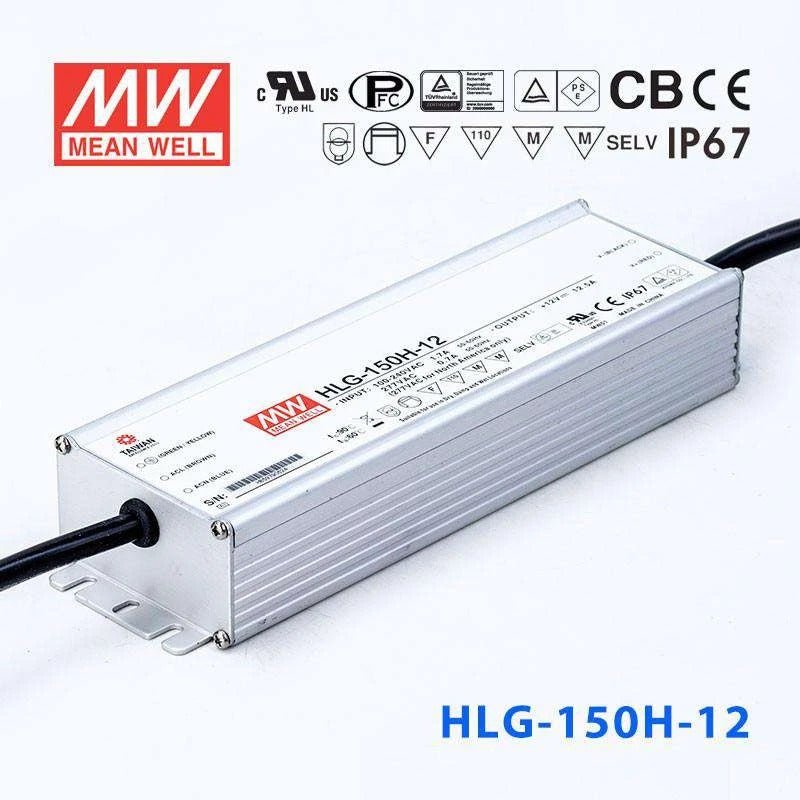

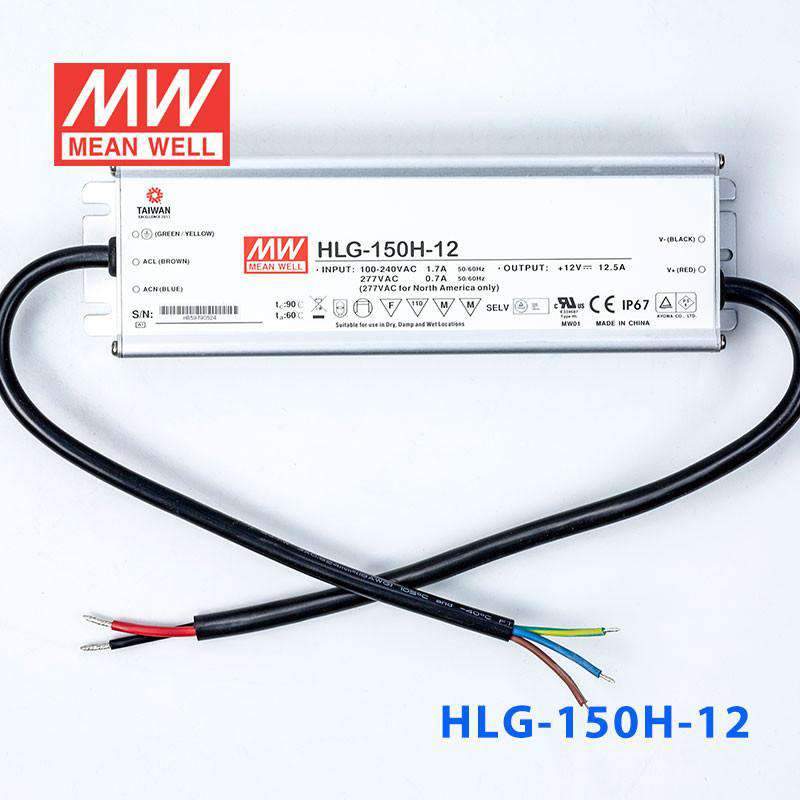

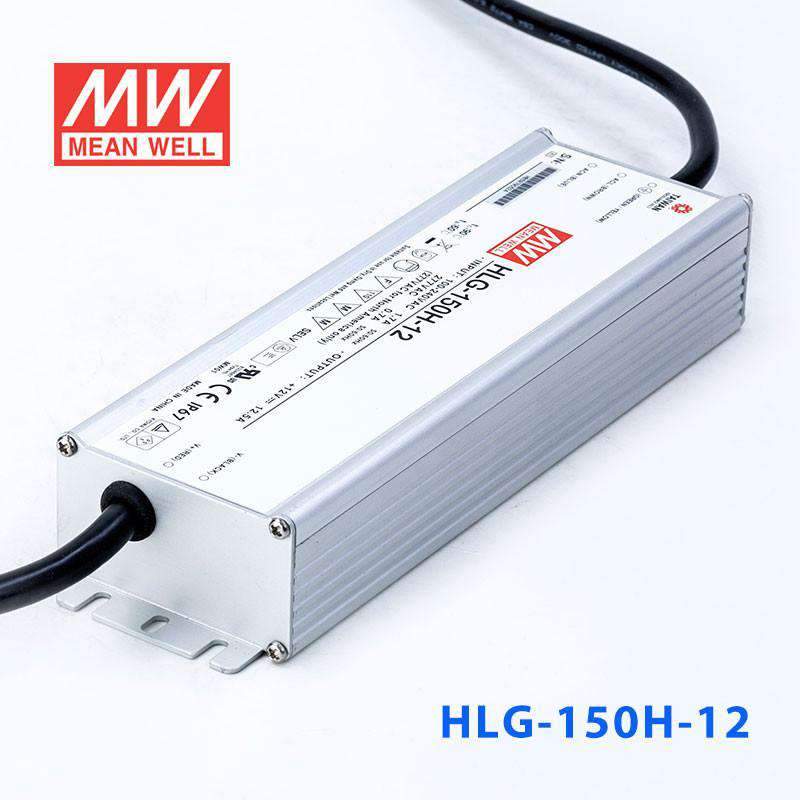

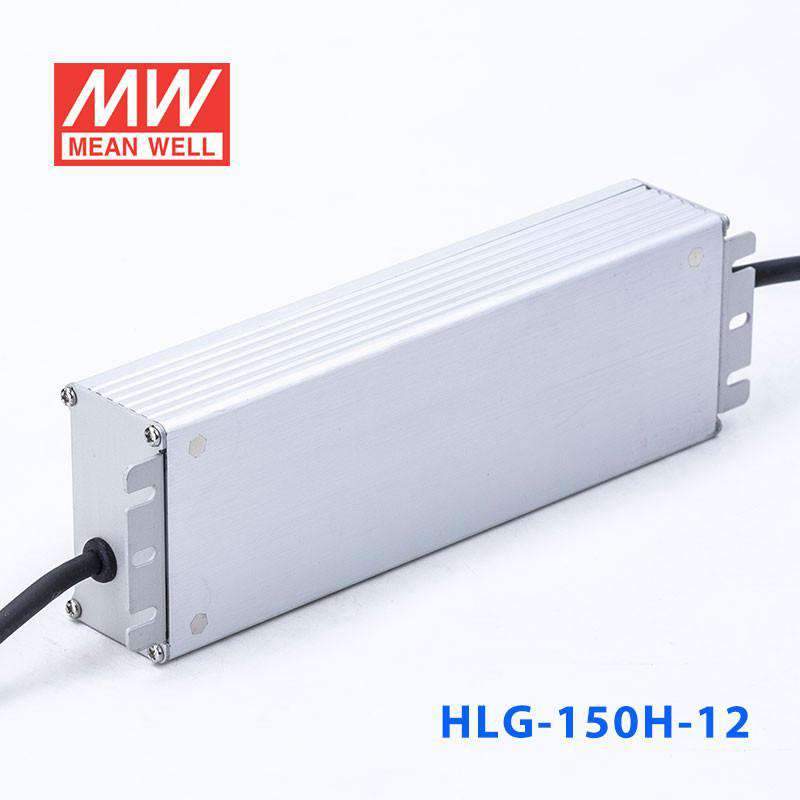

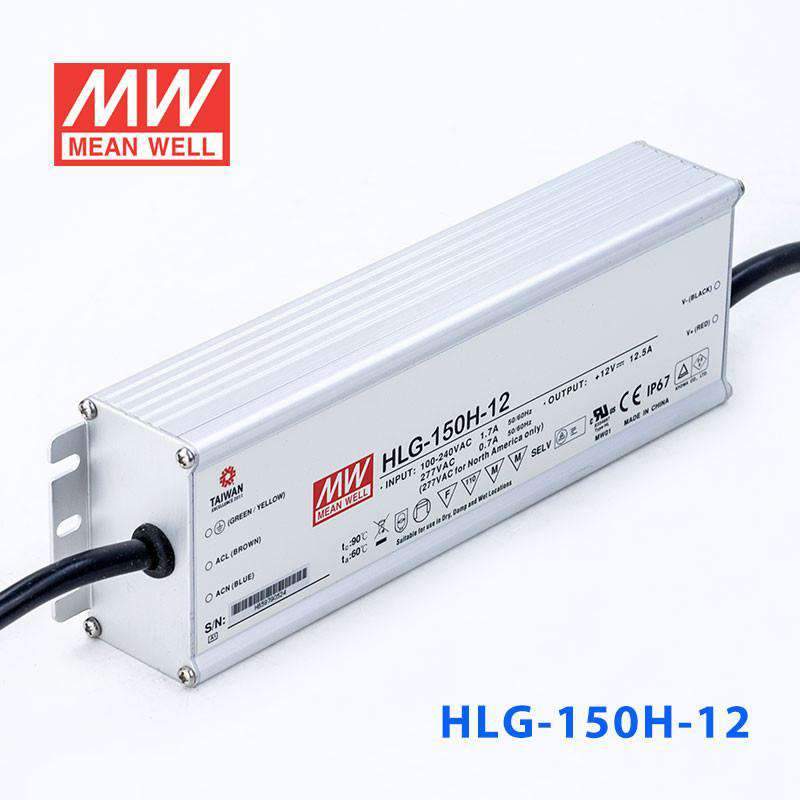

Mean Well HLG-150H-12 Power Supply 150W 12V

Yes. The HLG-150H-12 delivers 12V at up to 12.5A (150W) and has an IP67 waterproof rating, so it can be mounted inside outdoor sign cabinets or other exposed enclosures. The aluminium casing and -40°C to +90°C operating range also handle harsh weather conditions.

It is a strong fit for facade and building accent lighting using 12V LED strips or modules. With 150W of output and IP67 waterproof protection, the driver can be installed in exposed outdoor locations close to the LED fixtures. The wide 90-305VAC input accepts mains supplies worldwide.

Yes, as long as the total LED load stays at or below 150W. The HLG-150H-12 provides 12V at up to 12.5A, which is ample for most residential or commercial under-cabinet LED strip runs. Its compact 228 x 68 x 38.8 mm size allows it to be concealed above cabinetry.

That depends on your strip's rated wattage per meter. The HLG-150H-12 provides 150W at 12V. For example, a strip drawing 14.4W/m would allow approximately 10.4 meters (150W / 14.4W per meter). Always check your strip's rated power per meter and keep total load at or below 150W.

Yes. The IP67 rating means the HLG-150H-12 is protected against dust ingress and can withstand temporary immersion in water up to 1 meter. Combined with the sealed aluminium housing and -40°C to +90°C operating range, it is built for fully exposed outdoor installations.

All four share the same 150W, 12V, 12.5A core output. The base HLG-150H-12 has fixed output and IP67 waterproof rating. The -12A adds adjustable output via potentiometer but uses an IP65 water-resistant rating. The -12AB offers both adjustable output and dimming at IP65. The -12B provides dimming without adjustable output and retains IP67 waterproof protection.
