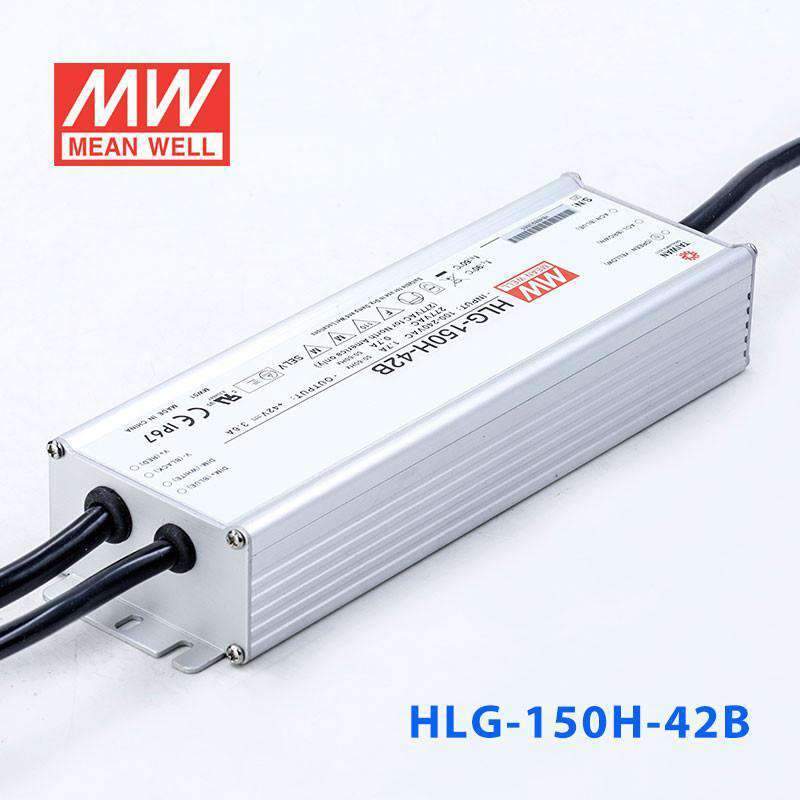

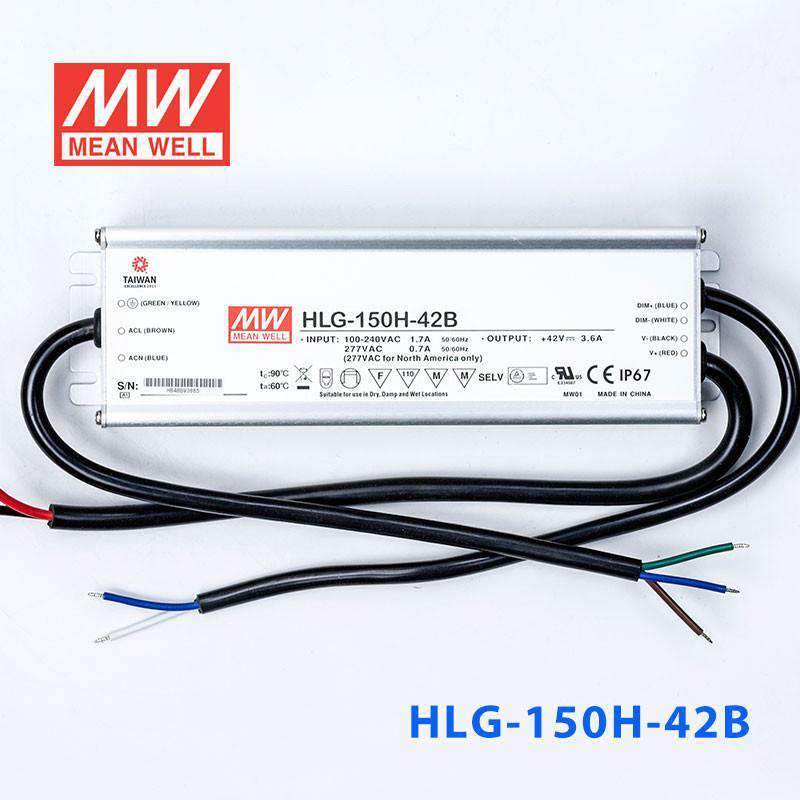

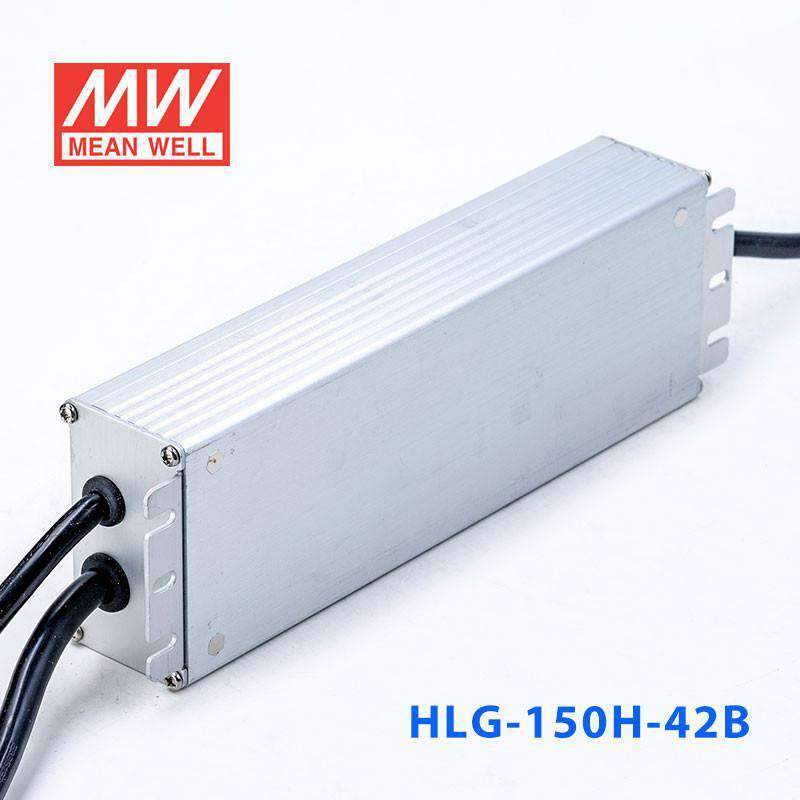

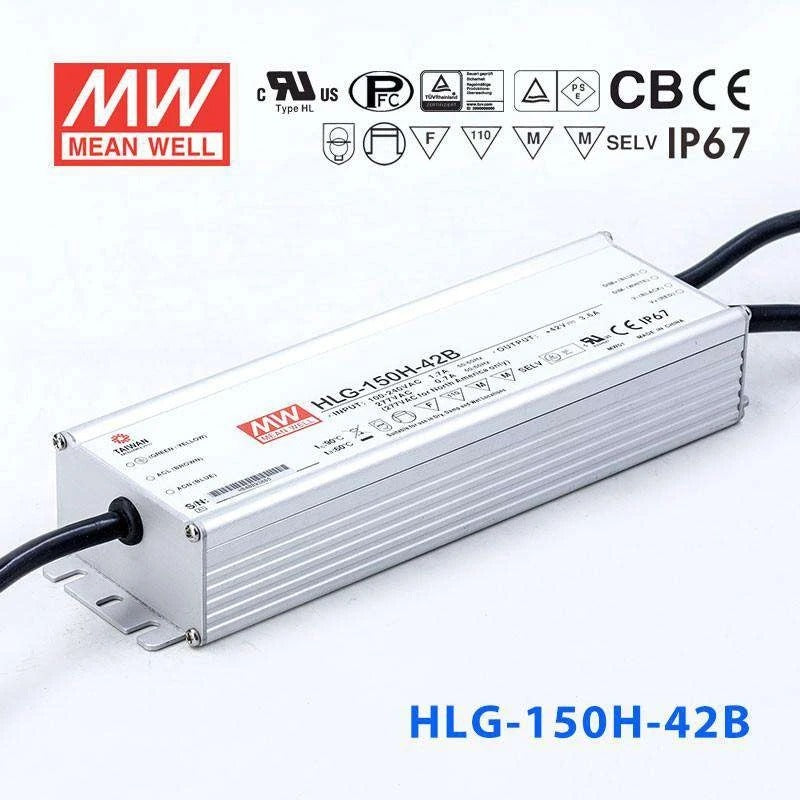

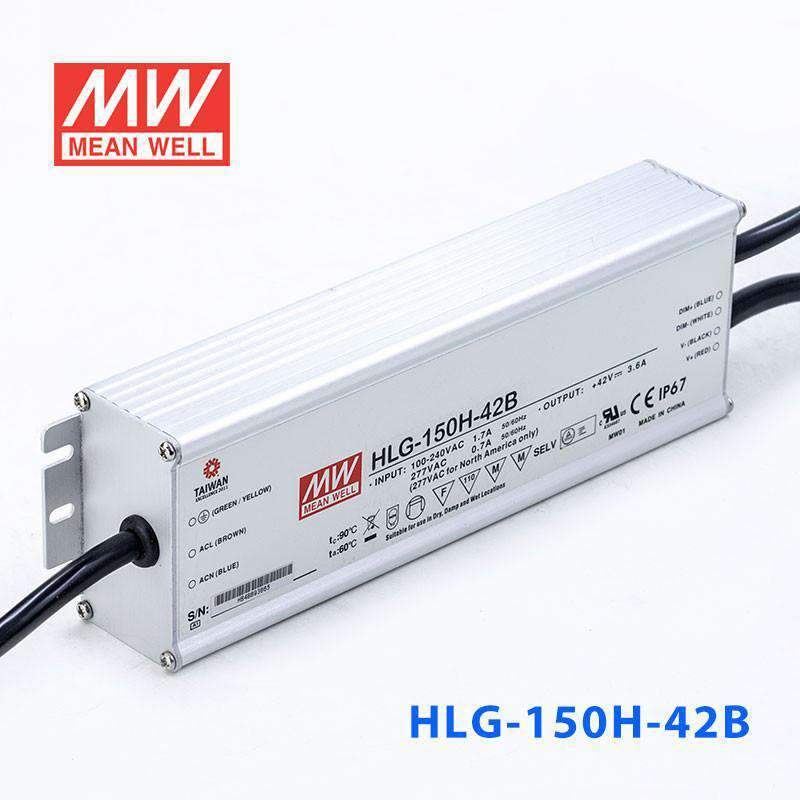

Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable 3.6A

Name: Mean Well HLG-150H-42B Power Supply 150W 42V- Dimmable 3.6A
Brand: Mean Well
SKU: HLG-150H-42B
Price: 51.77 USD
Availability: InStock
Rating: 5.0 (4 reviews)

Overview

HLG-150H-42B is the 42V output model of this series: rated current 3.6A, rated power 151.2W, typical efficiency 94%.

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-150H-42BSpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 42V
CONSTANT CURRENT REGION^Note.4: 21 ~ 42V
RATED CURRENT: 3.6A
RATED POWER: 151.2W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 38 ~ 46V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 2.16 ~ 3.6A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 47 ~ 53V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independent;GB19510.1, GB19510.14; IP65 or IP67; J61347-1, J61347-2-13 (except for B,AB and D-type) ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004; KC61347-1,KC61347-2-13 (except for AB,D-type) approved ; Design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 192.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly point (or TMP, per DLC), is about 80℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-150H-42B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-150H-42B DIMMING OPERATION — DIMMING OPERATION

HLG-150H-42B Illustration (page 5) — Illustration (page 5)

HLG-150H-42B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-150H-42B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-150H-42B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-150H-42B Dimensions (mm) — Dimensions (mm)

HLG-150H-42B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 Hazardous (Classified) Location.

Downloads

Certificates5

UL Certificate (HLG-150H)(EN) PDF Download

TUV Certificate (HLG-150H)(EN) PDF Download

EMC Certificate (HLG-150H)(EN) PDF Download

PSE Certificate (HLG-150H)(EN) PDF Download

CCC Certificate(HLG-150H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-150H-42B with a PWM dimmer to control outdoor 42V LED flood lights?

Yes. The HLG-150H-42B accepts 1-10V and PWM dimming signals, allowing smooth brightness control of 42V LED flood lights. Its IP67 waterproof rating means the driver can be installed outdoors in fully exposed conditions; protect the dimming and output wire connections with waterproof connectors or a cable joiner.

Is the HLG-150H-42B suitable for dimmable 42V LED street lighting?

Yes. At 151.2W and 42V with dimming input, it can drive 42V LED street light fixtures with brightness scheduling via a 1-10V controller. The IP67 rating and -40°C to +90°C case-temperature (Tcase) range make it reliable for pole-mounted outdoor installations in all weather conditions.

Can the HLG-150H-42B power dimmable 42V LED landscape lighting?

Yes. The 151.2W output at 42V with dimming capability is well suited for landscape accent lights, pathway lights, or garden feature lighting where brightness levels need to change throughout the evening. The IP67 waterproof rating handles direct ground-level moisture and rain exposure.

How many meters of 42V LED strip can the HLG-150H-42B handle?

Divide the 151.2W rated power by your strip's rated power per meter. For instance, a 42V strip consuming 20W/m could run about 7.5 meters (151.2W / 20W per meter). Check your strip's rated power per meter and keep the total load at or below 151.2W for reliable operation.

Can the HLG-150H-42B be used in locations with standing water or temporary flooding?

The IP67 rating means the enclosure is protected against temporary immersion in water. It can handle puddles, heavy rain, and brief flooding events, making it suitable for low-mounted outdoor installations near ground level or in drainage-prone areas.
