Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

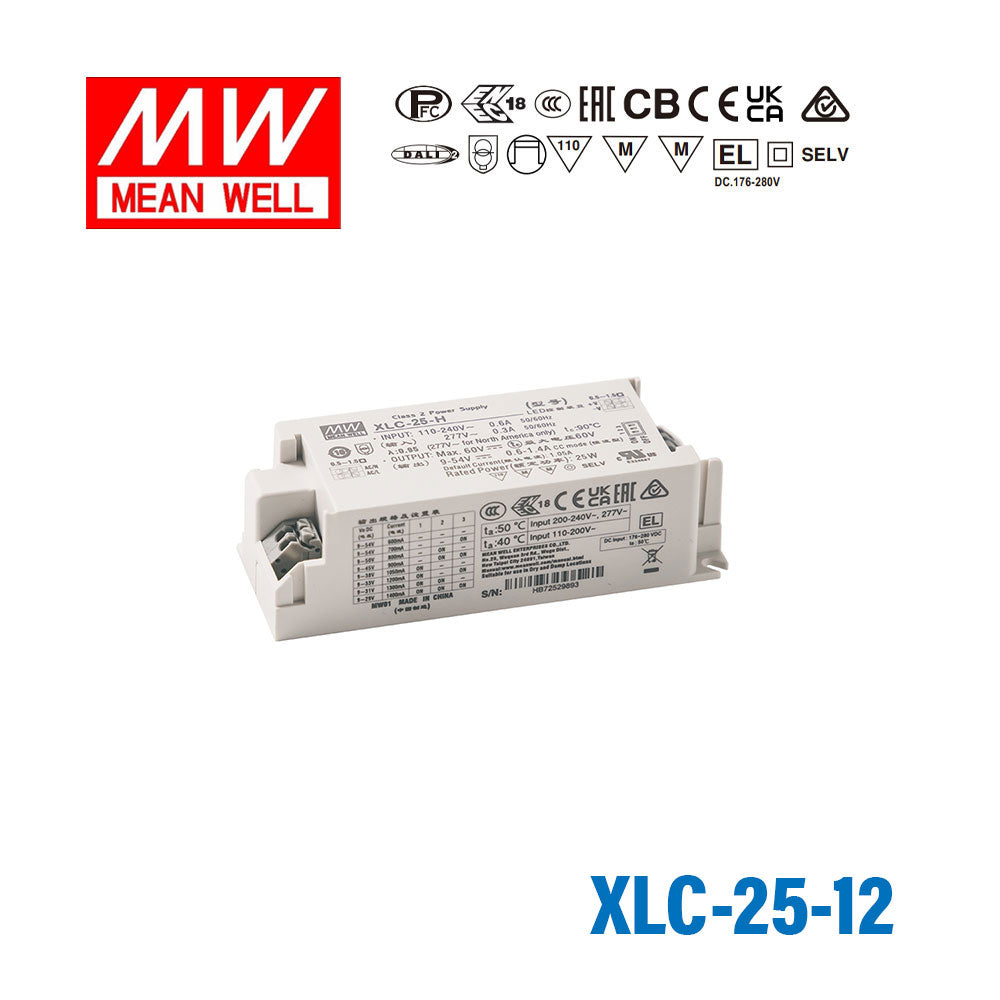

Mean Well XLC-25-12 LED Driver 25.2W 12V
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25.2 Watt
-
Output Voltage12 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
::specification::
Frequently Asked Questions
Can I use the XLC-25-12 to power 12V LED strip lighting in a retail display cabinet?
Yes, the XLC-25-12 is designed for 12V constant voltage LED strips and works well in enclosed retail display cabinets. Its built-in-use form factor and 147.0 × 32.0 × 40.0 mm dimensions make it compact enough to fit inside most display enclosures. The flicker-free output helps ensure high-quality light for product displays.
Is the XLC-25-12 suitable for powering 12V LED signage in a shop window?
Yes, the XLC-25-12 can drive 12V LED sign modules or channel letter strips up to 25.2W total load. Its wide input range of 100–305VAC allows it to work across global mains supplies, which is useful in commercial signage installations. The Class II rating means no protective earth connection is required.
How much 12V LED strip can the XLC-25-12 support?
The XLC-25-12 delivers up to 25.2W at 12V. To calculate the maximum strip length, divide 25.2W by your strip's rated power per meter — for example, a 14.4 W/m strip supports up to approximately 1.75 meters (25.2 ÷ 14.4 ≈ 1.75 m). Always check your specific strip's rated power per meter and derate to about 80% of the driver's maximum for reliable continuous operation.
Can the XLC-25-12 operate in high-temperature environments like above a ceiling or inside a luminaire housing?
The XLC-25-12 is rated for operation between -25°C and +90°C, giving it a wide thermal margin for installations above ceilings or inside enclosed luminaire housings where ambient temperatures can rise. However, actual derating should be confirmed against the full datasheet as output current may be reduced at the upper end of this range.
Does the XLC-25-12 meet European safety and efficiency requirements?
Yes, the XLC-25-12 holds CB, CCC, CE, EAC, and ENEC certifications, covering European (CE, ENEC), CIS (EAC), and international (CB) safety standards. It also includes Power Factor Correction (PFC) built in, helping it comply with European efficiency directives for lighting power supplies.
What is the difference between the XLC-25-12 and the XLC-25-12-S?
Both the XLC-25-12 and XLC-25-12-S are 25.2W, 12V, 2.1A constant voltage LED drivers with identical electrical specs and the same 147.0 × 32.0 × 40.0 mm dimensions. The XLC-25-12-S adds a strain-relief feature on the output cable, providing a more secure mechanical connection where cables are subject to pull or vibration. The XLC-25-12 also lists built-in use as a feature while the -S variant is intended for applications where strain relief is a priority.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLC-25 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLC-25-H-MAS LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming with Strain Relief | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming | 25W | 60V | 0.7A | Indoor | $137.30 | View |
| Mean Well XLC-25-H-SN LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-S LED Driver 25W 700mA 9~54V Constant Power with Strain-relief, Current Setting by Dip Switch | 25W | 60V | 0.7A | Indoor | $29.13 | View |
| Mean Well XLC-25-H-N LED Driver 25W 700mA 9~54V Constant Power, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $27.64 | View |
| Mean Well XLC-25-H-DA2SN LED Driver 25W 700mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting | 25W | 60V | 0.7A | Indoor | $38.12 | View |
