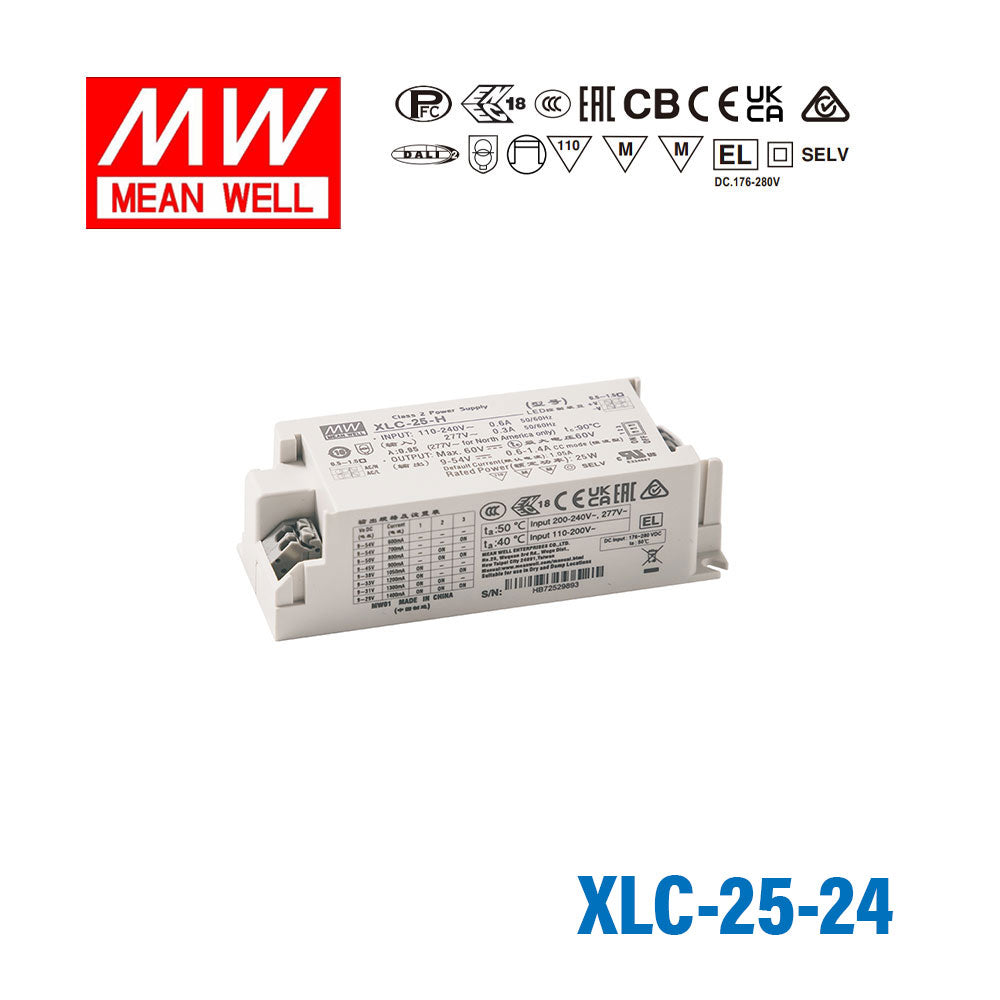

Mean Well XLC-25-24 LED Driver 25.2W 24V
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length5.79 in
-
Width1.26 in
-
Height1.57 in
::specification::
Frequently Asked Questions
Can I use the XLC-25-24 to power a 24V LED strip for architectural cove lighting?
Yes, the XLC-25-24 is a 24V constant voltage driver that is compatible with 24V LED cove lighting strips. At 25.2W output, it can support moderate strip lengths suitable for accent or cove applications. The flicker-free design is useful in spaces where occupants may notice light quality, such as offices or hospitality areas.
Is the XLC-25-24 compatible with 24V LED strips used in illuminated signage?
Yes, the XLC-25-24 delivers 24V constant voltage output and can power 24V LED modules or strips commonly used in channel letter and backlit signage up to 25.2W total load. The wide input range of 100–305VAC makes it compatible with global mains voltages, an advantage in international signage installations.
Can the XLC-25-24 be used inside an outdoor signage cabinet?
The XLC-25-24 has no listed IP rating, so it should be installed inside a sealed or protected enclosure rather than directly exposed to weather. If the signage cabinet provides IP54 or better protection and adequate thermal management, the driver can operate within its -25°C to +90°C temperature range. For fully weatherproof driver installations, choose a model with an IP65 or higher rating.
How long a 24V LED strip can the XLC-25-24 power?
The XLC-25-24 provides up to 25.2W at 24V and 1.05A. To find the maximum strip length, divide 25.2W by your strip's watts per meter rating — for a common 14.4 W/m strip that is approximately 1.75 m (25.2 ÷ 14.4 ≈ 1.75 m), and for a 9.6 W/m strip about 2.6 m. Always verify your strip's rated power per meter and size for no more than 80% of rated driver output for continuous use.
Does the XLC-25-24 include power factor correction?
Yes, the XLC-25-24 includes built-in Power Factor Correction (PFC) as part of its Class II design. PFC improves the efficiency of power drawn from the mains supply and is often required in commercial lighting installations to meet energy standards. Combined with the flicker-free output, it is well suited to commercial LED lighting applications.
What is the difference between the XLC-25-24 and XLC-25-24-S?
The XLC-25-24 and XLC-25-24-S share identical electrical specifications: 25.2W output, 24V, 1.05A, with the same 147.0 × 32.0 × 40.0 mm case. The XLC-25-24-S adds a strain-relief cable exit, making it more suitable for installations where the output cable is subject to physical tension or vibration. The XLC-25-24 also includes built-in use as a listed feature.
